EPEVER MPPT Solar Charge Controller 40A 100V MaxInput Voltage Negative Grounded Tracer 4210AN + Remote Meter MT50+ RTS with Backlight LCD Display for Gel Sealed Flooded Lithium Solar Battery Charger

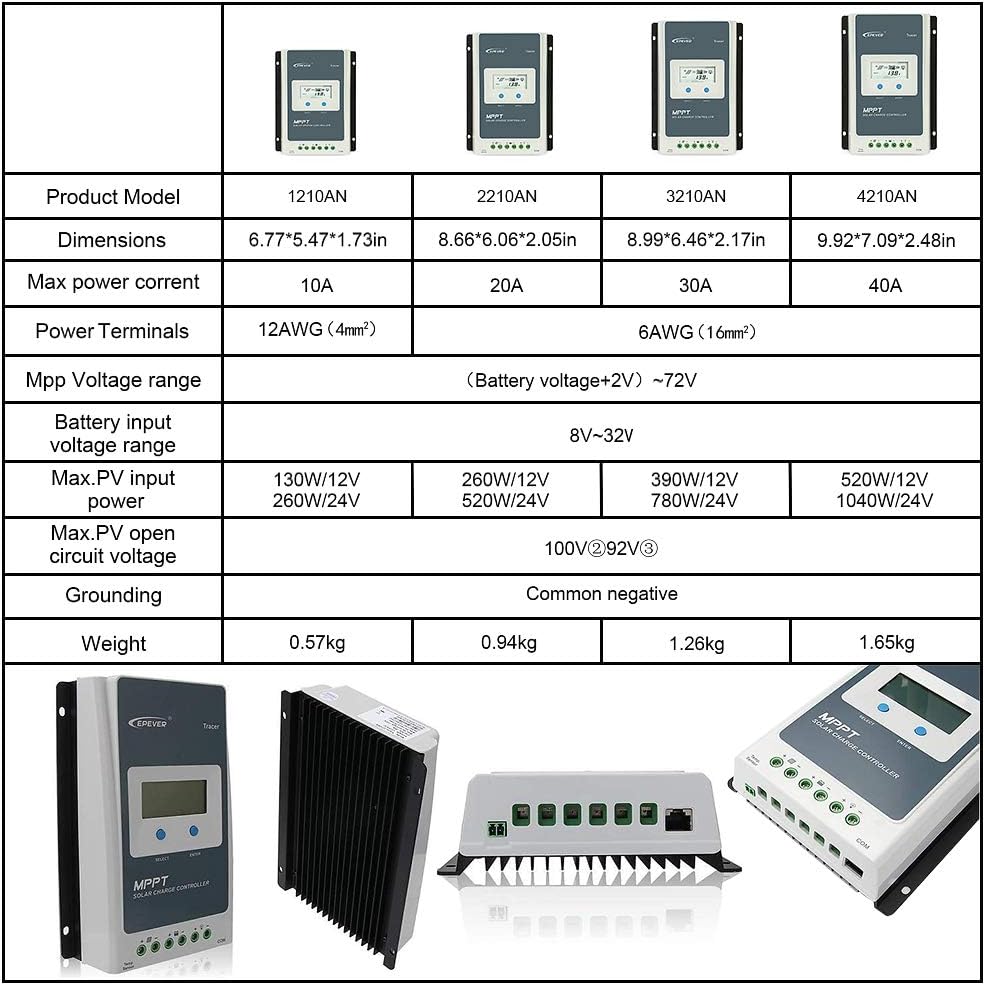

Parameters:

• Rated charge current: 40A
• Max.PV input power: 520W for 12V battery system; 1040W for 24V battery system.
• Max PV open circuit voltage:100VDC (92V at25℃ temperature)
• Battery type: Lead-acid (Sealed, AGM, Gel, Flooded) and Lithium (LiFePO4/ Li[NiCoMn]O2).
• Negative Grounded
• Terminal: 6AWG(16mm2 )
• Recommended cable:6AWG(16mm2 )
• Dimension:252x180x63mm
• Net weight: 1.9kg

MT50

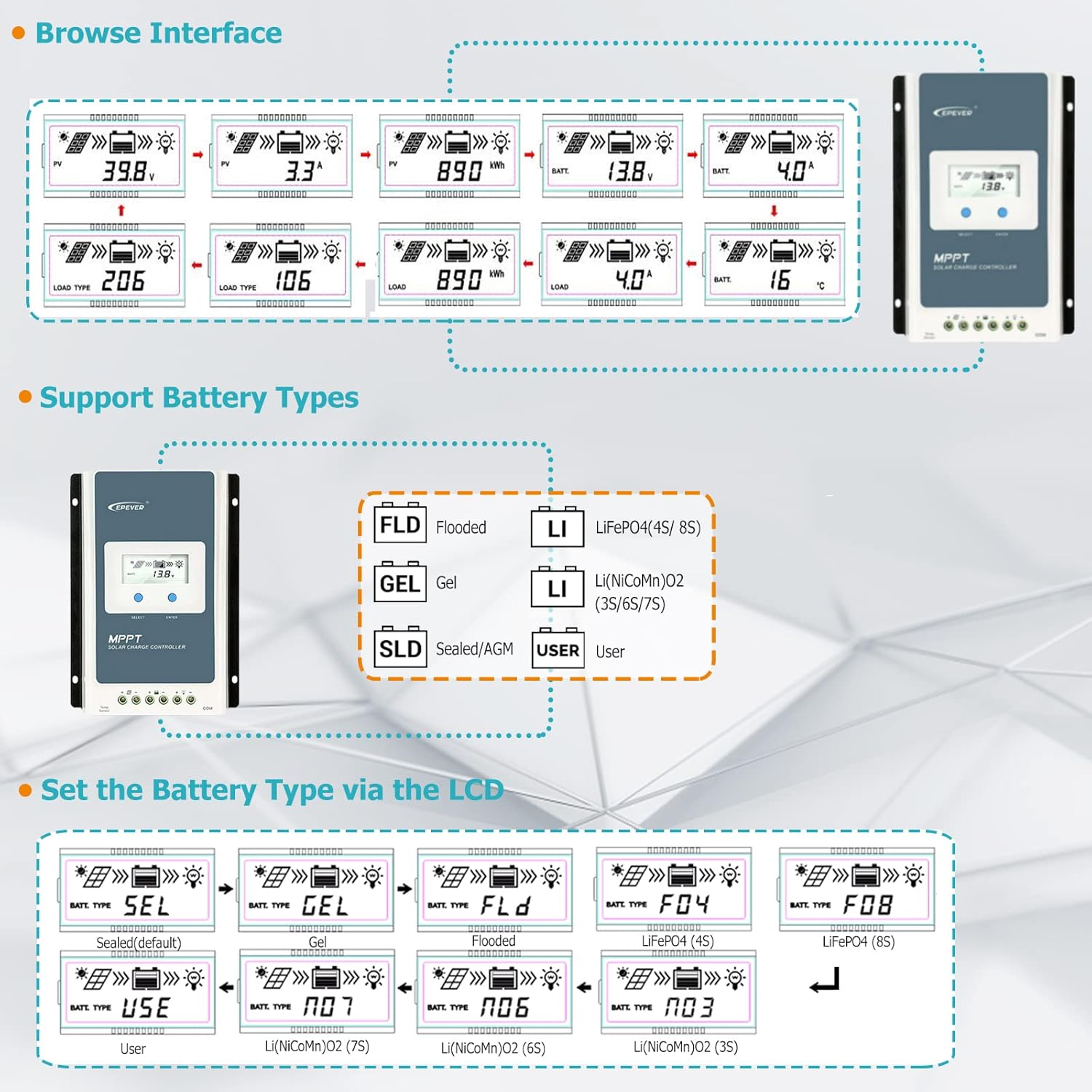

• Automatic identify the controller, and display the type, model and relevant parameter data.
• Add Lithium battery voltage parameters.
• When switching the battery type to "USER," the default voltage point is the corresponding voltage before the battery type is modified.
• In all battery types, the parameters can be customized only in the mode "USER" is selected

Product Features:

1. EPever 40A MPPT chargecontroller fits for 12V/24V Battery DC automaticallyidentifying system.PV input power:520W/12V battery,1040W/24V battery.Max PV voltage of 100V. Common Negative grounddesign.
2. Accuratelyrecognizing and tracking of multiplepower point, with HIGH trackingefficiency more than 99.5%, PEAKconversion efficiency of 98%.

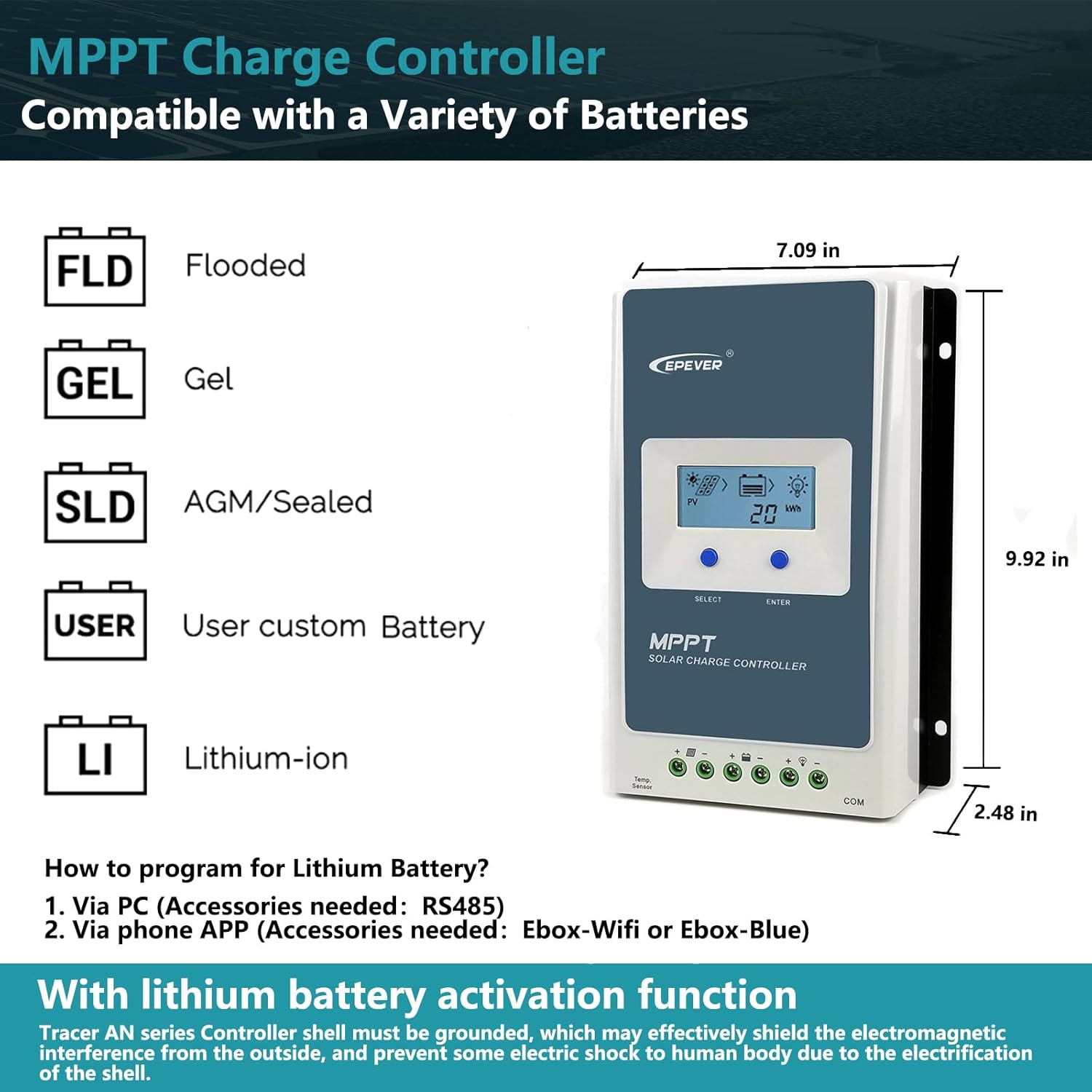

3. 40AMPPT Charge controller is compatible with Lead-acidbatteries, GEL/AGMand Lithium batteries. (AGM battery setting same asGEL parameters, ormore accurate parameters follow battery factoryadvice by User type )Four load control modes: manual mode, lightON/OFF, light On+ Timer andtest mode.

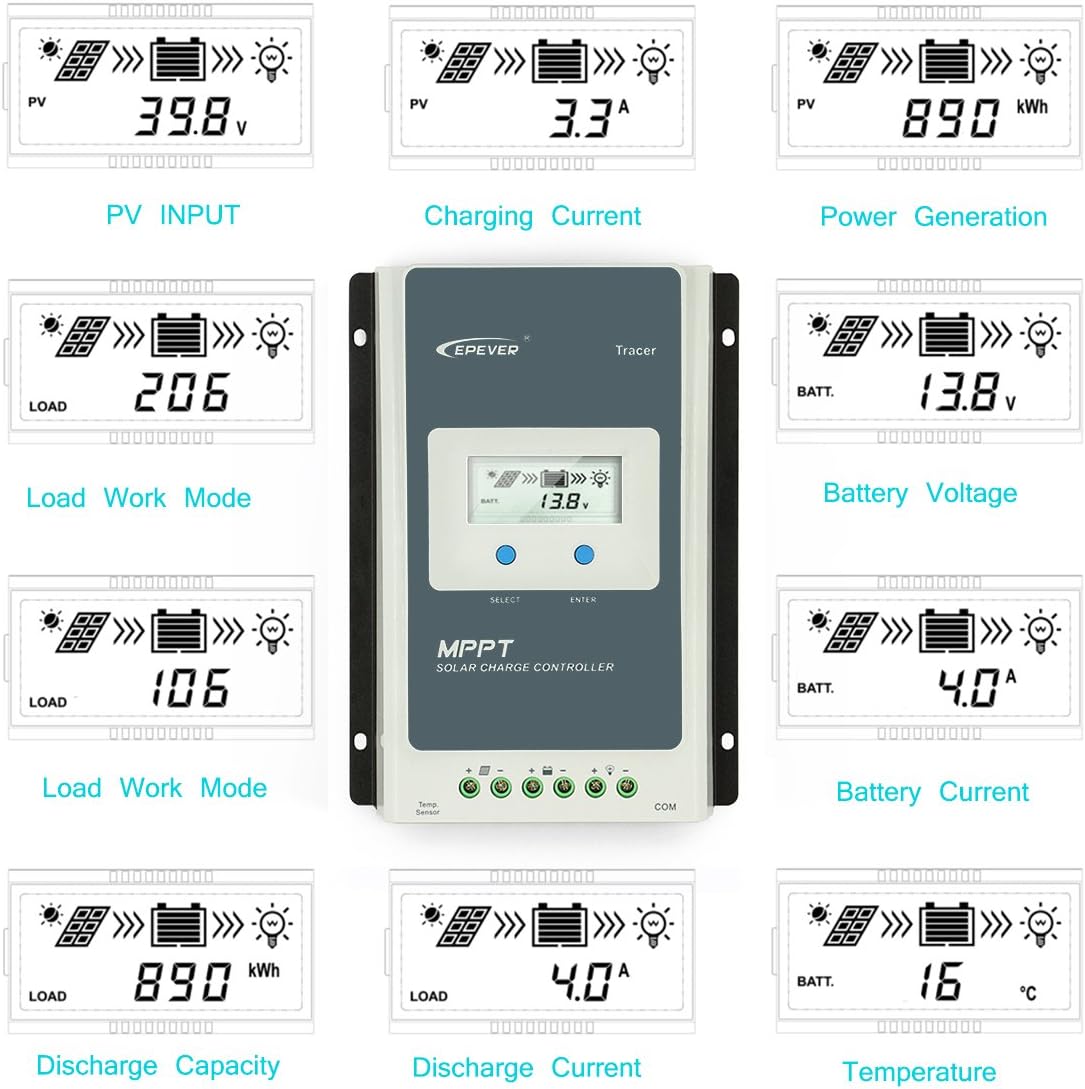

4. Backlight LCD displays. Support PC(only Windows) software, MT50 for convenience of real-time data viewing and parameter setting.

• Rated charge current:40A
• Max. PV open circuit voltage: 100VDC
• PV input power: 520W/12V,1040W/24V
• Negative Ground
• Battery type: Lead-acid (Sealed, AGM, Gel, Flooded) and Lithium
• Gift:Small temperature probe（Model:RT-MF58R47K3.81A）

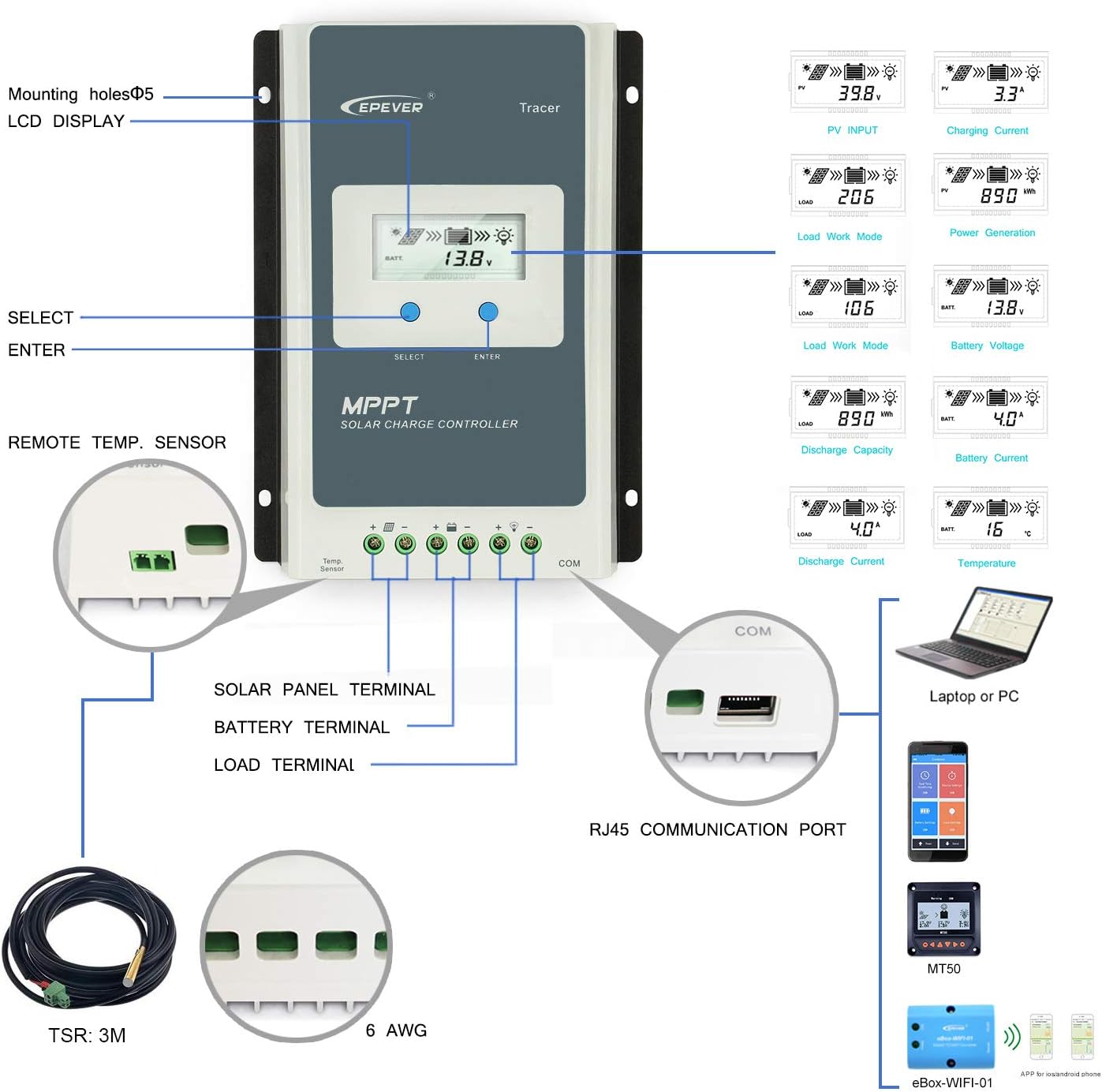

Steps: Connect solar system inthis order: 1.battery--> 2. load--> 3.PV array,and disconnectsolar system in the reverse order >3. >2. >1.

• Battery must be connected first ! Never connect soalr panel array to controller Without/Before connect battery.
• DONOT connect any inverter/wind/Alternator or Charger into the chargecontroller directly ! You should connect with battery and add fuse .
• If there is a long distance between the PV array and controller orbetweenthe controller and battery, larger size wires should be used toreducethe voltage drop and improve performance. (Recommended wiresize is onlyfor reference.)

MPPT Solar Charge Controller 40A 12v/24v Auto +MT50 + Temp Sensor Cable with for GelAGM Sealed Flooded LithiumSolar Battery, Negative Grounded

What you will get? (Package included)

Model: Tracer4210AN
