Windmill 600W (12V/24V) (50A/25A) Wind Turbine Generator kit Wind Power MPPT Charge Controller Included (Amp, Volt & Watt Display) + Automatic and Manual Braking System. DIY Installation

Q: Can this 600 watt wind turbine power a house?

A: The short answer is probably not. With a smaller wind turbine like this one, the power generated is not significant enough to completely replace your electricity bill (at a modest wind speed, the turbine will generate 876kWh per year, and the average household uses about 10,000kWh per year). However, it can reduce your electricity bill to a large extent depending on, among other things, wind conditions and your power usage.

Q: Does this turbine produce electricity in AC or DC?

A: The AC power generated by Automaxx’s 600W wind turbine undergoes conversions to DC power using the integrated charge controller. This DC power is subsequently stored in a battery bank for future utilization.

Q: Can the wind turbine self redirect towards oncoming wind?

A: Yes, all our wind turbines have a 360 rotation that faces with a tail that redirects the wind turbine to face the oncoming wind.

Q: Can we add Automaxx wind turbines to an existing solar system?

A: Yes, as long as the solar system also allows for a hybrid system connection. Our wind turbine systems convert the AC power generated into stable DC power that feeds the battery bank system directly.

Q: Should I take it down in a storm?

A: Yes, if you are anticipating a storm with high winds, we do suggest taking down the wind turbine. However, our wind turbines do come with an automatic MPPT charge controller braking system that activates automatically when the RPMs reach a threshold or if there is excessive voltage. A manual braking switch is also in place.

Q: Is the Automaxx wind turbine grid tied or off grid system?

A: Automaxx’s wind turbines are designed to be an off grid system, however you could alter it to be grid tied by connecting a grid tie inverter.

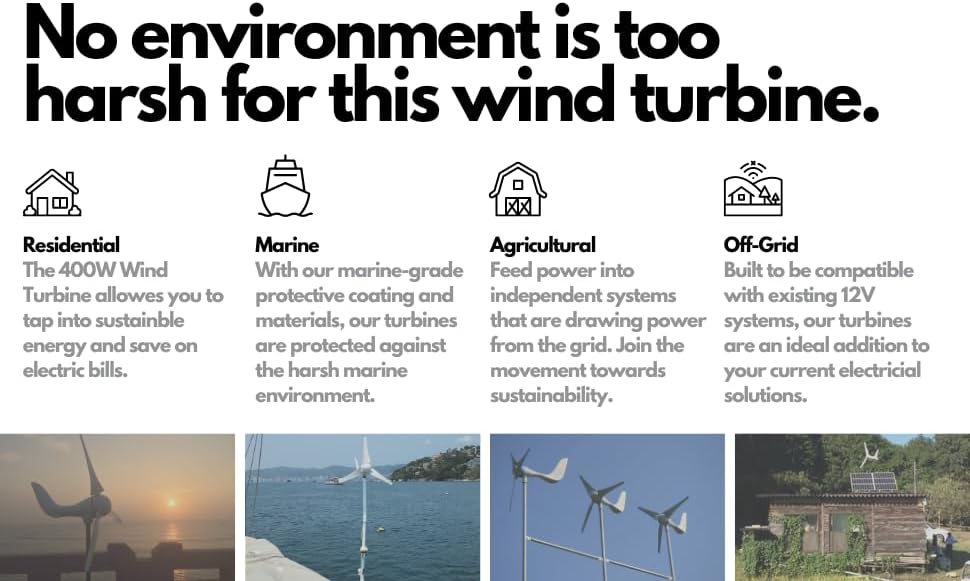

Q: Can this wind turbine be used on a boat?

A: Yes. In fact, this turbine has been designed to withstand the harsh environments at sea. It has a marine-grade layer of coating that protects it against UV and salt damage. It also features a low cut-in speed, which is ideal for trickle charging. Moreover, it's quiet and portable design makes it a perfect candidate for marine applications.

When Installing, ensure to leave a 23 - 33ft safety area around the spinning blades's operating zone.

Maximum output600W VoltagesCompatible with either 12 or 24VRated Load Current30A (Max 35A)Cut in wind speed4.5mph / 2m/sWeight26.5lbsGenerator type3φ Permanent Magnet BrushlessRated Speed28mph / 12.5m/sRecommended battery capacity>100A/hrBlade MaterialNylon + Glass fiberBattery protection voltage28.8 - 30V Over speed braking>1250rpmSpinning Diameter4.4ft / 1.35mCountry of OriginTaiwan

Automaxx's wind turbine generates AC power, which is converted to DC power by the built-in charge controller and stored in a battery bank for later use.

Yes, for impending high-wind storms, we recommend removing the wind turbine. However, our turbines include an automatic MPPT charge controller with braking that activates at certain RPM or voltage levels, alongside a manual braking switch.

FAQ

Installation Safety Information

Safety Operating Area

System Specifications

Does this turbine produce electricity in AC or DC?

Should I take it down in a storm?
