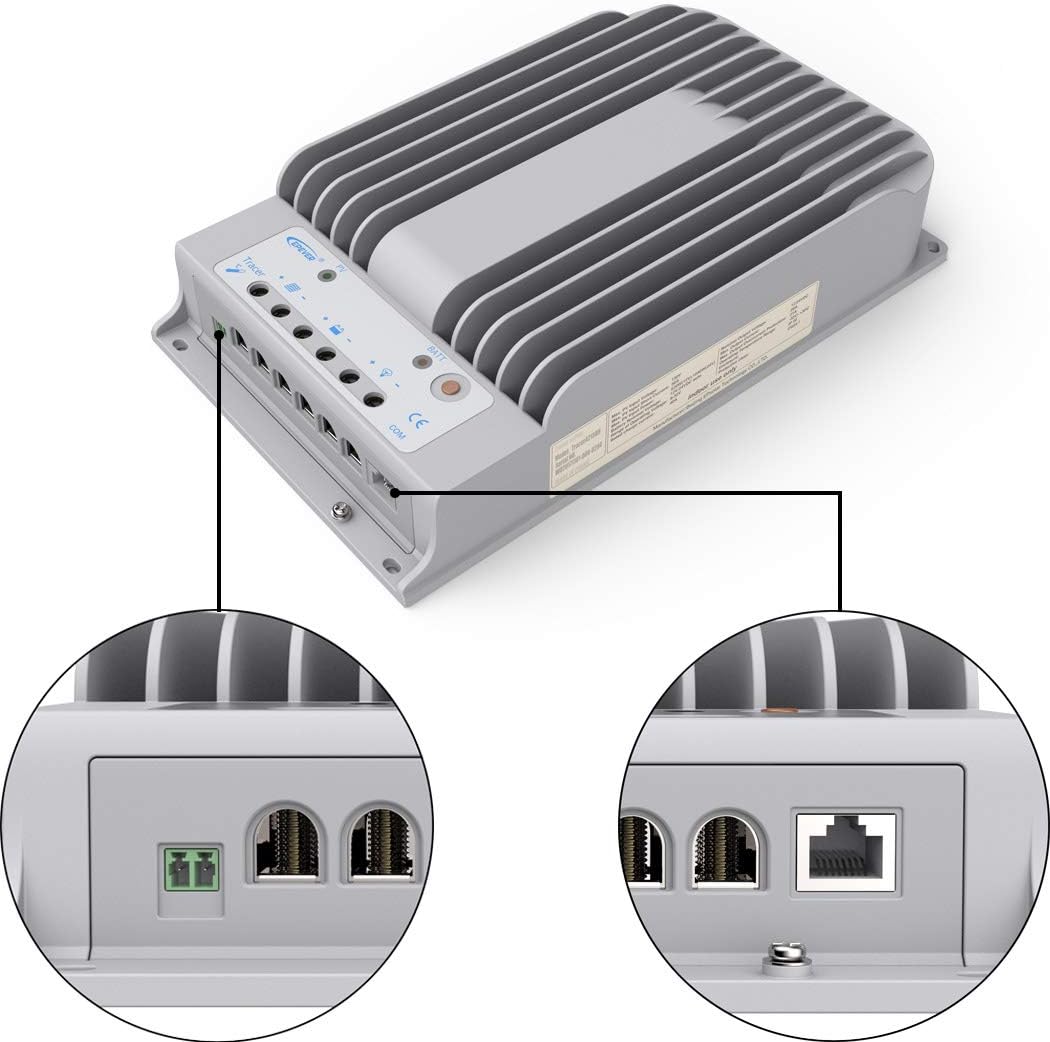

EPEVER MPPT Solar Charge Controller 40A 150V PV Solar Panel Controller Negative Ground W/ MT52 Remote Meter for LiFePO4 Battery Tracer4215BN (Li)

New Feature Added: Battery-less mode.Power the DC load without a battery, using a solar panel instead.

Prolong The Life Of Your Battery!

The smart battery protection system shields your device from overcharging, overloading, discharge, or overheating, reverses polarity, and provides efficient short-circuit protection. It can handle a 520W Solar Panel on a 12v battery system or a 1040W Solar Panel on a 24v battery system. It is equally great for home, industrial, or commercial use and is designed for optimum and safe charging performance.

Technical Data

40A MPPT Charge Controller Nominal System Voltage: 12V, 24V

Rated Charge Current: 40A

Rated Load Current: 20A

Max PV Open Circuit Voltage: 150V / 138V

Max PV Input Power: 520W (12v battery) / 1040W (24v battery)

Support Battery Types: Lithium, LiFePO4(4S/8S),Li(NiCoMn)O2 (3S/6S/7S), Lead-Acid, Sealed(default), Gel,Flooded

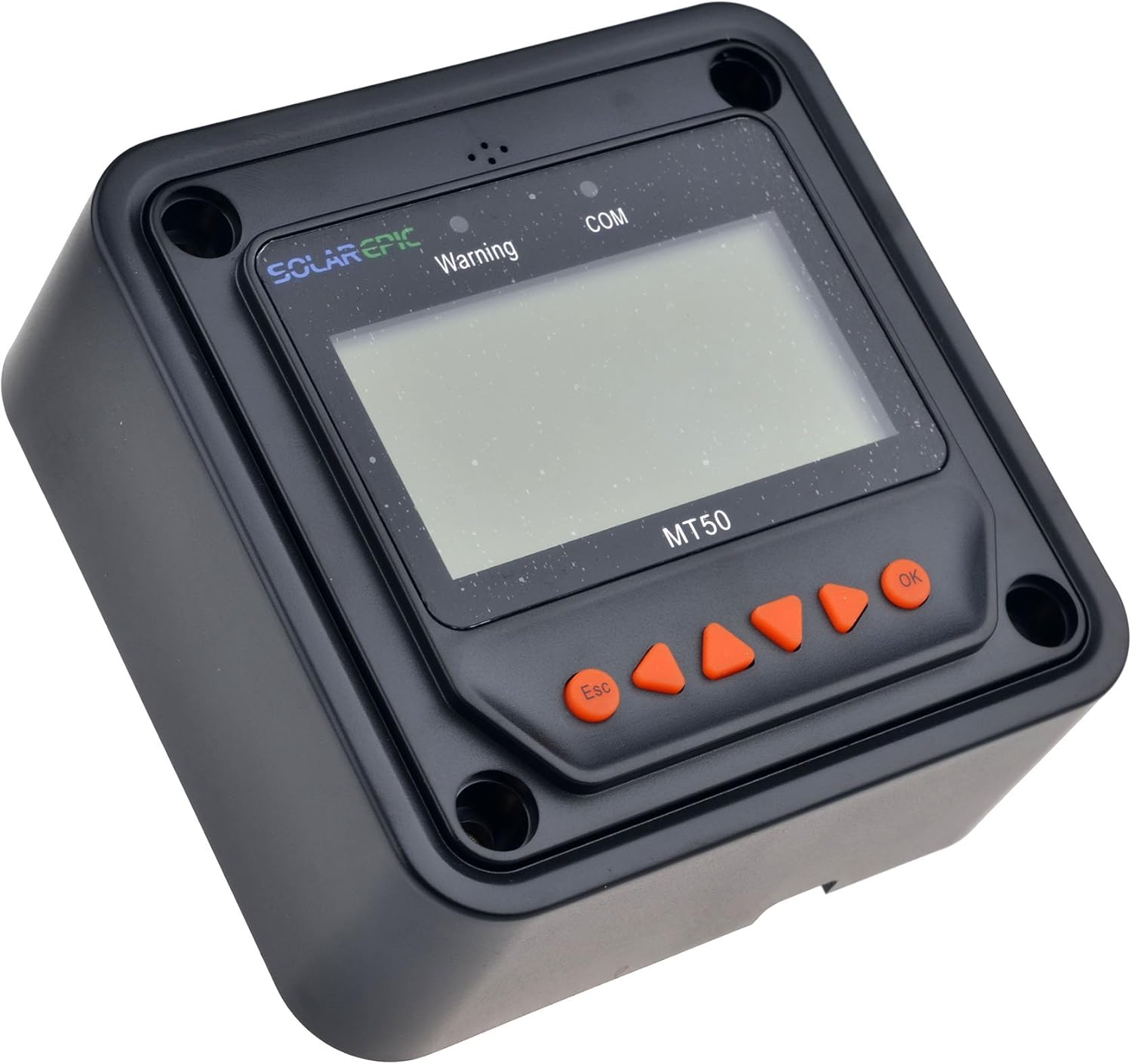

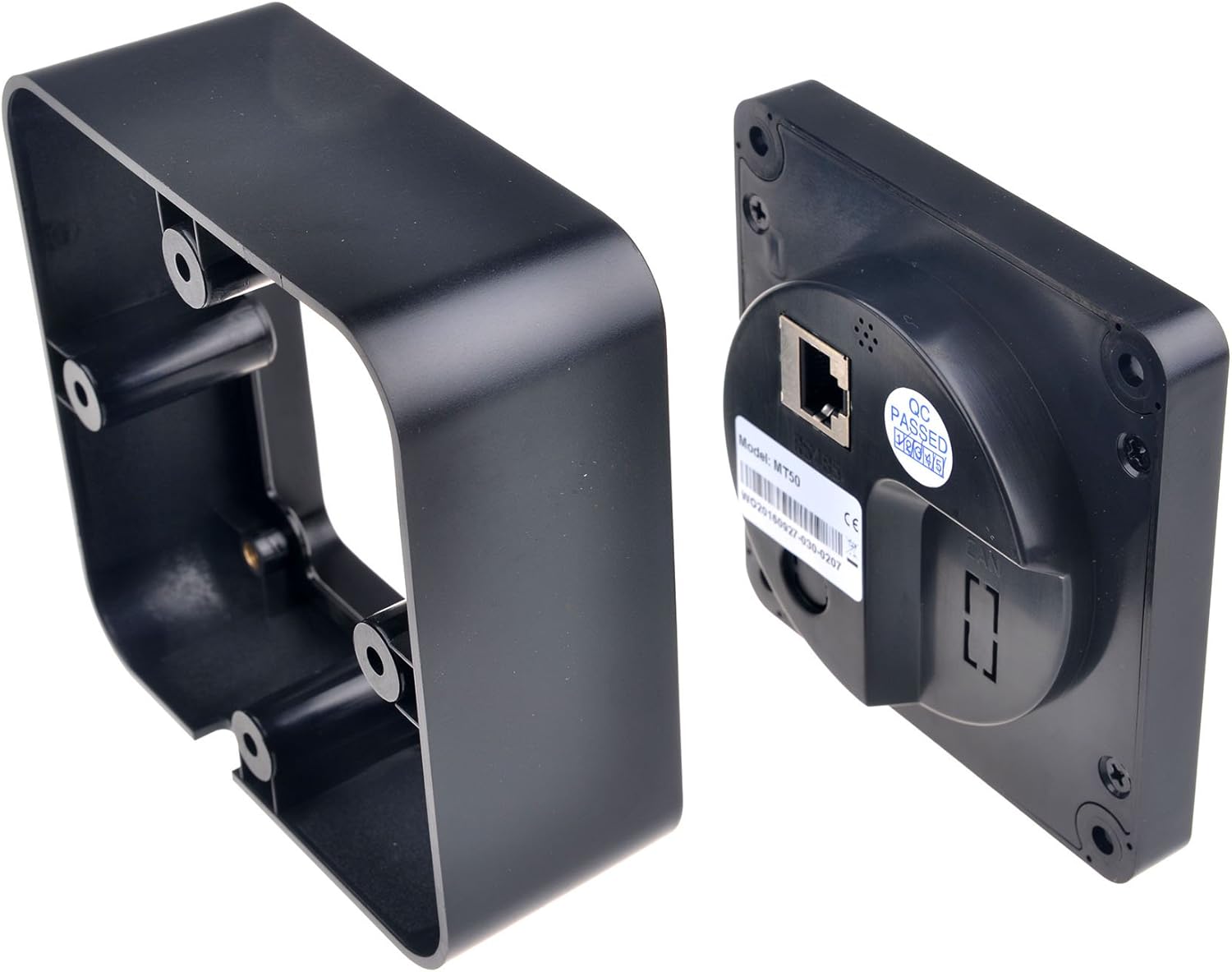

MT50/MT52 Remote Meter dimension:98×98 mm / 3.86×3.86 inchFrame dimension:114×114 mm / 4.49×4.49 inchConnector type: RJ45Meter cable: Standard 2m, Max 50mAmbient Temperature: -20°C -- +70°C/-4°F -- 158°F

All our remote meters were upgraded to MT52 software.

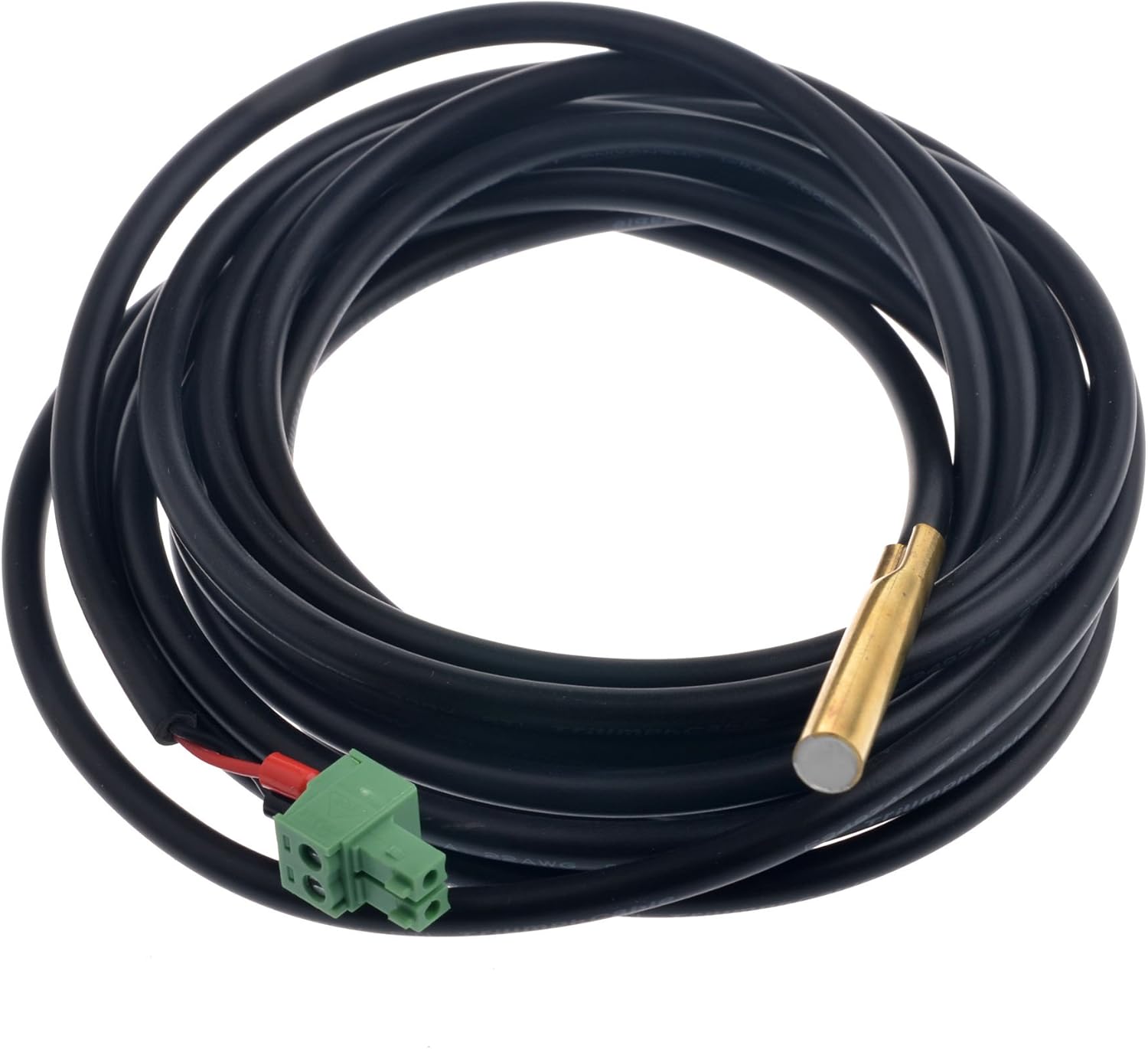

Remote Temperature SensorAcquisition of battery temperature for undertakingtemperature compensation of control parametersLength: 3 M

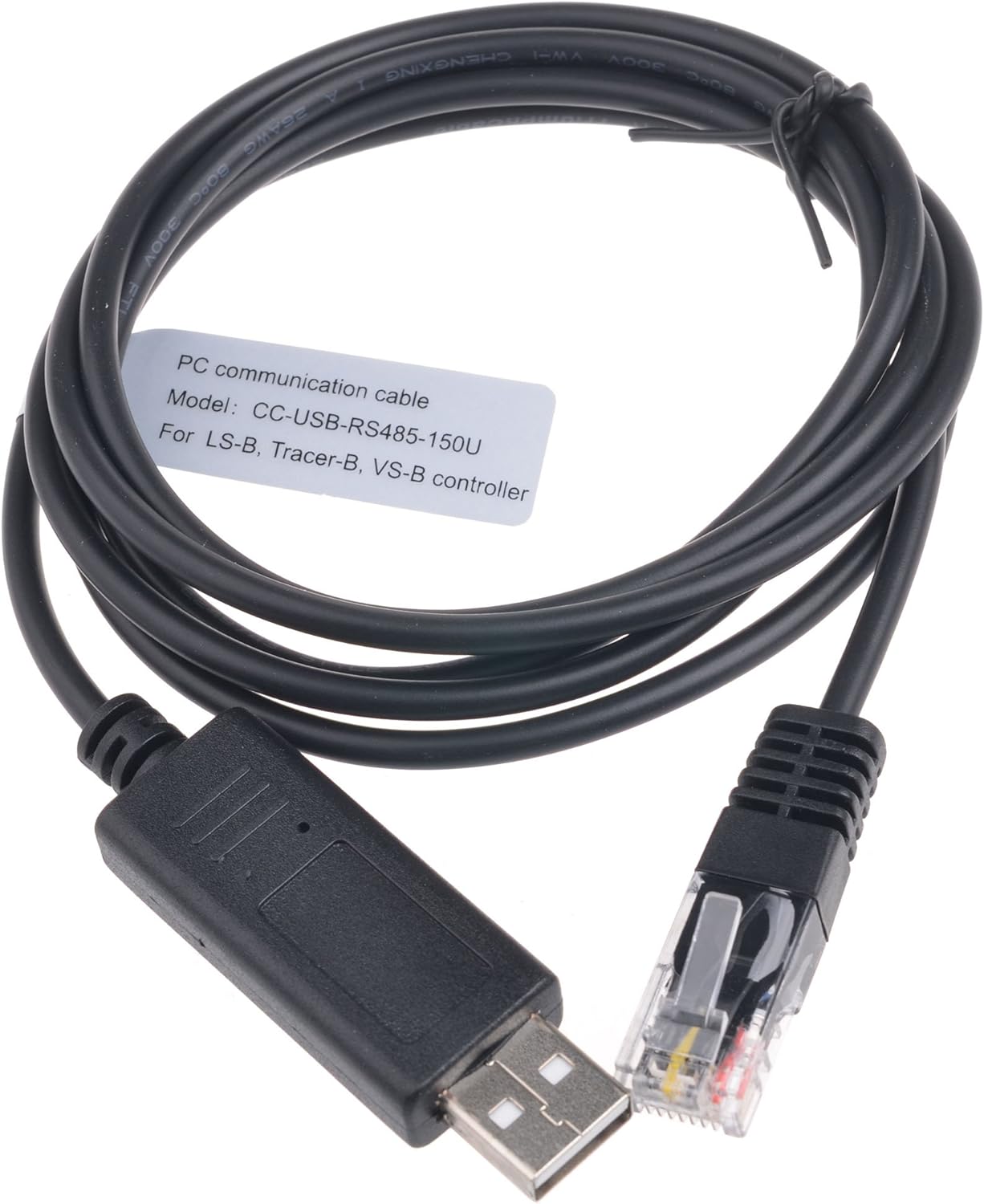

USB to RS485 Converter AdapterThis adapter monitors the mppt charge controller using Solar Station PC software

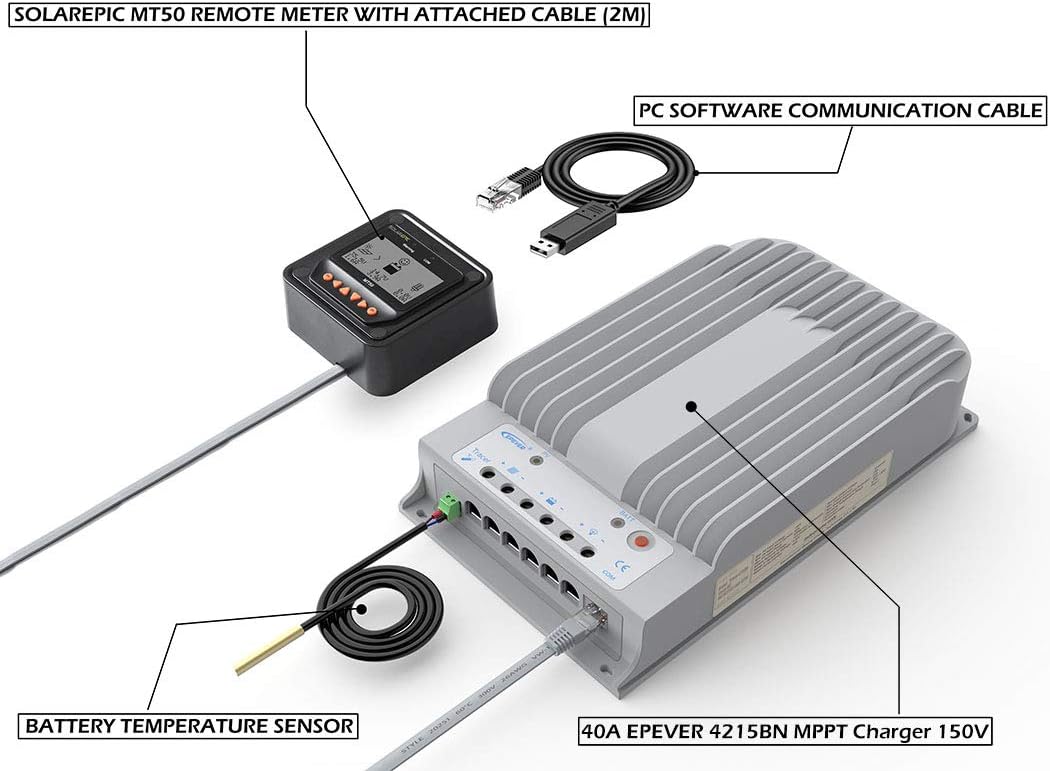

Built with advanced power tracking technology to optimize the working of your solar charger system. The controller features a smart tracking algorithm that maximizes the energy from the solar PV module(s) and charge the battery. It supports over four charging options:sealed, gel, flooded and user-defined. Battery parameters can be set using the attached MT50 remote meter.

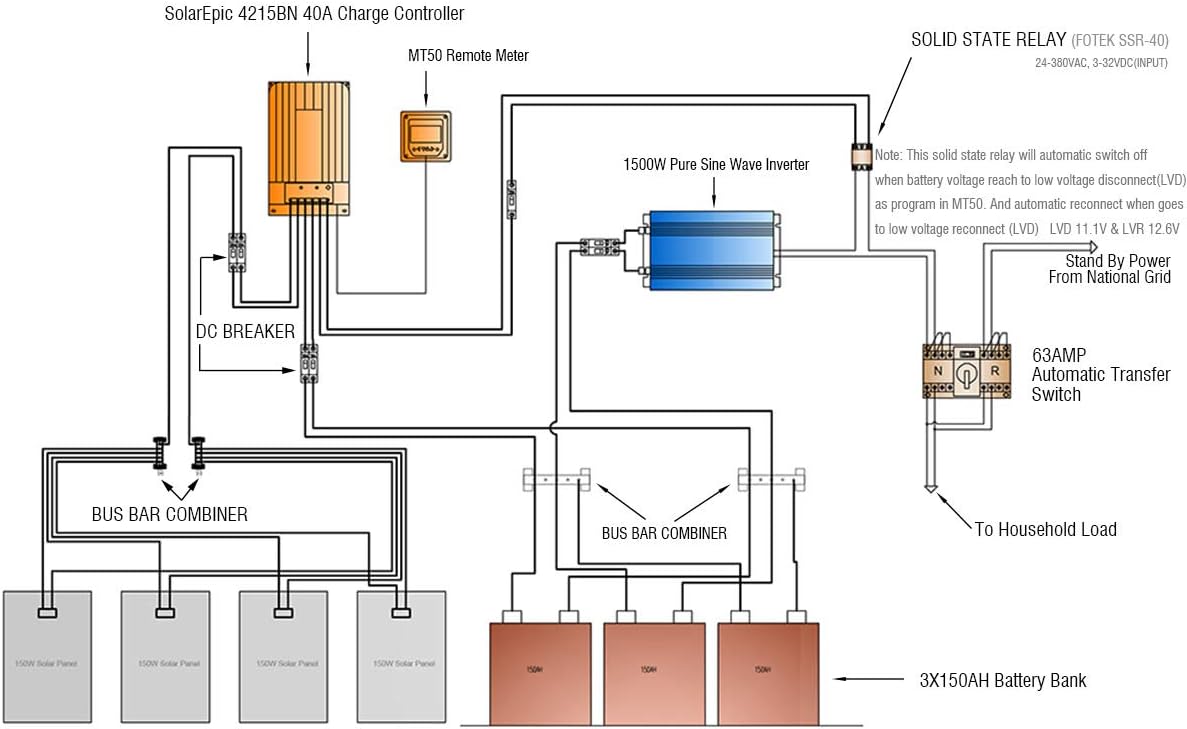

MPPT Solar Charge Controller 40A Tracer4215BN Schematic Diagram

SolarEpic 4215BN Solar Charge Controller 40A:
