400W 12V AC 5 blades Small Wind Turbine Generator With Charging Indicator Windmill MPPT Controller For wind and solar hybrid light monitor systems 2m/s Low Start Wind Speed(5S-400H-12W)

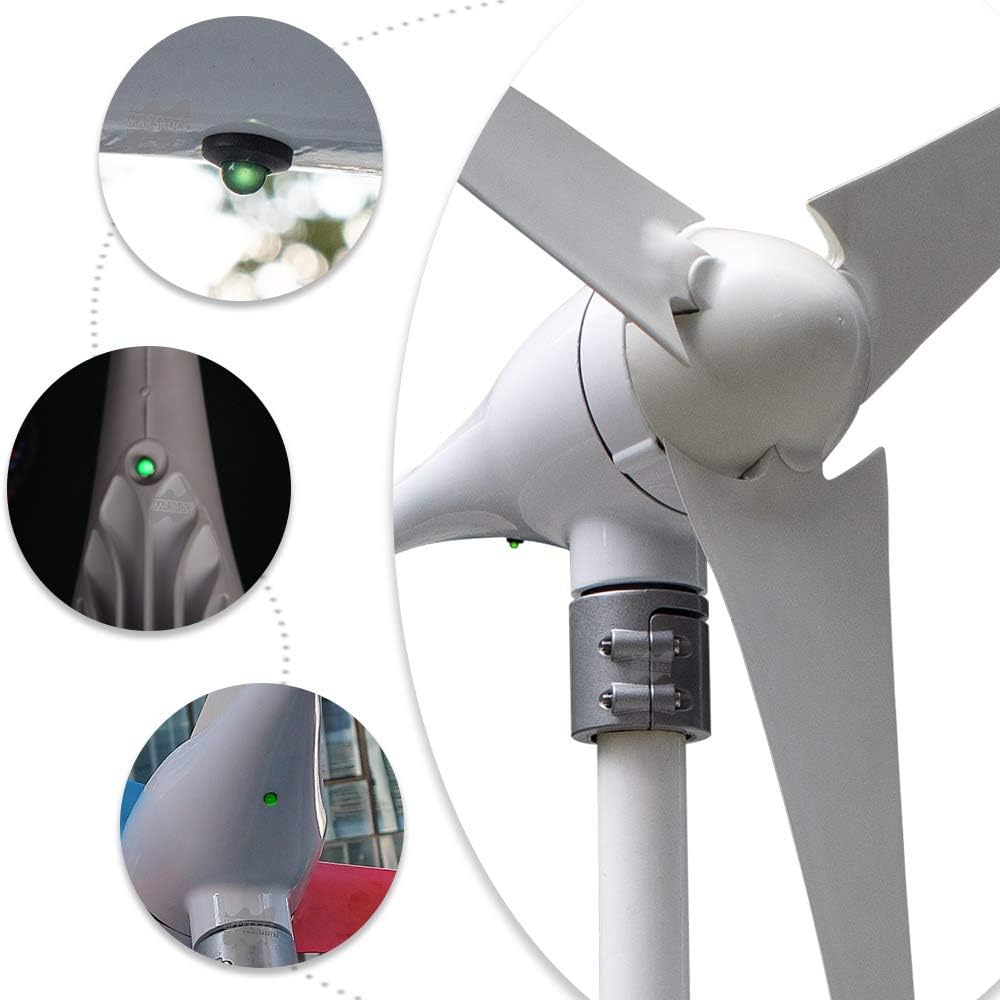

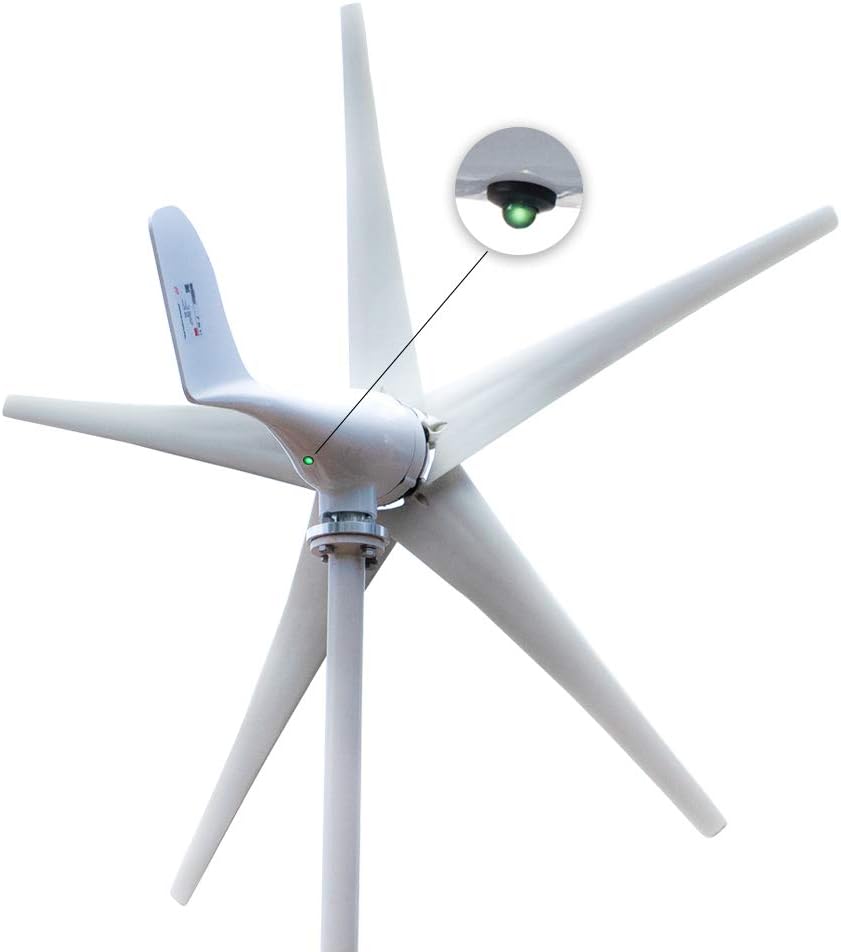

1.Unique charging indicator design, whether the output current is clear at a glance;
2.Low speed starting up2 meter/s which improves power efficiency; high wind energy utilization; beautiful appearance; low vibration;
3.High-toughness FRP blades have such advantages: high utilization of wind e
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Mars Rock Technology was founded in 2006 and is a company specializing in the research and manufacturing of solar grid connected, energy storage systems, and intelligent charging piles

    New energy enterprises with smart energy management solutions.

    Wind turbine generator can transfer wind power to electrity. Wind is an important renewable resources. To meet most of customers' requirements, we promote an economy wind turbine generator which is cheap and good quality. Considering the generator can start easily, our engineers develop the lower start-up wind speed. Start the wind turbine generator only needs 2m/s wind speed.

    1.The three wires of the wind turbine are connected to the transmission cable, each pair of wires is not less than 30 mm, and the tape at the connection end is at 100 mm.

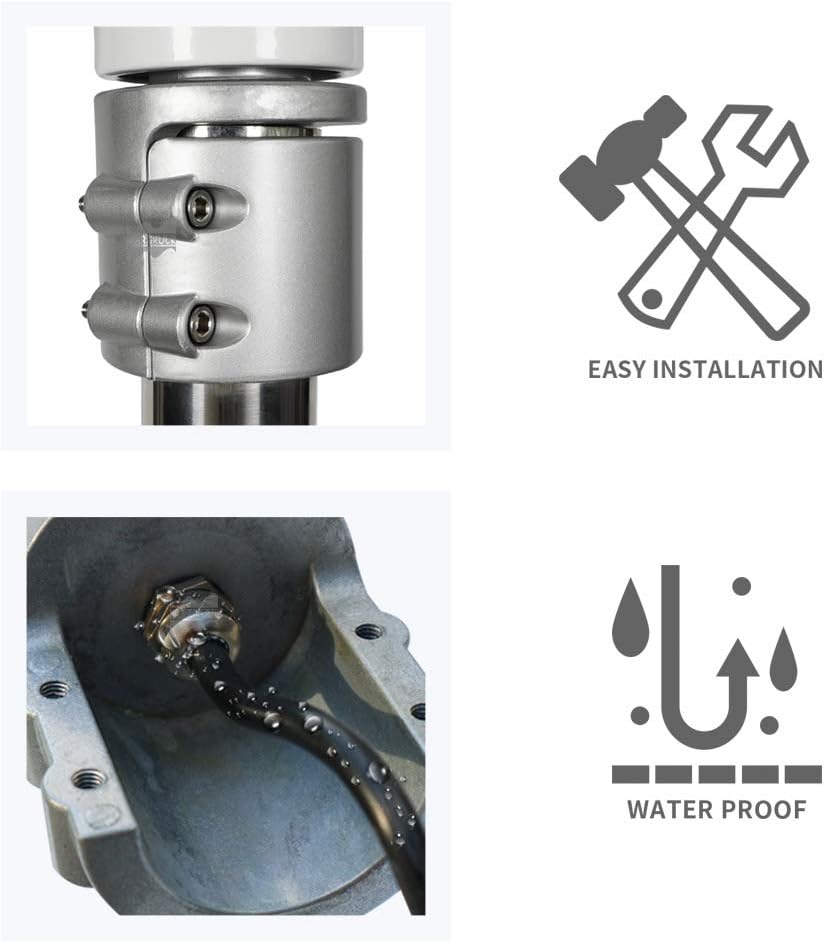

    2.The separation of the entire generator is aligned with the flange holes on the tower, and after the flat washer and the spring washer, tighten the locknut.

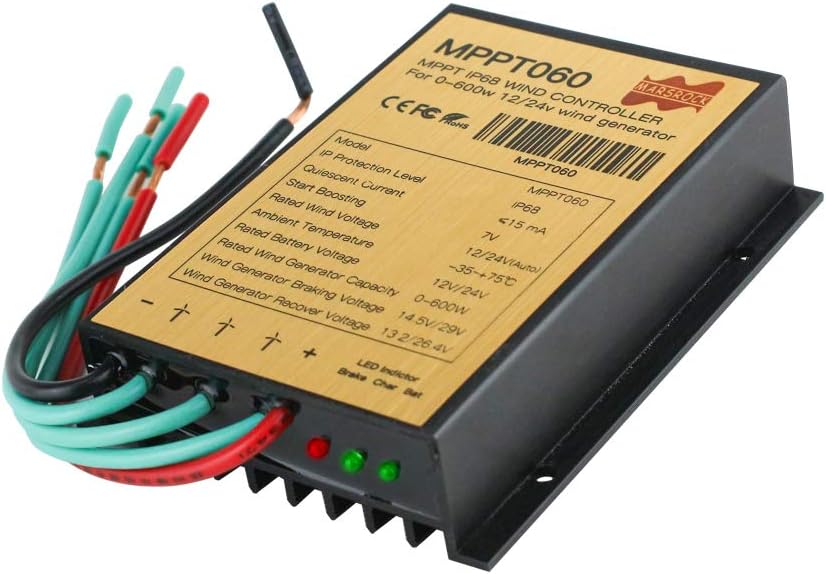

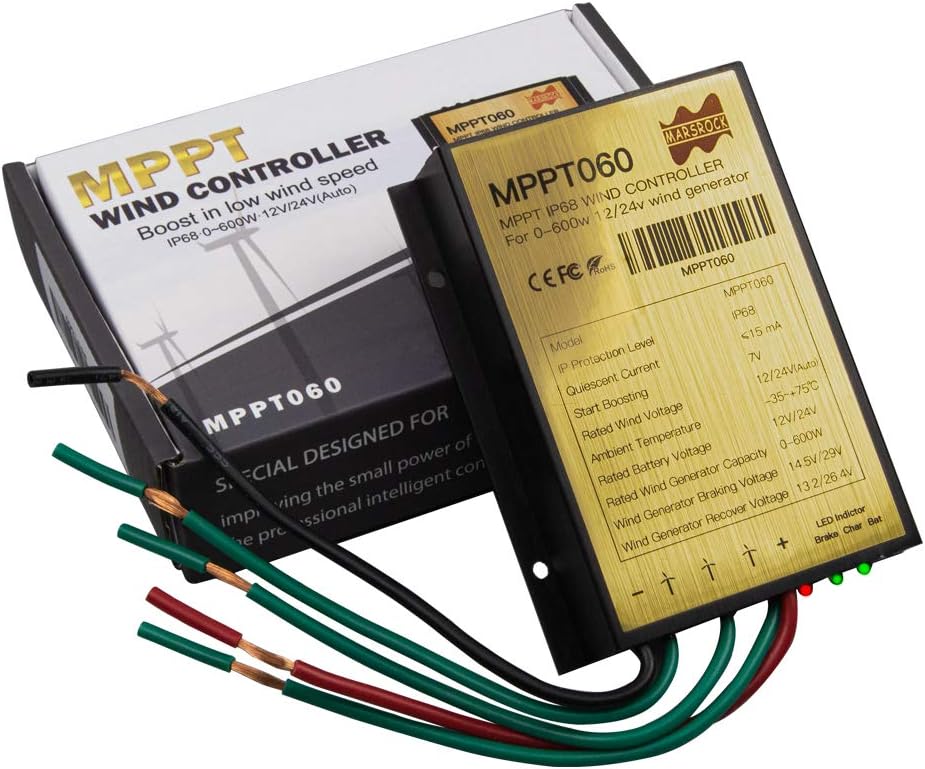

    3.Connect the wind turbine's cable to the controller and the battery must be connected to the controller before wiring.

    Rated power400WMaximum power410WRated voltage12/24VStart up wind speed2.0m/sRated wind speed13m/sSurvival wind speed50m/sWheel diameter1.4mBlades number5Blades materialNylon fiberGenerator Three phase permanent magnet ac generatorMagnetic steelNdFeBGenerator caseDie-casting aluminumControl systemElectromagnetSpeed regulationAutomatically adjust windwardWorking temperature-40℃~80℃

    How did we get our start?

    Connect Method

    Technical Parameter

    Application
