400W 12V Bluetooth Land and Marine Wind Turbine Generator kit. Inbuilt MPPT Charge Controller + Automatic and Manual Braking System with Amps Meter. DIY Installation.

Automaxx's wind turbine generates AC power, which is converted to DC power by the built-in charge controller and stored in a battery bank for later use.

Yes, for impending high-wind storms, we recommend removing the wind turbine. However, our turbines include an automatic MPPT charge controller with braking that activates at certain RPM or voltage levels, alongside a manual braking switch.

Q: Can this 400 watt wind turbine power a house?

A: The short answer is most likely not. With a smaller wind turbine like this one, the power generated is not significant enough to completely replace your electricity bill. However, it can reduce your electricity bill to a large extent depending on, among other things, wind conditions and your power usage.

Q: Does this turbine produce electricity in AC or DC?

A: The AC power generated by Automaxx’s 400W wind turbine undergoes conversions to DC power using the integrated charge controller. This DC power is subsequently stored in a battery bank for future utilization.

Q: How many amps does this wind turbine produce?

A: Using the formula: Current (A) =Power(W) / Voltage(V), we can see that the most amount of amps this turbine can produce is 33 amps. The amplitude of amperage generated is contingent upon several variables, including wind velocity, wire gauge, wire length and battery capacity.

Q: How does a 400W wind turbine compare to other sizes in terms of efficiency and performance?

A: While larger turbines may offer higher power output, our compact 400W turbines are specifically engineered to excel in moderate wind conditions. They strike the perfect balance, providing optimal energy production in areas with consistent and moderate wind speeds.

Q: What are the maintenance requirements for a 400W wind turbine?

A: Our turbines feature robust components and innovative design elements that reduce the need for frequent servicing. Routine inspections and occasional lubrication are all that’s needed to keep your turbine operating at peak efficiency.

When Installing, ensure to leave a 23 - 33ft safety area around the spinning blades's operating zone.

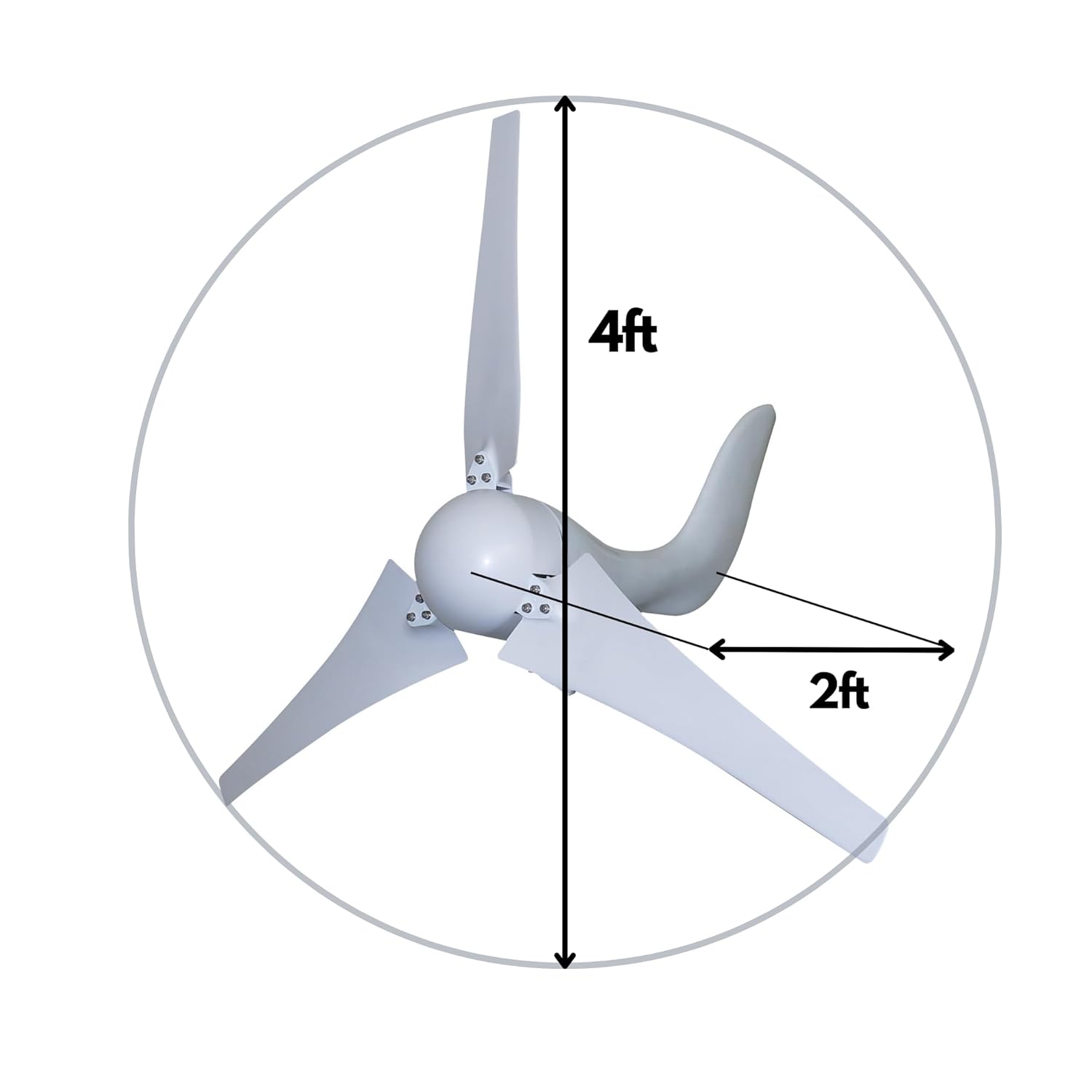

Maximum output400W at 12VRated load current25ASpinning Diameter4ft / 1.22mCut in wind speed6.7mph / 3m/sWeight22lbsGenerator typePermanent Magnet BrushlessRated Speed25mph / 12.5m/sRecommended battery capacity100A/hrBlade MaterialNylon + Glass fiberBattery protection voltage14.7VOver speed braking>1250rpmCountry of OriginTaiwan

Does this turbine produce electricity in AC or DC?

Should I take it down in a storm?

FAQ

Installation Safety Information

Safety Operating Area

System Specifications
