EPEVER MPPT Solar Charge Controller 40A 12V 24V Auto Max PV 100V Solar Panel Regulator Common Negative Ground LCD Display Tracer4210AN G3 for Gel Flooded Sealed LiFePO4 Lithium Battery (40A MPPT)

EPEVER MPPT Solar Charge Controller 40Amp 12V/24V DC , Max PV 100V ,Max Solar Panels input 520W / 1040W, Common Negative Grounding . Suitable for Lead-acid (Sealed / Gel(AGM) / Flooded);Lithium(LiFePO4 , Li (NiCoMn)O2) and User-defined .

Technical Data:

• Model: Tracer4210AN (G3 version)
• Rated charge and discharge current :40A
• Nominal system voltage:12V/24V DC auto work

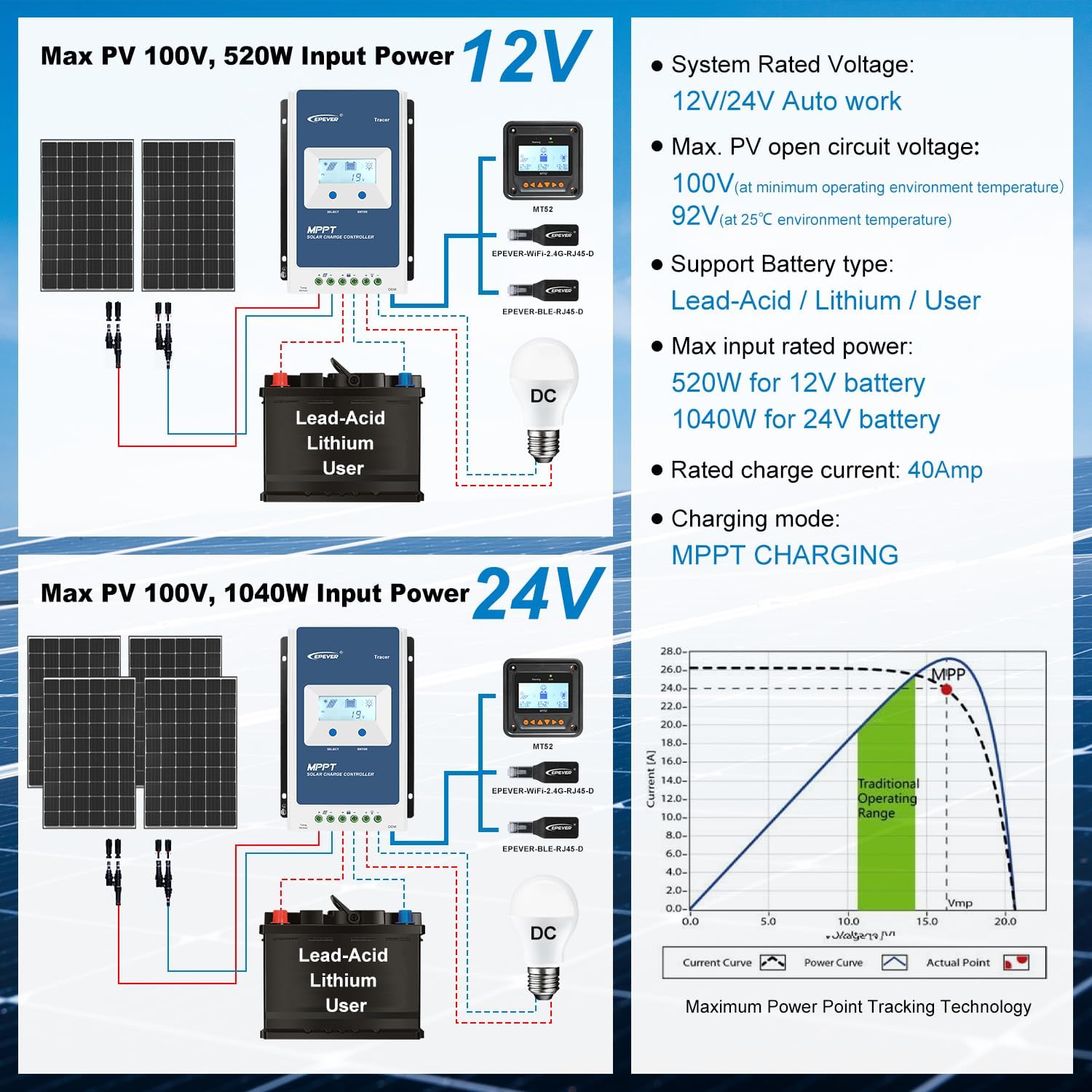

• Max. PV input power: 520W for 12V battery system or 1040W for 24V battery system
• Max. PV open circuit voltage:100V(at minimum operating environment temperature) 92V(at 25℃ environment temperature)
• Support Lead-acid battery types: Sealed, Gel(AGM), Flooded, User(9～17V@12V; 18～34V@ 24V) ;
• Support Li-ion Battery types: LiFePO4 (4s/12V; 8s/24V) , Li(NiCoMn)O2 (3s/12V; 6s/24V), User(9～34V)
• Grounding : Common negative
• MPPT Voltage Range: (Battery voltage + 2V) to 72V
• Tracking efficiency : ≥99.5% , Max. conversion efficiency :98%
• Working environment temperature : -25℃～+50℃(100% input and output)
• Temperature: -20°C -- +70°C/-4°F -- 158°F

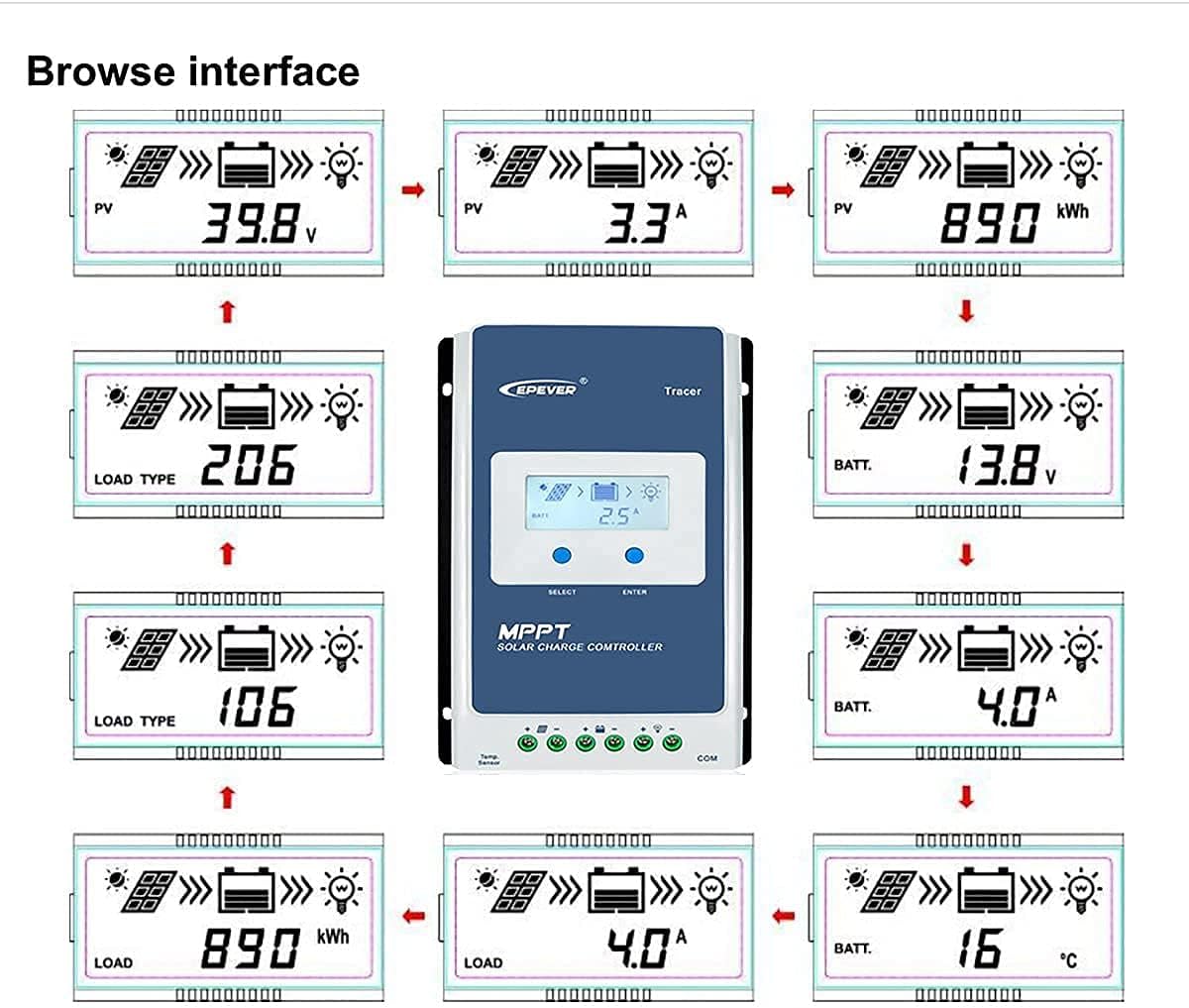

• LCD backlight time : 60s(Default), Range: 0-999s (0s: the backlight is ON all the time)
• RS485 interface:5VDC/200mA
• Controller Terminals:#6 AWG(16mm2) ; Recommended Wire cable:#6 AWG(16mm2)
• Dimension:252*180*63mm ;
• weight :1.65 KG

Package List:

• 1 X 40A MPPT Solar Charge Controller (Tracer4210AN-G3 )
• 1 X Temperature sensor for controller（Model:RT-MF58R47K3.81A）
• 1 X Manual (English)

Note :

Our warehouse in Chicago, Illinois, our professional engineer local team supply solar system solutions and Tech-support for you in time .

EPEVER Tracer-AN-G3 series mppt solar charge controller is new upgraded version , Better funcations and advanced technology. Added Features ：

1. Blacklight LCD Display , More Safety Protection Functions
2. Compatible with lead-acid and lithium-ion batteries (Li-ion battery self-activation) too , Support selecting battery types by controller buttons directly
3. independent voltage regulation constant voltage output function, support Battery and NO-Battery mode too, upgraded ultra-quiet design

• Battery must be connected first ! Never connect soalr panel array to controller Without/Before connect battery.
• DO NOT connect any inverter/wind/Alternator or Charger into the charge controller directly ! You should connect with battery and add fuse .
• If there is a long distance between the PV array and controller or between the controller and battery, larger size wires should be used to reduce the voltage drop and improve performance. (Recommended wire size is only for reference.)

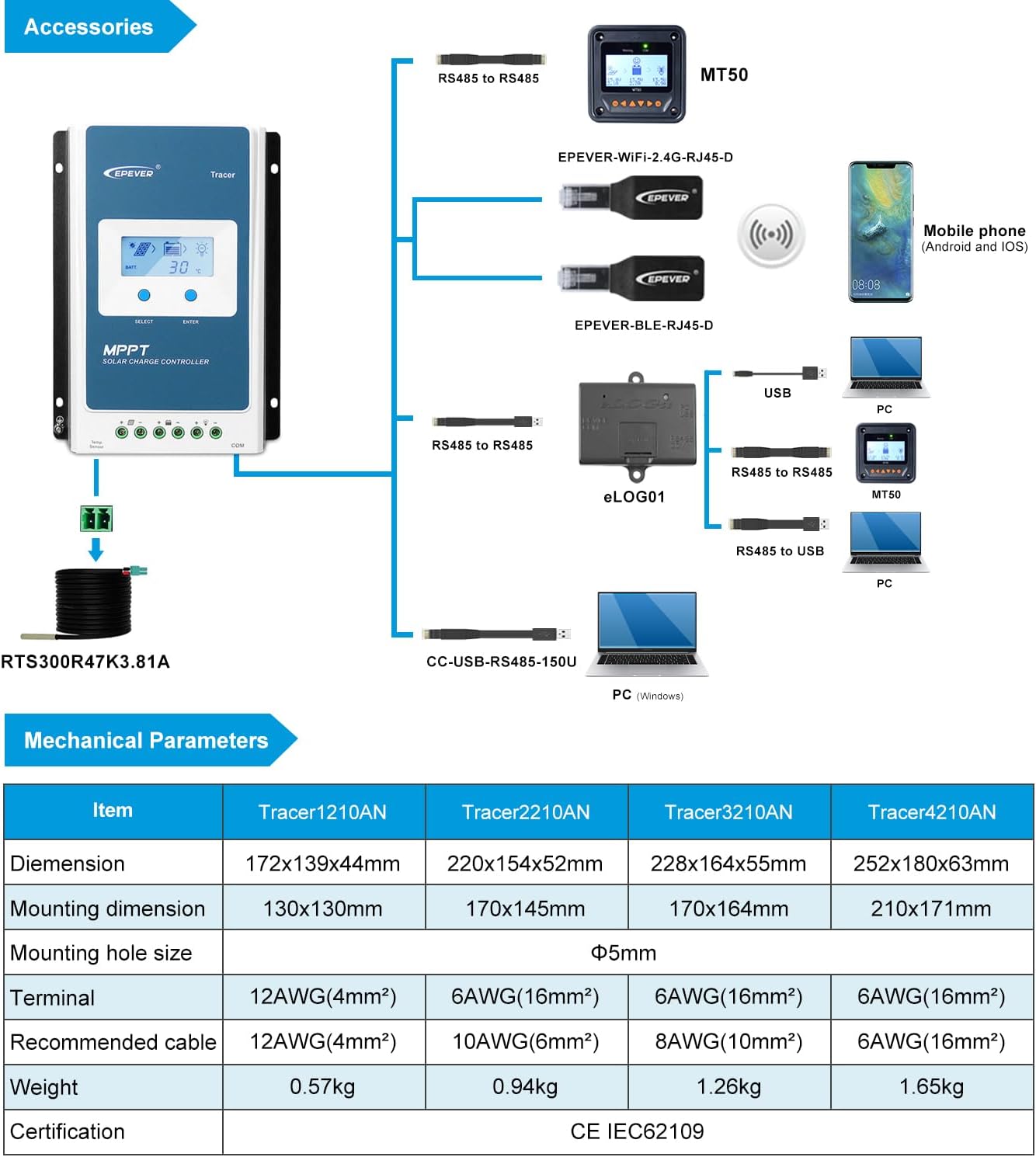

How to program parameters for your solar system？

1. Via Remote Meter (Accessories needed: MT50/MT52 )
2. Via Phone APP [ Android or IOS], (Accessories needed Adapter：EPEVER-BLE-RJ45-D or EPEVER-WiFi-2.4G-RJ45-D )
3. Via PC Software (Accessory needed RS485 cable :CC-USB-RS485-150U ) , Software download : EPEVER official website or read in manual

Note:The following accessories are not included in controller box , you could check and purchase accessories separately

GolandCentury is the official authorized sales agent for EPEVER brand and offers the latest versions of controllers and inverters and accessories.

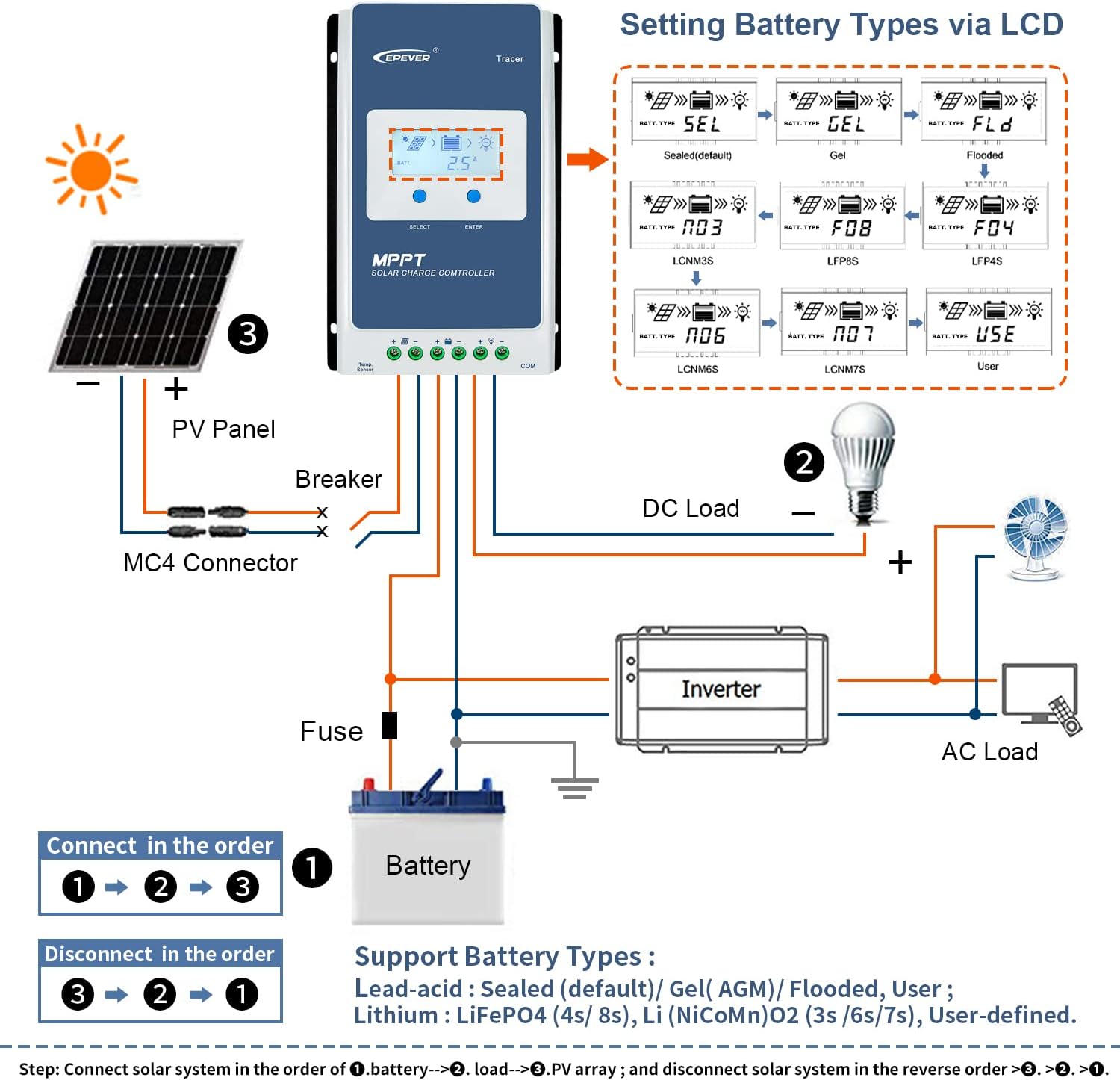

CONNECTION DIAGRAM
