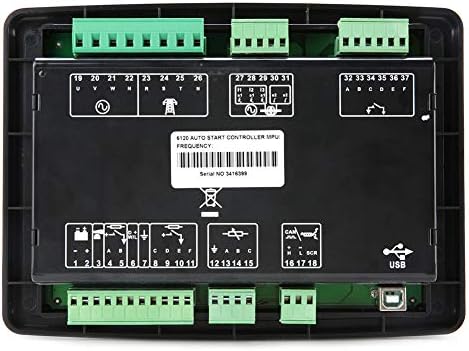

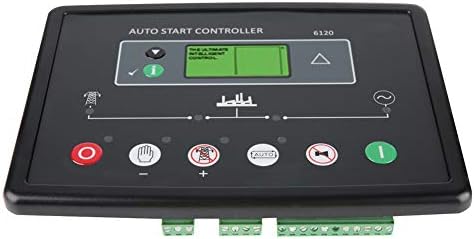

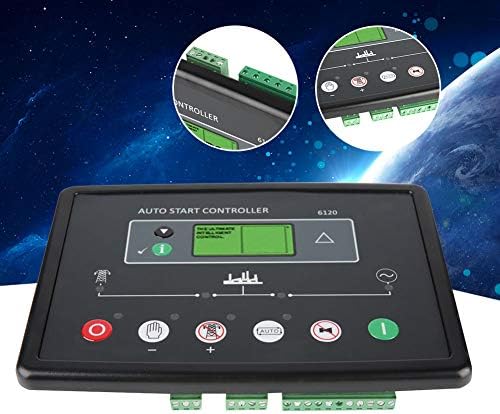

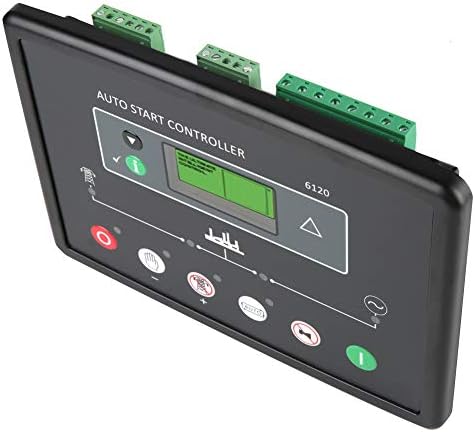

YWBL-WH DSE6120 Deep Sea Electronic Generator Controller Automatic Engine Control Module 0-10V/4-20mA

Ensures the display continues to operate in extreme cold weather conditions. Configurable DC, volt- and staged loading outputs (6). Provides full generator load control. CAN, MPU & alternator speed sensing (selectable depending on engine type).
Provides true generator and mains (utility) sens
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    • Provides flexibility for use with multiple sensors and engine types.
    • Heated display option.
    • Ensures the display continues to operate in extreme cold weather conditions.
    • 3-phase generator sensing.
    • Provides true generator sensing.
    • 3-phase mains (utility) monitoring.
    • Provides true generator and mains (utility) sensing.
    • Generator/load current monitoring & protection.
    • Provides convenience of monitoring and protection of the generator or monitoring of the load current.
    • Configurable analogue/digital inputs (9).

    • Configurable DC, volt-and staged loading outputs (6).Provi
    • des full generator load control.CAN,
    • MPU & alternator speed sensing (selectable depending on engine type).Ensur
    • es the module can be used with a wide number of engine types.Tier
    • 4 CAN engine support.Ensur
    • es the control module can be used with the latest in modern electronic engine technology.Confi
    • gurable event log (100).Provides access to historical alarms and operational status.DSE C
    • onfiguration Suite PC Software.Provi
    • des complete user-friendly configuration and easy-to-use high-level system control & monitoring.Fuel
    • and start outputs (configurable on CAN).

    • LCD display screen can display Chinese.
    • The module can be used in electric and non-electric regulating units to provide more advanced engine monitoring and protection functions.
    • The module has a backlit LCD display that clearly shows the running state of the engine at any time.
    • The module can monitor the speed, frequency, voltage, current, oil pressure, water temperature and oil level.
    • The module can display engine alarm and has automatic stop protection.
    • The module includes 6 digital input, 3 analog input and 6 digital output.
    • MPU version configuration 2-way output, CAN version configuration 6-way output.
    • Users can use the front panel button to set the module's data, or other settings software to set it.

    Our shop is committed to providing high-quality industrial products to global buyers. Let customers buy high-quality products and improve the quality of work is our pursuit. So we created YWBL-WH.

    Features: Support for 0-10 V & 4-20mA oil pressure senders.

    Provides multiple installation options.

    DSE6120 AMF module is used for single generator set.
