1000W Wind Solar Hybrid Charge Controller 12V/24V MPPT Boost Charge Regulator with LCD Display and Free Dump Load Accurate (600W Wind + 400W Solar)

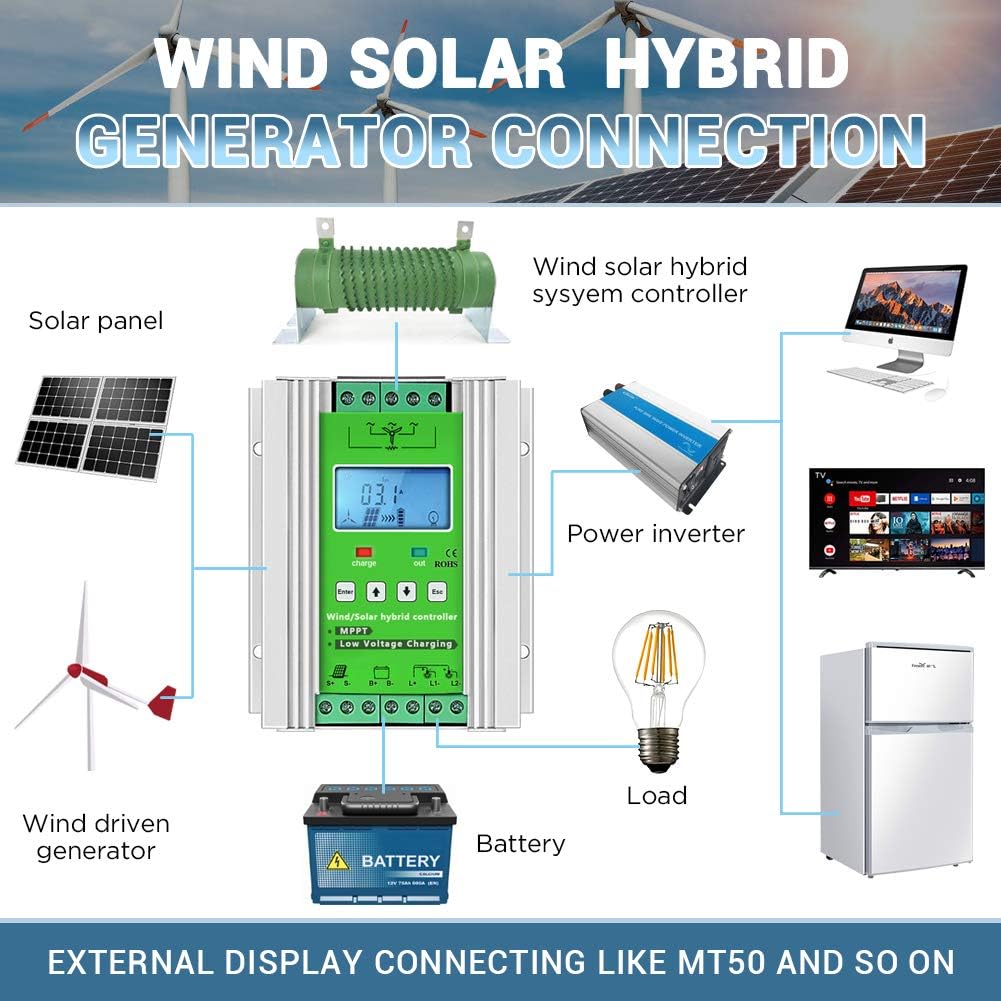

• The controller is designed specifically for wind solar hybrid street light system, can make the wind solar hybrid street light system of various resources to achieve the best configuration, of course, the controller with some simple Settings can also be used in household system.
• The Fan charging part and Solar charging part are independent of each other, can make fan controller or solar controller using independent (As a fan controller cannot use light control function).Fan charging adopted booster MPPT technology, which makes under low wind speed, the fan's electricity can still be used;In the high wind speed or the fan of power is beyond the scope of the battery and load absorption, the controller immediately launched the step-less unloading function protection system of the equipment.Solar charging using in series MOS tube PWM technology, which makes the controller power consumption is small, the system more stable.

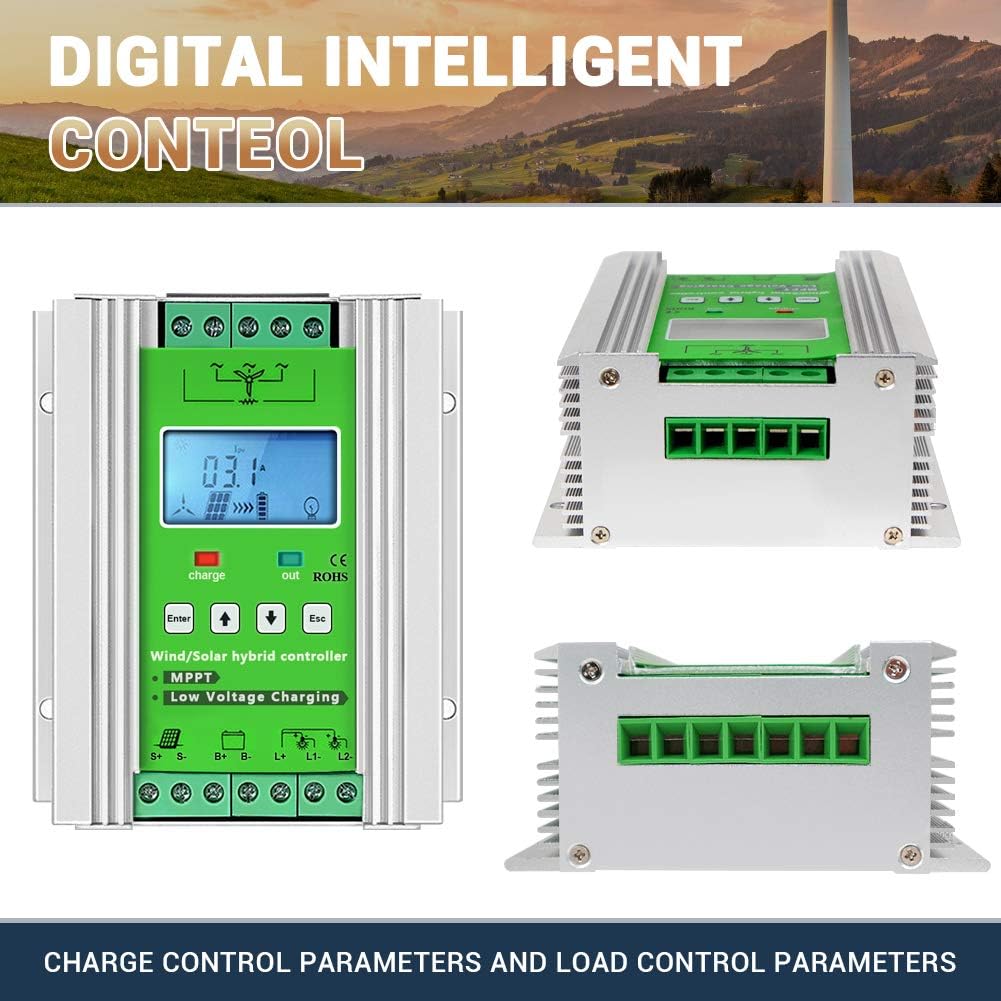

Choose the big size LCD display,show the tinny battery voltage and electric current Professional digital intelligent control,all parameters can directly visible.

NOTE:

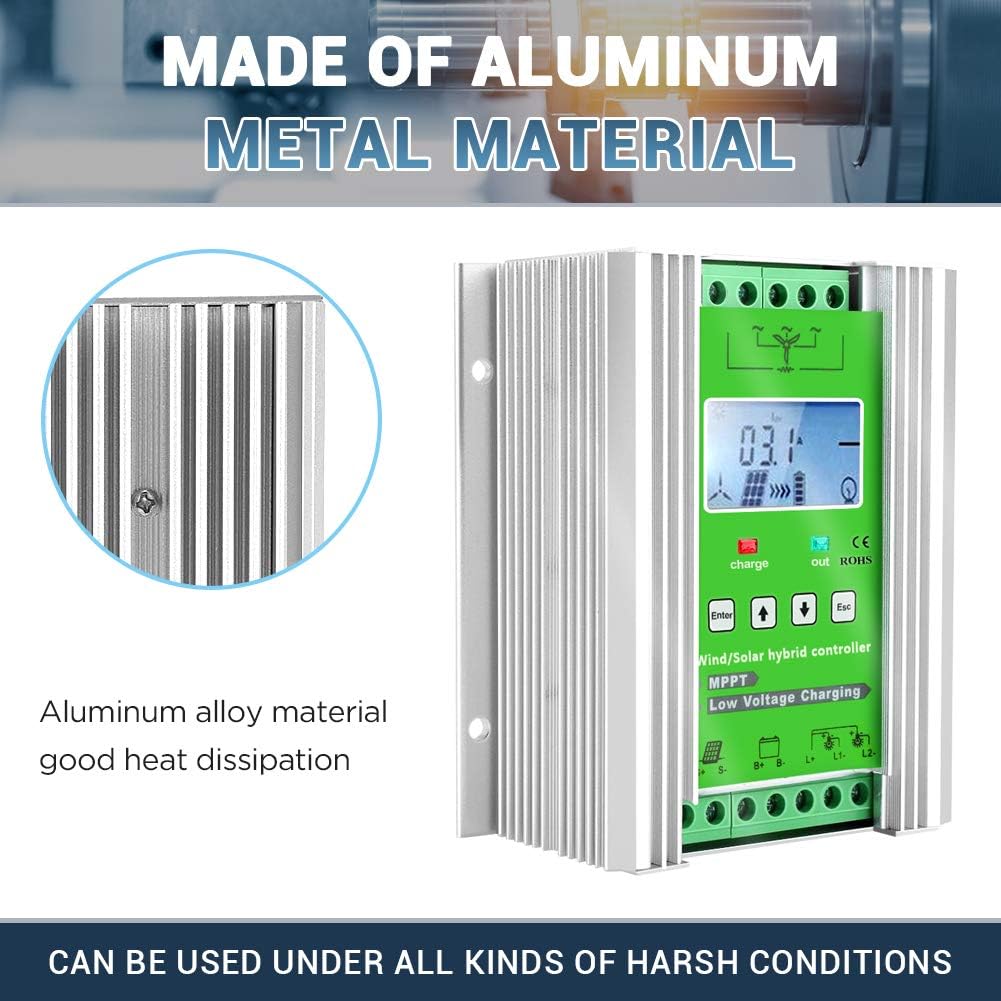

1. Install the controller in the right place.Installation position should retain the necessary installation space, to ensure the normal heat dissipation of the controller, and installation, using the environment temperature is not more than the controller working temperature range.
2. When installation, please use the multi-strand copper insulated wires.First determine wire length, in the case of ensure the installation position, as far as possible, reduce loss of power and choose wire specifications as requested.
3. If the positive and negative reversed, the controller has anti-reverse protection, found reverse, just dismantle wiring and wiring in accordance with this order to re-connection.

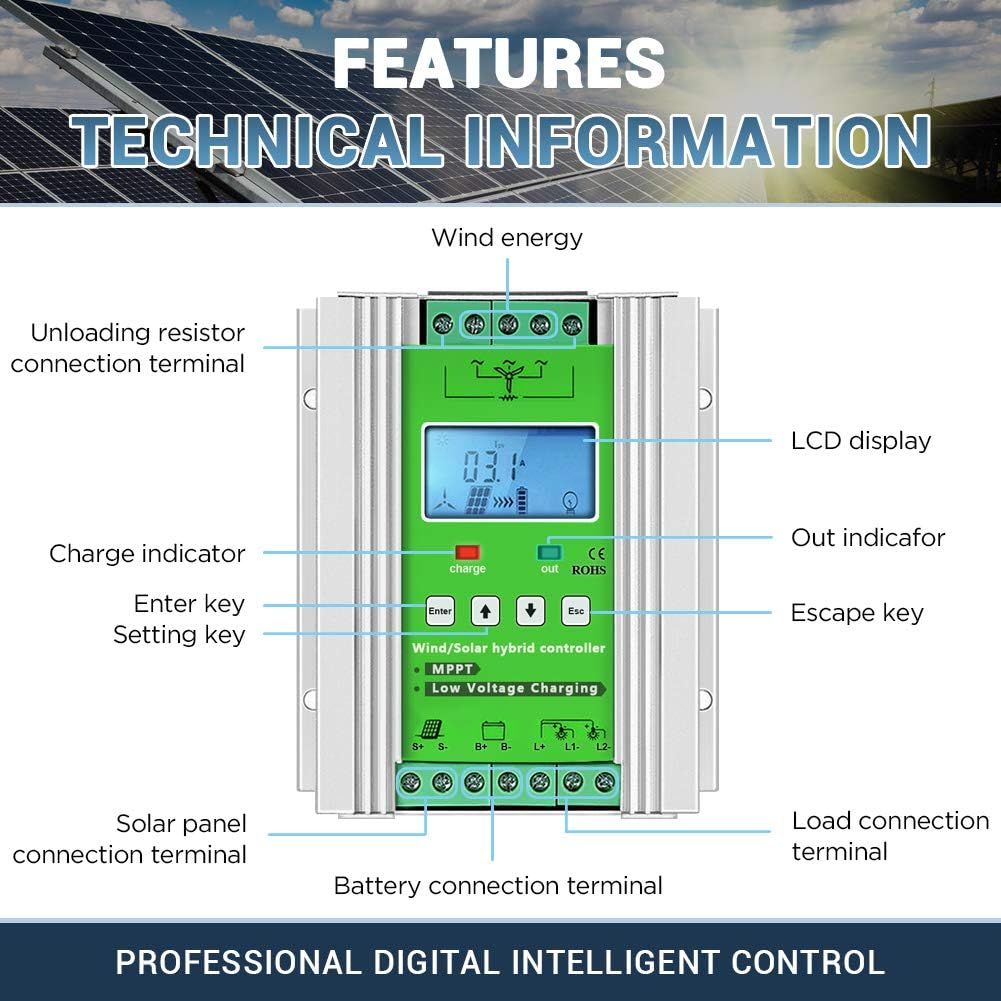

Big LCD Display

Technical Parameters
