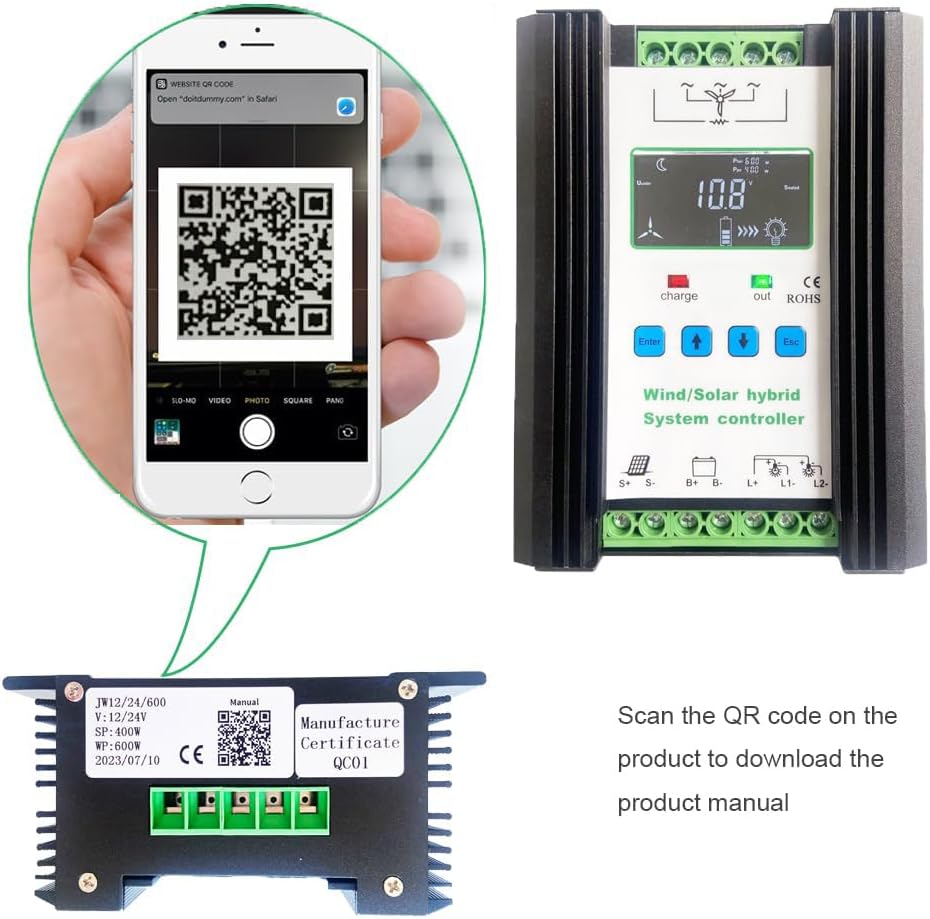

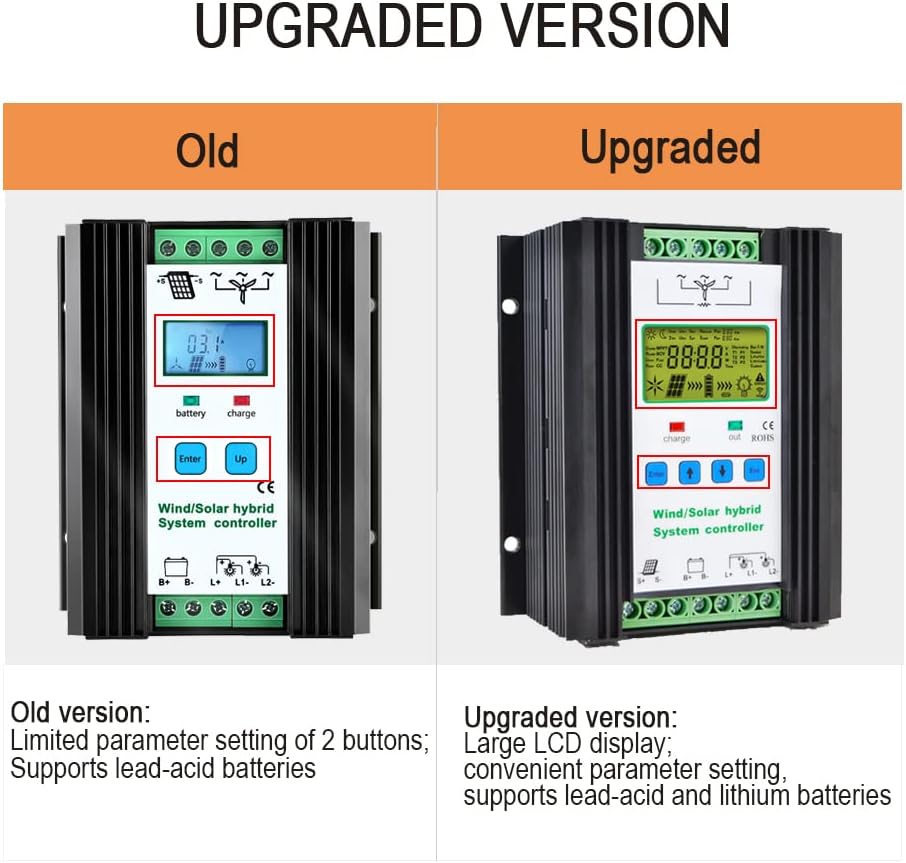

1000W Wind Solar Hybrid Charge Controller PWM 600W Wind + 400W Solar Boost Charge Technology Digital Intelligent Regulator with LCD Display

• This controller uses PWM step less unloading way to control wind turbine and solar batteries intelligent charging of battery.When the energy generated by the solar panels and wind generators exceeds the battery storage capacity, the control system must be consumed the excess energy to ensuring optimal battery charging characteristics, so that the energy can be fully use.
• Traditional controller may not charge at low wind speeds, this controller has a boost function (need to customize), making full use of wind energy .

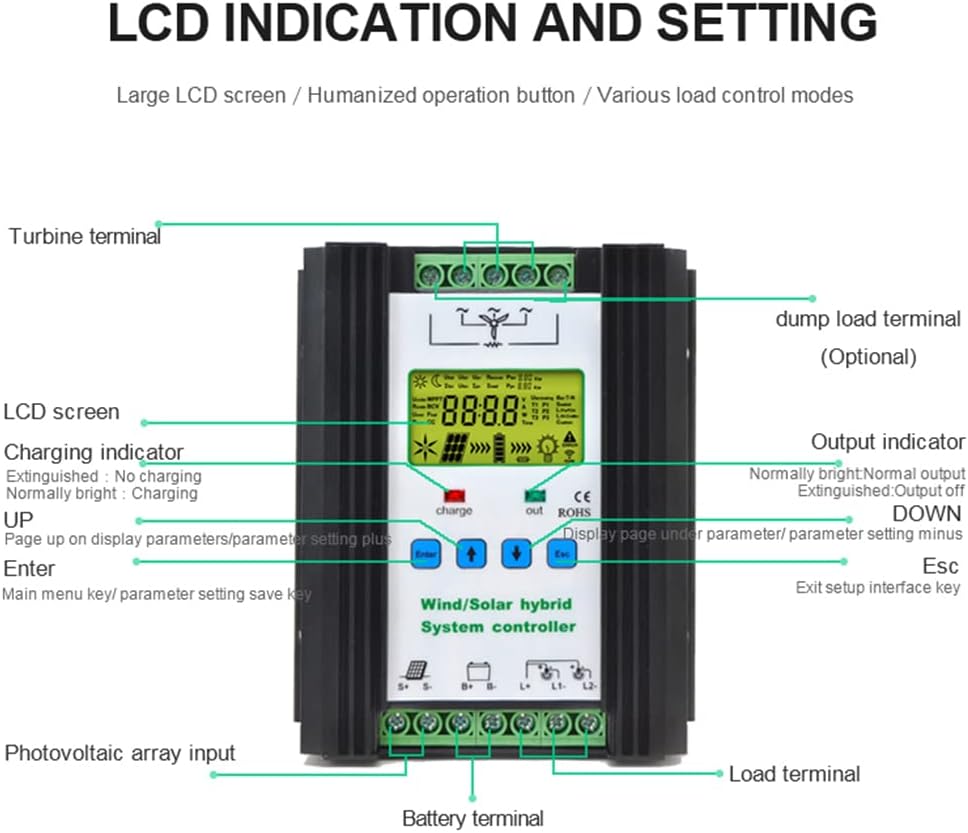

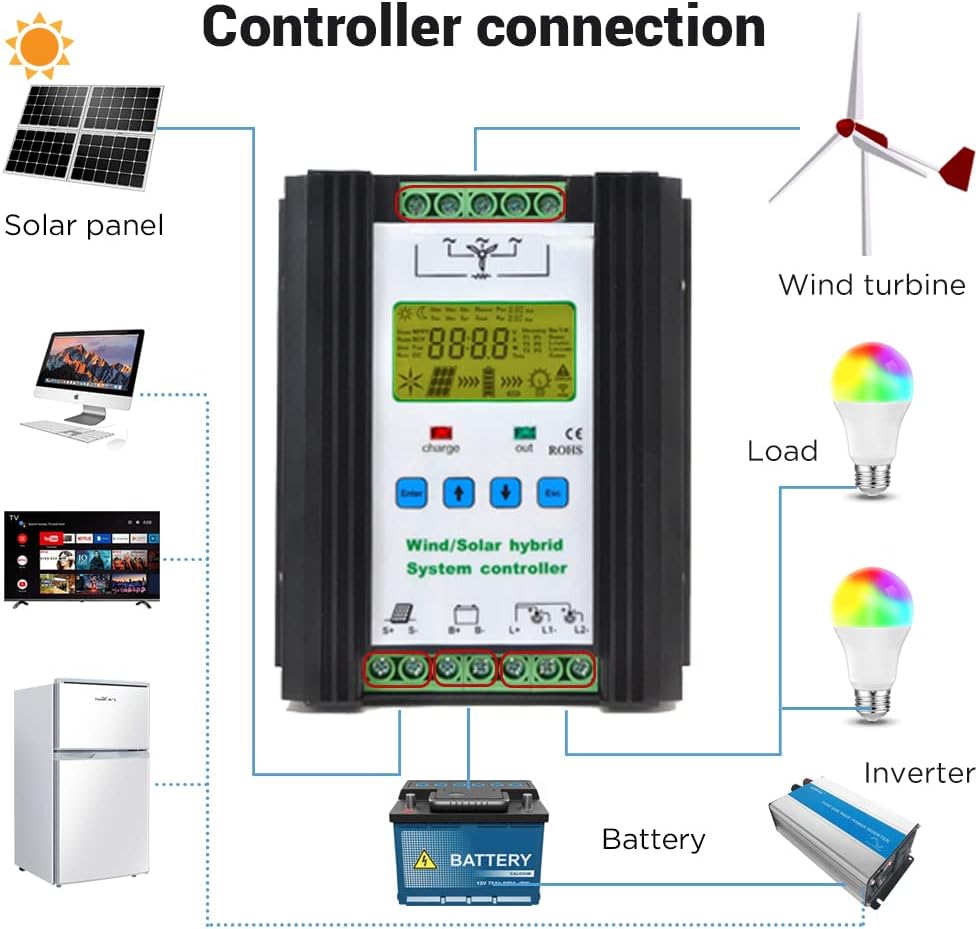

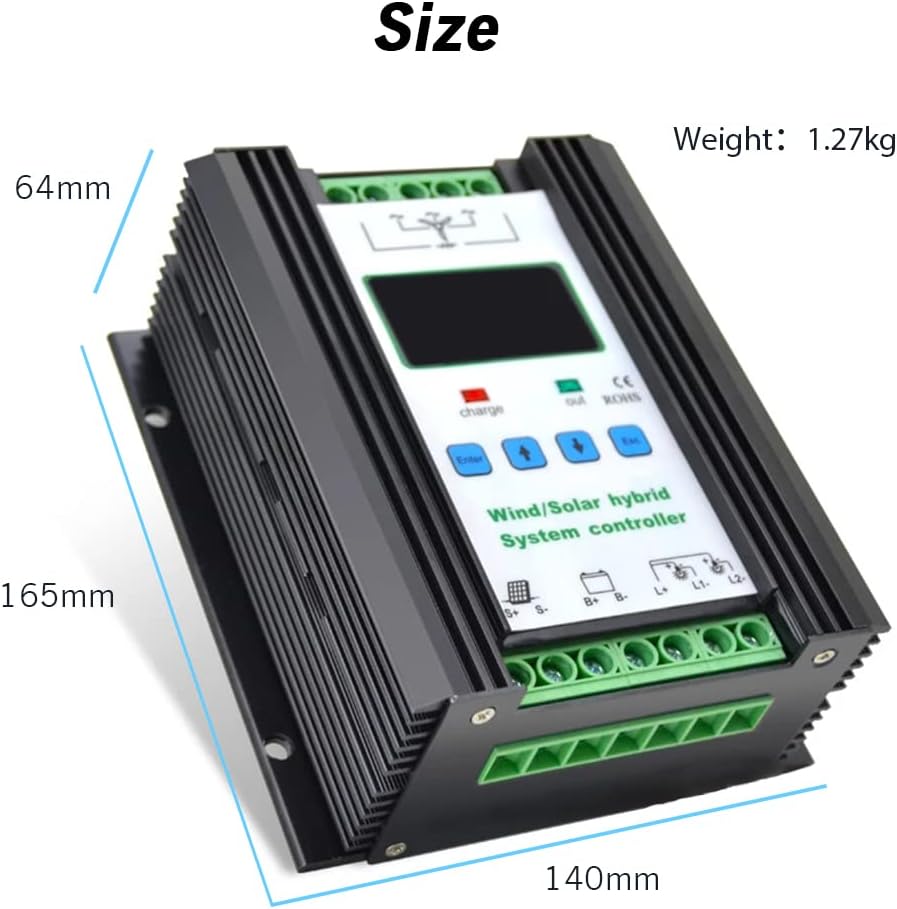

1. Please install the controller in the specified location.(NOTE:The necessary installation space installation location should be retained to ensure normal cooling of the controller, and install the controller using the ambient temperature should not exceed the operating temperature range)
2. Please use multi-strand insulated copper wire. First determine the wire length to minimize electrical losses in the case to ensure the installation location and select the wire size accordance with the requirement.
3. Use copper cable that its length not exceed 1M and square not exceed 4 Square mm, connect the battery to the battery terminal of the rear panel, pay more attention to distinguish positive and negative. Please connect the wire to the rear panel battery terminal first and the connect it to the battery. (NOTE: Although there are anti-reverse protection, but still non-battery reverse!)
4. Please connect the output wire of the wind turbine to the wind input terminal of rear panel under the stationary or low-speed operation( choose no wind). There no positive and negative for three-phase fan.
5. Connect the POS&NEG of solar panel to the solar input of rear panel after the shadowing of the solar panels, you must connect the rear panel first and then the solar panel.

Max PV Open Circuit Voltage27.6VPV Power200WMax Wind Open Circuit Voltage25.6VWind Turbine Power300WCharge Limit VoltageVbat>BCV+0.4VBattery Typelead-acid 、LiFePo4、Ternary lithium BatteriesMax PV Open Circuit Voltage 55.2VPV Power400WMax Wind Open Circuit Voltage 51.2VWind Turbine Power600WCharge Limit VoltageVbat>BCV+0.4VBattery Typelead-acid 、LiFePo4、Ternary lithium Batteries

12V Battery Parameter

24V Battery Parameter
