800W 12V 24V Solar Panel Wind Turbine Kit: 400W Wind Turbine Generator + 4 pcs 100W Poly Solar Panel+ Accessories Home Cabin RV Off Grid System
400W FIVE Blades Wind Turbine with a 2.5m/s start up speed for constant
-
Detail
Package include:
* 4 x100W Poly solar panel,( 90cm of special cable with F/M connectors attached )
* 1x 400W Wind Turbine

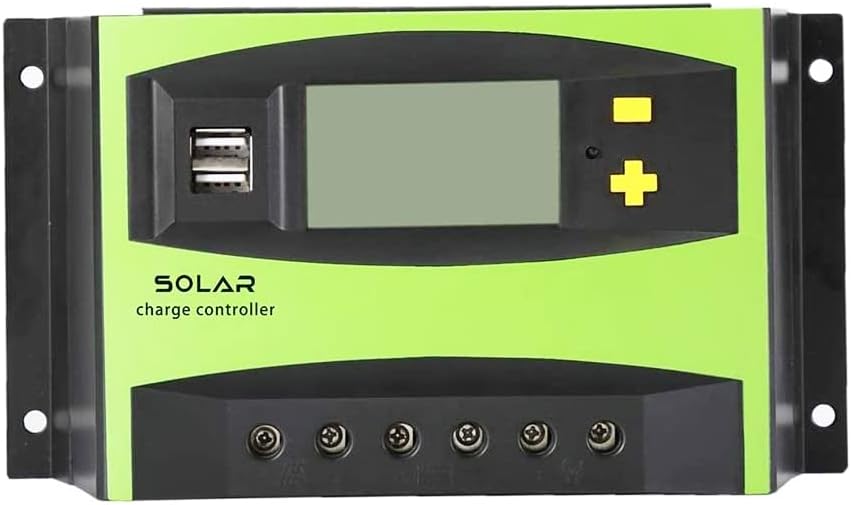

* 1x 40A 12V/24V LCD Solar Controller

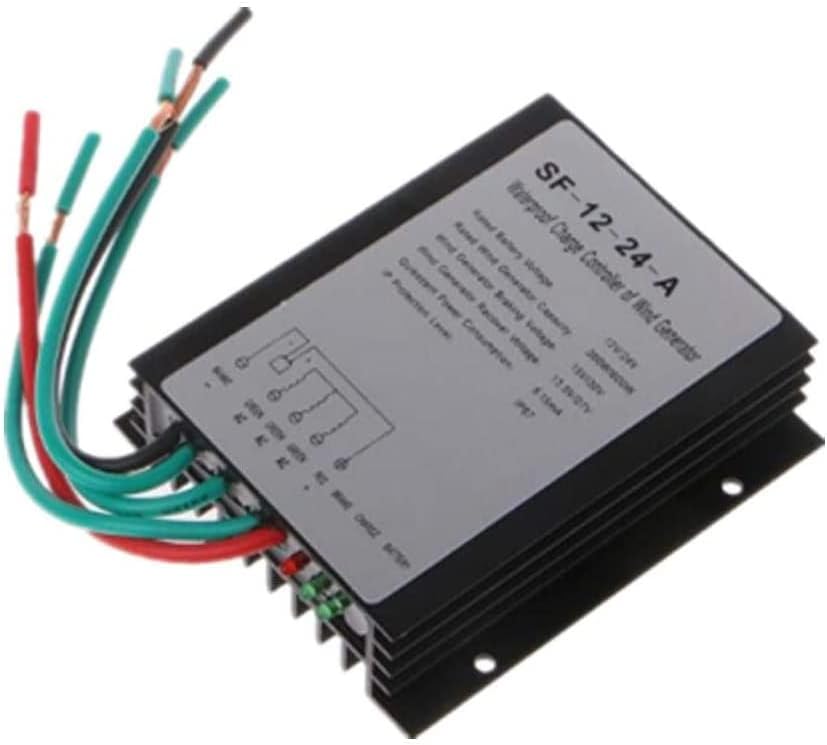

* 1x Wind controller
* 1x 4 in 1 F/M connectors
* 1x Totally 3m battery cable( red about 1.5m , black about 1.5m)
* 1x Totally 5m extension cable with F/M connectors ( red about 2.5m, black about 2.5m)
Note
Please advise if you need 12V system or 24V system when place order.
Solar Wind hybrid kit will be delivered in separate packages due to the size restriction by shipping courier.

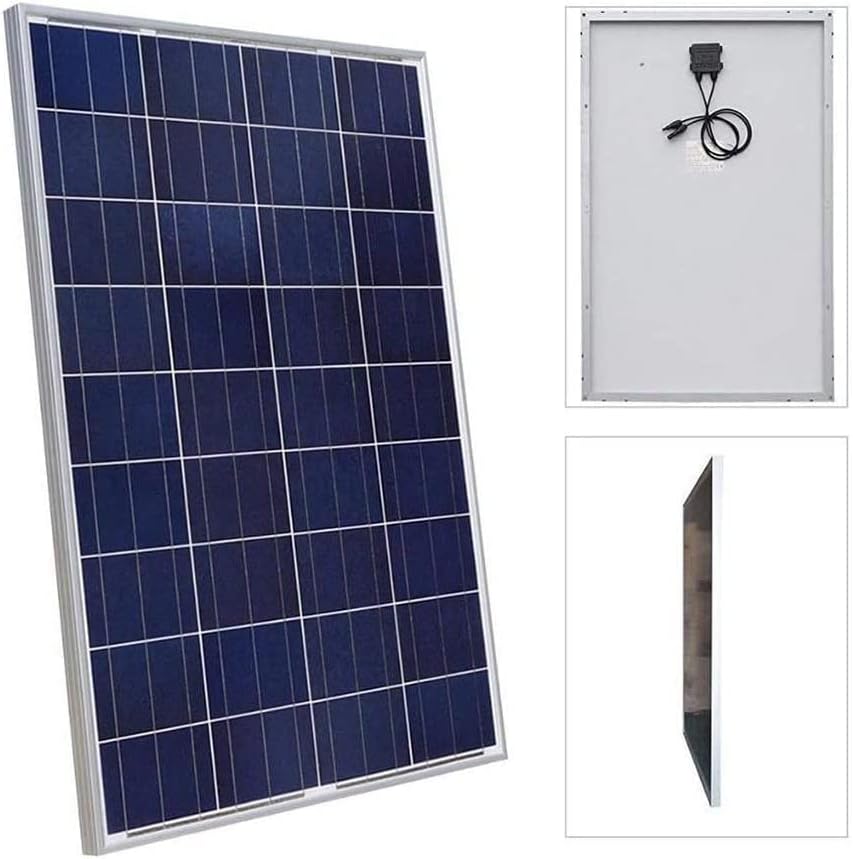

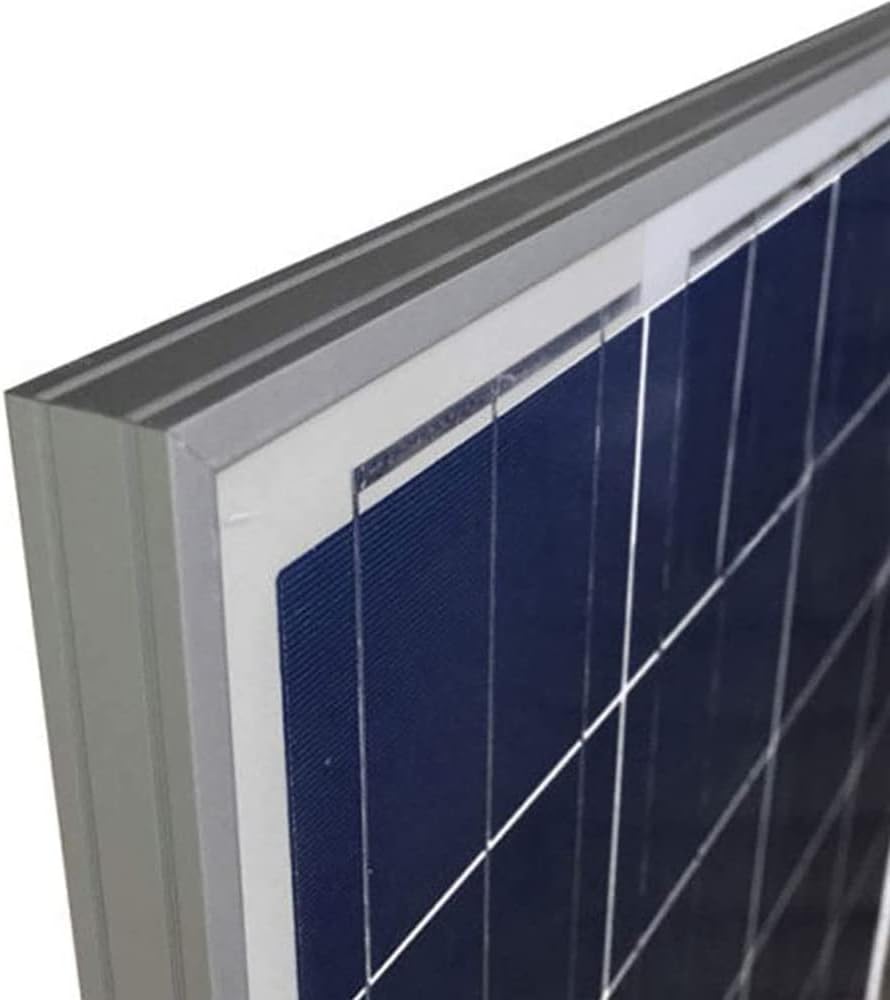

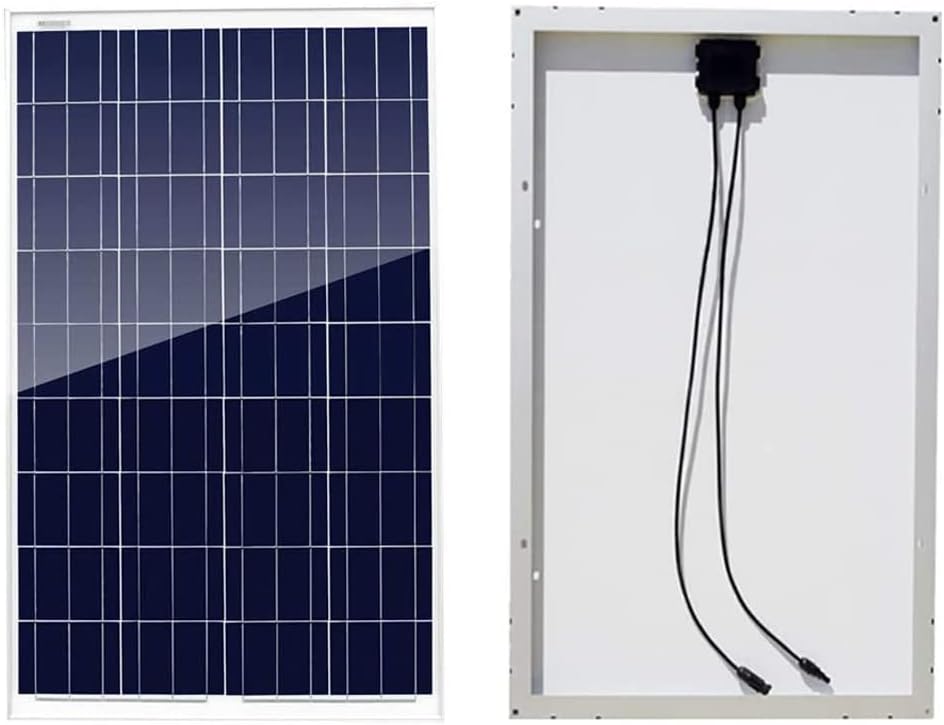

* 100W Poly Solar Panel Specification:
Maximum Power: 100W
Optimum Operating Voltage (Vmp): 18 V
Open-Circuit Voltage (Voc): 21.6 V
Optimum Operating Current (Imp): 5.55 A
Short-Circuit Current (Isc): 6.11A
Dimensions: 1025*671*30mm / 40.35 X 26.42 X1.18 In
Weight: 16.53 lbs (7.5KG)
90cm of special cable with F/M connectors attached.

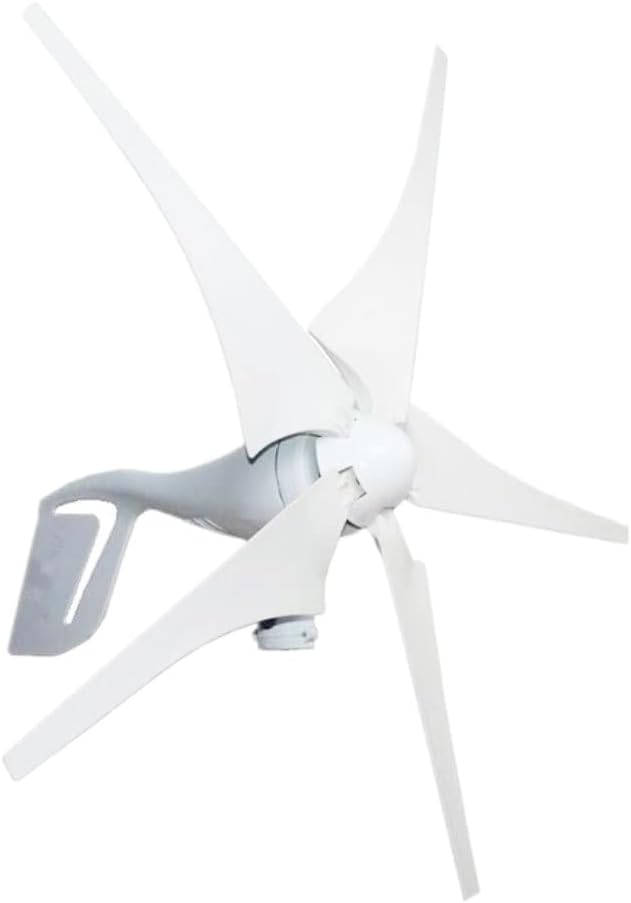

400W Wind Turbine Specification:
Rated power: 400W
Rated voltage DC27-54V
Battery voltage: DC 12/24V
Start-up wind speed: 2.5m/s
Rated wind speed: 10.5m/s
Number of blades: 5
Material of wind leaf: carbon fiber composite
Rotor diameter: 1.2M
Rated speed: 800MINRPM
Net weight: 8KG -
