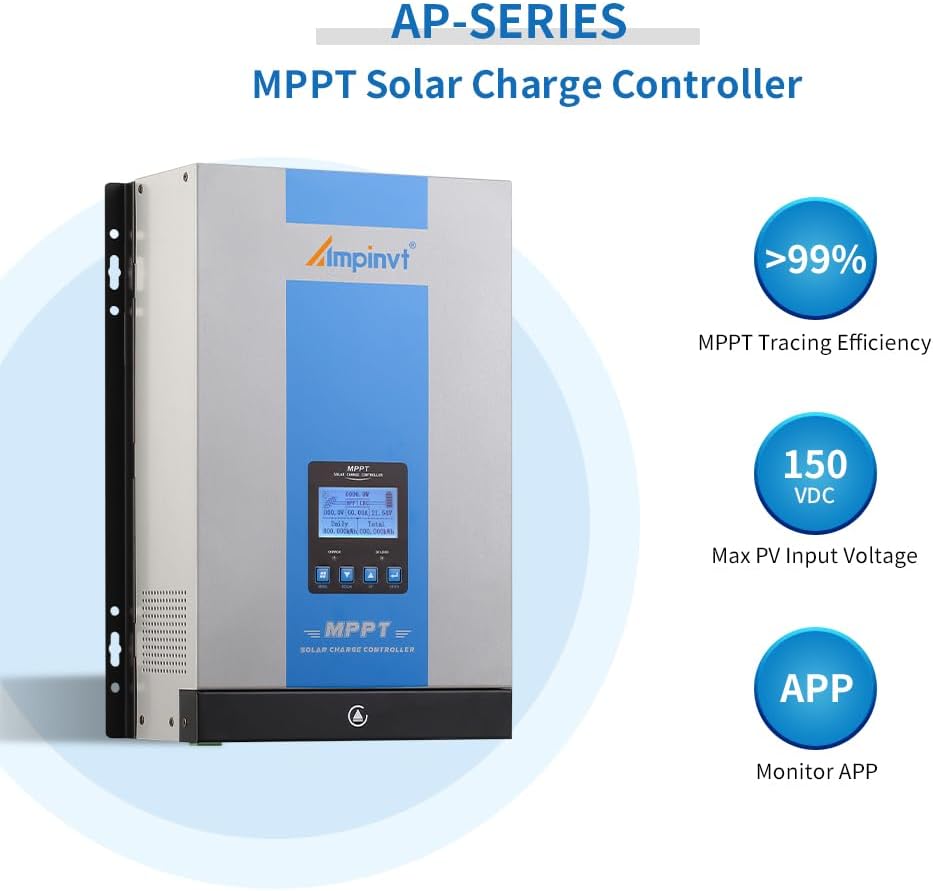

Ampinvt 120A MPPT Solar Charge Controller 12V 24V 36V 48V Battery System Auto,Max Input 150V PV Solar Panel Regulator fit for Gel Sealed Flooded and Lithium Battery

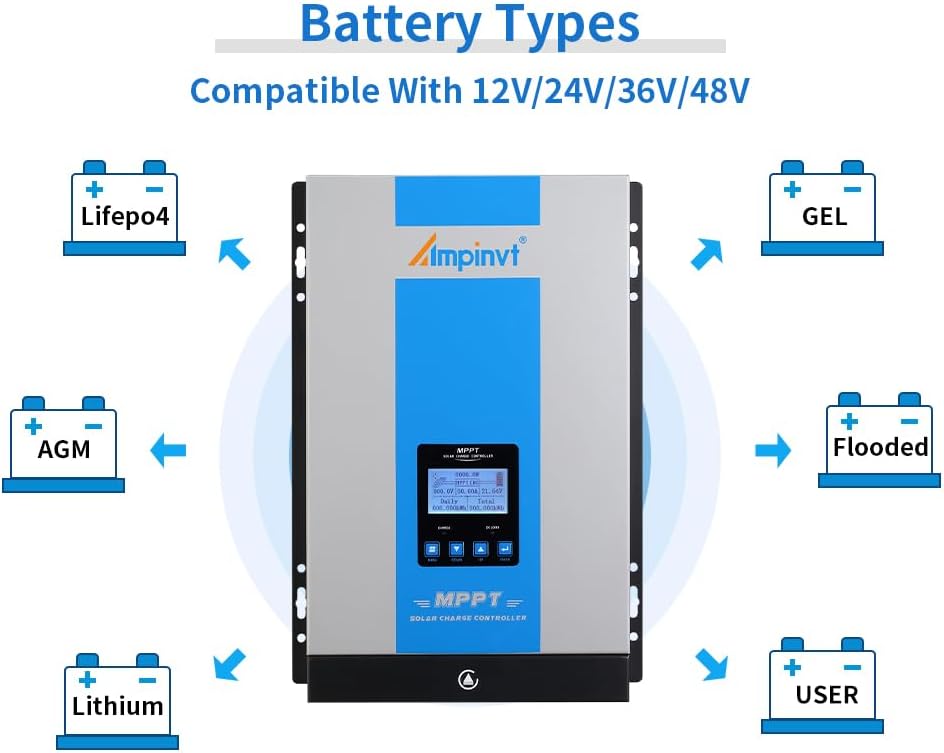

Rated Current:120ABattery Voltage:12V / 24V / 36V / 48V autoMax Solar Input Voltage:150VDCBattery Type:SLA Battery / Gel / Liquid Battery / Li-ion Battery(LifePo4)Max PV Power :1800W(12VDC) , 3400W(24VDC) , 5400W(36VDC) , 6800W(48VDC)Three Charging Mode:Constand Current (mppt), Equalizing Charge, Floating ChargeMaximum Efficiency:≥99%Multiple protections:overcharge/over discharge/ overheat/reverse/overload/short-circuit protectionW.1 yearRS485 communication:Capable of Wi-Fi remote monitoring (Additional purchase required) - Realize real-time wireless monitoring function of solar controller by APP, Simple and convenient to set, One-key restore the factory settings. Suitable for Andriod & IOS system.

Easy operation, details data display in real-time,

Attention:

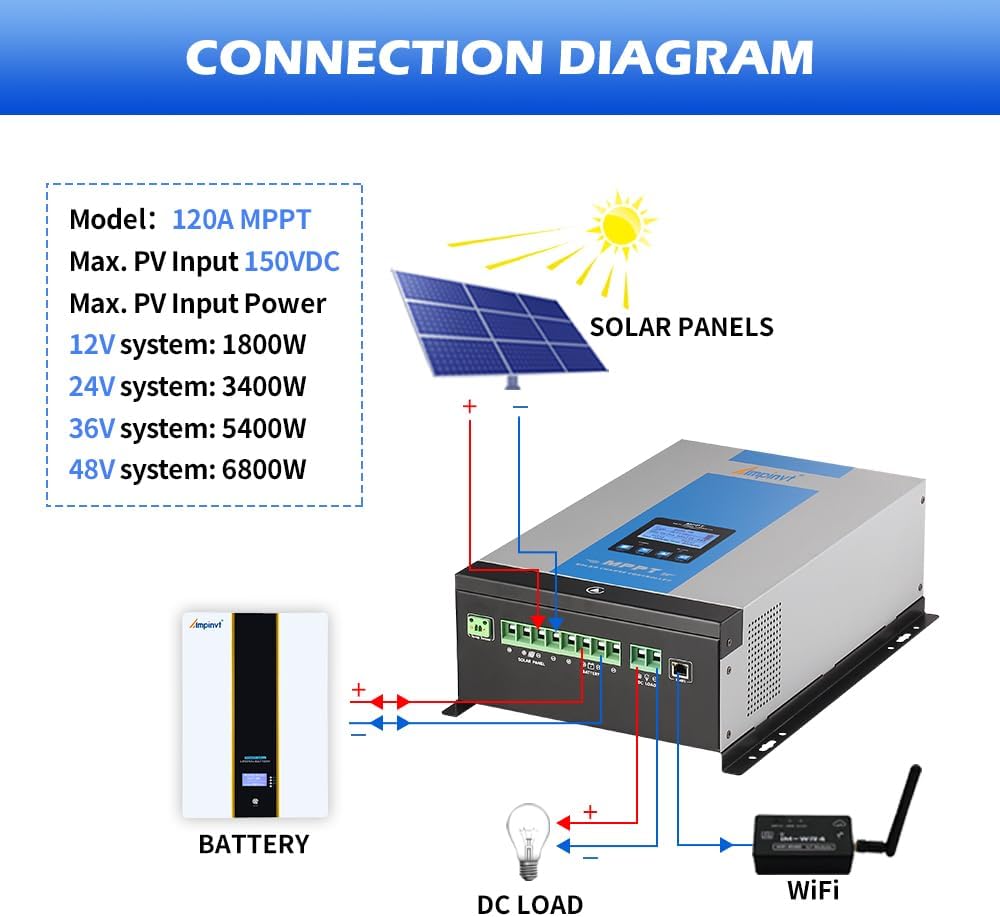

1. Always connect battery first !! Make sure enough batteries’ voltage let controller recognize the right system voltage. NEVER connect the solar panel array to the controller without a battery. The disassembly sequence is contrary to the wiring order.
2. DO NOT connect any Inverter/ wind/ Alternator or Charger into the charge controller !! Please connect the Inverter directly to the battery.
3. Ensure solar input voltage higher 3V or more than batteries’ voltage and total input power in the range. If input power is too low for max input power, it may be appears to have been discontinued, the charging current almost be zero when controller is floating charge.
4. The charging indicator is on and off, and the charging current is off and on. This situation generally occurs on cloudy days or in the evening when the light is insufficient, which is a normal phenomenon.
5. When the controller is buzzing, it is because the fan is trying to dissipate heat. Please wait patiently.
6. DO NOT install the charging controller in direct sunlight to avoid power loss due to overheating. Remove all clutter around the controller to reduce interference and make sure there is enough space for heat dissipation. ( leaving a space of approx. 20cm )
7. Ensure all connections going into and from the controller are tight. DO NOT let the positive (+) and negative (-) terminals of the battery touch each other.

Ampinvt 120A Solar Charge Controller Parameter

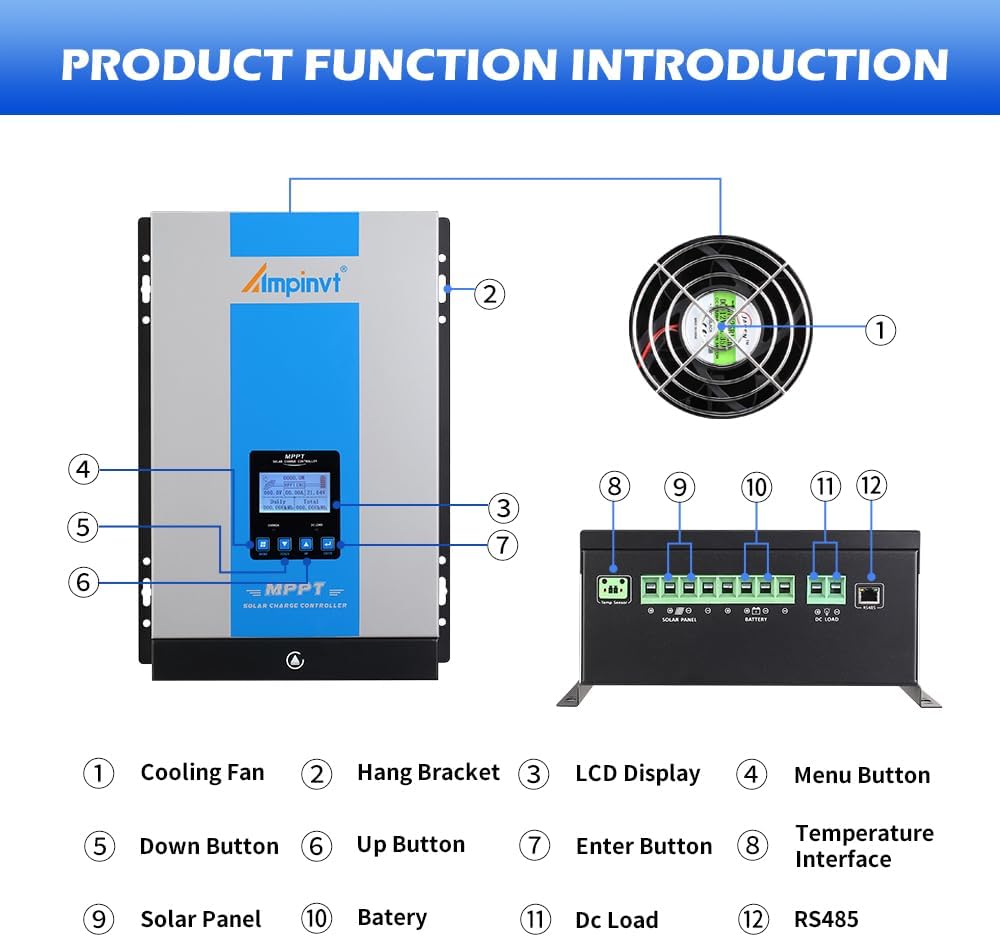

LCD&LED Display
