1800W Wind-Solar Generator Kit :Come with 600W Wind Turbine + 10PCS 120W Solar Panels for Off Grid 12 Volt Battery Charging (for 12 System)
This 600W hybrid Solar &Wind Power 12 Vo
-
Detail
NOTES:
1. We will ship you the proper accessory parts according to your system(12V/24V Battery),and Solar Kit will be sent in separate packages.
2.The controller is 12V/24V autodetect, please connect the battery to the controller firstly, and then connect the solar panel and wind turbine with the controller
The Giosolar 1800W 12V Solar Wind Kit Includes:

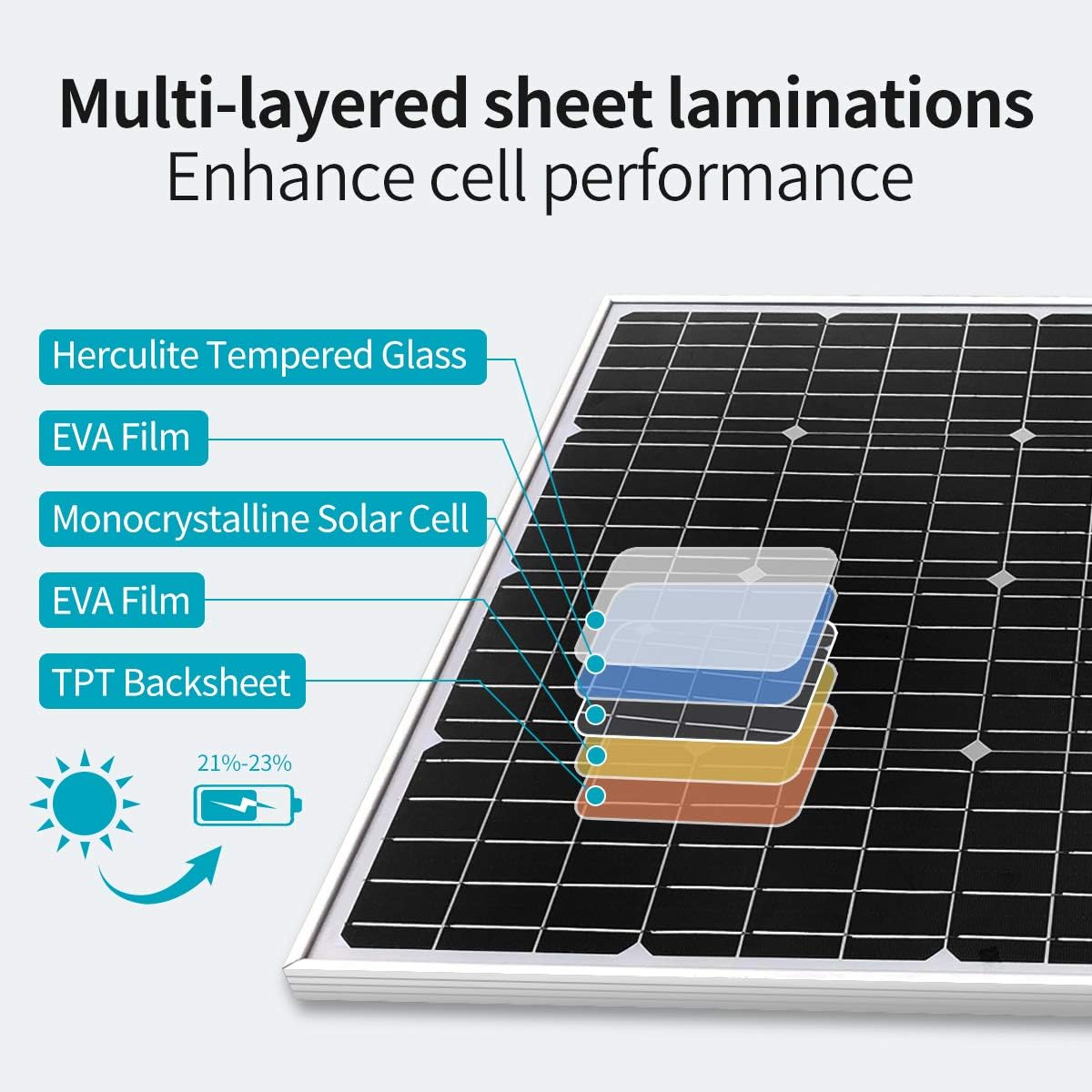

10 Pcs High efficiency 120W monocrystalline solar panels with 90mm of special solar cable and waterproof connectors
1 pc 12V 600W Wind Turbine Generator with 3 blades
1 pc 12V/24V 60A MPPT Solar charge controller
1 pc 12V/24V Wind charge controller
1 pc 5M solar cable with Male & Female connectors ( Red about 2.5M, Black about 2.5M)
1 Set of Y Branch Connectors ( depends on your battery system 12V/24V)
Solar Panel Specifications:
- Maximum Power: 120W
- Optimum Operating Voltage (Vmp): 18 V
- Open-Circuit Voltage (Voc): 21.2 V
- Optimum Operating Current (Imp): 6.67 A
- Short-Circuit Current (Isc): 7.23A
- Dimensions: 1015*670*30mm / 39.96X 26.38 X 1.18 In
- Weight: 15.5 lbs (7KG)
- 90mm of special cable with connectors attached -
