Home / 800 Watts 24V Wind-Solar Generator Kit: 400W Wind Turbine(6 Blades) & 4PCS 100W Poly Solar Panels & 30A Solar Charge Controller &Wind Controller (for 24V System Array)

800 Watts 24V Wind-Solar Generator Kit: 400W Wind Turbine(6 Blades) & 4PCS 100W Poly Solar Panels & 30A Solar Charge Controller &Wind Controller (for 24V System Array)

800W Hybrid Solar & Wind Power off system Kit to charge 24V battery, Solving the pure solar panel system low efficiency problem in low temperature and strong wind.help you to generate power for remote areas in all seasons and save energy.
4PCS 100W Polycrystalline Solar Panels,Excellent low l
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    The Giosolar 800W Solar Wind Kit include:
    - 4x 100W Polycrystalline solar panels with 90mm of special solar cable and waterproof connectors
    - 1x 420W Wind Turbine Generator

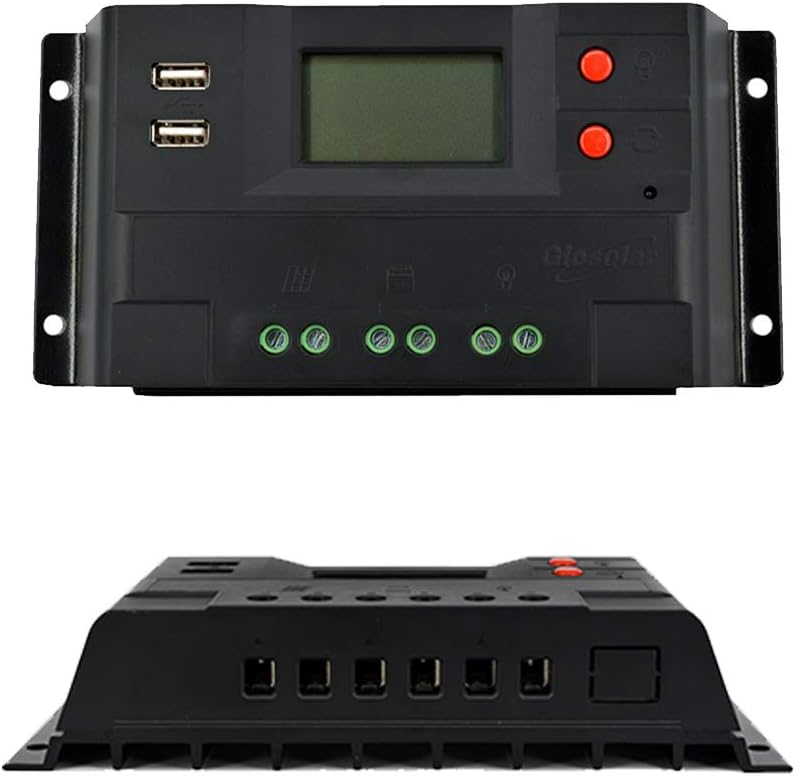

    - 1x 12V/24V 30A PWM Solar charge controller
    - 1x 12V/24V Wind charge controller
    - 1x Battery cable with aligator clips
    - 1x 5M solar extension cables with Male & Female connectors ( Red about 2.5M + Black about 2.5M)
    - 1 Set of Y Branch Connectors ( quantity depends on your you need 12v/24v system )

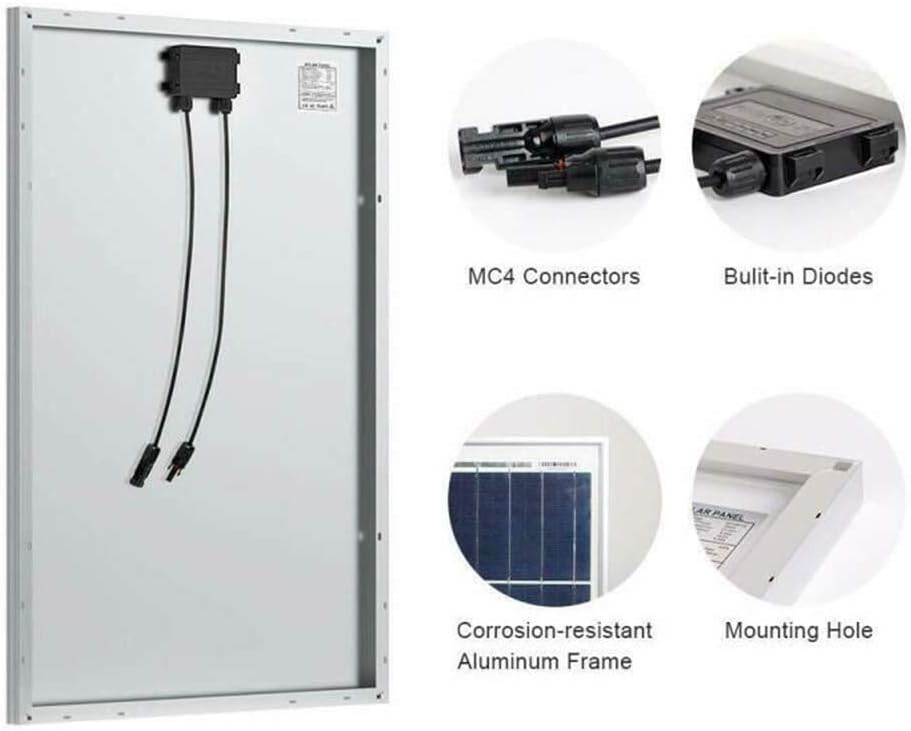

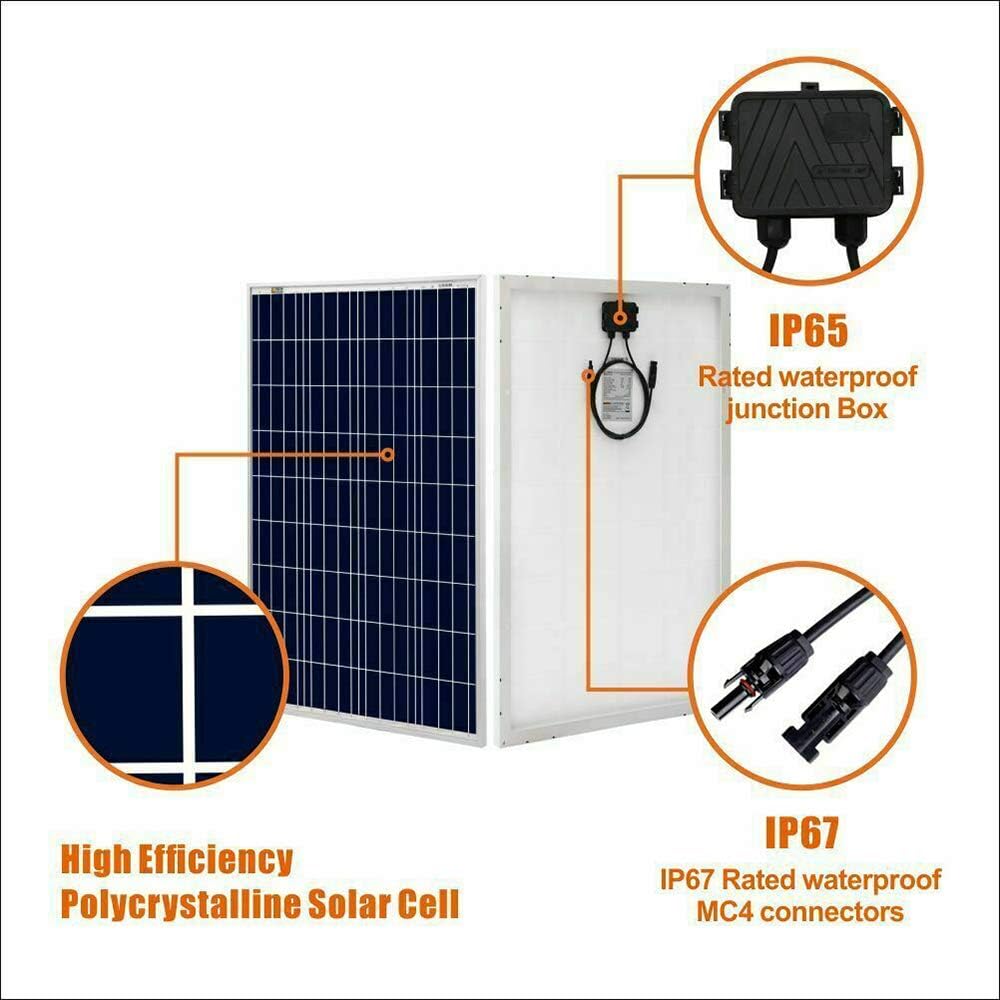

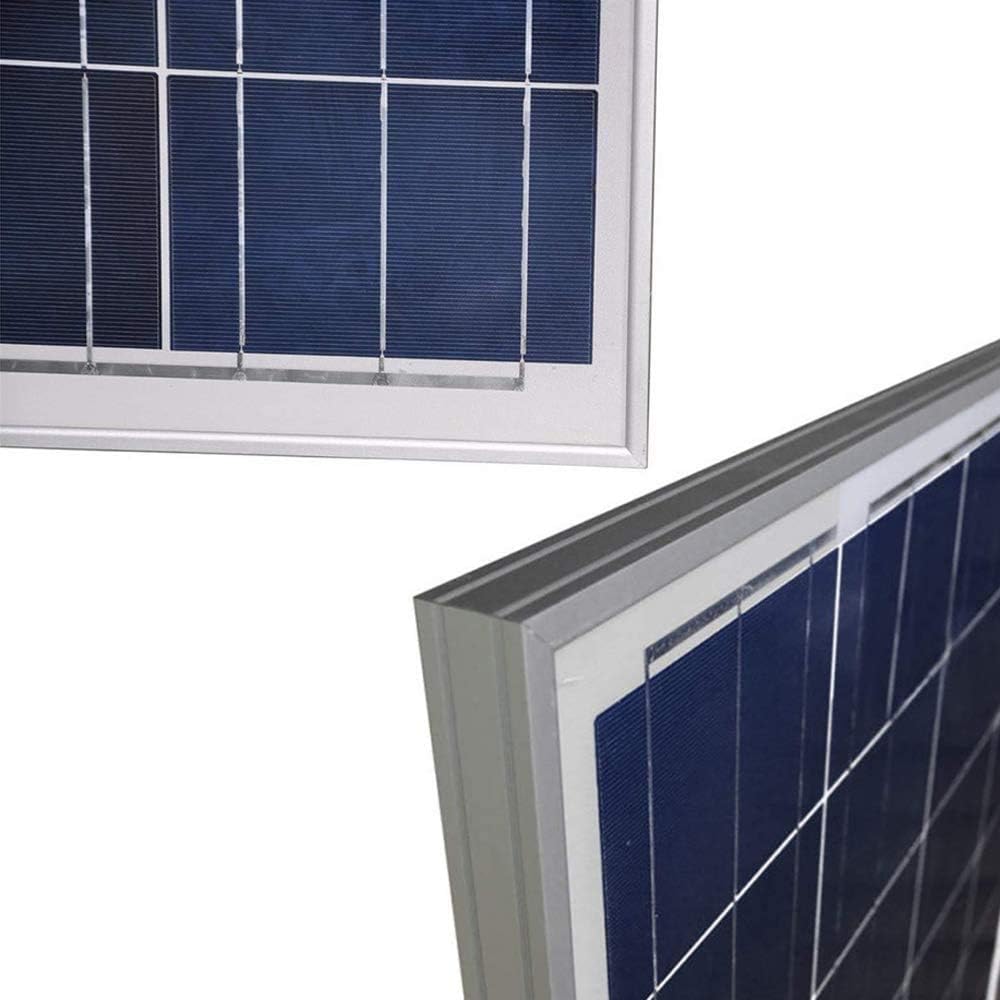

    Solar Panel Specifications:

    - Maximum Power: 100W
    - Optimum Operating Voltage (Vmp): 18 V
    - Open-Circuit Voltage (Voc): 21.6 V
    - Optimum Operating Current (Imp): 5.55 A
    - Short-Circuit Current (Isc): 6.11A
    - Dimensions: 1025*671*30mm / 40.35 X 26.42 X 1.18 In
    - Weight: 16.53 lbs (7.5KG)
    - 90mm of special cable with connectors attached
    400W Wind Turbine Specification:

    Rated power 400W
    Rated DC voltage AC 12V/24V
    Rated current 32A/16A
    Rated speed 1350r/m
    Max power 420W
    Number of blade 6pcs
    Starting wind speed 2.5m/s
    Cut-in wind speed 3m/s
    Cut-out wind speed15m/s
    Security wind speed 45m/s
    Rated wind speed 12m/s
    Engine Three-phase permanent magnel generator
    Rotor diameter 1160mm
    Blade materialCarbon fiber
    Output line anti-winding device Overall three-phase commutator
    Over-speed wind protection Tip stall protection + turned protection + Electromagnetic brake
    Equipment surface protection Aluminum oxide + plastic coating
    Working temperature -45° C-70° C
    Packing material Carton box and foam material
    packing dimension 720*390*210mm
    G.W. 12kg
