1300W 24V Wind Solar Kit: 400W Wind Turbine Generator + 8pcs 120W Monocrystalline Solar Panel + 3000W Pure Since Wave Inverter(Peak 6000W)+Accessories

The hybrid Solar & Wind Power off system Kit is a good choice for both residential & commercial use, combination of solar and wind energy, Solving the pure solar panel system low efficiency problem in low temperature and strong wind.help you to generate power for remote areas in all seasons
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    NOTES:

    Please tell us you need 12V or 24V system after place order,so we can decide to ship 12V or 24V inverter & Wind Turbine,and Solar Kit might be sent in separate packages.

    The Giosolar 1360W Solar Wind Kit Includes:

    8 Pcs High efficiency 120W monocrystalline solar panels with 90mm of special solar cable and waterproof connectors
    1 pc 400W Wind Turbine Generator with 6 blades
    1x 3000W Peak 6000W 12V/24V Pure Sine Wave Power Inverter

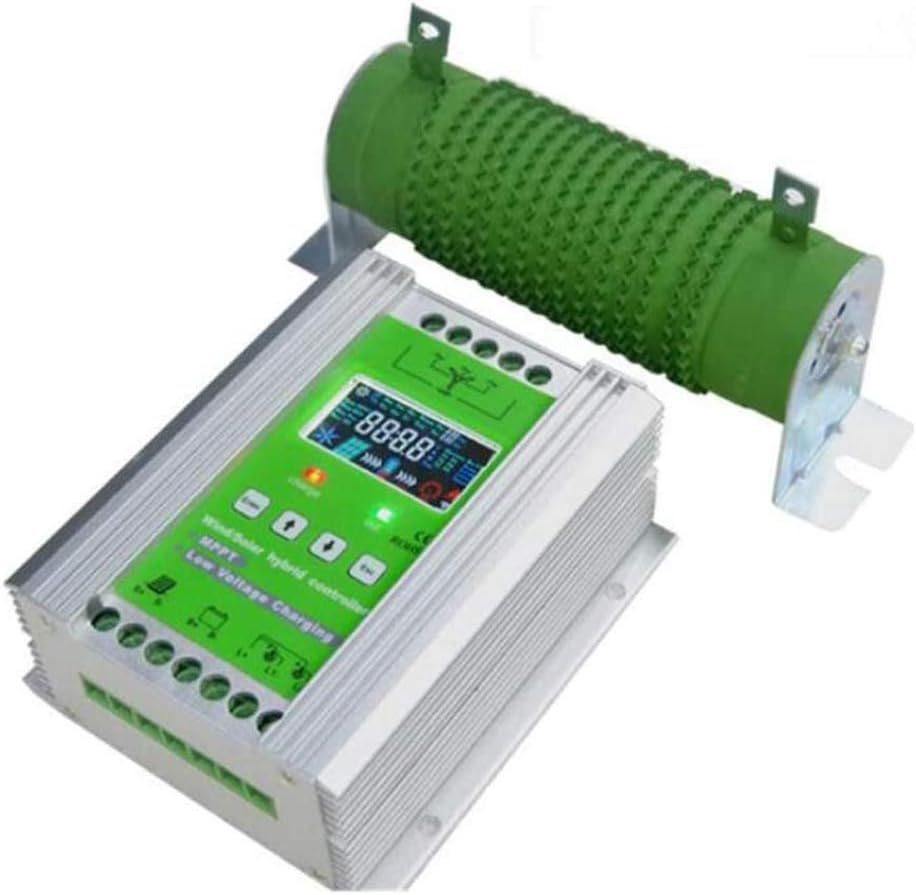

    1x 12V/24V Solar Wind Hybrid MPPT Charge Controller
    1 pc 5M solar cable with Male & Female connectors ( Red about 2.5M, Black about 2.5M)
    1 Set of Y Branch Connectors ( depends on your battery system 12V/24V)

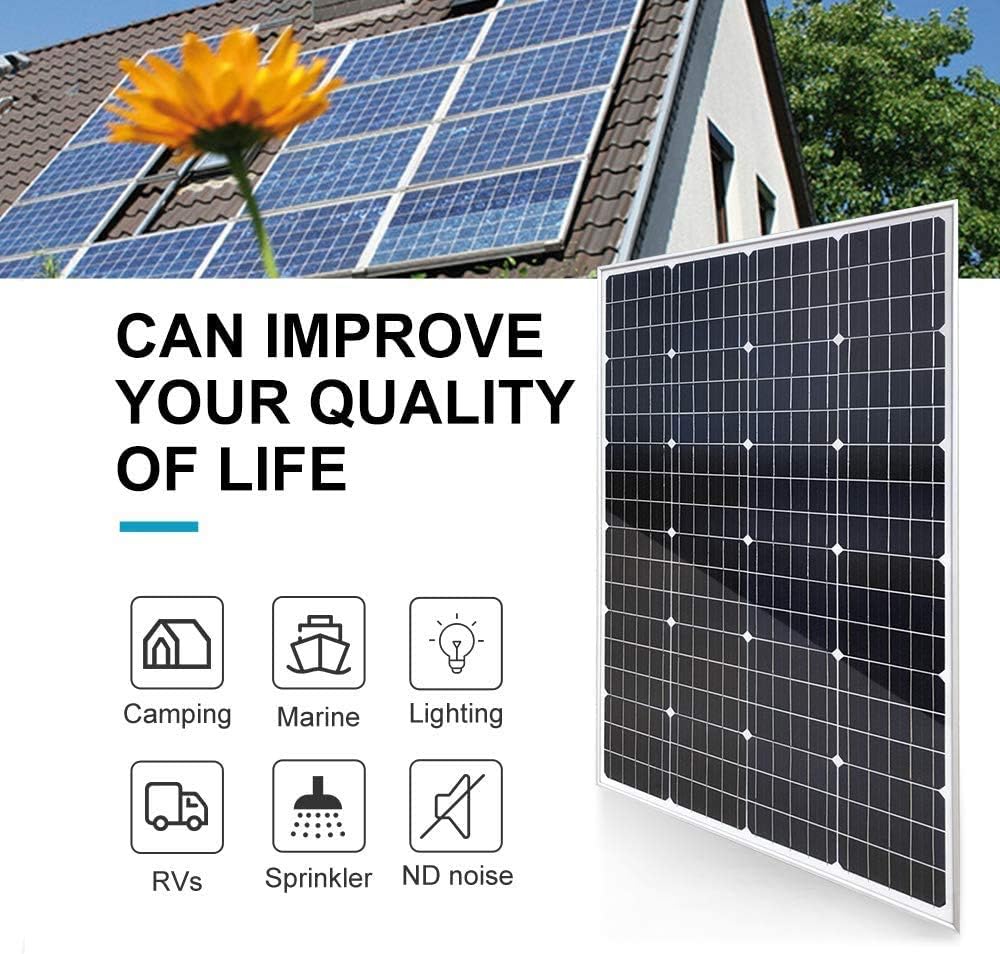

    120W Solar Panel Specifications:
    - Maximum Power: 120W
    - Optimum Operating Voltage (Vmp): 18 V
    - Open-Circuit Voltage (Voc): 21.2 V
    - Optimum Operating Current (Imp): 6.67 A
    - Short-Circuit Current (Isc): 7.23A

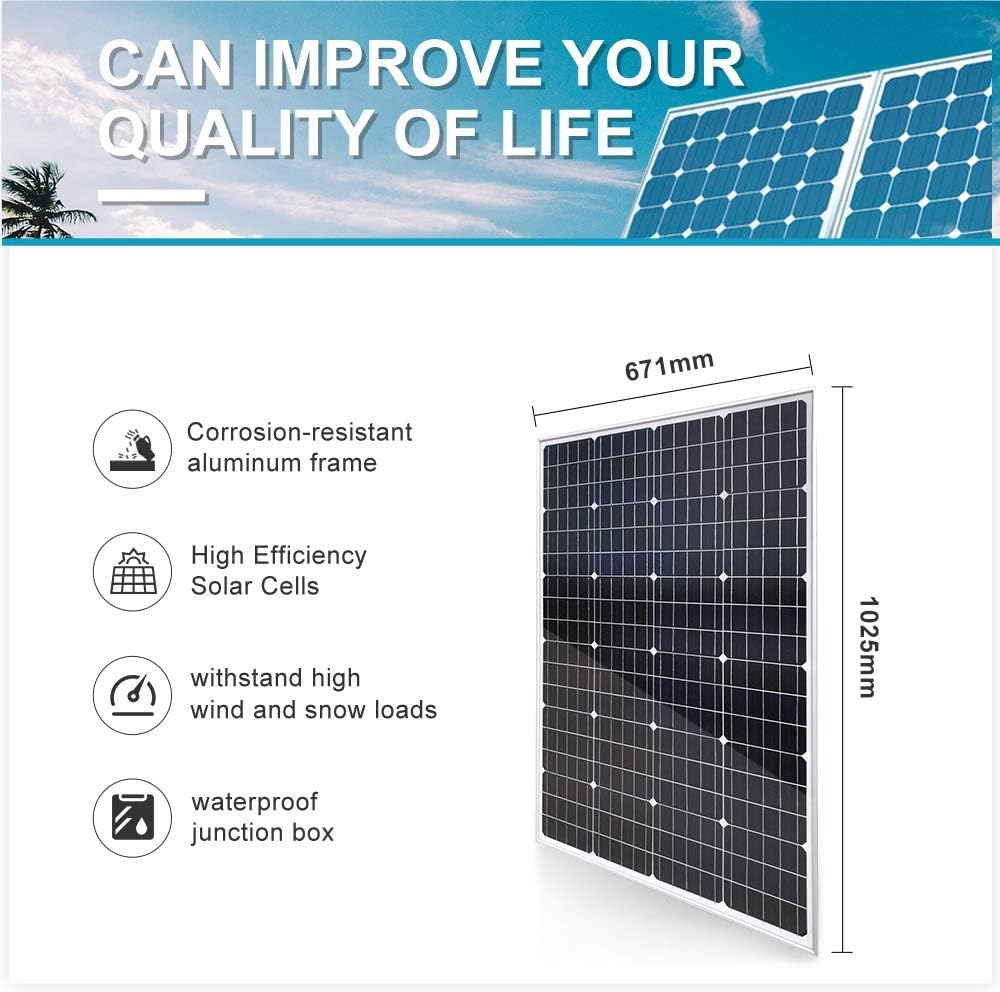

    - Dimensions: 1015*670*30mm / 39.96X 26.38 X 1.18 In
    - Weight: 15.5 lbs (7KG)
    - 90mm of special cable with connectors attached

    400W Wind Turbine Specification:

    Rated power 400W
    Rated DC voltage AC 12V/24V
    Rated current 32A/16A
    Rated speed 1350r/m
    Max power 420W
    Number of blade 6pcs
    Starting wind speed 2.5m/s
    Cut-in wind speed 3m/s
    Cut-out wind speed15m/s
    Security wind speed 45m/s
    Rated wind speed 12m/s
    Engine Three-phase permanent magnel generator
    Rotor diameter 1160mm
    Blade materialCarbon fiber
    Output line anti-winding device Overall three-phase commutator
    Over-speed wind protection Tip stall protection + turned protection + Electromagnetic brake
    Equipment surface protection Aluminum oxide + plastic coating
    Working temperature -45° C-70° C
    Packing material Carton box and foam material
    packing dimension 720*390*210mm
    G.W. 12kg
