EPEVER 40A MPPT Solar Charge Controller 12V/24V Auto Working Max.PV 150V Solar Panel Charge Regulator Tracer BN Series Negative Ground Solar Controller

• Based on common negative design and advanced MPPT control algorithm, with die-cast aluminum design for heat dissipation, products in this series are artistic, economical and practical.

• With MPPT control algorithm, in any situation, products of this series can fast and accurately track out the best maximum power point (MPP) of photovoltaic array, in order to obtain the maximum solar energy in time, which remarkably improves energy efficiency.

• With Modbus communication protocol interface, it is convenient for customers to expand applications and monitor in various fields like telecommunication base station, household system, caravan system, street lighting system, wilderness monitoring system, etc.

• All-round electronic fault self-test function and enhanced electronic protection function could furthest avoid damages on system components resulting from installation errors or system failures.

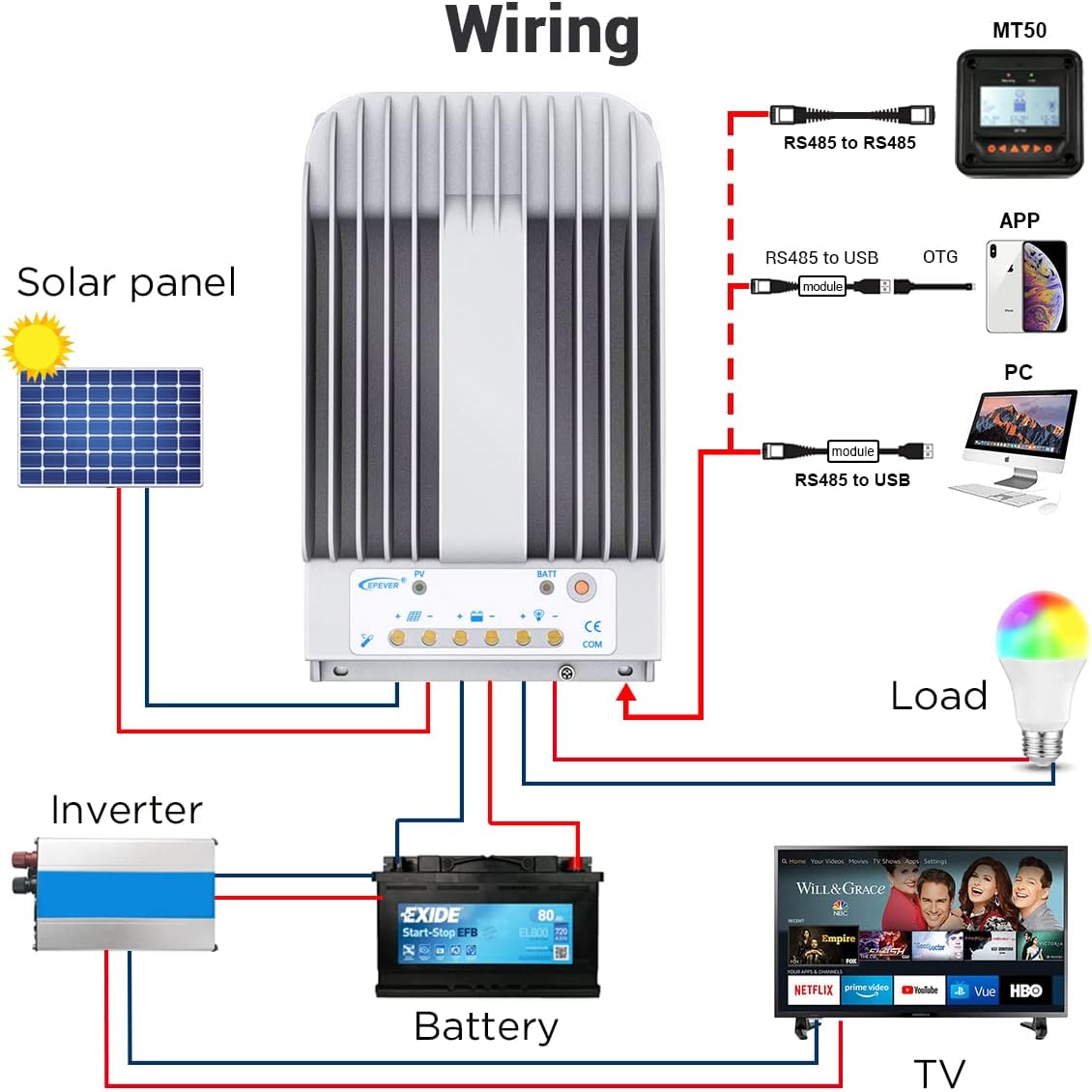

1. The controller connection sequence is Battery--Load--Solar Panel, and discounect the system in the reverse order Solar Panel--Load--Battery
2. The Tracer-BN series is a negative ground controller. Any negative connection of solar, load or battery can be earth grounded as required.
3. Notice：

1）Unplug the RTS, the temperature of battery will be set to a fixed value 25 ºC.

2）Please connect the inverter to the battery rather than to the controller, if the inverter is necessary.

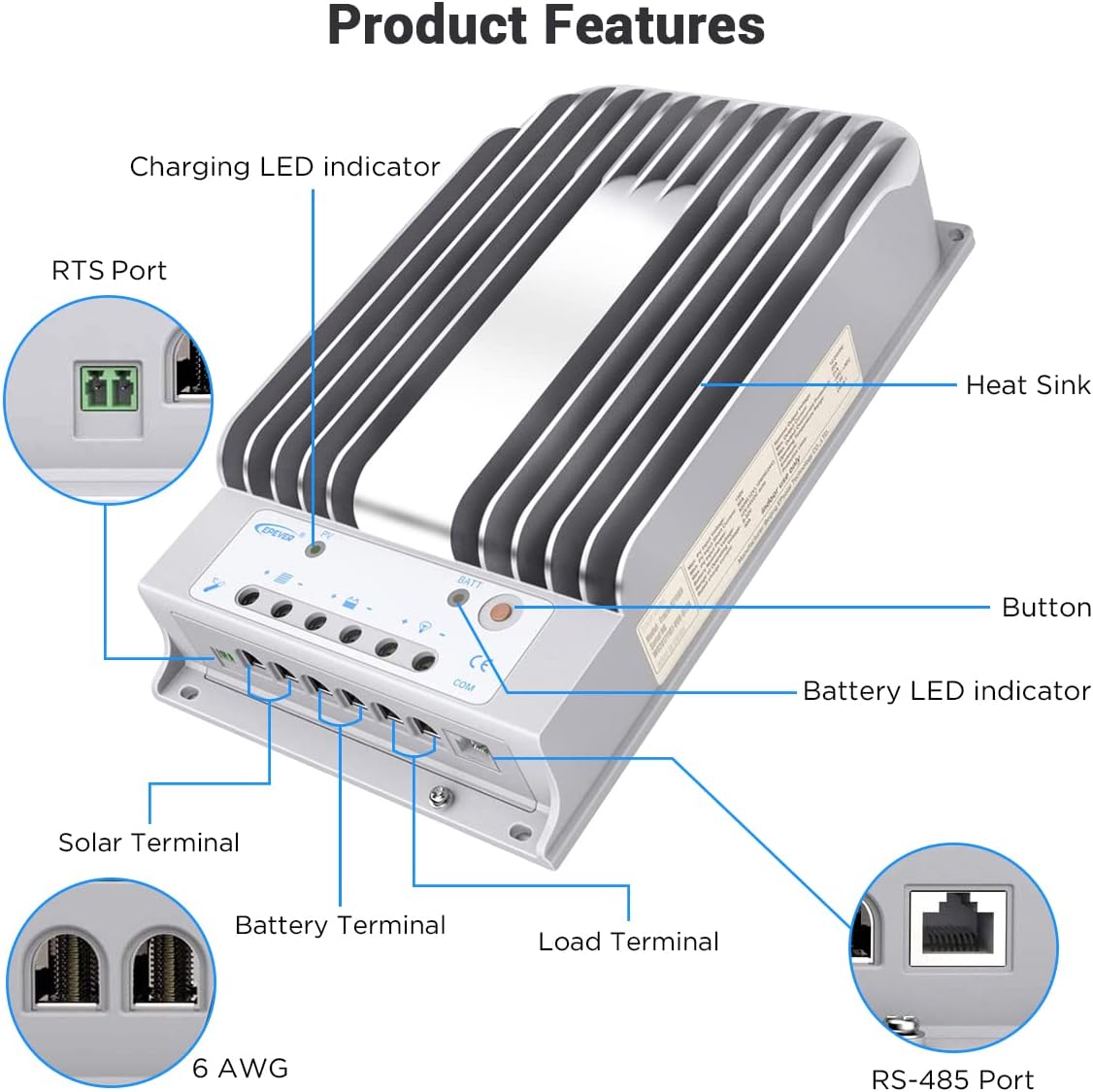

3）The RS-485 port and RTS port is not SELV circuit, it must have isolation between the port and the place where the end user can access directly.

Four methods to configure the controller:

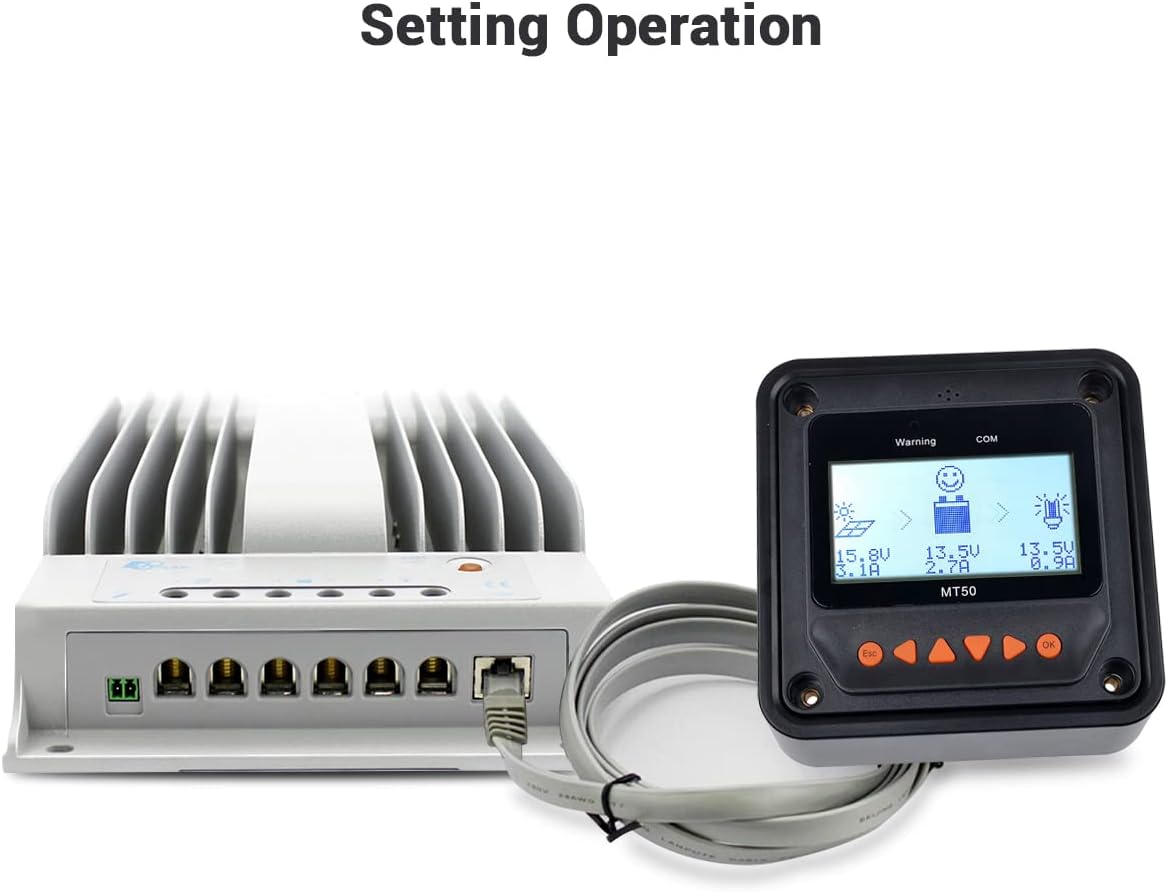

1. Remote meter, MT50 (Use standard twisted net cable, model:CC-RS485-RS485-200U-MT).
2. Super parameter programmer, SPP-02(Use standard twisted net cable, model:CC-RS485-RS485-200U). One-key easily configure and apply to batch setting.
3. PC monitoring setting software ―Solar Station Monitor‖（Use USB to RS485 converter cable with model: CC-USB-RS485-150U.
4. Mobile APP (Use USB to RS485 converter cable: CC-USB-RS485-150U and Micro 5PIN OTG cable)

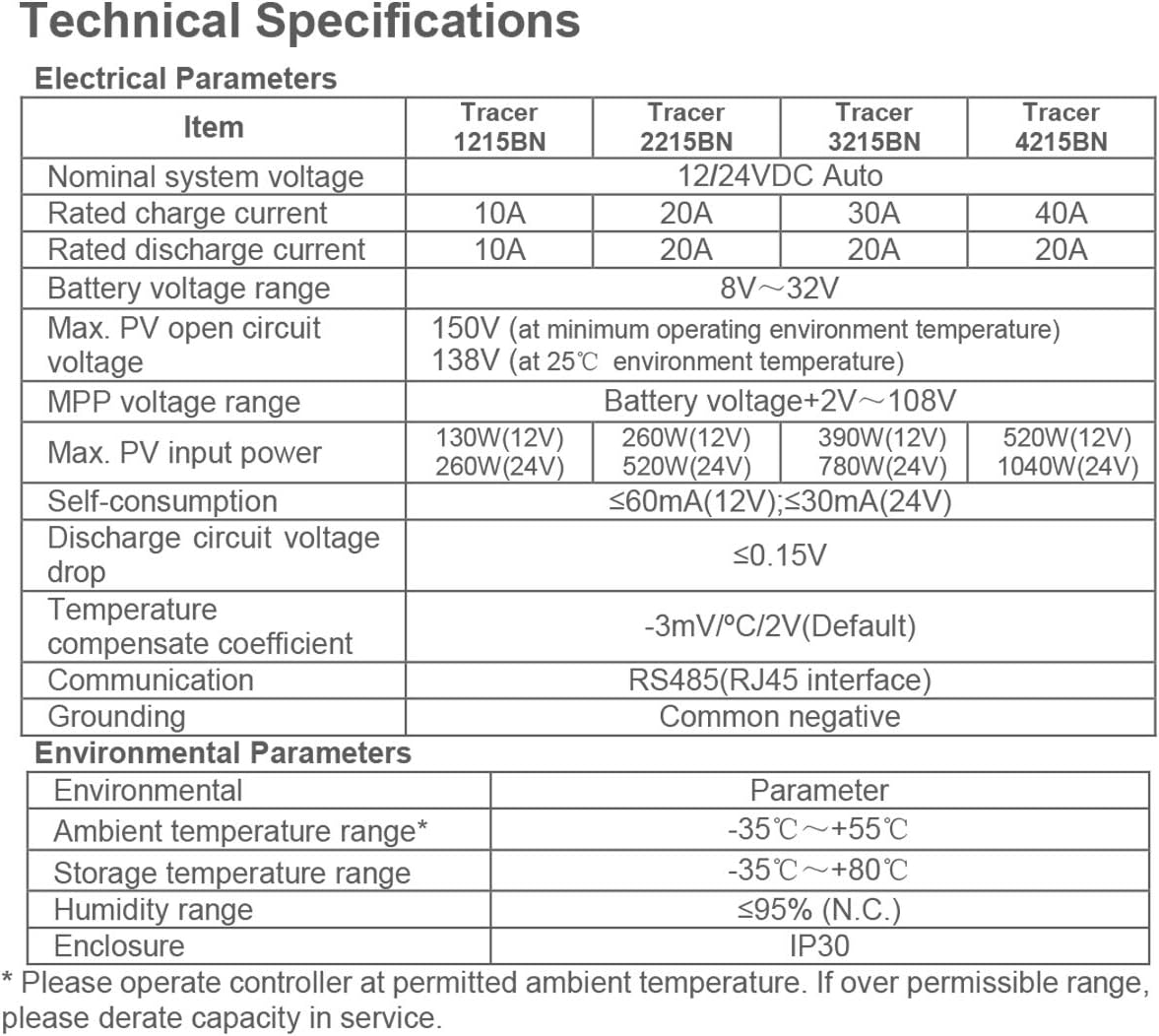

• 12V/24VDC Auto Working
• 150V Max. PV Open Circuit Voltage
• 520w(12v)/1040w(24v) Max. PV Input Power
• Support 4 charging options: Sealed, Gel, Flooded and User

4215BN MPPT Solar Charge Controller
