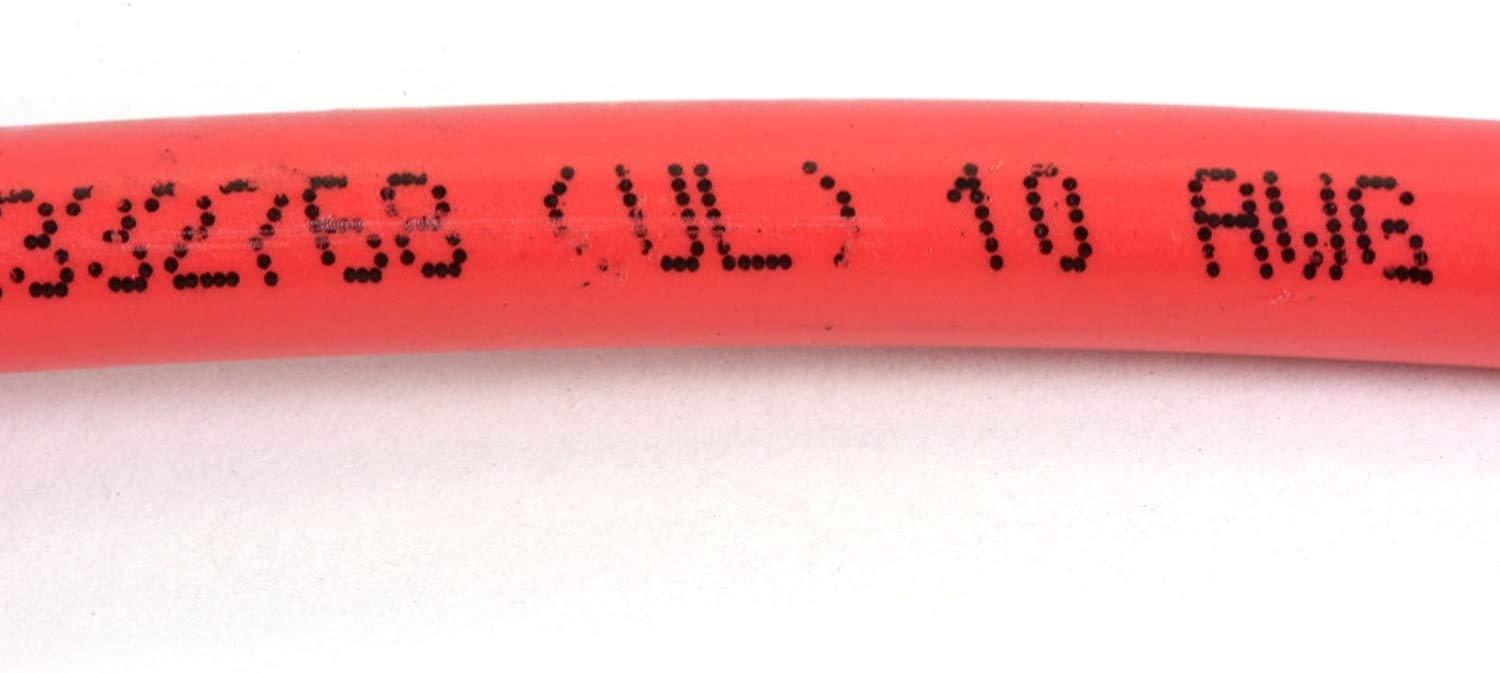

TEMCo 50ft 10 AWG Red Solar Panel Extension Cable with M-F Solar Connector Ends Qty:2

Lifetime warranty. Don't choose a product that will degrade or fail before your panels do. MADE IN THE USA
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    2 lengths of 50 ft. each. UL 4703 rated cable is superior to USE-2 in regards to low temperature flexibility, sunlight resistance, and flame resistance. PV wire for solar panels also has a thicker jacket and insulation than USE-2 wire. USE-2 cable is used in grounded PV systems only, which UL 4703 cable can be used for both grounded and ungrounded arrays. Silver-plated Copper Terminals outlast and outperform tin-plated models. Used for Solar panels, DC circuits, and inverter wiring.

    Connectors rated for 35 amp 1000v, 10 AWG wire rated for 40 amps
    Test voltage: 6 kV (50 Hz)
    PC/PA Insulation
    Rated for -40°C ~ 85°C
    IP67 Protection Grade, Safety class II, Flame class UL94-V0
    Contact resistance Less than or equal to 5 mOhm
    Insertion force: Less than or equal to 50N
    Withdrawl force: Greater than or equal to 50N
    Snap-in locking system
    Bare copper conductor
    Cross linked Polyethylene (XLP) insulation
    Max. voltage 600 V, -40°C to 90°C
    Type USE-2 per UL 854, RHH/RHW-2 per UL 44, Type PV per UL 4703
