500W(520W) Solar Wind Power Kit: 120W Mono Flexible Solar Panel + 400W 12V Wind Turbine Generator + Accessories for RV, Boat, Cabin, Trailer, Roofs, Off Grid System, 12V Battery Charging
100% EL testing on all AUECOOR sol
-
Detail
Package Included:
* 120W Flexible Solar Panel ( 90cm of special cable with F/M connectors attached )
* 1 x 12V 400W Wind Turbine

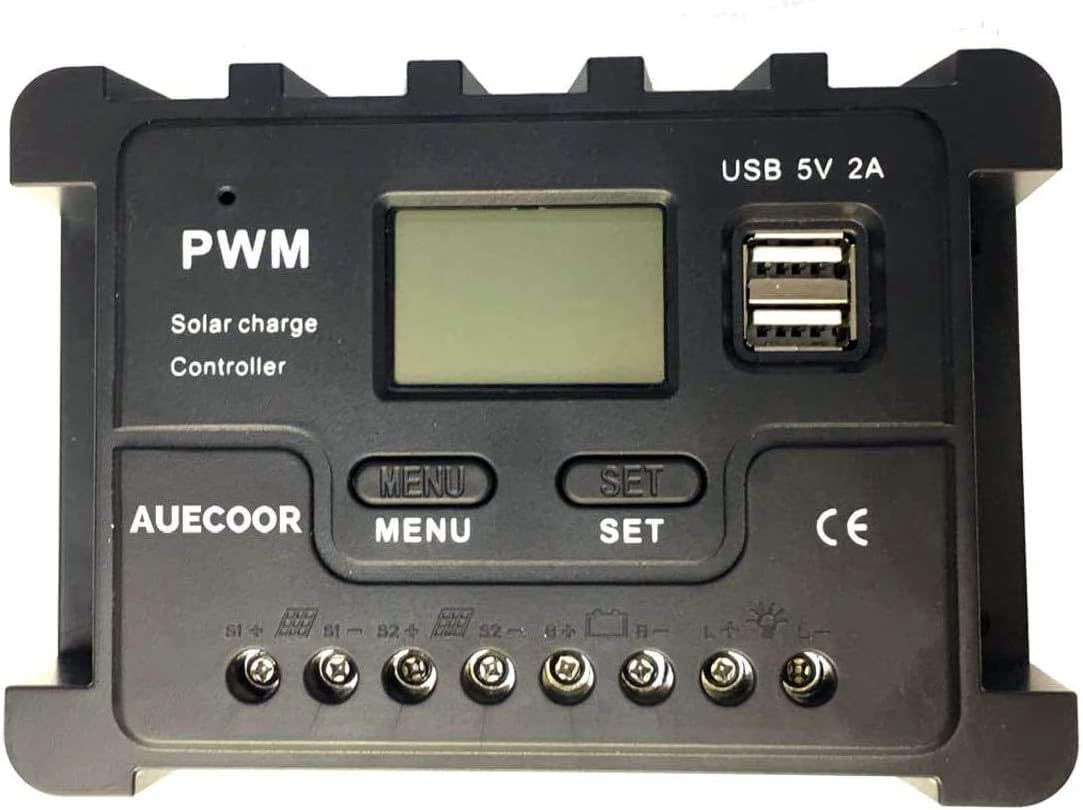

* 1 x 20A 12V/24V LCD Solar Controller
* 1 x Wind controller
* 1 x Totally 3m battery cable( red about 1.5m , black about 1.5m)
* 1 x Totally 5m extension cable with F/M connectors ( red about 2.5m, black about 2.5m)

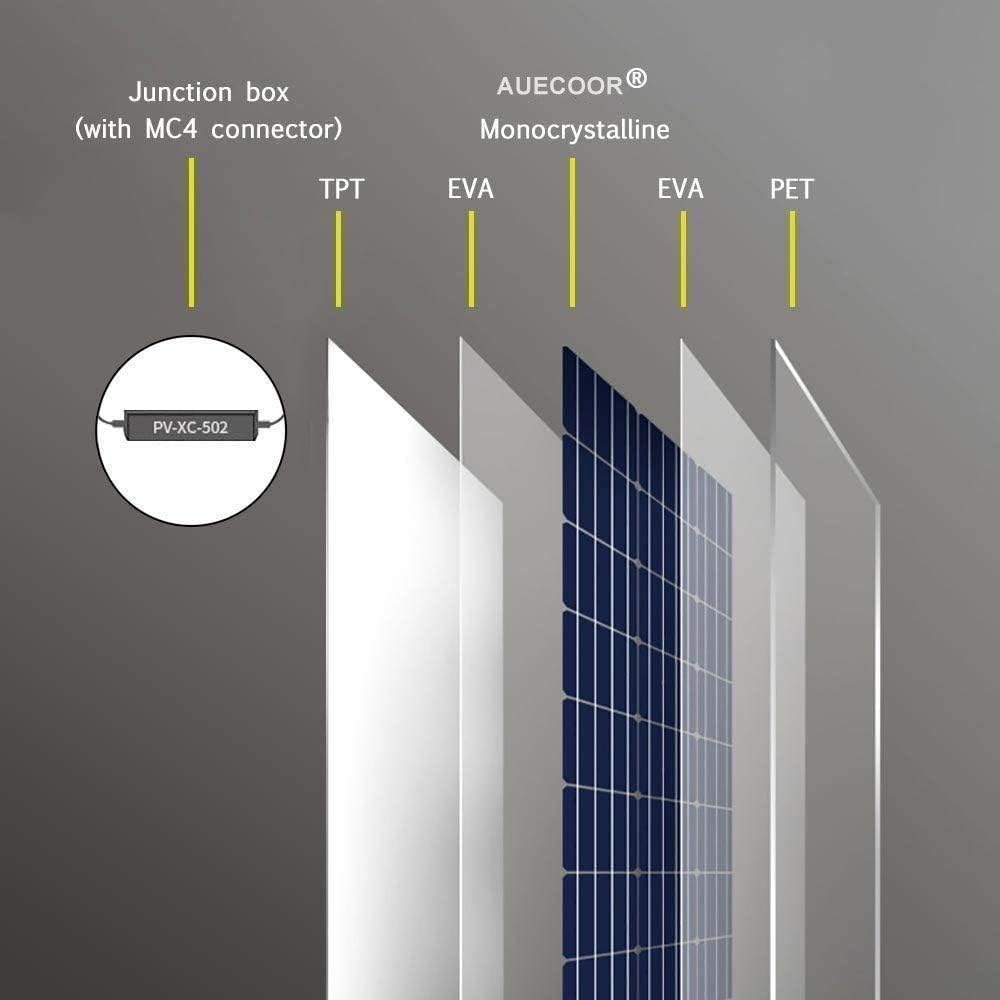

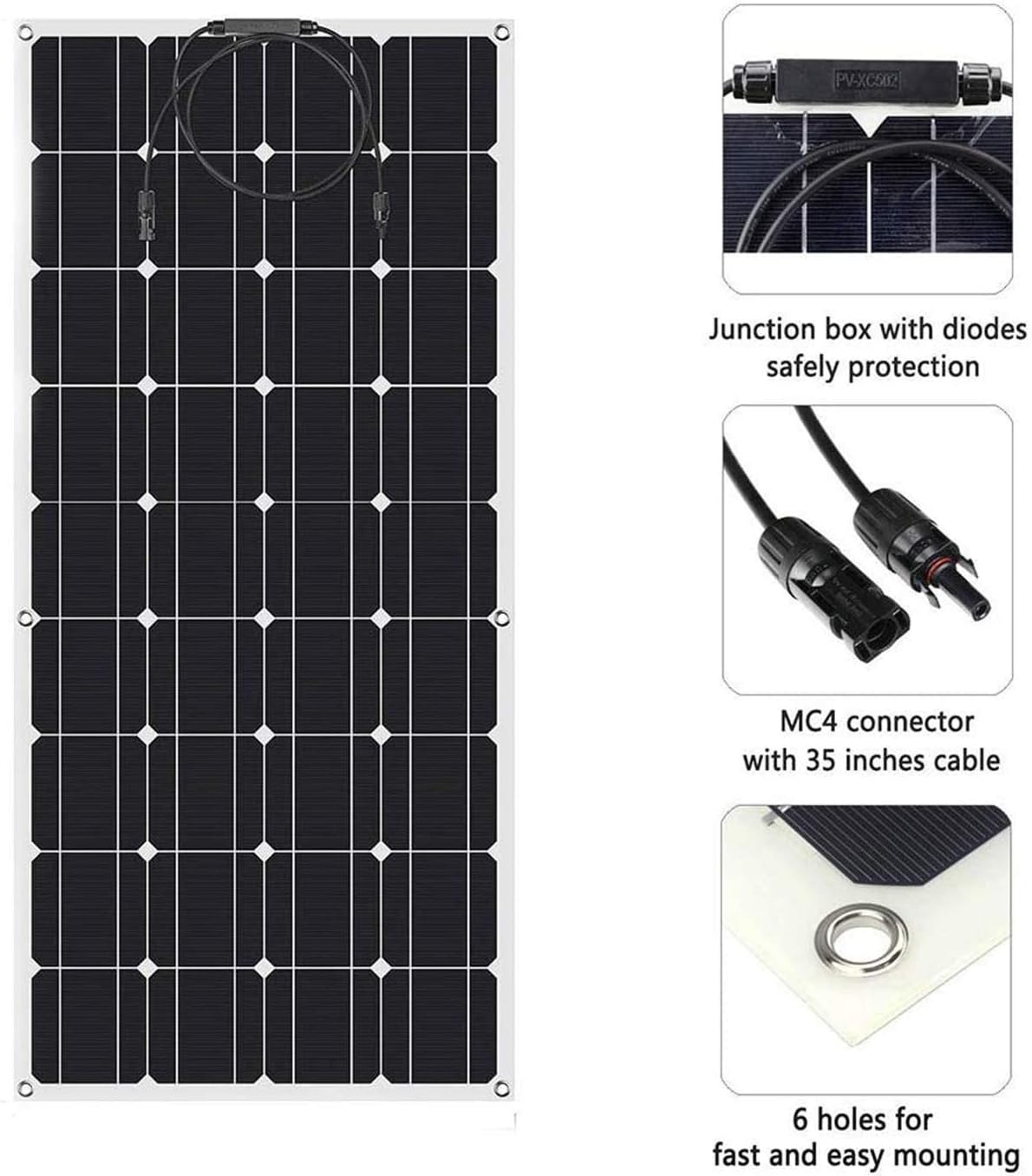

Semi Flexible Solar Panel Specification:
Maximum Power: 120W
Optimum Operating Voltage (Vmp): 18 V
Open-Circuit Voltage (Voc): 21.6 V
Optimum Operating Current (Imp): 6.67 A
Short-Circuit Current (Isc): 7.23 A
Dimensions: 1015*670*30mm / 39.96*26.38*1.18inch
Weight: 5.5 lbs (2.5 KG)
90cm of special cable with Male & Female connectors attached

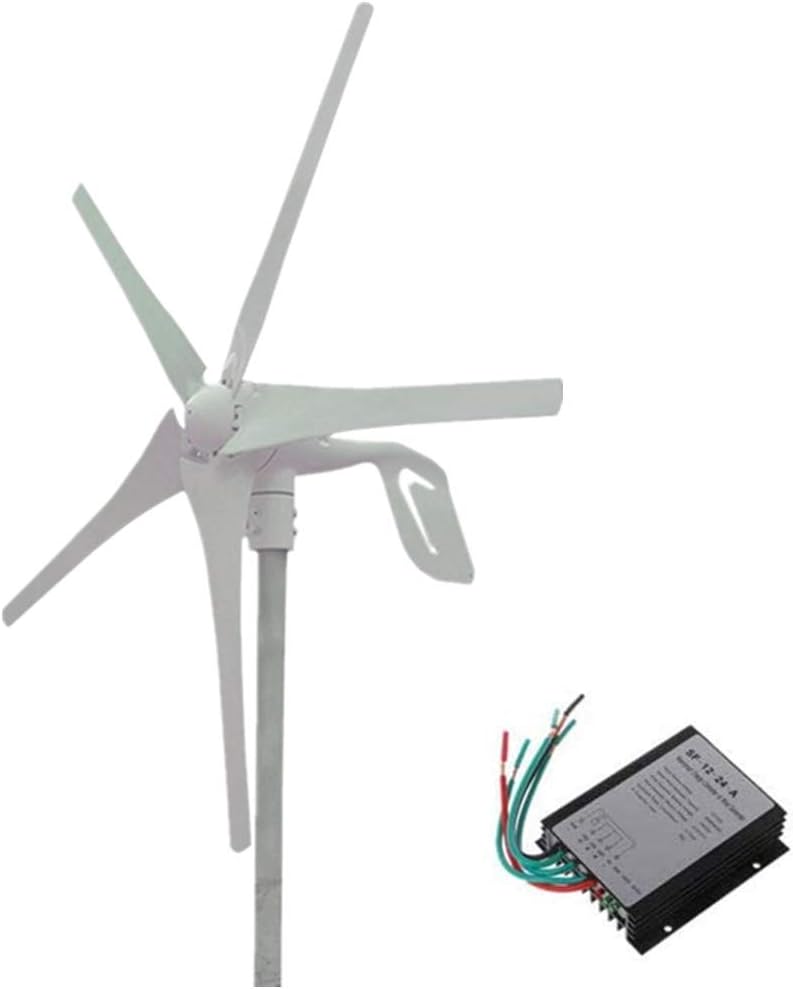

400W Wind Turbine Specification:
Rated power: 400W
Rated voltage DC27-54V
Battery voltage: DC 12/24V
Start-up wind speed: 2.5m/s
Rated wind speed: 10.5m/s
Number of blades: 5
Material of wind leaf: carbon fiber composite
Rotor diameter: 1.2M
Rated speed: 800MINRPM
Net weight: 8 KG/17.6 LBS
Warm Tips:
Please handle the solar panel with care and avoid over-bending or bump, otherwise this may result in damage to the product.
Solar kit will be delivered in multiple packages due to size limited by shipping carrier. -
