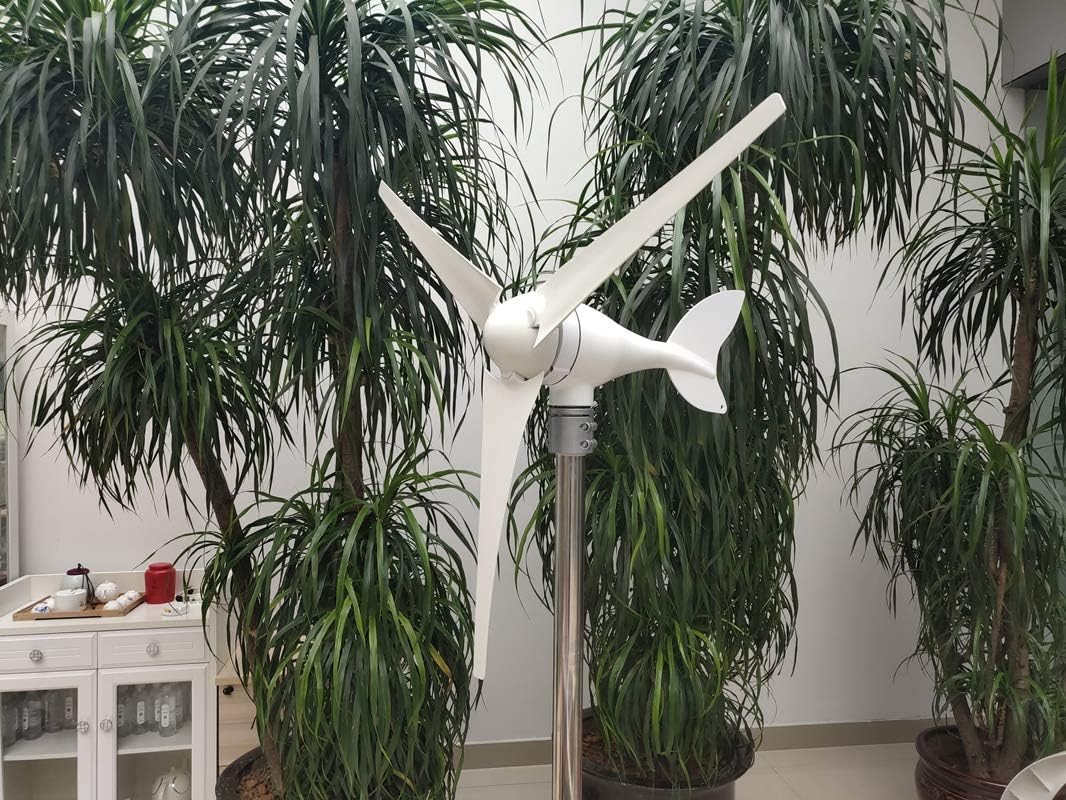

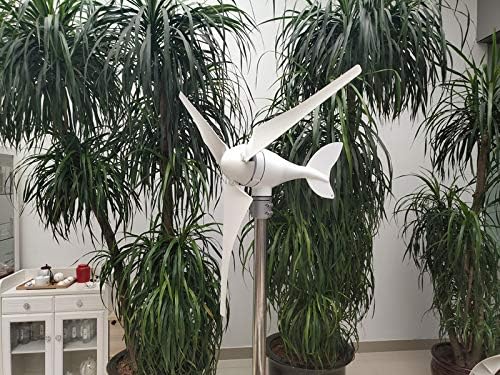

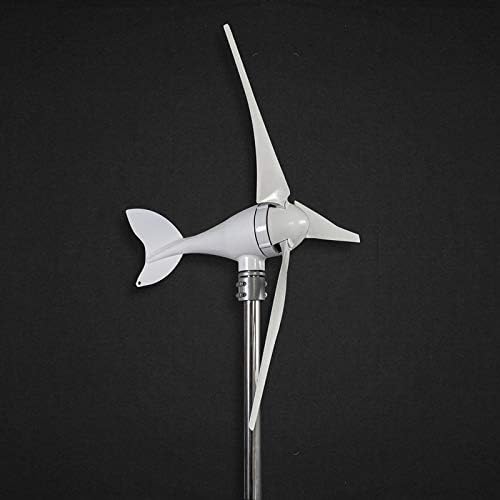

600W Horizontal Wind Turbine Generator Windmill 12V/24V with 3 Blades and Charge Controller for Home Use,12v

1.Low start up speed, 3 blades,high wind energy utilization,low operating vibration.
2.Simple installation, tube or flange connection optional.
3.The installation of user-friendly design, convenient equipment installation, maintenance and repair.
4. 3 phases AC permanent magnet synchronous
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Features:



    1.Low start up speed, 3 blades,high wind energy utilization,low operating vibration.



    2.Simple installation, tube or flange connection optional.



    3.The installation of user-friendly design, convenient equipment installation, maintenance and repair.



    4. 3 phases AC permanent magnet synchronous generator with special stator,effectively reduce torque,well match the wind wheel and generator, very powerful working performance,so it can ensure the performance of whole system.



    5.Charge controller is included,affordable and cost-effective.




    Specifications:



    Rated Power(w) :600w



    Max Power(w) :650w



    Rated Voltage(v) :12V/24V



    Gross weight(kg) :12



    Wind wheel diameter(m) :1.3



    Rated wind speed(m/s) :13m/s



    Start-up wind speed :2m/s



    Survival wind speed :40m/s



    Operating temperature: -40℃~+80℃



    Leaf material: nylon fiber



    Generator case: Casting aluminum alloy



    Color: white



    Generator: 3 phases AC permanent magnet synchronous generator



    Wind direction adjustment: automatic adjustment of the wind




    Package Includes:



    1x Wind turbine



    1x Use manual



    1xCharge controller



    3pcs blades



    Wind turbine hub



    Screw bolts and nose cone
