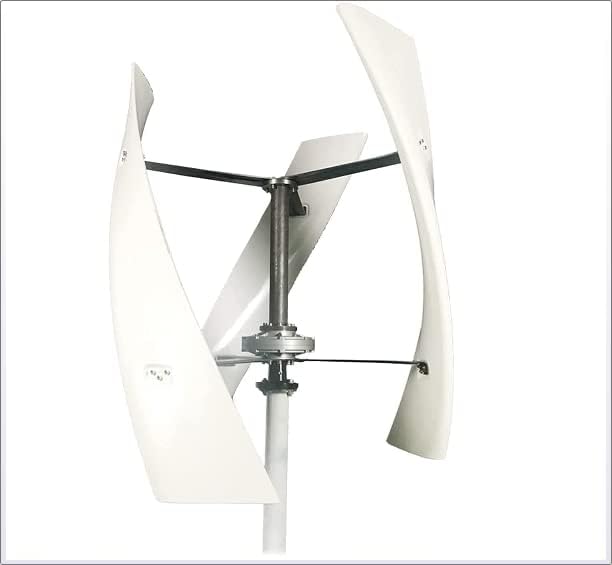

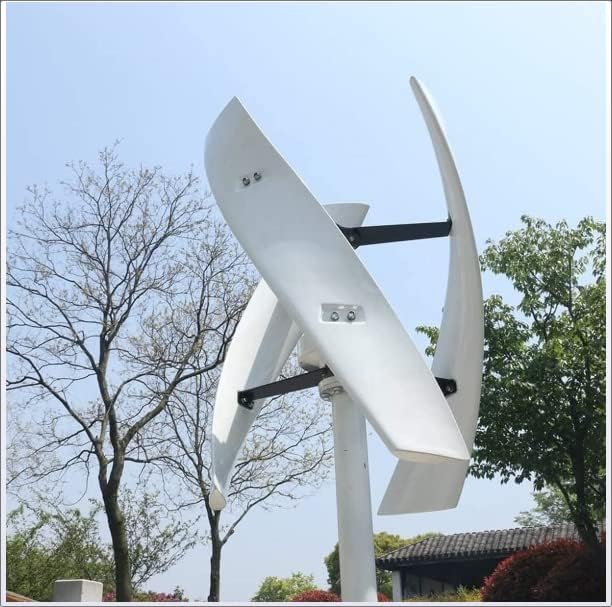

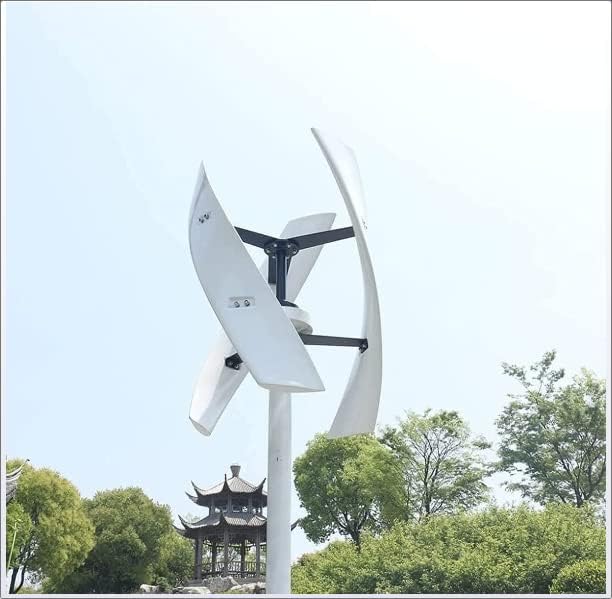

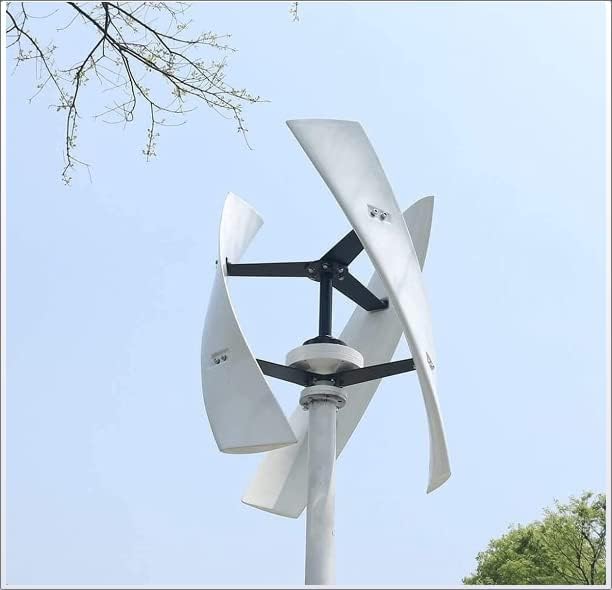

3000/4000W Levitation Upright Wind Turbine, No Noise Vertical Magnetic Wind Generator with Charge Controller 12V-220V Vertical Axis Wind Turbine
-- The wind turbine blade uses new precision injection molding technology, coupled with optimised aerodynamic shape design and structural design, high wind energy utilization rate, high
-
Detail
Generator 1. Magnetic floating body coreless generator, horizontal rotation with high efficiency.
2.3 rotor blades with curved design, effectively uses wind resources and achieves higher power generation.
3. Small, lightweight, stable and safe, special control principle consumes the wind speed to 2.5 ~ 25 m/s, uses wind resources effectively and achieves higher power generation.
Specifications:
Wind speed (m/s): 2 m/s
Switch-on wind speed (m/s): 3 m/s
Rated wind speed (m/s): 10m/s
Rated voltage (AC): 12v/24V/48V/220V
Rated power (W): 3000/4000W.
Blade diameter: 0.52 m
Weight of product assembly (kg): 12 kg.
Blade colours: white
Blade height: 0.75 m
Safe wind speed (m/s): 40 m/s.
Number of blades: 3
Blade material: fibreglass
Generator: three-phase permanent magnet suspension motor
Control system: electromagnet.
Mounting height (m): 2 - 12 m
Generator protection rating: IP54
Working environment temperature: -25 ~ +459 C.
Working environment humidity: 90%.
Height: 4500 m.
Overspeed protection: electromagnetic brake
Overload protection: electromagnetic brake and discharge unit.
Box contents:
3 x blades.
1 x generator.
1 x screws and nuts.
1 x main shaft and arms.
1 x wind regulator -
