EPEVER MPPT Solar Charge Controller 30A 12V 24V Auto IP67 Waterproof Max PV 100V Solar Panel Charger Regulator Kit for Sealed Gel Flooded Lithium User (MPPT 30A+MT50+RS485)

EPEVER 30Amp MPPT Solar Charge Controller Waterproof ( Tracer7810BP+MT50+RS485) kit ,12V/24VDC auto work ,Max PV 100V , Common negative grounding . Suitable for Lead-acid & Lithium batteries & User type

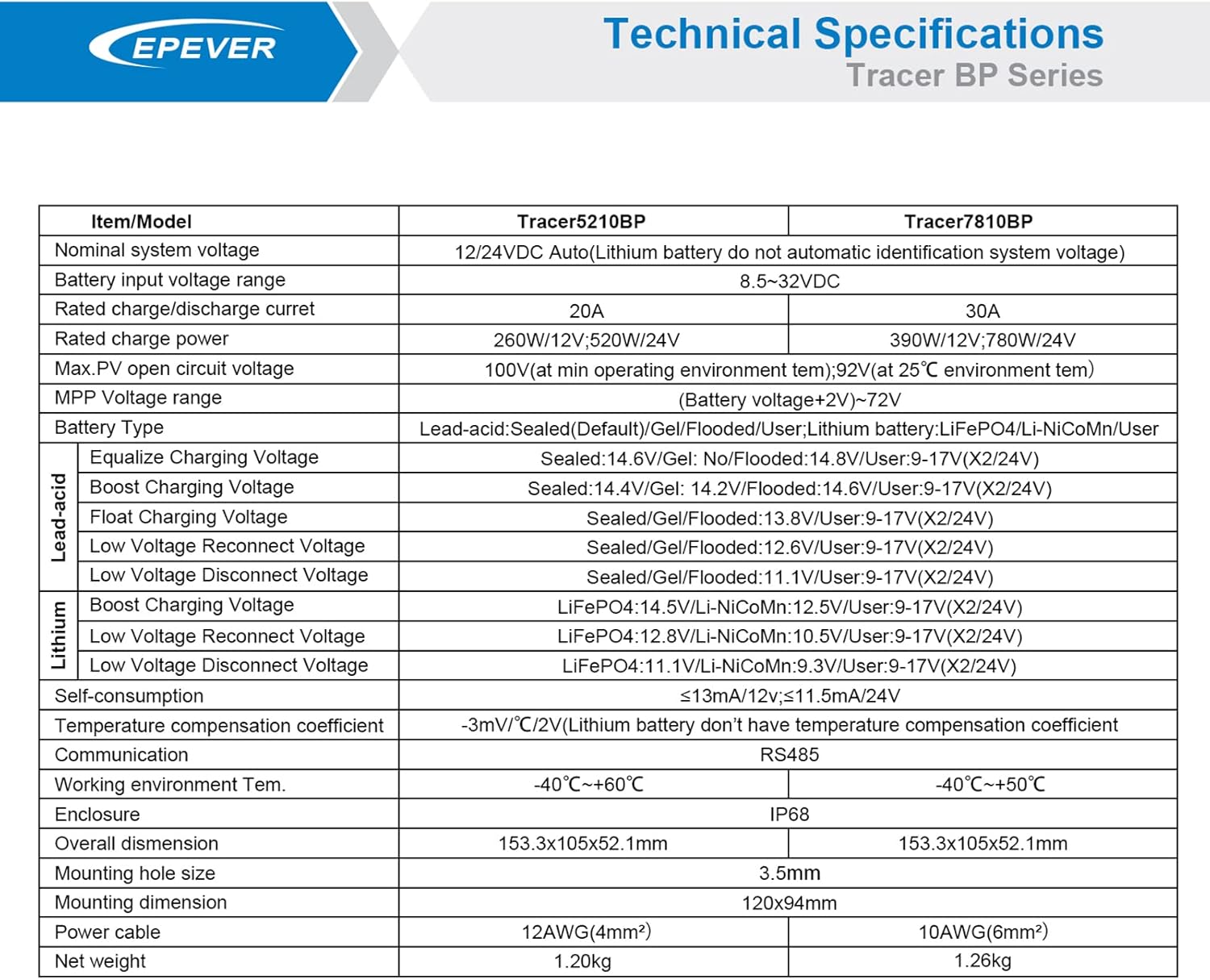

Technical Data:

• Model: Tracer7810BP + MT50 + RS485 Cable
• Rated charge and discharge current :30 Amp
• Nominal system voltage:12V/24V DC auto identify (Manually select system voltage for lithium battery)

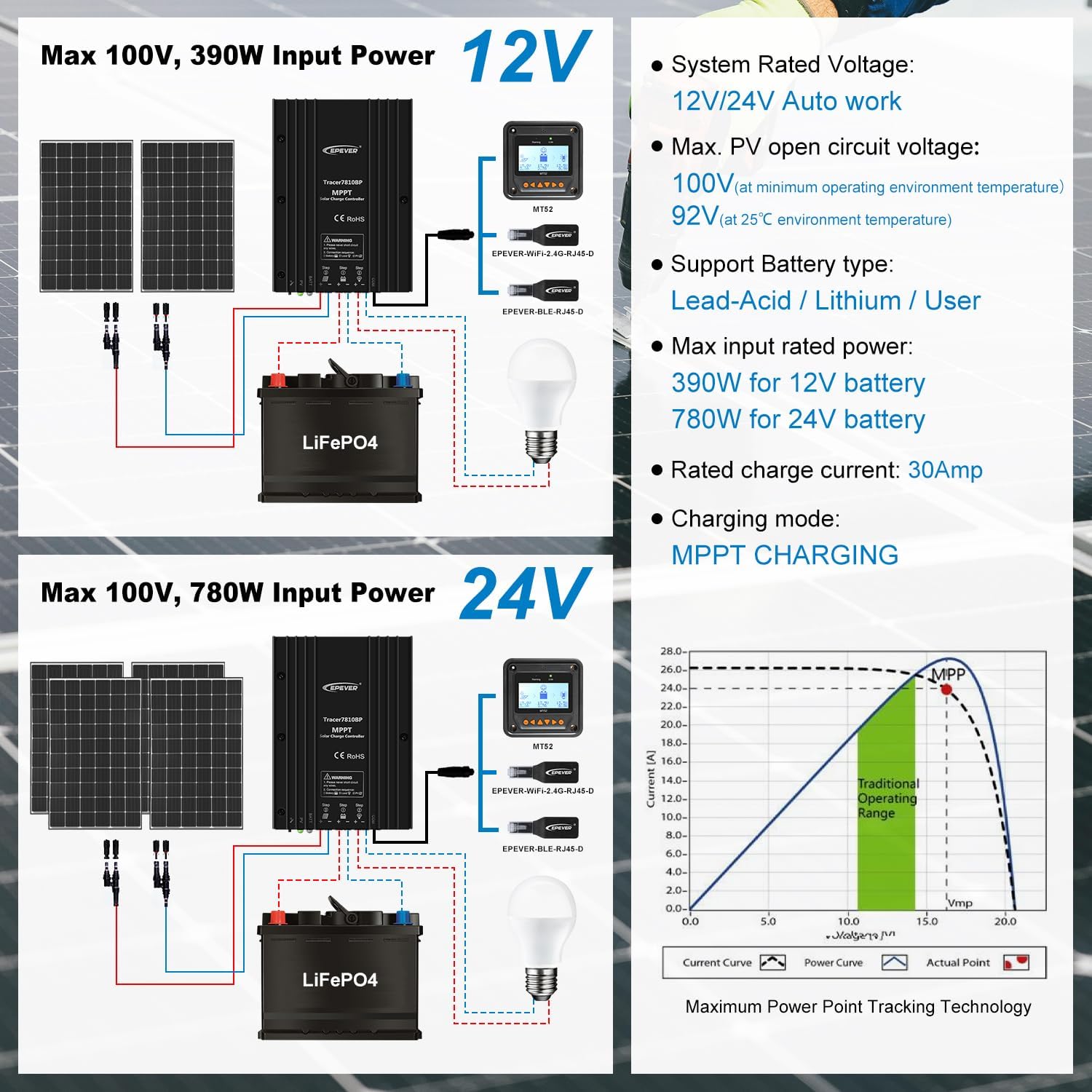

• Max. PV input power: 390W charge for 12V battery system or 780W charge for 24V battery system
• Max. PV open circuit voltage:100V(at minimum operating environment temperature) ;92V(at 25℃ environment temperature)
• Grounding : Common negative
• Battery type : Lead-acid battery: Sealed(Default), Gel(AGM), Flooded ;Lithium battery: LiFePO4, Li-NiCoMn ; User .
• Battery input voltage range : 8.5～32V
• MPP voltage range:V(BAT+2V)～72V
• Tracking efficiency : ≥99% , Max. conversion efficiency :98%
• Temperature compensation coefficient: -3mV/℃/2V (Lithium battery don’t have temperature compensation coefficient)
• Working environment temperature : -40℃～+50℃
• Self-consumption: ≤13mA(12V);≤11.5mA(24V)

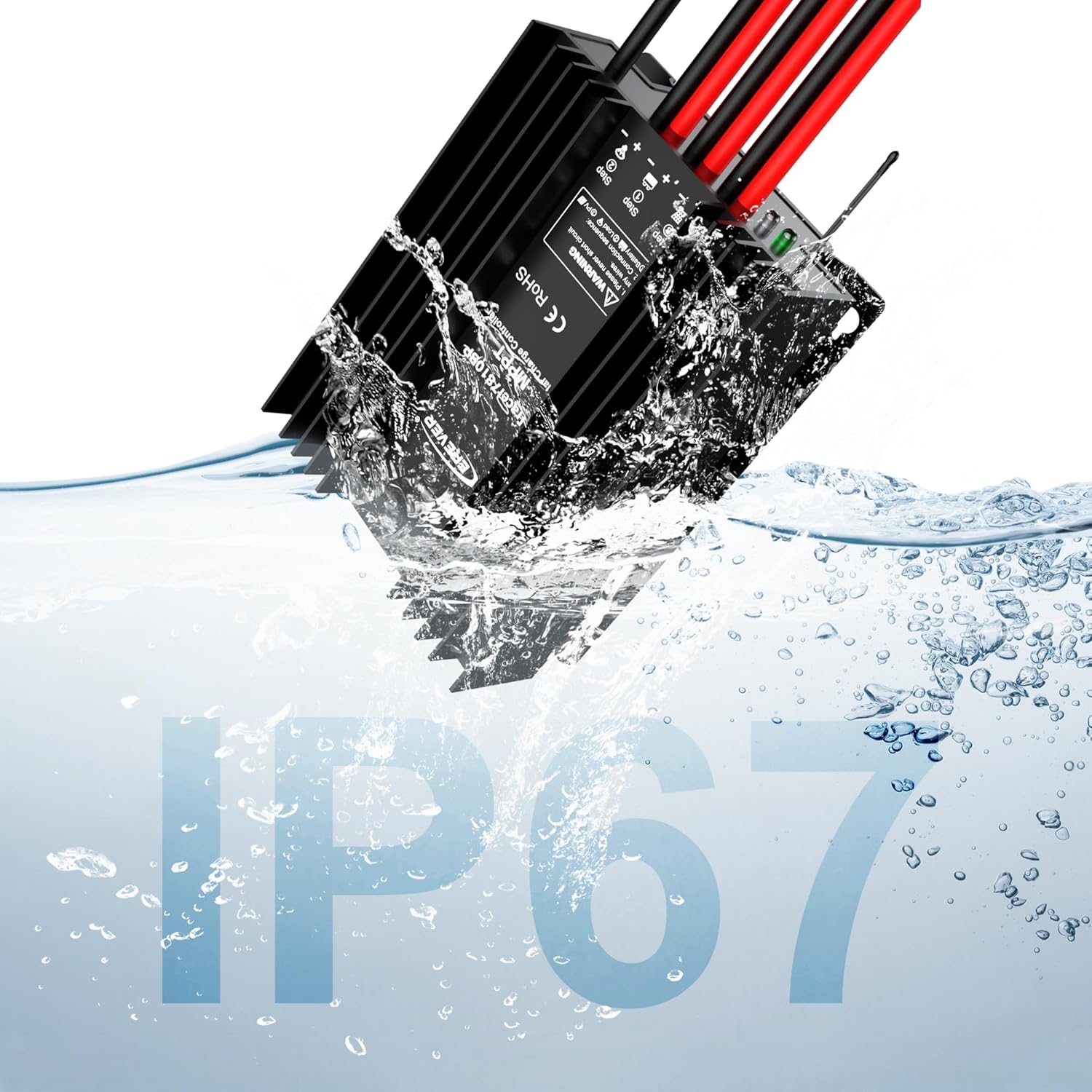

• Enclosure: IP67
• Recommend wire size: 10AWG(6mm2) ;
• Dimension: 153.3*105*52.1mm ; Weight :1.26 KG

Package List:

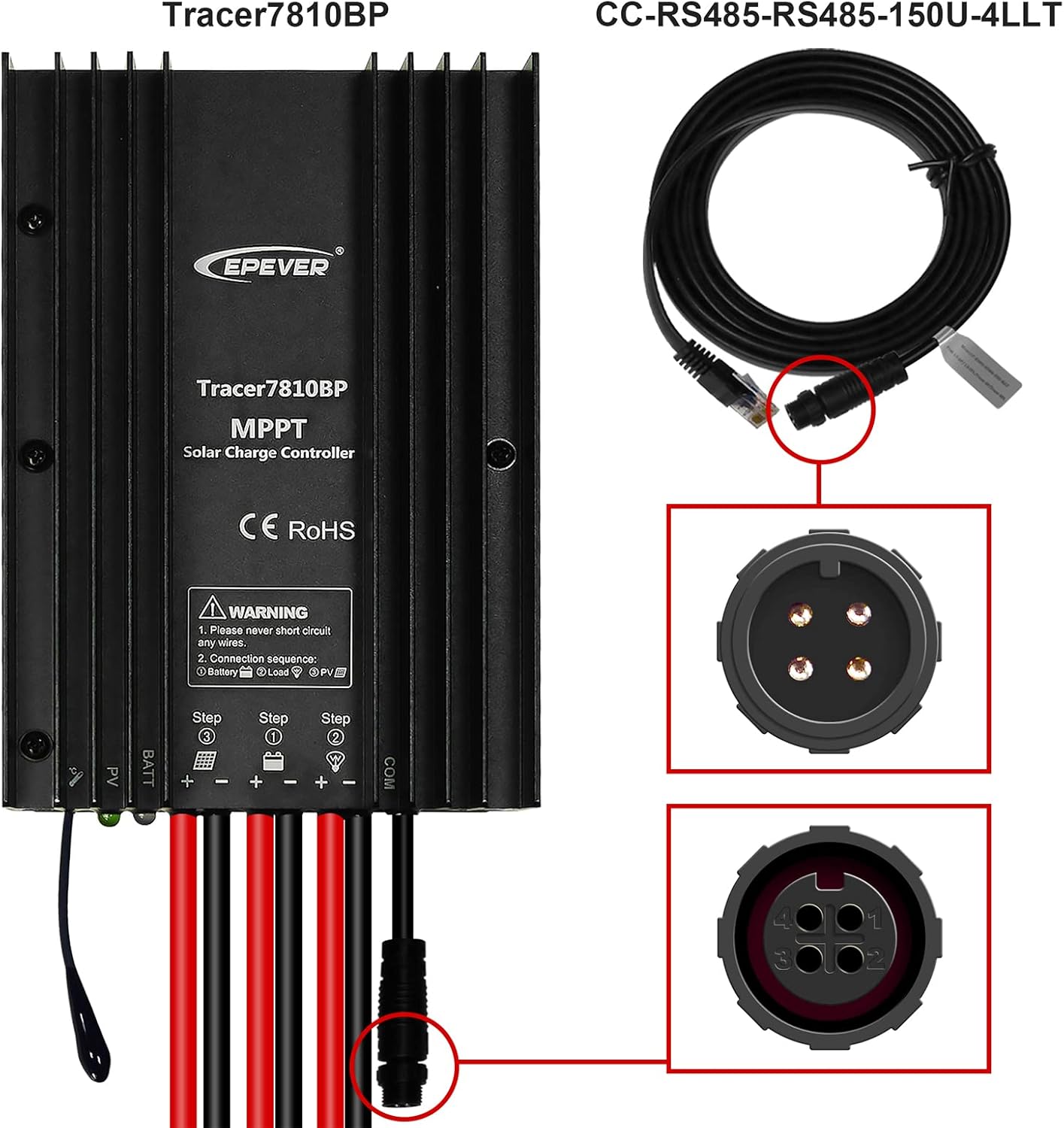

• 1 X MPPT Solar Charge Controller 30Amp (Tracer7810BP)
• 1 X Remote Meter (MT50)
• 1 X Communication cable (CC-RS485-RS485-150U-4LLT)
• 2 X Manual (English)

EPEVER Tracer-BP series MPPT charge controller is Glue waterproof design , same functions as Tracer-AN series and added Features :

1. Tracer-AN could only support Load Working Mode : Manual mode ; Light ON/Off ; Light ON +Timer . Tracer-BP could also support Real-time Control mode .
2. IP67 waterproof degree.

Note :

Our local warehouse located in Chicago, Illinois, US. our professional engineer local team supply solar system help for you in time .

1. Adopt high quality components of ST,IR and Infneon, make sure product using lifespan
2. Wide working environment temperature
3. Apply to lead-acid battery and lithium battery, Lithium battery self-activating and low temperature protection function
4. Maximum conversion efciency of 98%, Advanced Maximum Power Point Tracking (MPPT) technology, with tracking efciency no less than 99%, Ultra-fast tracking speed and guaranteed tracking efciency ,Accurately recognizing and tracking of multiple power points
5. PV power limitation function
6. Monitoring and setting parameter via MT50 or APP or PC software with RS485 communication interface
7. Use of standard Modbus communication protocol for RS485 bus connections, communication protocol compatibility much better , the RS485 connector can provide power supply
8. Aluminum housing for better cooling
9. Real-time energy statistics function
10. IP67 waterproof degree, Long lifespan design

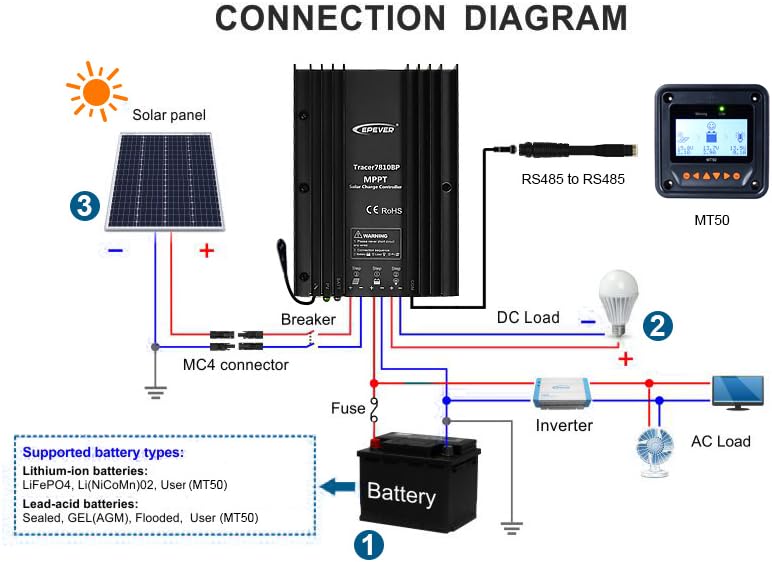

Step: Connect solar system in the order of 1.battery--> 2. load--> 3.PV array ; and disconnect solar system in the reverse order 3. 2. 1.

• Battery must be connected first ! Never connect soalr panel array to controller Without/Before connect battery.
• DO NOT connect any inverter/wind/Alternator or Charger into the charge controller directly ! You should connect with battery and add fuse .
• If there is a long distance between PV array and controller or between controller and battery, larger wires can be used to reduce voltage drop and improve performance. (Recommended wire size only for reference.)

How to monitor and program parameters for Battery？

1. Via Remote Meter MT50 (Need CC-RS485-RS485-150U-4LLT communication cable )
2. Via phone APP(Solar Guardian) (Accessories needed：EPEVER-BLE-RJ45-D or EPEVER-WiFi-2.4G-RJ45-D )
3. PC Software download website: EPEVER official website or read in manual .

GolandCentury is the official authorized sales agent for EPEVER brand and offers the latest versions of controllers and inverters and accessories.

Product Features :

Tracer7810BP +MT50+RS485
