100 Amp MPPT Solar Charge Controller 48V 36V 24V 12V Auto,PV 150V Max Input Solar Panel , 100A Solar Panel Regulator Max Input Power 5000W, for AGM Sealed Gel Flooded Lithium Battery

100A 48V Fit for solar Panel: 1300W(12V);2600W(24V);3800W(36V);5000W(48V);Max input Voltage:150V PV;MPPT best working voltage range:DC18V-DC96V(12V);DC36V-DC112V(24V);DC72V-DC150V(48V)
Fit for 12V/24V/36V/48V battery, USER(can be set Lithium, Lifepo4, Li(NiCoMn)O2)/Flooded/Sealed/Gel battery, Use
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    100A MPPT Solar Charge Controller , 12V/24V/36V/48V Auto Work100A mppt solar charge controller is new upgrade version,Better funcations and advanced technology .

    Added Features:

    ★Blacklight LCD Display

    ★The display directly shows the amount of charge: KWH, without the need for other measuring instruments

    ★Two new vents are added for scientifically designed convection cooling.

    ★More Safety Protection

    ★Maximum DC/DC transfer efficiency is as high as 98.7%

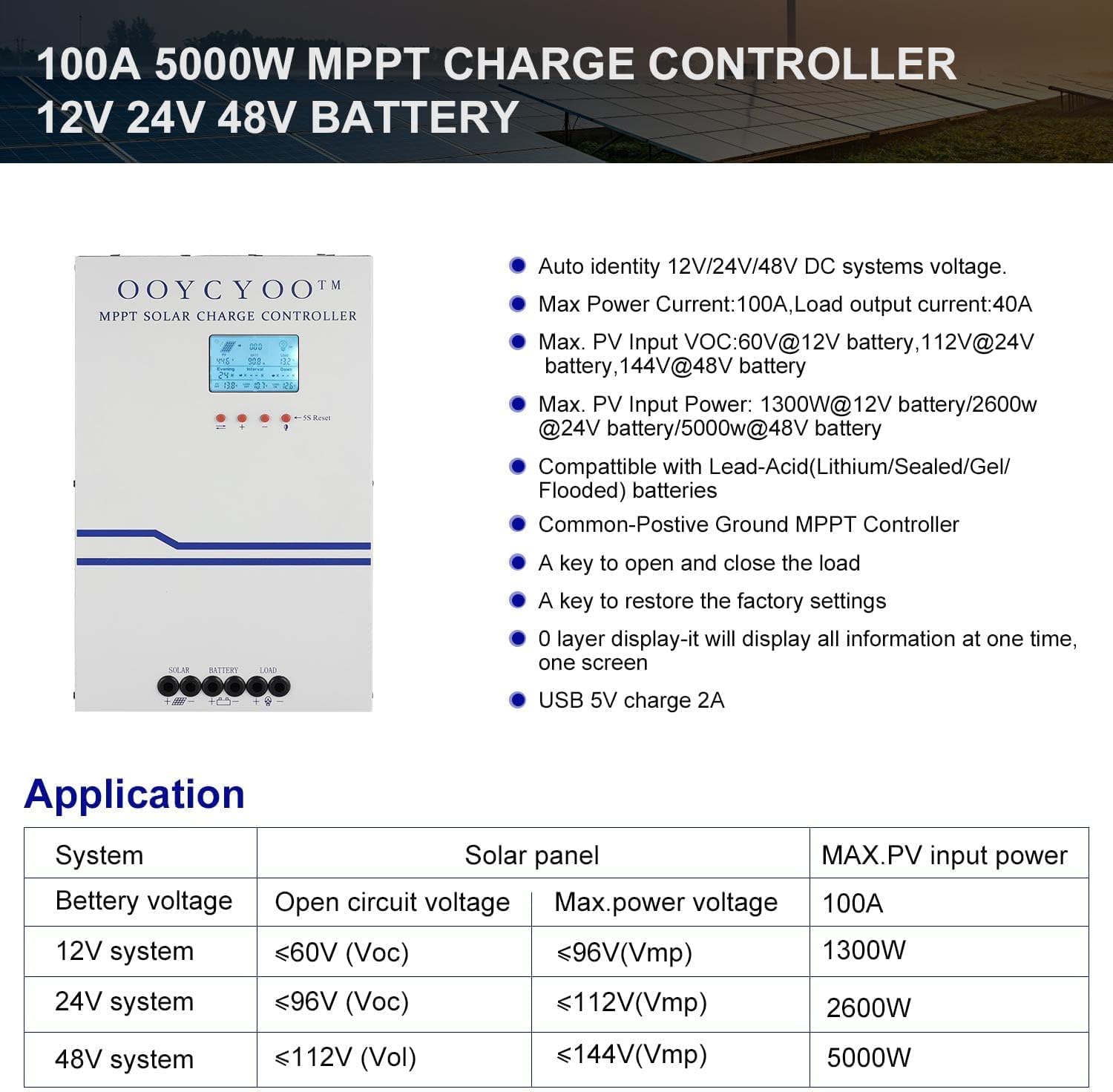

    100A MPPT Technical datas :

    Rated charge current:100A

    12V system:open circuit voltage ≤96V(Voc) maximum. PV input power:1300W

    24V battery system:Open circuit voltage ≤112V(Voc) maximum.PV input power:2600W

    48V battery system:Open circuit voltage ≤150V(Voc) maximum.PV input power:5000W

    System nominal voltage :12V/24V/36V/48V DC Auto identifying

    Max.PV open circuit voltage:150VDC

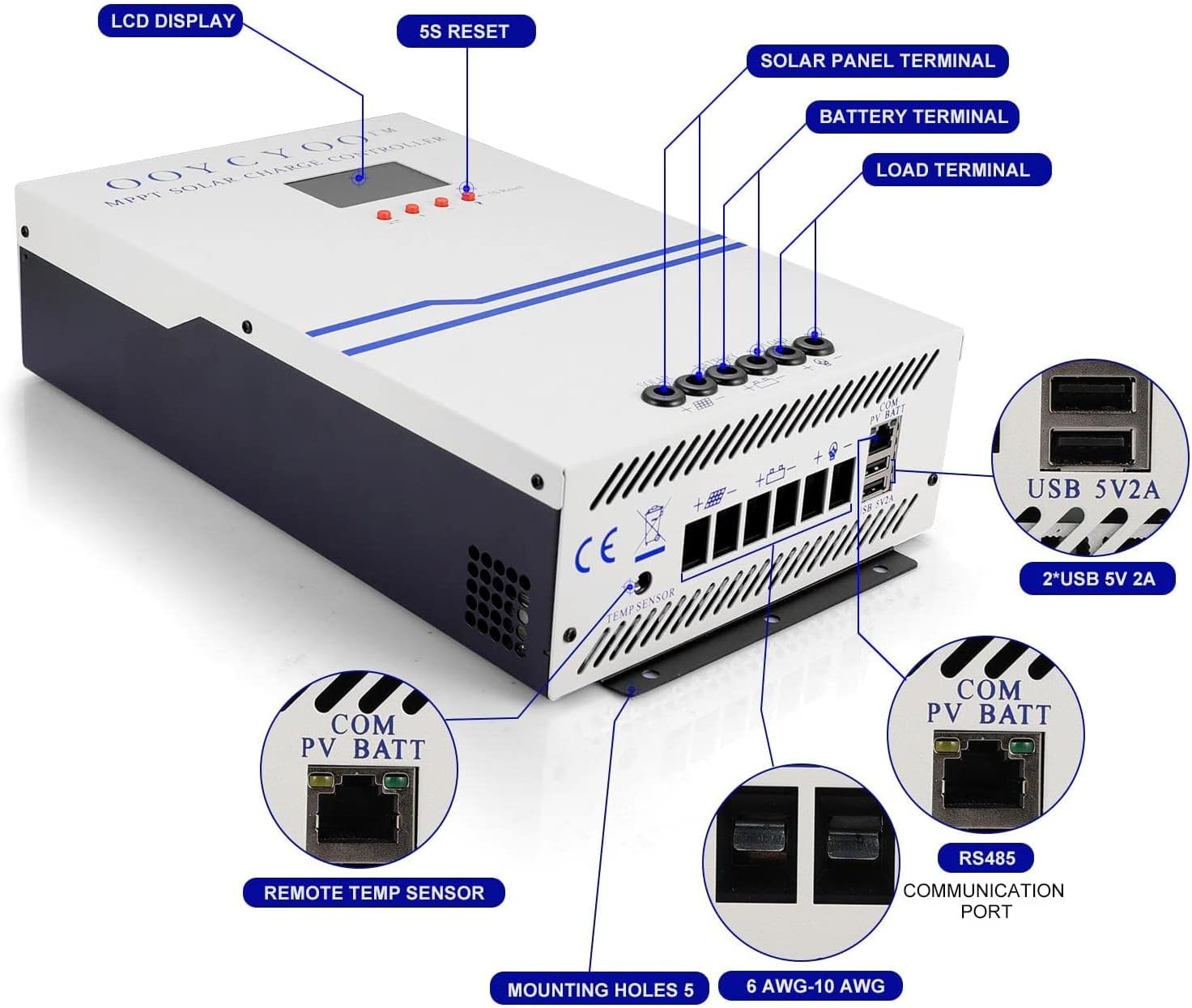

    Power terminal:10 AWG

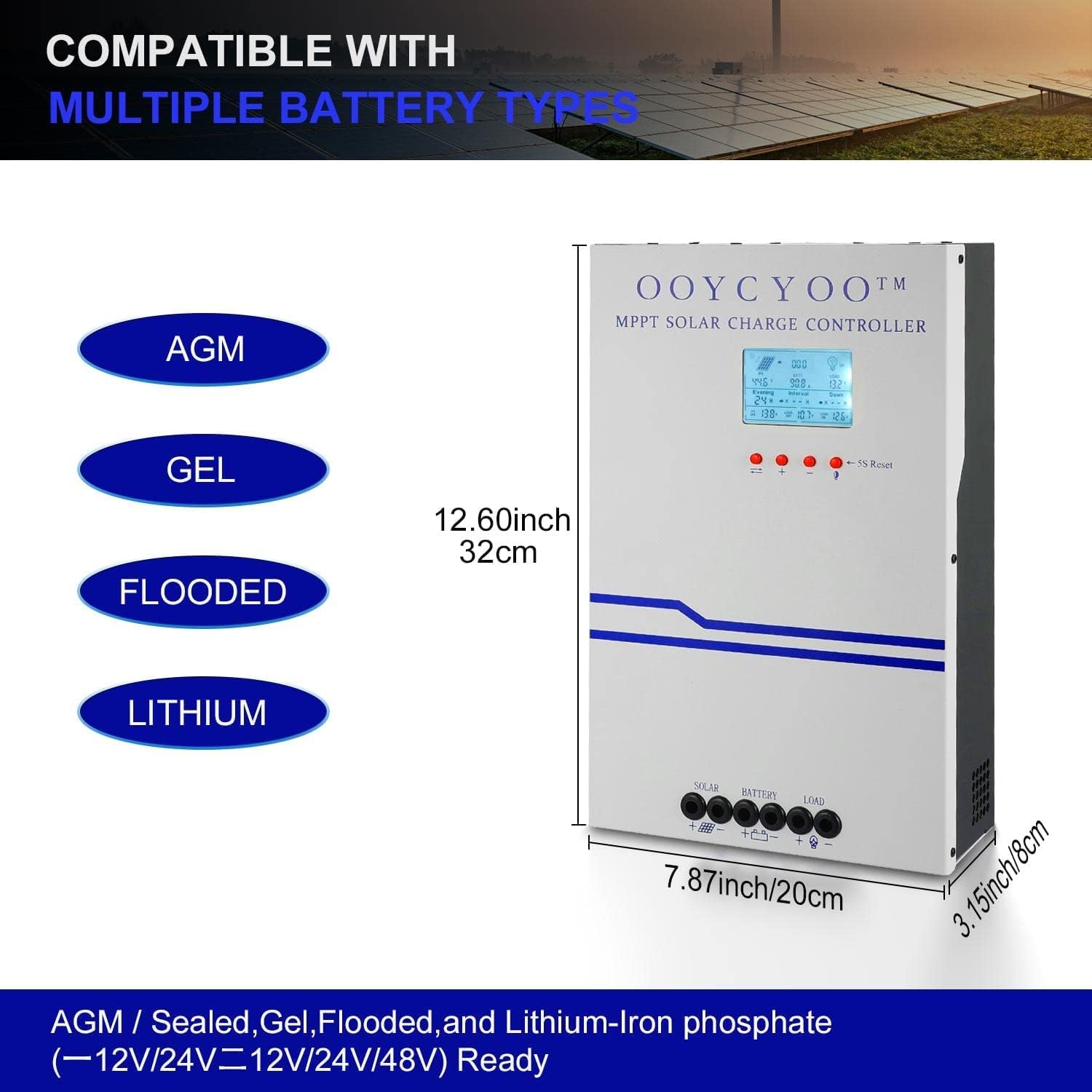

    Dimension: 12*7.8*3.2(in)

    Weight : 9.5(ib)

    Protection function:

    PV Over Current/power

    PV Short Circuit

    PV Reverse Polarity

    Night Reverse Charging

    Battery Reverse Polarity

    Battery Over Voltage

    Battery Over Discharge

    Battery Overheating,Controller Overheating

    Lithium Battery Low Temperature

    Load Short Circuit

    Load Overload

    TVS High Voltage Transients

    Package List:

    1 x 100A MPPT Solar Charge Controller

    1 x Temperature sensor

    1 x User Manual (English)
