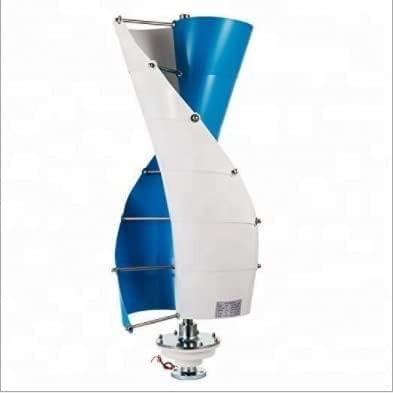

LiuSj JUnSt 12000W Vertical Wind Turbine, Wind Turbines 12V 24V 48V Wind Turbine with Wind Solar Hybrid Charge
2. Radius of rotation. Due to its design structure and special operation principle, it has a smaller rotation radius than other types of wi
-
Detail
▶ Noise. The use of horizontal rotation and blade application aircraft wing design, reducing the noise in the natural environment to an unfixable level.
▶ Power generation curve characteristics. The starting wind speed is lower than other types of wind turbines. The increase in power generation is relatively gentle. Therefore, between 5-8 meters, the wind speed range can provide 10%-30% electricity than other types of wind turbines.
Color white
Rated Voltage DC: 12V/24V/48V/220V
Rating power W: 12000W
Max Power W: 12500w
Launched wind speed M/s: 4 m/s
Rated wind speed M/S: 11 m/s
Safety wind speed: 45m/s
Blade quantity: 10
Generator: Three-phase permanent magnet suspension motor
Control system: electromagnet
Mount height M: 7m ~ 12m 9m
Generator Protection Rating: IP54
Altitude: 4500m
Yaw mode: automatic in the wind.
Tower: Cable/Independent Tower
Overspeed protection: electromagnetic brake
Overload Protection: Electromagnetic brake and the relief unit -
