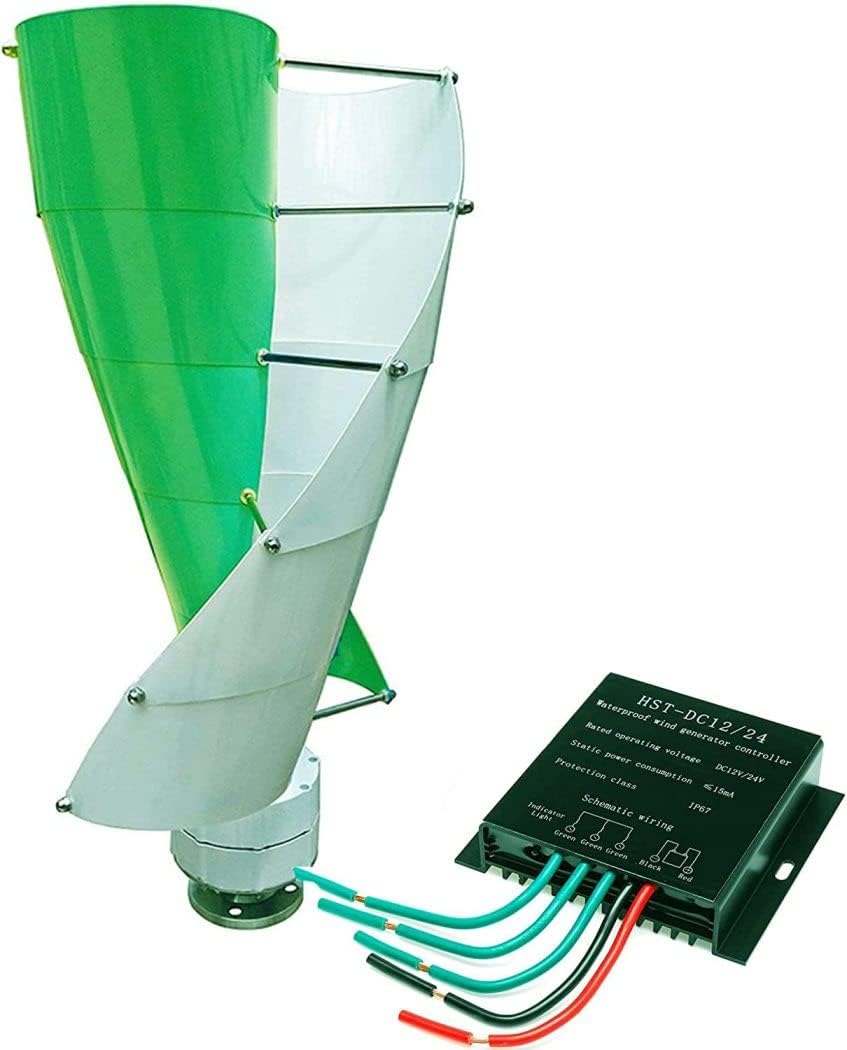

LiuSj JUnSt 9000W Vertical Axis Spiral Wind Generator, 12V 24V 48V 220V Low Wind Speed Start with Controller Household Windmill Wind Turbine Generator (Green)
LiuSj JUnSt 9000W Vertical Axis Spiral Wind Generator, 12V 24V 48V 220V Low Wind Speed Start with Controller Household Windmill Wind Turbine Generator (Green)
■ 2.0m/s Start wind speed;
■ 2 blades,maglev generator,20 years use life and 1 year for warranty;
■ small ,light ,stable and safely,Certified with:CE;
■ High efficiency, could be hybrid system with solar panels;
■ Applications: Marine, Boat,Streetlights, Home, Openning Plaza lighting;
■ 2 blades,maglev generator,20 years use life and 1 year for warranty;
■ small ,light ,stable and safely,Certified with:CE;
■ High efficiency, could be hybrid system with solar panels;
■ Applications: Marine, Boat,Streetlights, Home, Openning Plaza lighting;
Quantity
-
Detail
Product Description
Specification:
Power: 9000W
Started wind speed (m/s): 2.0 m/s
Cut-in wind speed (m/s): 2.3 m/s
Rated Wind speed (m/s): 12 m/s
Rated voltage(DC): 12V 24V 48V 220V
Product assembly weight (Kg):16
Blades height(m):0.96
Generator: Three phase permanent magnet suspension motor
Control System: Electromagnet
Mount Height(m): 7~12m (9m)
enerator protection grade: IP54
Overspeed protection: Electromagnetic brake
Overload protection: Electromagnetic brake and the unloading unit
Packing List:
1 × wind turbine
1 × wind controller
1 × installation tool
1 × flange
1 × assembly instructions
The mounting rod is not included,(the diameter of the mounting rod is: 60mm) -
