LiuSj JUnSt 3000w Vertical Spiral Wind Generator + Controller,12V / 24V /48V /220V 2 Blades Wind Turbines Generator Low Noise for Home Or Camping (Green)

✔ Various voltages. 3 phase AC output, suitable for charging 12V, 24V, 48V, 220V batteries
✔ One-piece Blade design ensures higher rotational stability, low noise.
✔ Coreless generator means lower start torque, lower start wind speed, longer service life.
✔ RPM limit protection. The RPM is
Quantity
ADD TO CART
BUY IT NOW
  • Detail


    Product Description
    Features:

    1.2.0m/s start up

    2.2 blades,maglev generator

    3.20 years use life and 1 year for warranty

    4.small ,light ,stable and safely

    5.High efficiency, could be hybrid system with solar panels.

    6. Applications: Marine, Boat,Streetlights, Home, Openning Plaza lighting..

    Wind Turbine Specifications:

    Started wind speed (m/s):2.0m/s

    Cut-in wind speed (m/s):3m/s

    Rated Wind speed (m/s):11m/s

    Rated voltage(AC):12V/24V/48V/220V

    Rated power(W):3000W

    Safe wind speed (m/s):40m/s

    Blades quantity:2

    Blade material:Aluminum alloy

    Generator:Three phase permanent magnet suspension motor

    Control System:Electromagnet

    Mount Height(m):7-12m (9m)

    Generator protection grade:IP54

    Work environment temperatur:-50~ +60°C

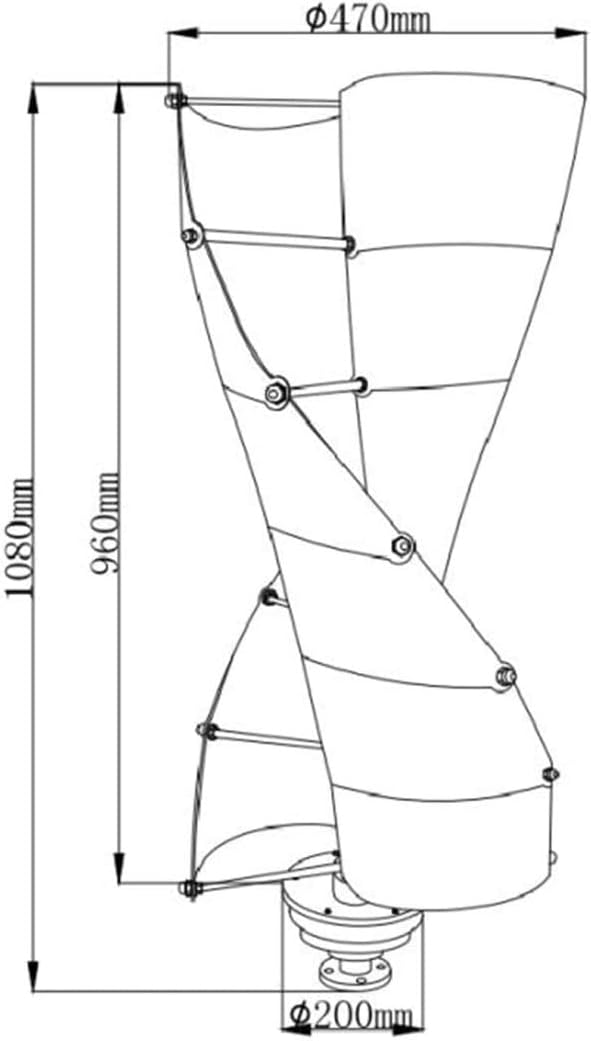

    Fan diameter: 470mm

    Blade height: 960mm

    Package weight: 16kg

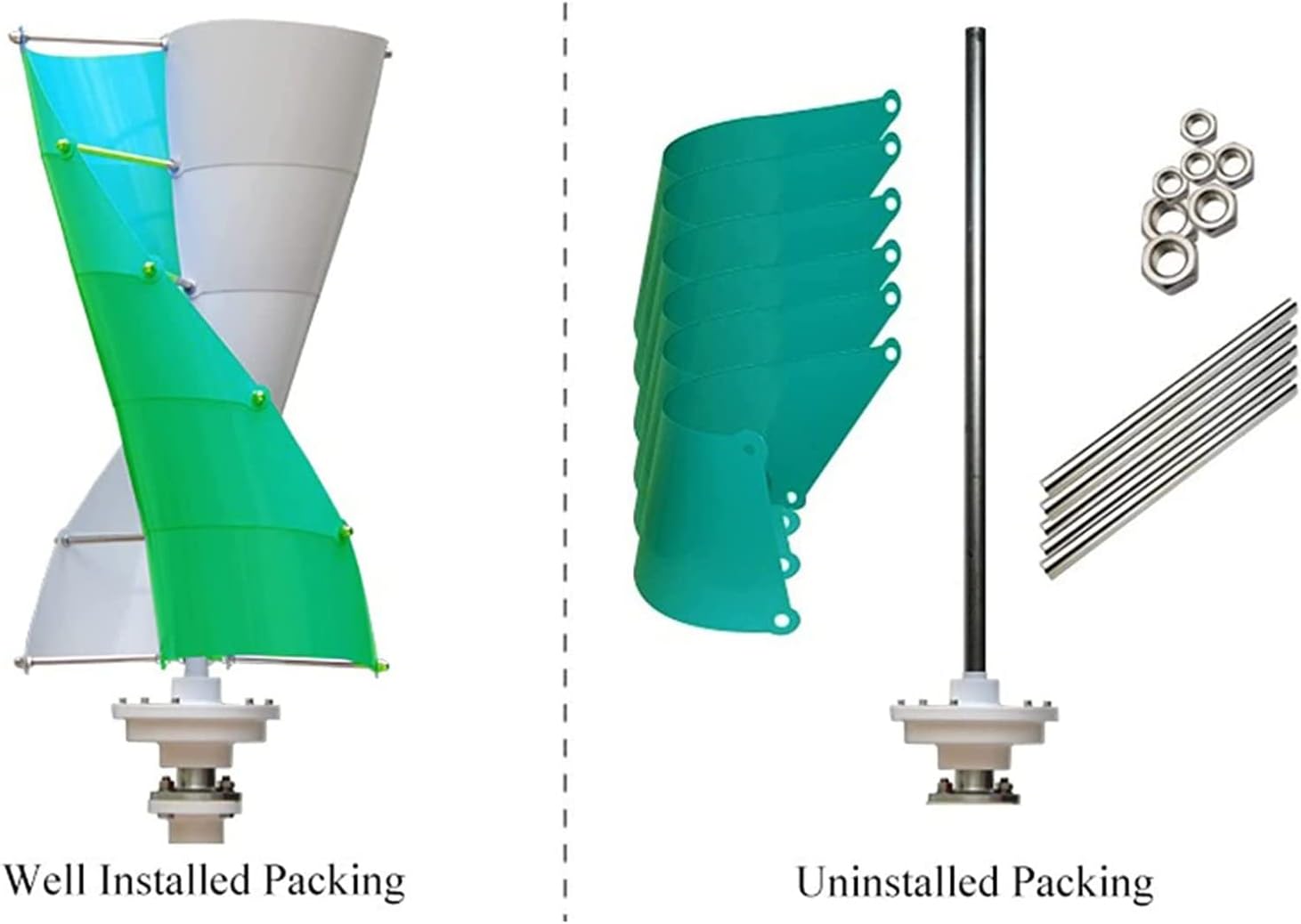

    PACKING LIST:

    2×pcs blades

    1×generator

    1 ×bolts &nuts

    1× Main shaft and arms

    1×Wind controller

    The mounting rod is not included,(the diameter of the mounting rod is: 60mm)
