UL1741 48V Inverter 8KW Solar Off Grid Inverters 110/220Vac Low Frequency DC 48V AC Input 240V AC Output 120V/240V Split Phase Pure Sine Wave Power with 2x80A MPPT Charger Controller 8000W

About ZLPOWER

• ZLPOWER has focused on designing & manufacturing solar power inverters and chargers since 2010,offering ODM and OEM service to global customers. We are committed to providing green power solutions with solar inverter, low frequency inverter, solar panel and other green energy products.
• ZLPOWER has always adhered to the spirit and concept of technology first, service first, and customer first, and has been recognized by the industry for its professional technology and high-quality service.

GS Series Inverter

• GS inverter is low frequency pure sine wave Dc 48V to AC 220V all in one inverter. Electrically integrated solar inverter consists of a 8KW 10KW and 12KWDC 48V to 120/240-volt AC split phase pure sine wave inverter with two 80A MPPT solar charge controller, and AC charger to DC battery charger and an automatic transfer switch ideal for your off-grid solar system.
• With reliable intelligent design, GS series solar inverter can be available to complicated appliances.Not only used for common appliances such as TV computer, lights, fans.but also suitable for inductive loadings such as refrigerators, airconditioners, motors, pumps compressors and laser printers.Convertible to electrical energy from wind and solar.

Important Safety Warning

• Before using the unit, read all instructions and cautionary markings on: (1) The unit (2) the batteries (3) all appropriate sections of the manual.

• This Inverter Support 2x80A MPPT Solar Charger Controller
• The maximum solar charging current :2x80A=160A
• The maximum charging current : 240A (2x80A MPPT+80A AC Charger =240A)
• Rated charge current:160A
• Rated Battery voltage:48VDC
• PV Input voltage range:60-240Vdc
• Max. PV open circuit array voltage:250Vdc
• Max. recommended input power (W) :2*4500W

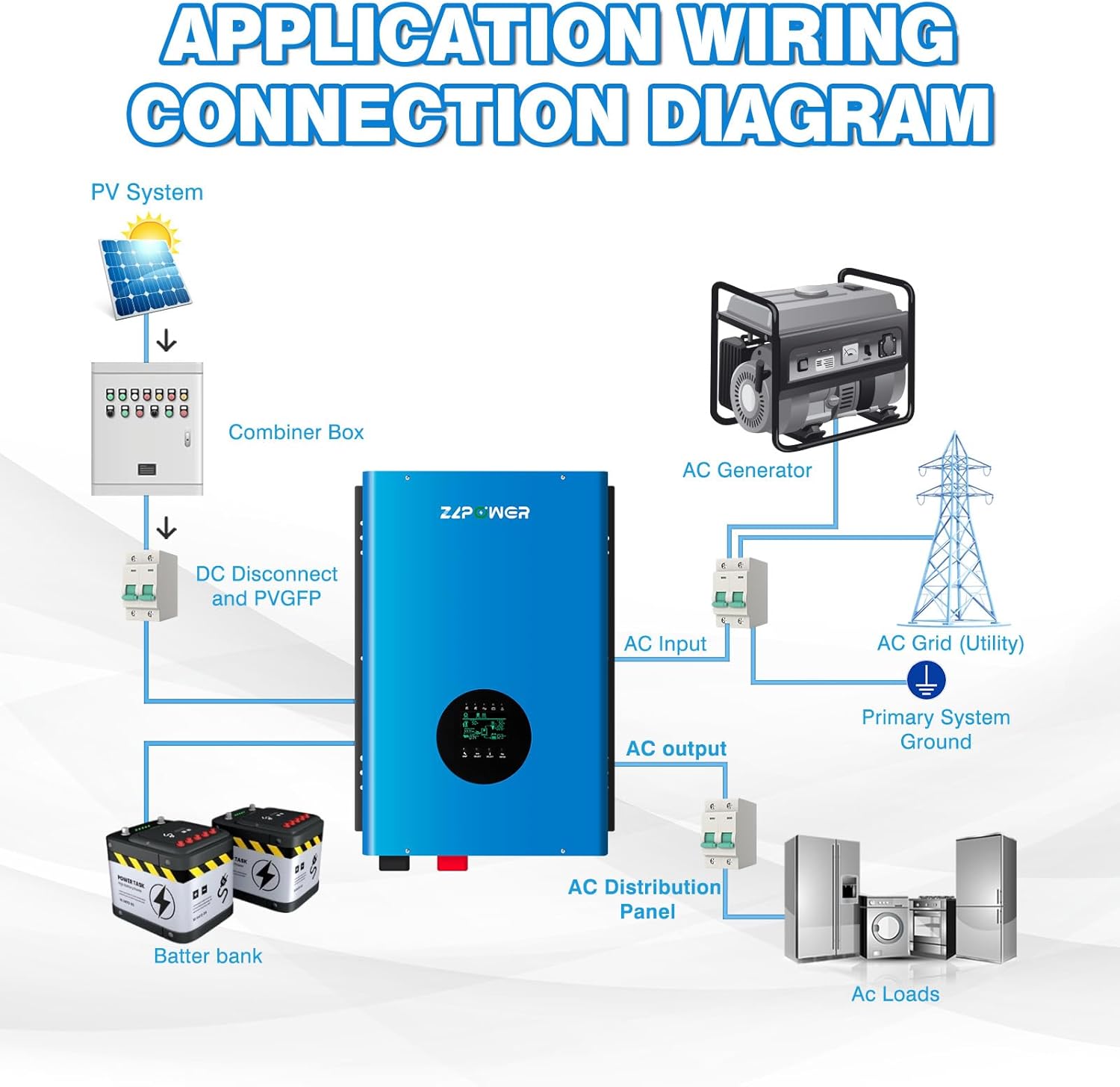

• The input power of GS Series hybrid Inverter comes from PV system and AC grid which not only supply power to AC loads but also charge the battery bank when the power from AC grid or AC generator is present (also known as Line Mode).
• In the event of AC grid (or AC generator) outage, the AC loads can be alternatively powered by PV system (if the illumination is sufficient) and battery bank.
• GS inverter realizes the use of solar energy and wind energy to convert into electric energy, which can save more electricity bills and allow you to use electricity freely.
• With lithium battery communication function.

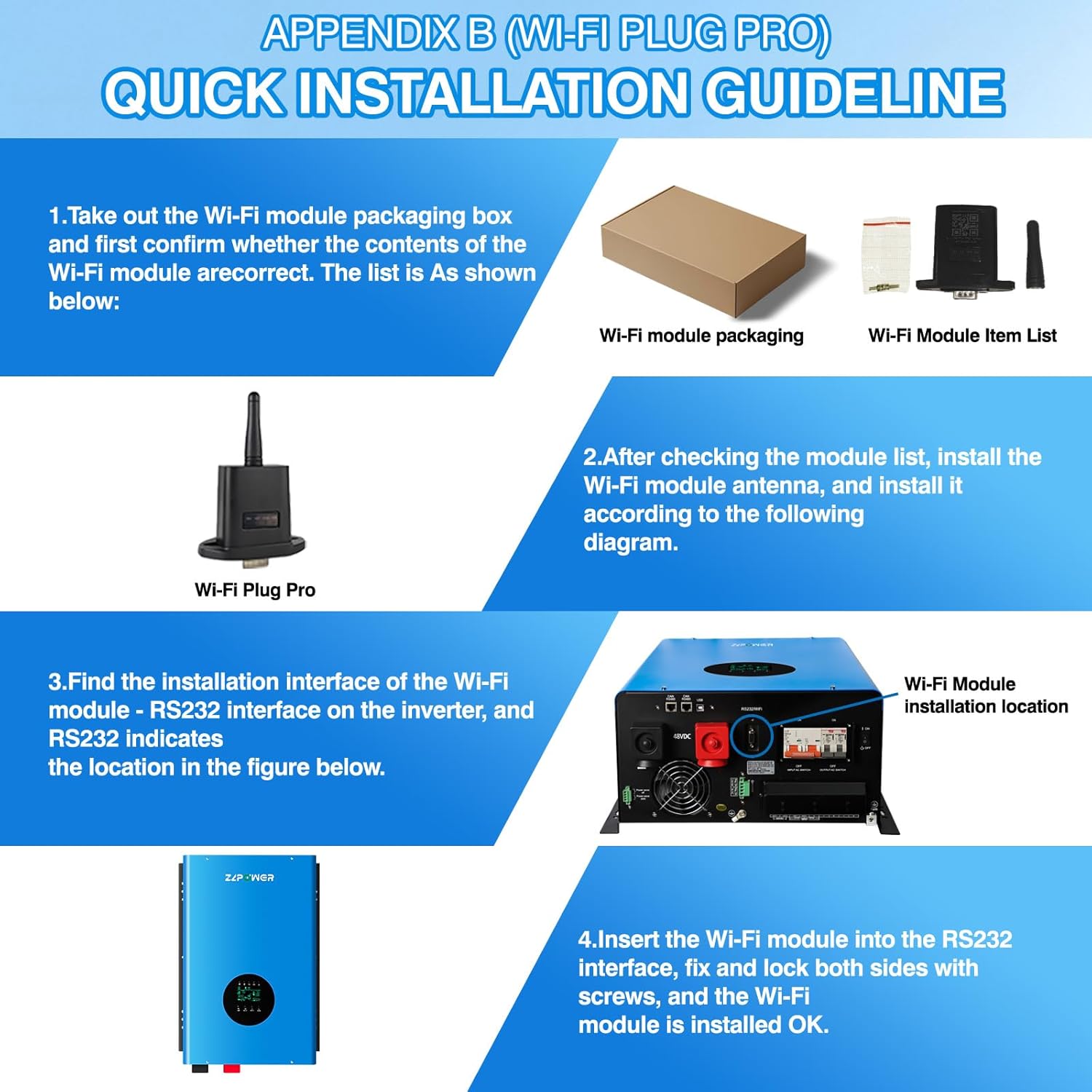

2. Wireless Router Connection

2.1 Download APP.Scan the QR Code and download the APP

2.2 Connect Wi-Fi Datalogger

• Select the same number of Wi-Fi Plug Pro PN to connect on your Phone WLAN.(InitialPassword:12345678)
• Open the APP, tap the Wi-Fi Config button to enter this page.

2.3 Network Setting

• Then tap the Network Setting button. According to the prompts, type in the information to finish the network setting. After the Wi-Fi Plug Pro is restarted,reconnect the Wi-Fi which connected by step 2.1.

3. Create Account And Add Datalogger

3.1 Create Account

• Open the APP, tap the Register button to enter this page.
• According to the prompts, type in the information to create an account.

3.2 Add Datalogger

• Login the account and click the Datalogger button. Tap the “＋” button on the top-right corner ofthe Datalogger page.
• Scan the PN on the Wi-Fi Plug Pro, or input it manually.
• According to the prompts, type in the information to finish add datalogger.

• Inverter mode: the neutral and the earth joined
• Line mode: the neutral and the earth separated
• Use a Relay to realize the function.

• Continuous Output Power: 8000 Watts
• Surge Rating: 24000 Watts
• Output Wave Form: Pure Sine Wave
• Output Voltage: 120/240Vac
• Nominal Efficiency: 90% (Peak)
• Line Mode Efficiency: >99%
• Output Frequency: 50Hz / 60Hz ± 0.3Hz
• Typical Transfer Time: 10ms

GS Series hybrid Inverter is designed to serve as a backup power supply for AC loads.

Earthing(ABYC standard)

Inverter Output Specifications
