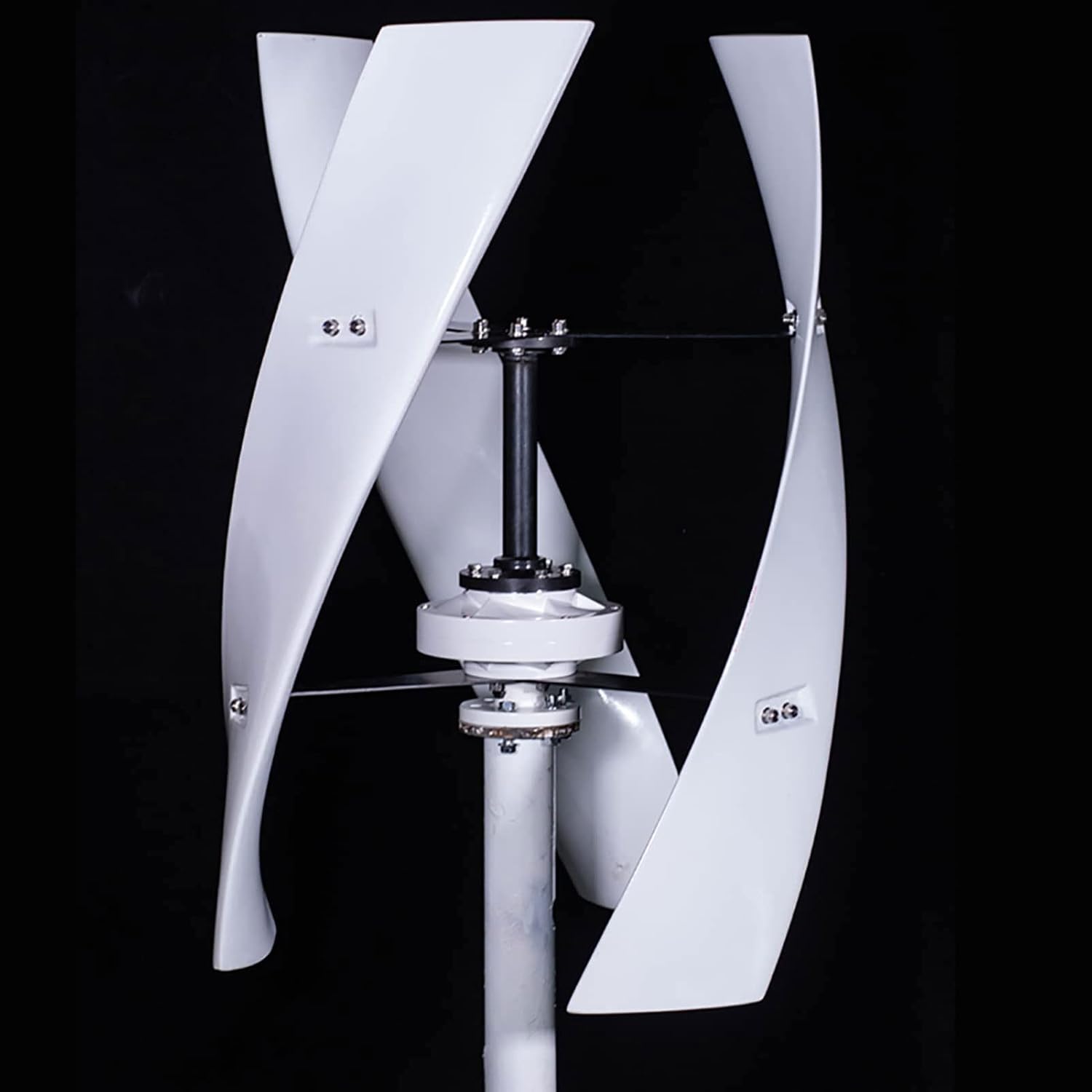

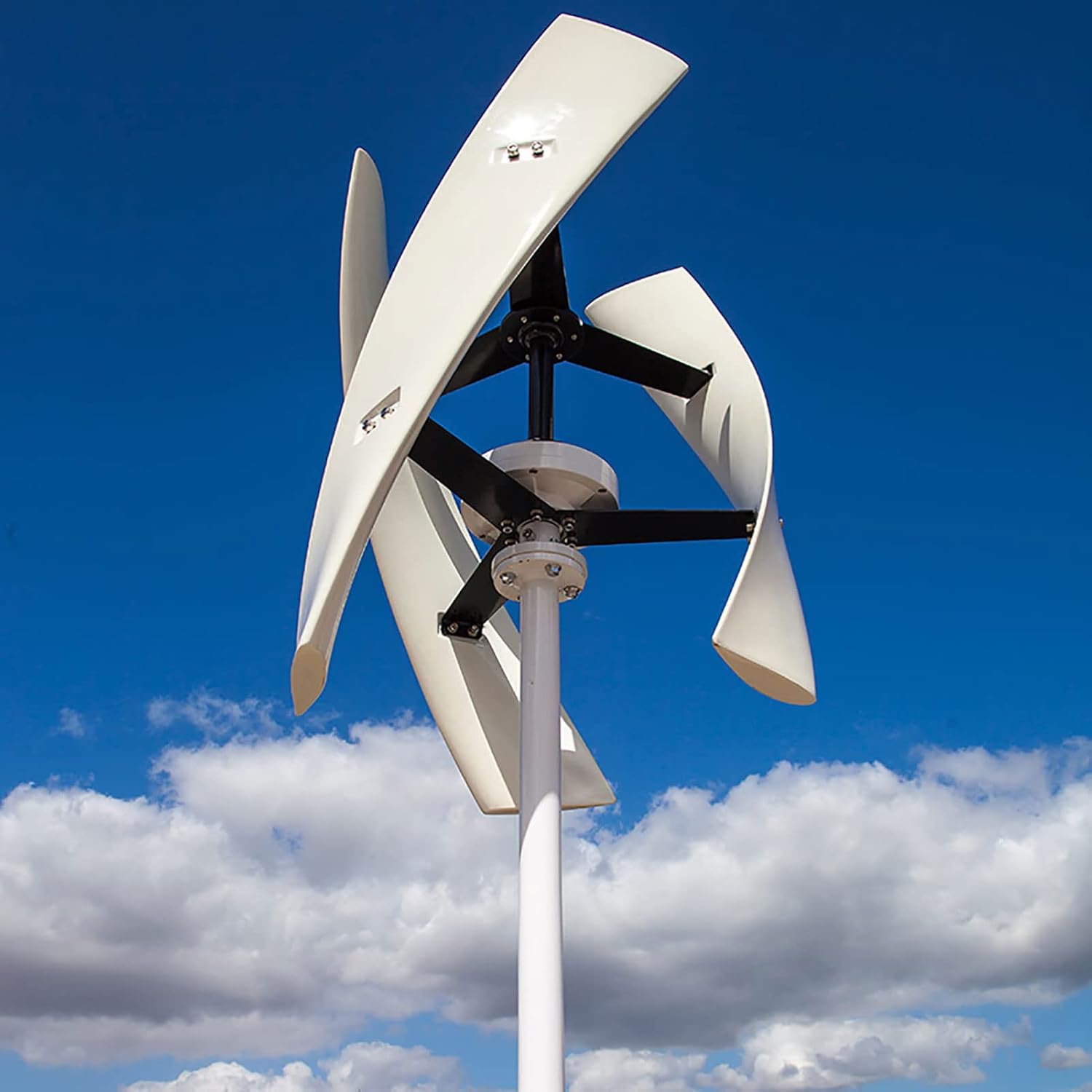

Vertical Axis Wind Turbine Generator 400w, X Type Wind Energy Power Motor with MPPT Controller Low Noise(White 24v

1. Vertical Axis Wind Turbine Generator 400w, X Type Wind Energy Power motor with MPPT Controller.</br>
2. 3Blades With Curved Design,Low Start Spped,Low Noise.</br>
3. Small,Light,Stable And Safe,Special Control Principle Expended The Wind Speed To 2.5 ~ 25m/S.</br>
4. Hi
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Wind Turbine Vertical Axis X Type Wind Energy Power Generator White 400w 24v with MPPT Controller Low Noise-400w 24v

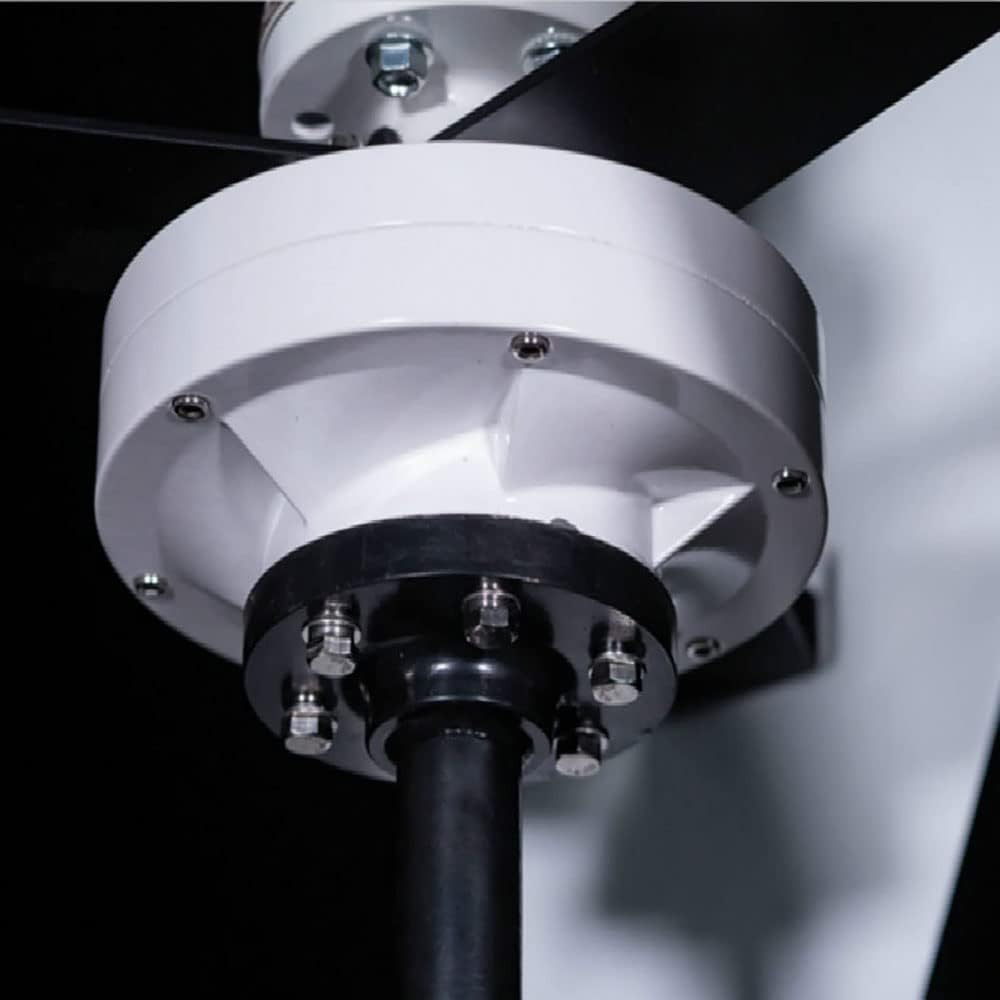

    Generator:Three Phase Permanent Magnet Suspension Motor
    Blade Material Glass/Basalt
    Blades Quantity 3pcs
    Control System:Electromagnet
    Started Wind Speed (M/S):1.3 M/S
    Cut-in Wind Speed (M/S):2.5 M/S
    Rated Wind Speed (M/S):10 M/S
    Rated Voltage(And):12/24v
    Rated Power(In):400in
    Max Power(In):410in

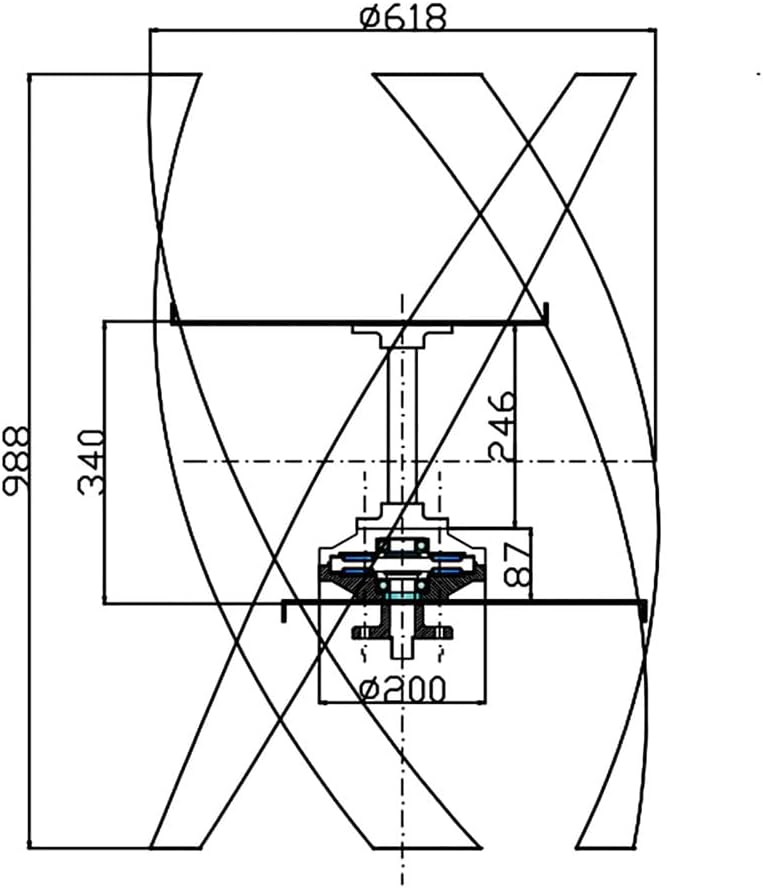

    Rotor Diameter Of Blades(M):0.6m
    Product Assembly Weight (Kg) <20kg
    BladeS Height(M):0.8m
    Safe Wind Speed (M/S) ≤40M/S
    Mount Height(M):2~12M &nbSp;
    Generator Protection Grade Ip54
    Altitude:≤4500M
    OverSpeed Protection:ELECTROMAGNETIC Brake
    Overload Protection:ELECTROMAGNETIC BRAKE And The Unloading Unit

    Precautions for the use of wind turbines:
    1. The wind turbine should be installed in a place with strong wind or without tall buildings and obstacles,
    Wind power can be fully utilized.
    2. Avoid cliffs and turbulent areas.
