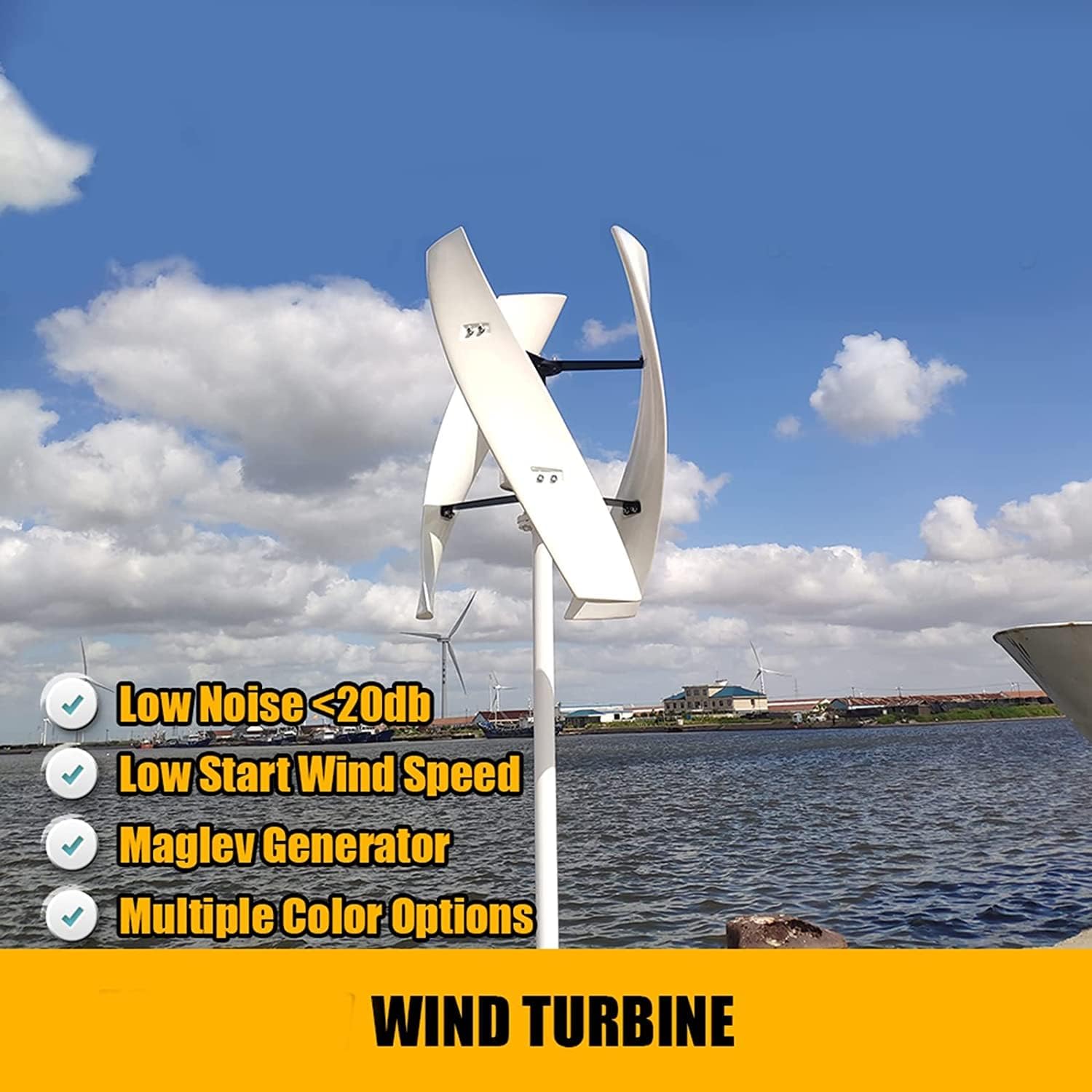

Home / LiuSj JUnSt New Vertical Axis Wind Turbine,4000W 220V 12V 24V 48V Vertical Magnetic Levitation Upright Wind Generator with Controllerfor Home Ship (White)

LiuSj JUnSt New Vertical Axis Wind Turbine,4000W 220V 12V 24V 48V Vertical Magnetic Levitation Upright Wind Generator with Controllerfor Home Ship (White)

✔ Curved blade design,utilizes wind resource effectively and obtains a higher power generation.
✔ Coreless generator, Horizontal rotation and aircraft wing design reduce the noise to an unperceivable level in natural environment.
✔ Wind resistance. Horizontal rotation and triangular double ful
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Product Description
    Product Description:
    ✔ Curved blade design,utilizes wind resource effectively and obtains a higher power generation.
    ✔ Wind resistance. Horizontal rotation and triangular double fulcrum design make it only bear a small wind pressure even in strong wind.
    ✔ Rotation radius. smaller rotation radius than other types of wind turbines, space is saved while efficiency improved.
    ✔ Effective wind speed range. special control principle expended the wind speed to 2.5 ~ 25m/s, utilizes wind resource effectively and obtains a higher power generation

    :
    Color: White
    Rated Power:4000W
    Maximum Power:4050W
    Rated Voltage:12V/24V/48V/220V
    Start-up Wind Speed:1.5m/s
    Rated Wind Speed:11m/s
    Security Wind Speed:40m/s
    Blade Quantity:3
    Rotor Diameter of Blades(m):0.52m
    Blades height(m):0.75m
    Generator: Three phase permanent magnet suspension motor
    Control System: Electromagnet
    Mount Height(m): 7~12m (9m)
    Generator protection grade: IP54
    Altitude:4500m
    Yaw mode: auto up-wind
    Tower: Cable / Independent tower
    Overspeed protection: Electromagnetic brake
    Overload protection: Electromagnetic brake and the unloading unit
    Net Weight:12kg
    Package Weight:12.5kg

    Package List:
    1 x Wind Turbine
    3 x Blade
    1 x Flange Disc
    1 x Gasket
    1 x Controller
    1 x Fastening Kit
