400W Wind Power Turbine Generator Kit,3-Blades Maglev Generator Helix Wind Turbine Generator, Vertical Axis Wind Power Generator w/Charge Controller DC 24V
400W Wind Power Turbine Generator Kit,3-Blades Maglev Generator Helix Wind Turbine Generator, Vertical Axis Wind Power Generator w/Charge Controller DC 24V
Great Durability: The wind turbine with the coreless permanent magnet generator and three high-strength fiberglass blades is more durable and has a long service life.
Smooth Running: The spiral blades are aerodynamically designed to make the rotor run smoothly and reliably, which leads to stable
Smooth Running: The spiral blades are aerodynamically designed to make the rotor run smoothly and reliably, which leads to stable
Quantity
-
Detail
Details

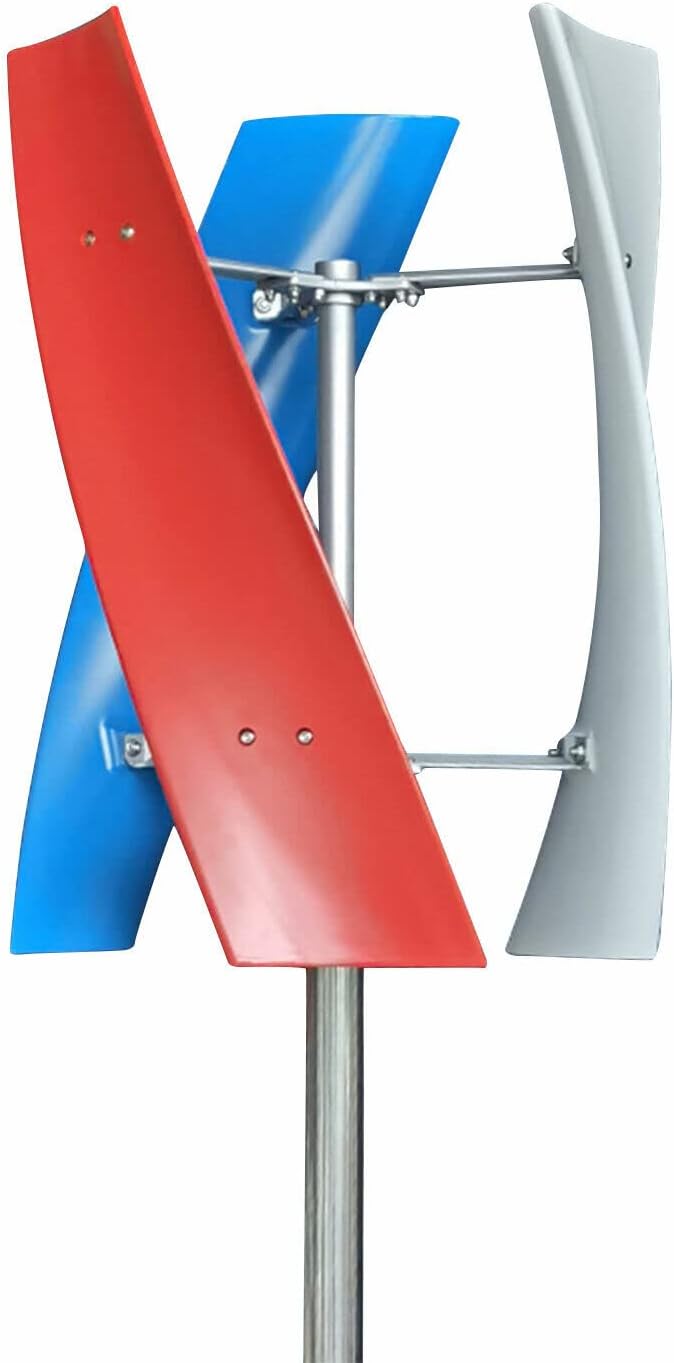

Vertical Blades: The main force point of the wind turbine is concentrated on the blade edge, so that it can effectively avoid blade shedding, fracture, or flying out.
Three-phase AC Permanent Magnet Generator: The wind turbine with a low-torque and high-power intelligent tracking microprocessor can regulate current and voltage efficiently. It significantly increases wind energy utilization and annual power production.

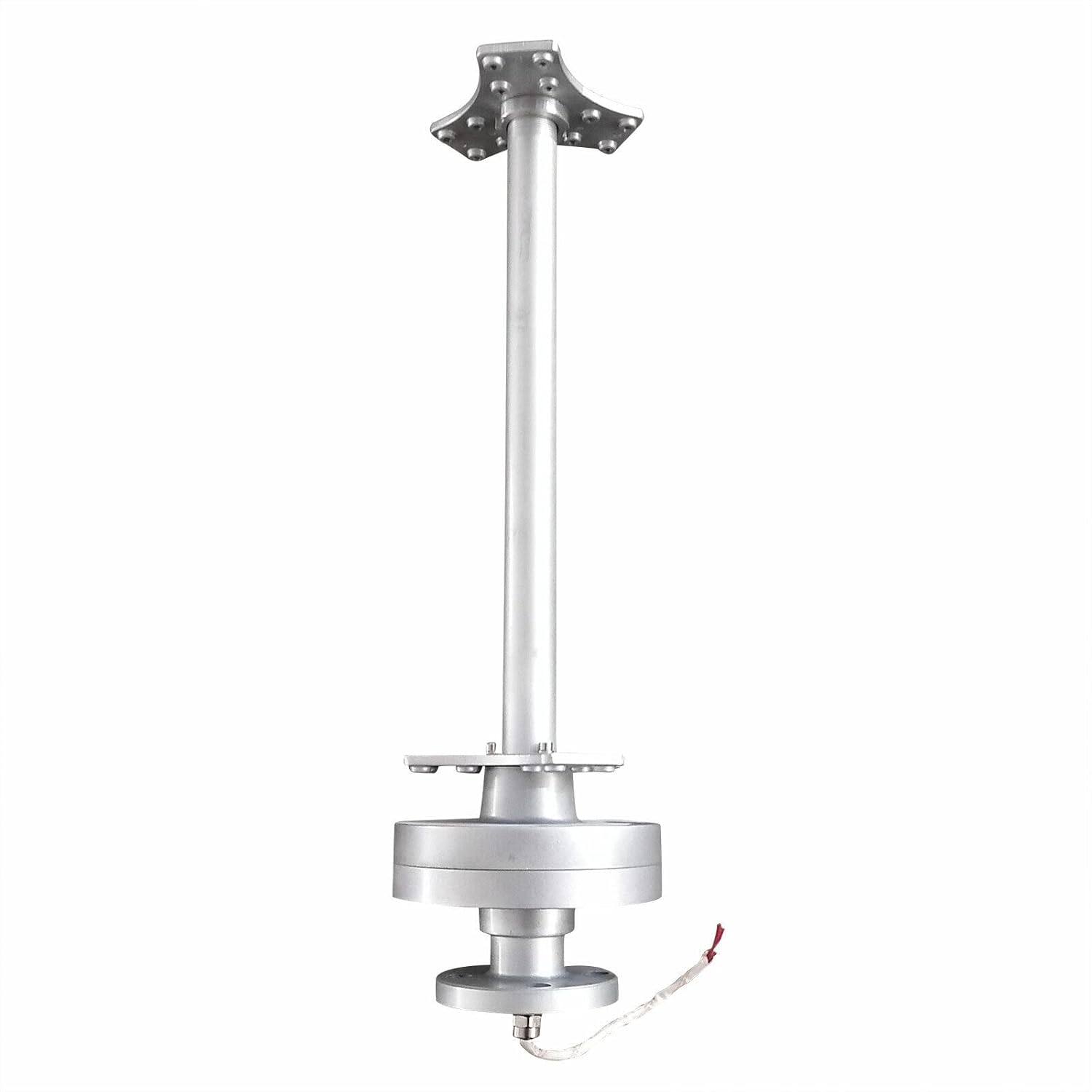

Aluminum Main Rod: The main rod is made of aluminum with high hardness and can be fully recycled, so it is uneasy to break .
Specification:
Condition: New
Controller System: Electromagnetism
Starting Wind Speed: 1.3m(12inch)/s
Cut-in Wind Speed: 2.5m(98inch)/s
Rated Wind Speed: 11m(433inch)/s
Max Instantaneous Wind Speed: ≤40m(1575inch)/s
The Instantaneous Maximum Wind Speed: ≤45m(1772inch)/s
Blades Quantity: 3 (with Different Colors)
Diameter of Blades: 0.6m/24inch
Blades Height: 0.8m/31inch
Speed Regulation: Automatic
Rated Power: 400W
Max Power: 450W
Generator Protection Grade: IP67
Work Environment Temperature: 25 to 45℃+
Product Assembly Weight: <10kg/22lbs
Over-speed Protection: Electromagnetic Brake
Blade Material: Nylon Fiber
Generator: Maglev Generator
Service Life: 10-15 Years
Installation Instructions: Not Included
Rated Voltage: 24V

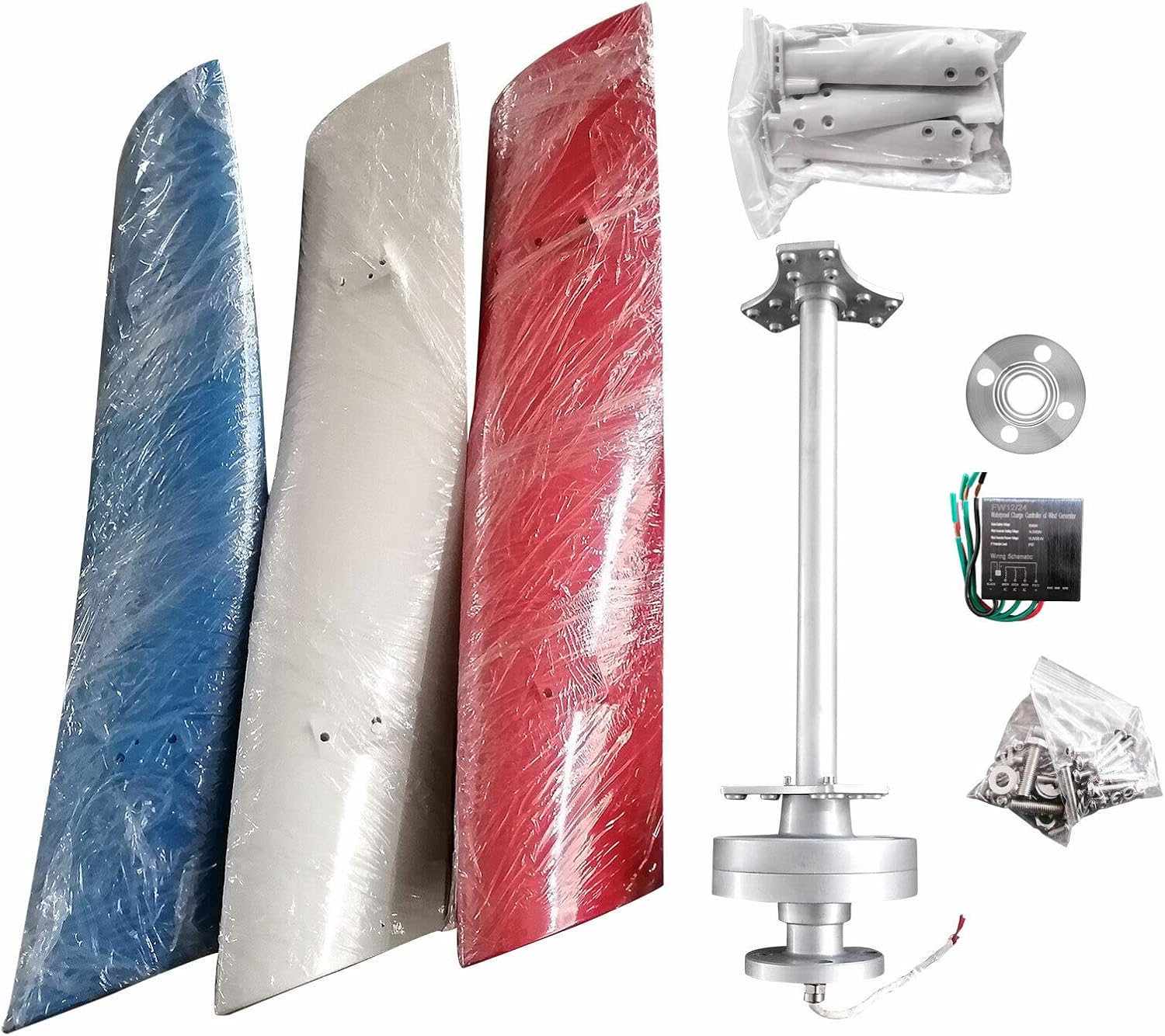

Package Included
1 x Wind Turbine

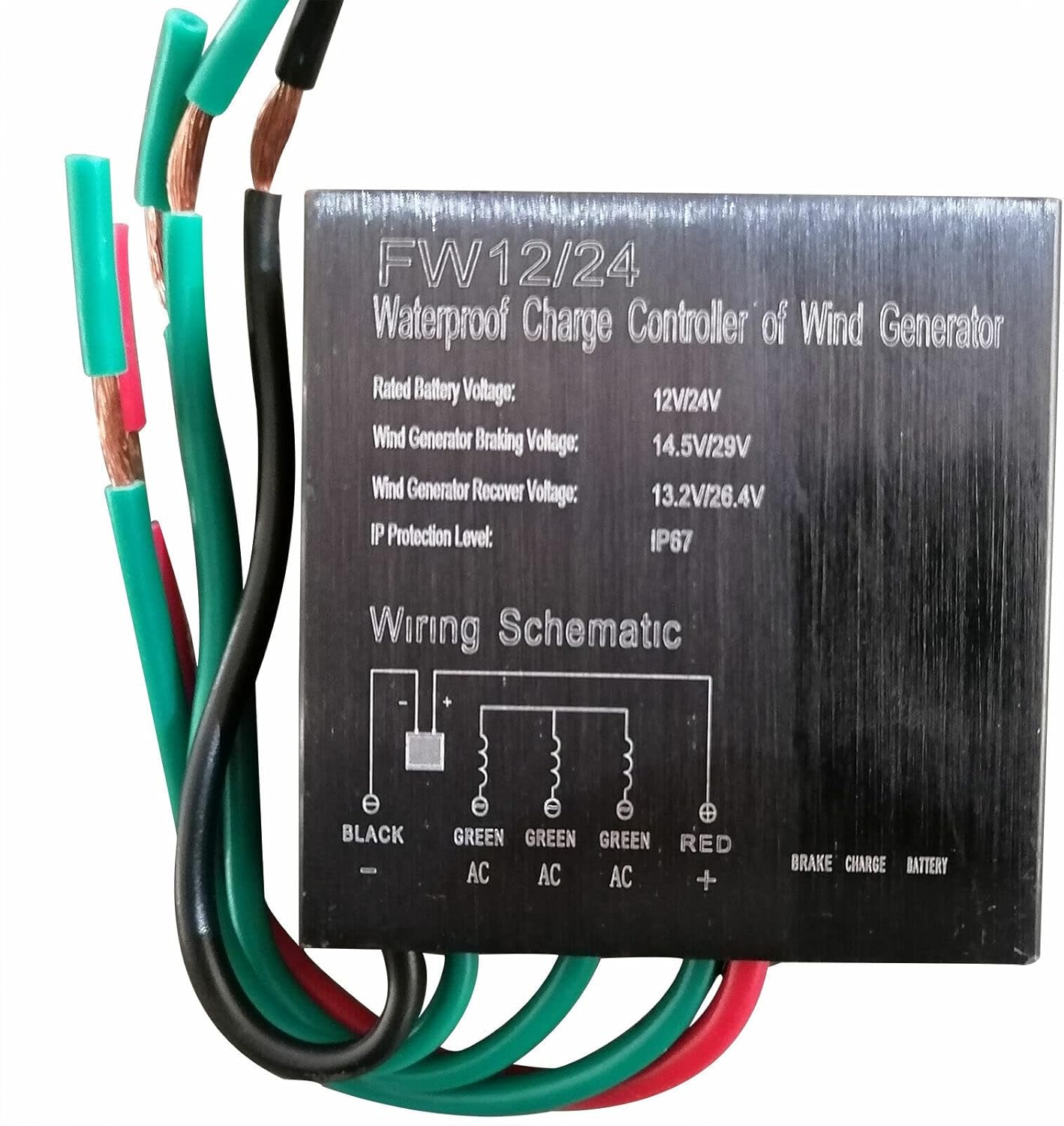

1 x Controller
3 x Blades (White, Red, Blue)
1 x Bag of Screws to Connect the Main Body
1 x Bag of Screws for Connecting the Bracket Blades
Other Accessory for Assembly

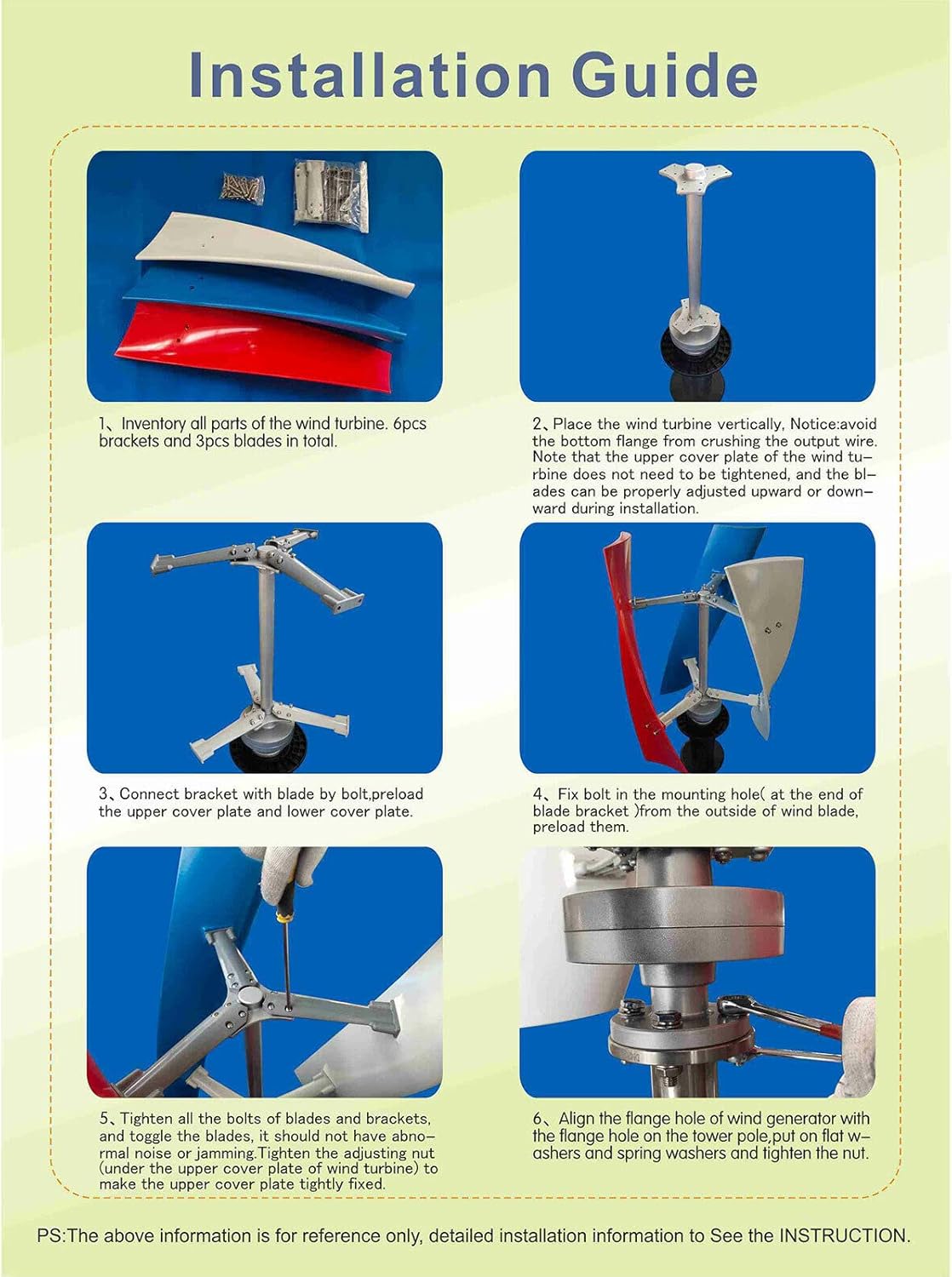

Notes
There are two different kinds of screws. Please confirm the correct position of the screws before installation.
The upper cover plate of the wind turbine does not need to be tightened, and the blades can be properly adjusted upward or downward during installation.
When you place the wind turbine vertically, please prevent the bottom flange from crushing the output wire.
-
