400w 12v Vertical Wind Turbine Generator, 3 Helix Blades Portable Maglev Wind Generator Kit with Controller for Marine RV Home Industrial Energy

Portable Maglev Wind generator Kit
【Great Durability】The wind turbine with the coreless permanent magnet generator and three high-strength fiberglass blades is more durable and has a long service life.
【Maximum Speed Protection】When the wind turbine reaches the maximum speed of 300rpm, the 3 h
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Description

    The wind turbine with the coreless permanent magnet generator and three high-strength fiberglass blades is more durable and has a long service life. The spiral blades are aerodynamically designed to make the rotor run smoothly and reliably, which leads to stable electricity generation. Besides, it has maximum speed protection.


    Application

    It is well suited for boats, gazebos, cabins or mobile houses, and other energy supplies for homes, businesses and industry.

    Specification

    Condition: New

    Controller System: Electromagnetism

    Starting Wind Speed: 1.3m(12inch)/s

    Cut-in Wind Speed: 2.5m(98inch)/s

    Rated Wind Speed: 11m(433inch)/s

    Max Instantaneous Wind Speed: ≤40m(1575inch)/s

    The Instantaneous Maximum Wind Speed: ≤45m(1772inch)/s

    Blades Quantity: 3 (with Different Colors)

    Diameter of Blades: 0.6m/24inch

    Blades Height: 0.8m/31inch

    Speed Regulation: Automatic

    Rated Voltage: 12V

    Rated Power: 400W

    Max Power: 450W

    Generator Protection Grade: IP67

    Work Environment Temperature: -40 to +60℃+

    Product Assembly Weight: <10kg/22lbs

    Over-speed Protection: Electromagnetic Brake

    Blade Material: Glass Fiber

    Generator: Maglev Generator

    Service Life: 10-15 Years

    Installation Instructions: Not Included



    Package Included

    1 x Wind Turbine

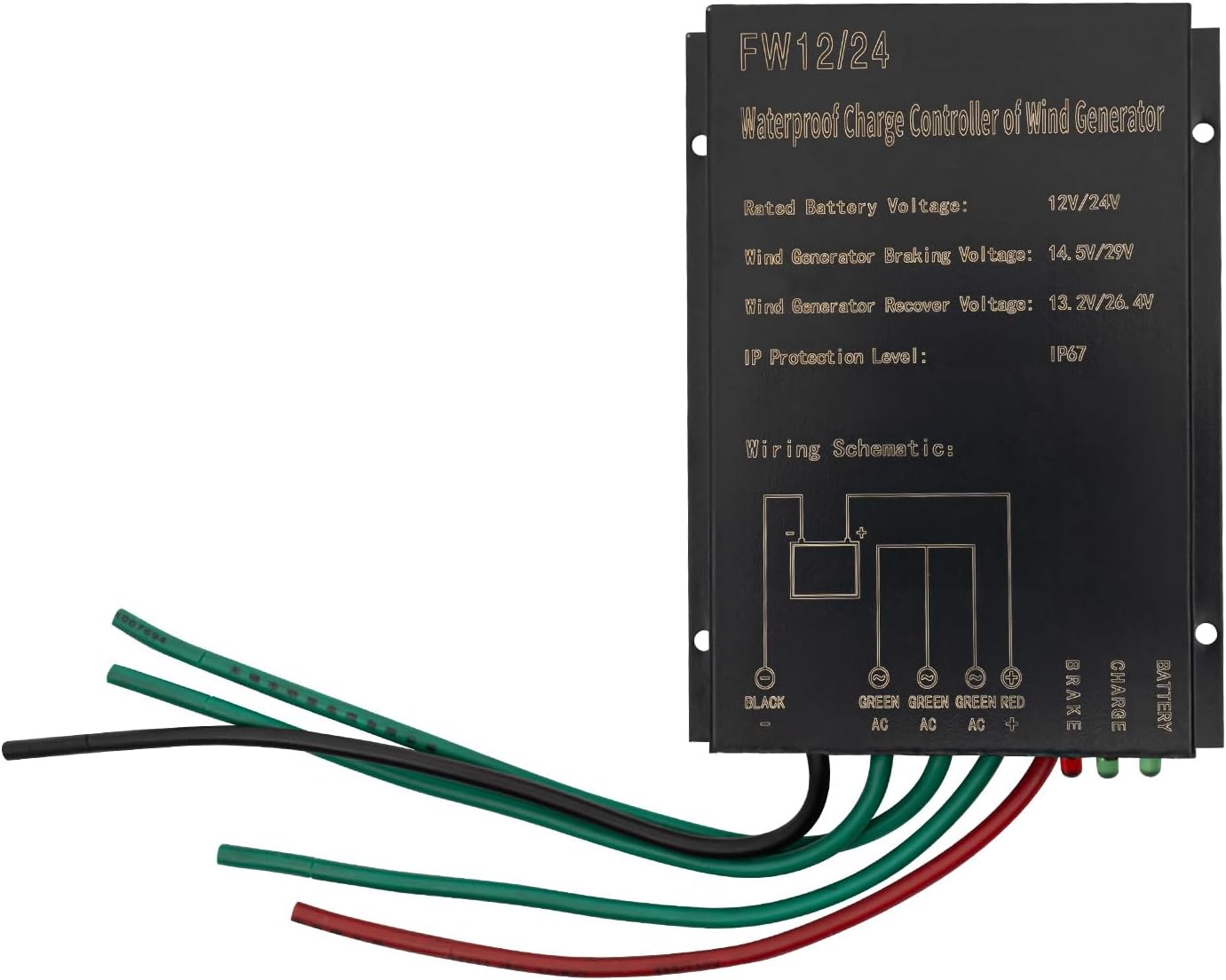

    1 x Controller

    3 x Blades (White, Red, Blue)

    1 x Bag of Screws to Connect the Main Body

    1 x Bag of Screws for Connecting the Bracket Blades

    Other Accessory for Assembly
