Wind Turbine, 400W Wind Generator Kit with 3 Blades, Wind Generator Kit with Charge Controller, W-ind Power Generator for Marine, DC 24V Turbine Wind generator, Hybrid wind T-urbine Generator

☀ ☀【𝟑 𝐕𝐄𝐑𝐓𝐈𝐂𝐀𝐋 𝐁𝐋𝐀𝐃𝐄𝐒】 The main force point of the wind turbine focuses on the edge of the blade, effectively preventing the blade from falling off, breaking or flying out. Due to its compact shape, low starting wind speed and large upwind area, wind turbines can generate electricity at lower wind s
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Specification:

    Controller System: Electromagnetism

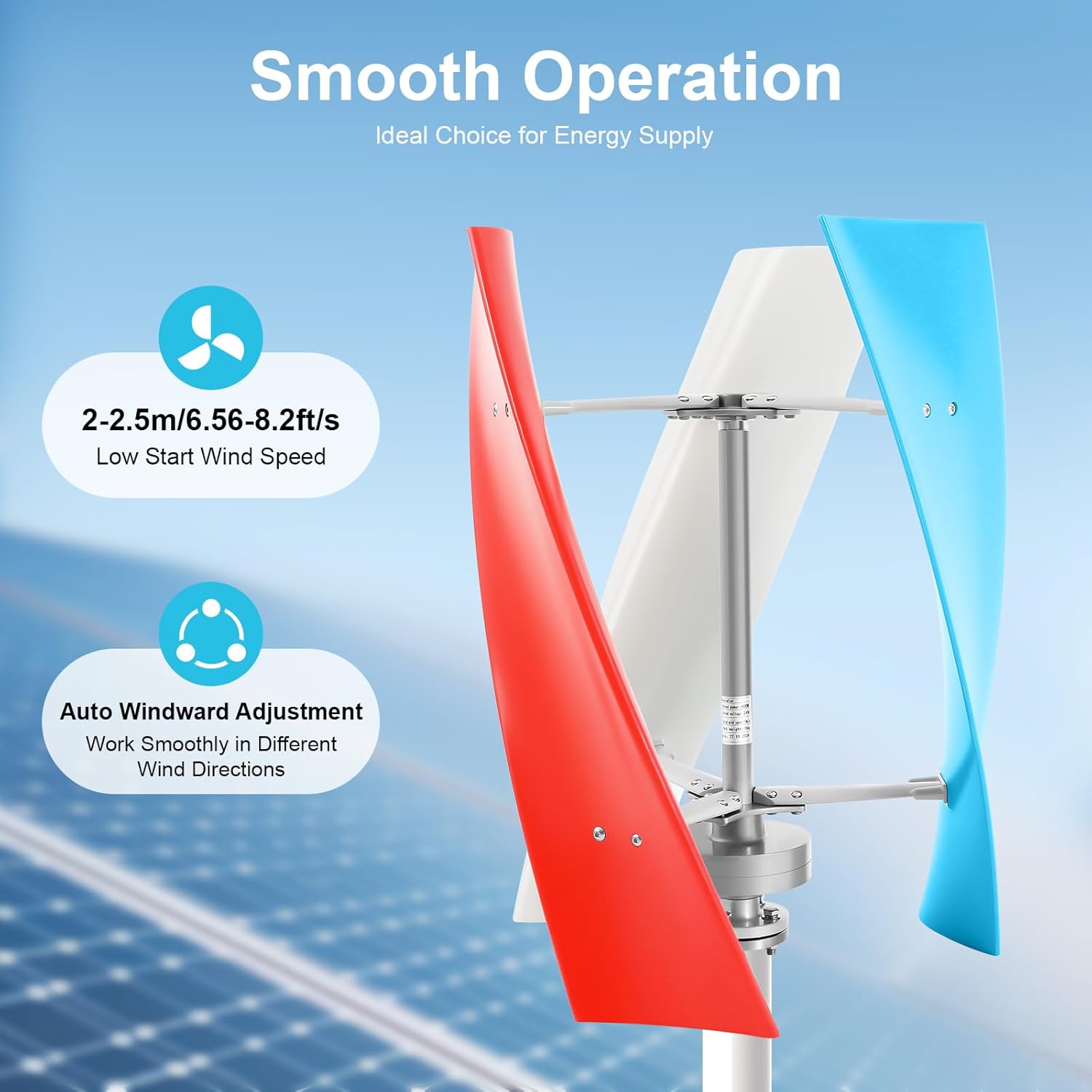

    Starting Wind Speed: 1.3m(12inch)/s

    Cut-in Wind Speed: 2.5m(98inch)/s

    Rated Wind Speed: 11m(433inch)/s

    Max Instantaneous Wind Speed: ≤40m(1575inch)/s

    The Instantaneous Maximum Wind Speed: ≤45m(1772inch)/s

    Blades Quantity: 3 (with Different Colors)

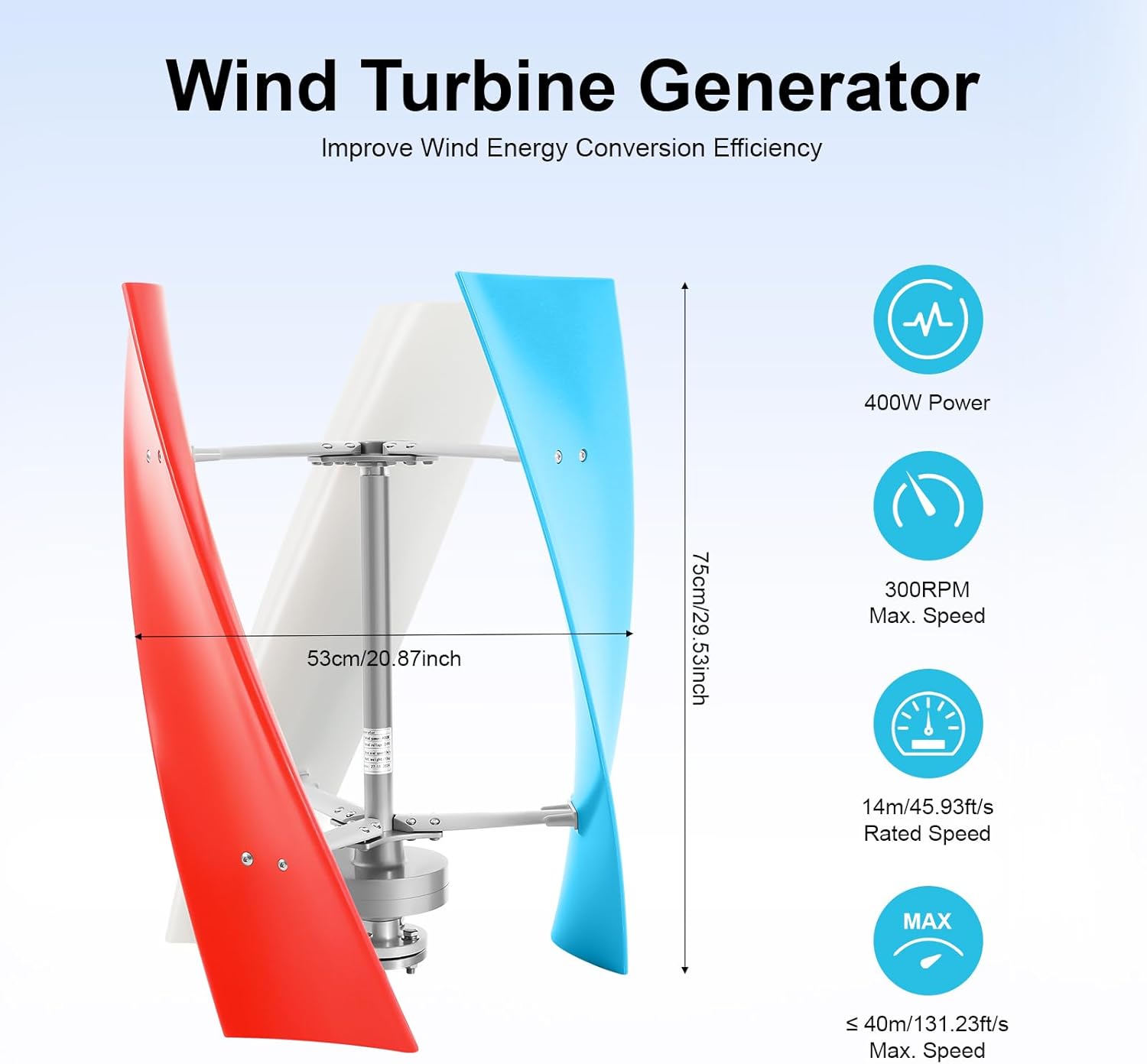

    Diameter of Blades: 0.6m/24inch

    Blades Height: 0.8m/31inch

    Rated Power: 400W

    Max Power: 450W

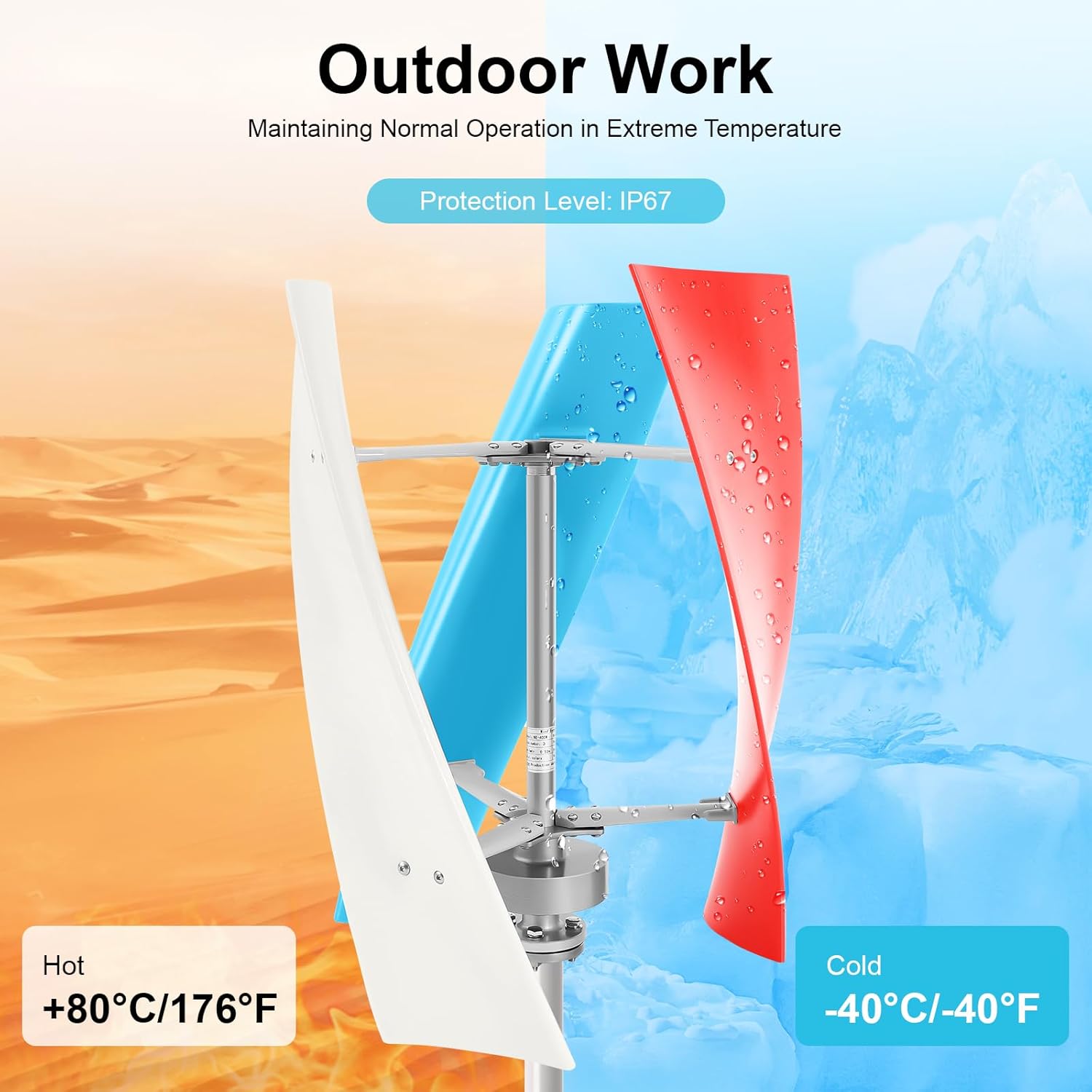

    Generator Protection Grade: IP67

    Work Environment Temperature: 25 to 45℃+

    Product Assembly Weight: <10kg/22lbs

    Over-speed Protection: Electromagnetic Brake

    Blade Material: Glass Fiber

    Generator: Maglev Generator

    Service Life: 10-15 Years

    Rated Voltage: 24V


    Installation

    1. Check all the parts of the wind turbine, which includes 6 brackets and 3 blades in total.

    2. Place the wind turbine vertically.

    3. Connect brackets with blades by the bolt. Load the upper cover plate and lower cover plate.

    4. Fix the bolt in the mounting hole (at the end of the bracket) from the outside of the wind blade.

    5. Tighten all the bolts of blades and brackets, and toggle the blades. It should not have abnormal noise or jamming. Tighten the nut (under the upper cover plate of the wind turbine) to make the upper cover plate tightly fixed.

    6. Align the flange hole of the wind turbine with the flange hole on the tower pole, put on flat washers and spring washers, and tighten the nut.

    7. Professional installation is highly recommended if you have no previous installation experience.

    8. You can watch the attached installation video as a reference.


    Package Included

    1 x Wind Turbine

    1 x Controller

    3 x Blades (White, Red, Blue)

    1 x Bag of Screws to Connect the Main Body

    1 x Bag of Screws for Connecting the Bracket Blades
