Vertical Wind Turbine Three Phase,800W 12V 24V Generator Wind Turbine for Hybrid Wind Solar System(with MPPT Controller)

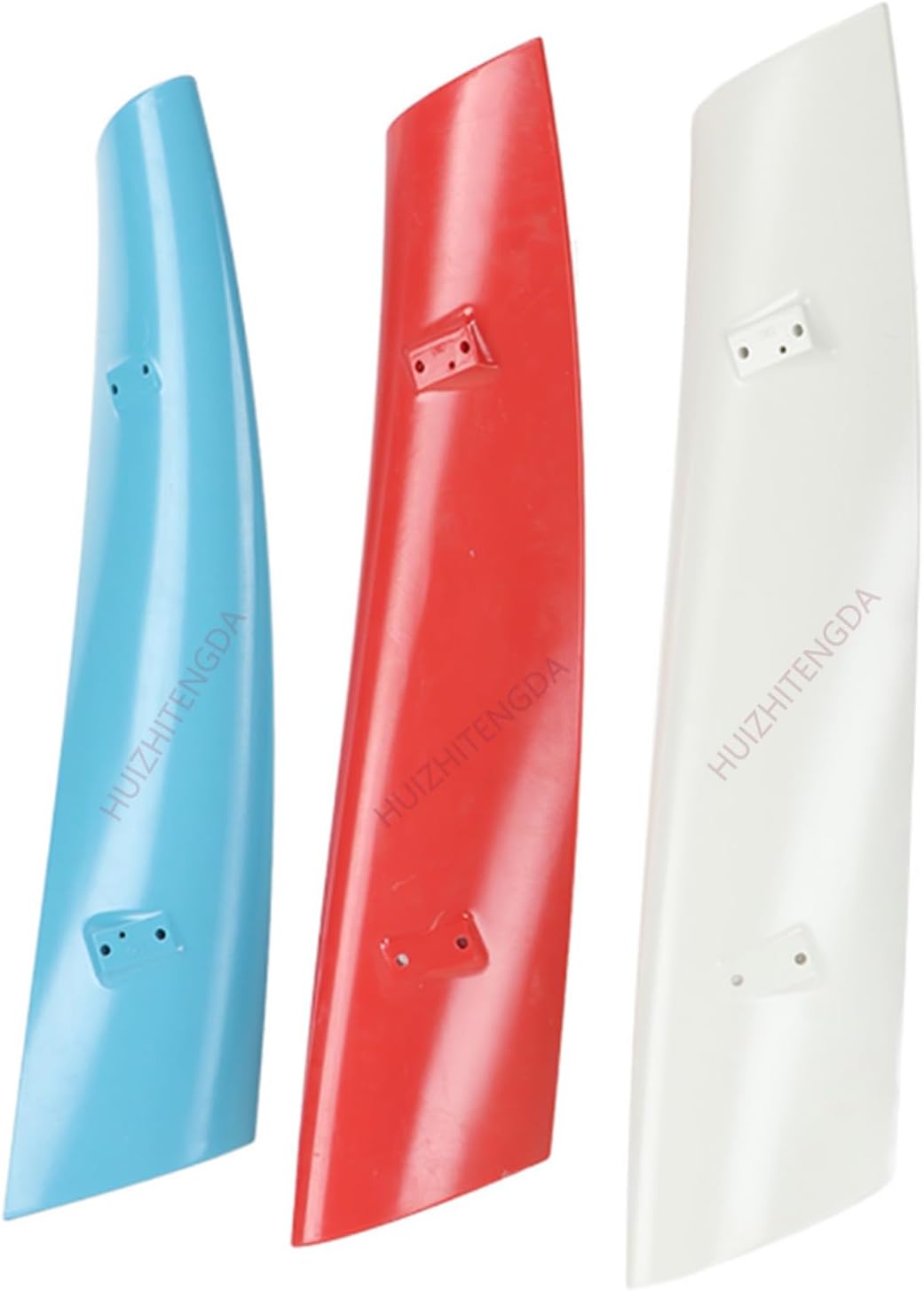

1. 3 Blade: The wind turbine has 3 blades(white, red, blue) that adopts aerodynamic design and made of GFRP, makes the rotor run smoothly, reliably and quietly.
2. 3 Phase Permanent Magnet: This wind generator adopts three phase AC permanent magnet instrument design, with low torsion, high power
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    SPECIFICATIONS:
    Blades quantity:3 Blade
    Rated power(W):800W
    Rated voltage(AC):12V/24V/48V/220V
    Rotor Diameter of Blades(m):0.55m
    Blades height(m):0.75m
    Product assembly weight (Kg):<12KG
    Started wind speed (m/s):2 m/s
    Cut-in wind speed (m/s):3 m/s
    Rated Wind speed (m/s):10 m/s
    Safe wind speed (m/s):≤40m/s
    material:Galvanized aluminum alloy

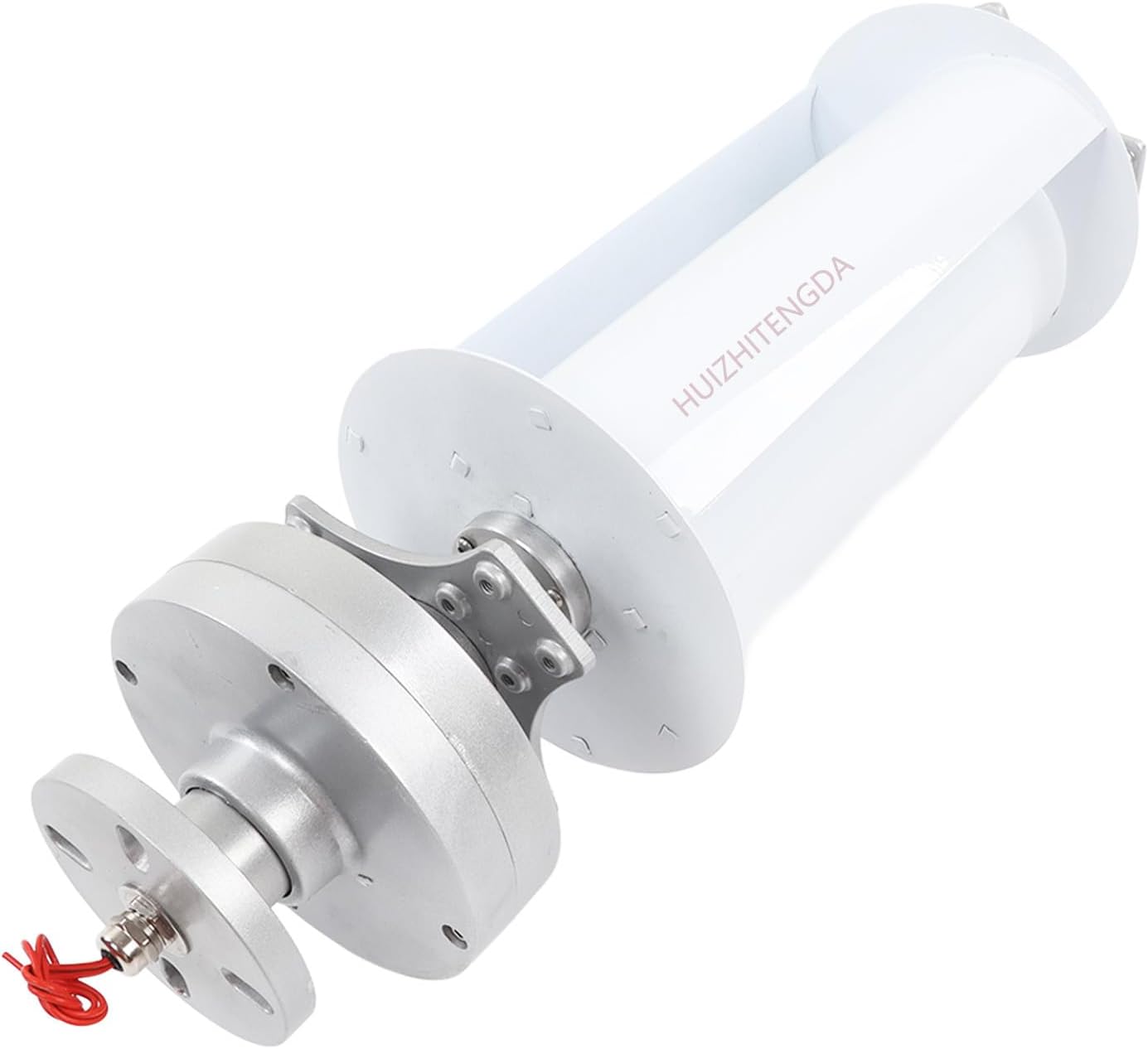

    Generator:Three phase permanent magnet suspension motor
    Control System:Electromagnet
    Mount Height(m):2- 12m
    Generator protection grade:IP54
    Altitude:≤4500m
    Overspeed protection:Electromagnetic brake Overload
    protection:Electromagnetic brake and the unloading unit

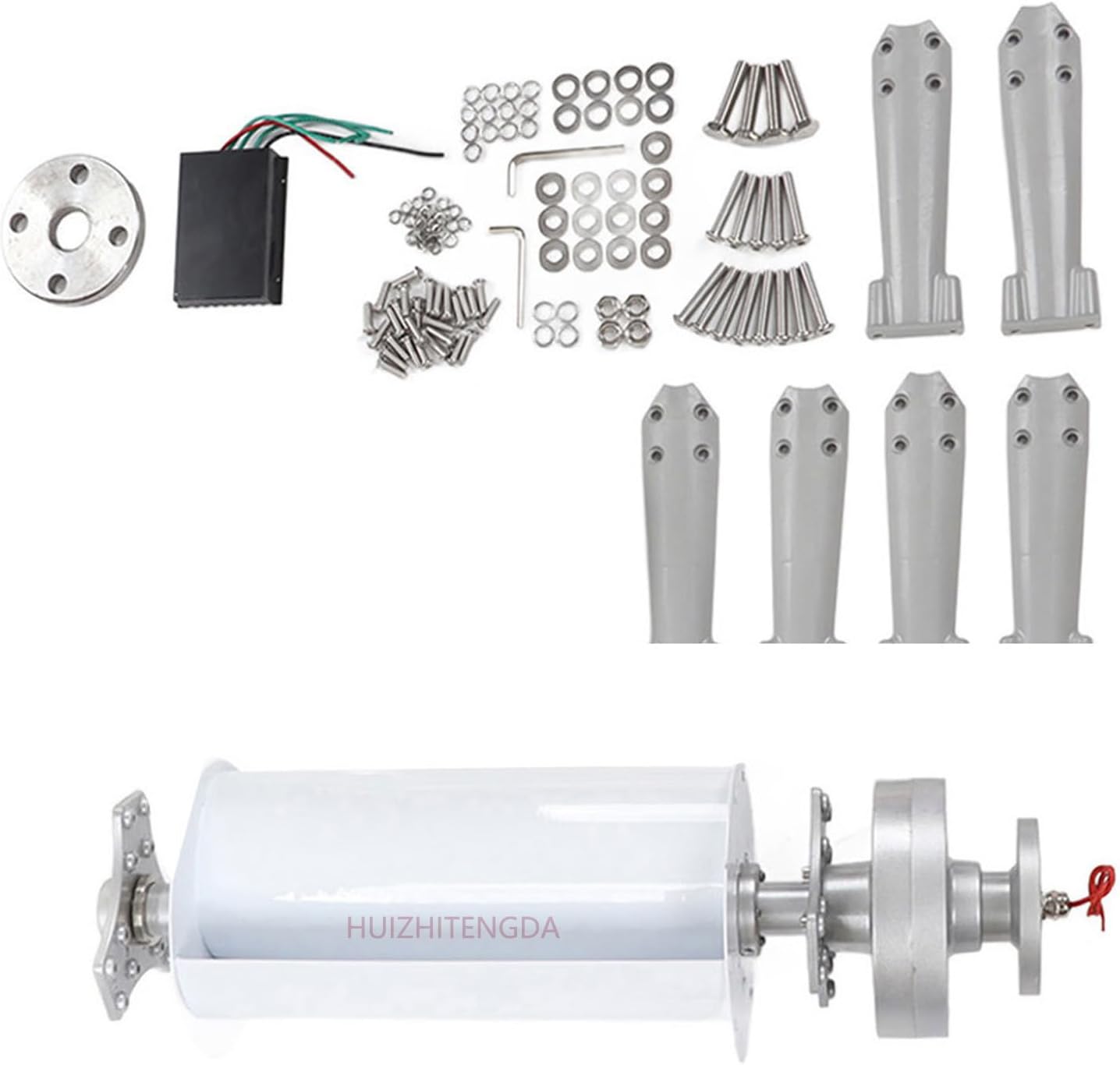

    Package List:
    1 x Wind Turbine
    3 x Blade
    1 x Flange Disc
    1 x Gasket
    1 x Controller
    1 x Fastening Kit
