POWLAND 100A MPPT Solar Charge Controller,12V/24V/36V/48V Auto,Max Input 150V LCD Display Regulator Intelligent Regulator Charge Controller

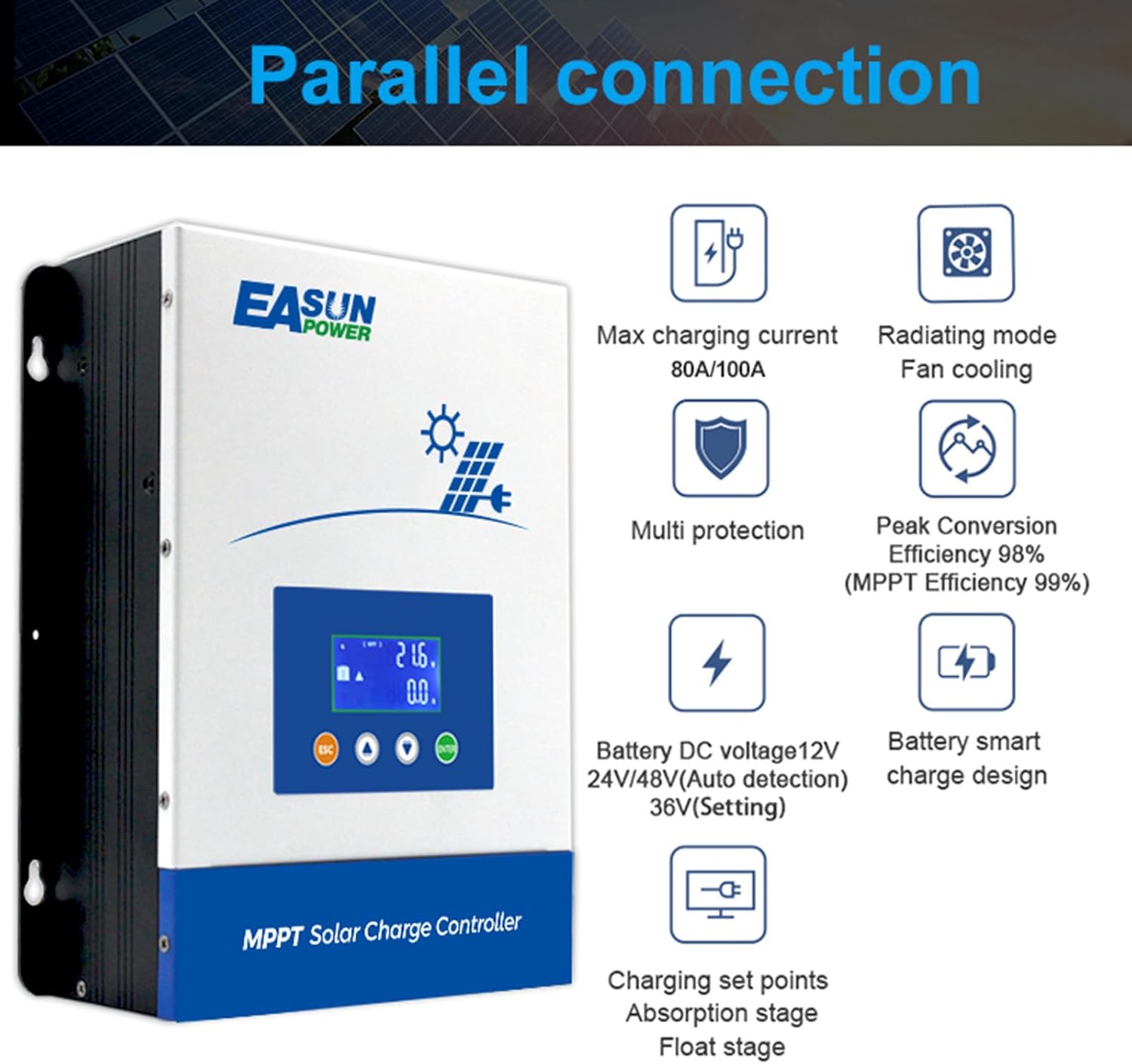

100A MPPT charge controller: 4-level battery charging algorithm for fast, efficient, safe charging (bulk charging, boost charging, float charging and equalizing), 100 amp rate charging current.
High efficiency: The solar controller adopts the latest optimized MPPT technology, which can quickly tr

Quantity

ADD TO CART

BUY IT NOW

Detail
1CHARGING MODE2MPPT CONTROLLER SETUP3LCD AND FUNCTION KEY
100A MPPT Solar Charge Controller Warm Tips:

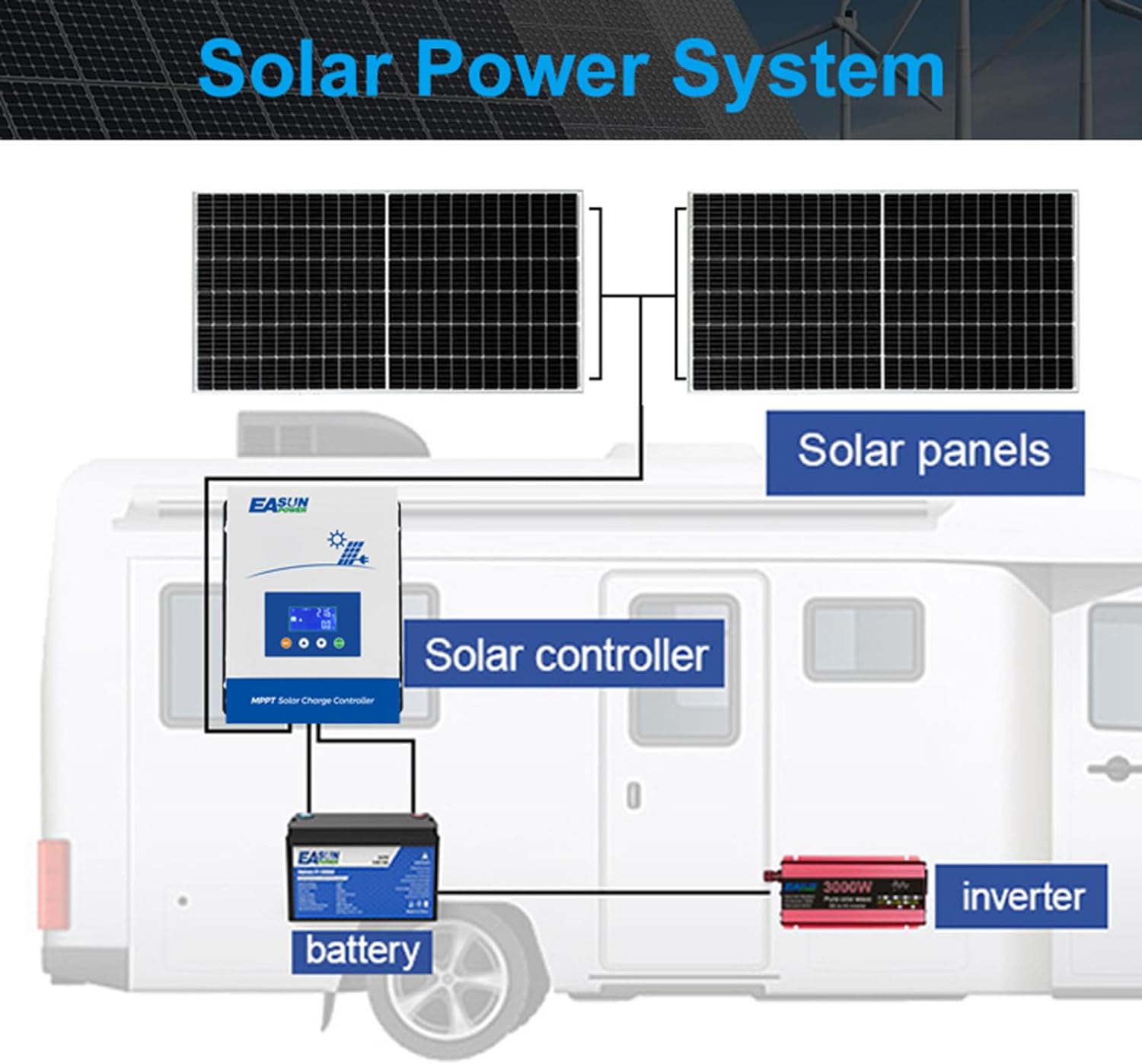

1. Solar controller link order: first connect to battery; then connect to PV array; finally connect to load appliance.
2. Don't connect inverter, wind, alternator charger into the charge controller! Please connect the solar controller to the battery.
3. If solar PV input voltage lower 3V or lower than batteries’ voltage. It may be appears to have been discontinued.
4. Parameter Setting:Floating voltage > Low voltage reconnect > Low voltage discharge.

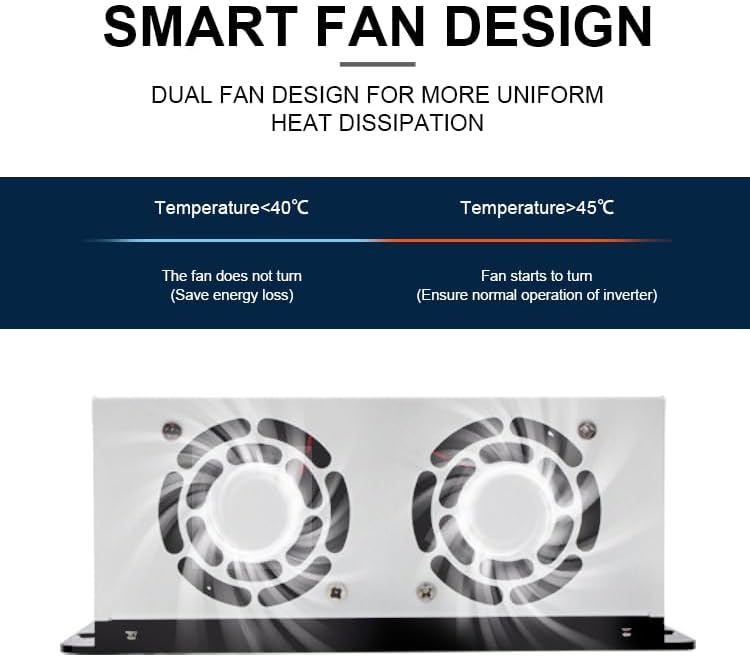

5. When controller makes buzzing because the controller dissipate heat. It will be stop when temperature return to normal.
6. Don't let the positive (+) and negative (-) terminals of the battery touch each other.

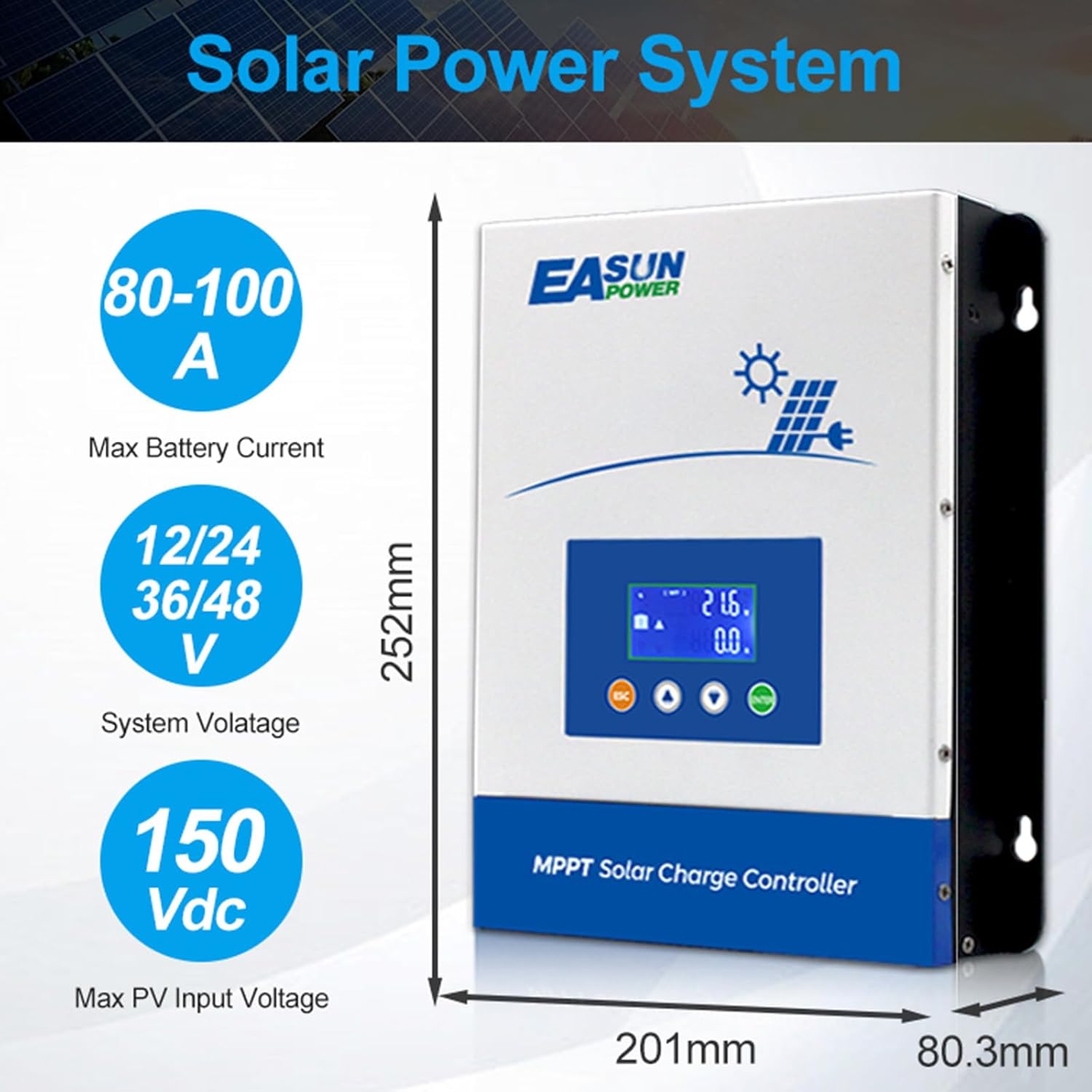

System Voltage12/24/36/48/AutoAuto Temperature Compensation-3mV/2V/ºCOvercharging Protection36VSystem(48V) /48V System(64V) /12V System(16V)/24V System(32V)Battery Voltage Automatic12V System(DC8.7V-DC15.5V);24V System(DC16V -DC31V);36V System(DC33V -DC41V);48V System(DC42V -DC64V)Max PV Input Power1500W/12V(PV voltage DС20V-DC150V); 3000W/24V(PV voltage DС37V-DC150V); 4500W/36V(PV voltage DС50V-DC150V); 6000W/48V(PV voltage DС72V-DC150V)Max PV Input Voltage150 VocPV Utilization≥99%Limited Current Protection100AMax Efficiency≥98.1%Size9.92in*7.9in*3.26 inNet Weight2.49
Precautions before using a POWLAND MPPT 100A solar controller ?
Users should first connect the battery before connecting the solar panel for the solar controller to function properly.Otherwise, it may cause irreversible damage to the controller.
Why is there no voltage displayed after I connect the solar panel?
It may be caused by low voltage. When connecting the PV, it is necessary to ensure that the PV voltage is 1.5 times higher than the battery voltage.
Why does my controller display a current of Zero?
When the battery is in float charging state or the solar panel is damaged, the charging current is problly to be less than 1ah. When the charging current is less than 1Ah, the charging current is displayed as ZERO.
What you can get when you buy a POWLAND MPPT solar controller?
MPPT Controller*1;User Manual*1;3M Sticker*1;External Temperature Sensor*1

Precautions before using a POWLAND MPPT 100A solar controller ?

Why is there no voltage displayed after I connect the solar panel?

Why does my controller display a current of Zero?

What you can get when you buy a POWLAND MPPT solar controller?
