800W 12V Vertical Axis Wind Turbine VAWT 3 Blades Wind Power Generator Off Grid System Kits Low Noise Wind Generators with MPPT Charge Controller to Charge 12V Battery

【Vertical Blade Design】This vertical axis wind turbine with vertical blades and triangular double pivot point design, the main force points in the hub focused so that the blades lost, broken and leaf out and other problems have been better solved.
【Low Noise】The wind turbine with horizontal rotat
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Rated power:800W

    Rated voltage:12V

    Started wind speed:1.5m/s

    Cut-in wind speed:2.5m/s

    Rated wind speed:10m/s

    Security wind speed:40m/s

    Wheel diameter:0.7m

    Product assembly weight:20KG

    Blade Height:1.0m

    Blades quantity:3

    Blade material:aluminium alloy

    Insulation:auto up-wind

    Tower:Insulation

    Mount Height:6-10m

    Generator protection grade:IP54

    Work environment temperature:-25~+45℃

    Work environment humidity:≦90%

    Package Include:



    3 pieces blades ,

    1 set generator and 1 set bolts &nuts.

    1 piece main shaft and arms

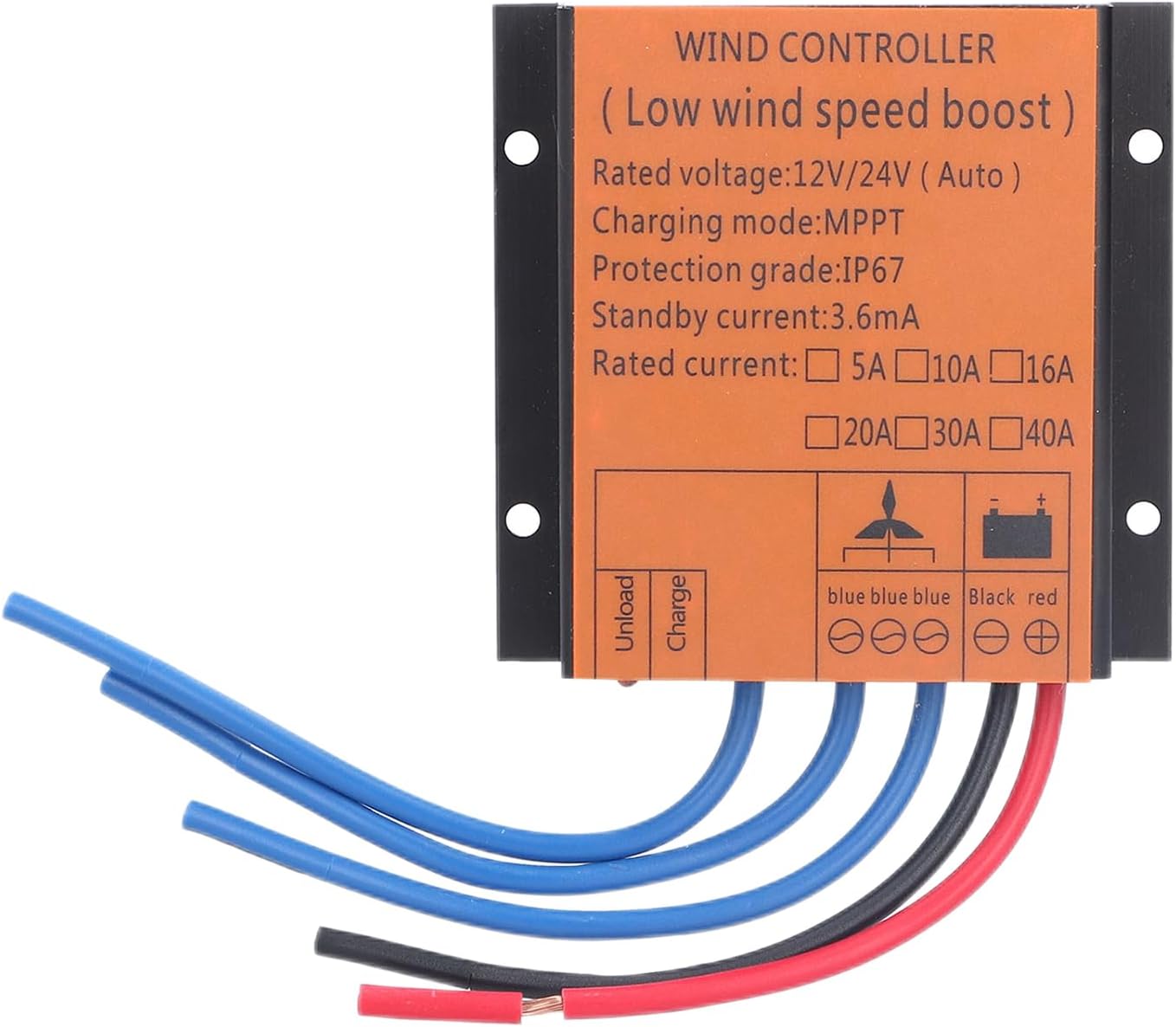

    1 piece MPPT controller.

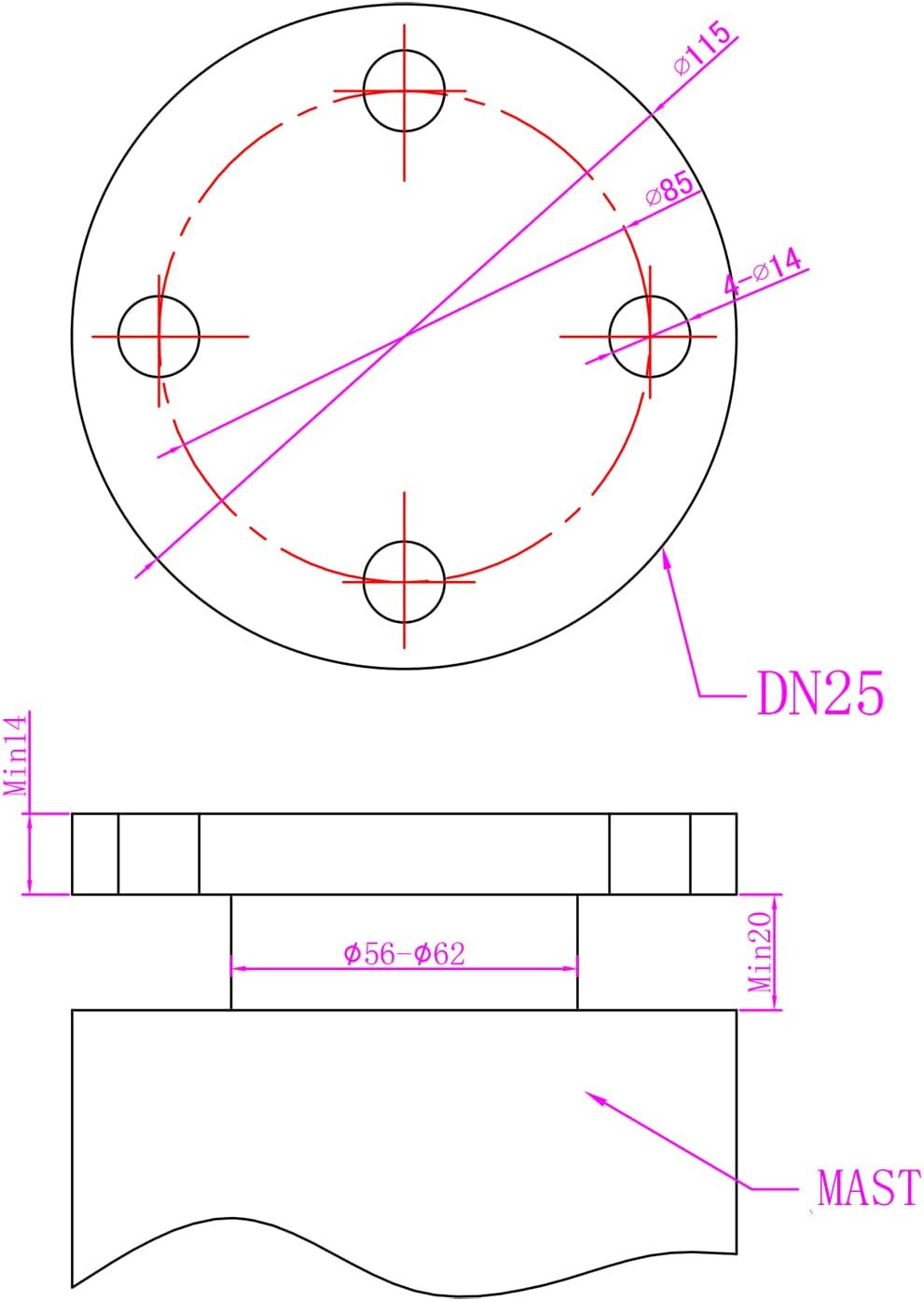

    1 piece DN25 flange (Mast is not included, please prepare a 6-10m mast for this wind turbine according DN25 flange dimensions.)
