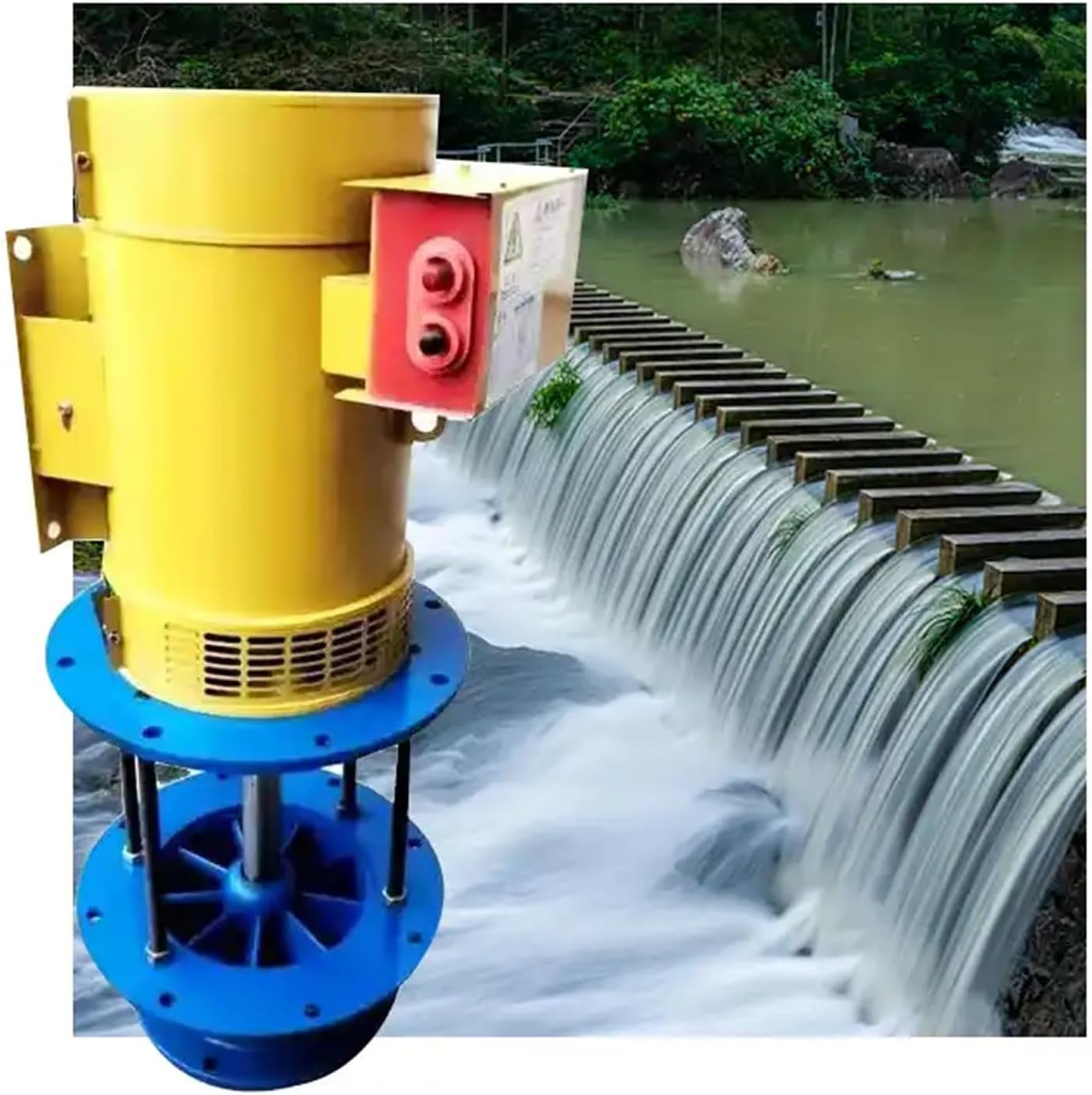

5KW/10KW 3m Water Head, Axial Flow Excitation Hydroelectric Generator, All Copper Wire, Sufficient Power, Automatic Voltage Stabilization (Color : 5KW)
5KW/10KW 3m Water Head, Axial Flow Excitation Hydroelectric Generator, All Copper Wire, Sufficient Power, Automatic Voltage Stabilization (Color : 5KW)
Suitable for low water head (minimum two meters) and large flow rate;

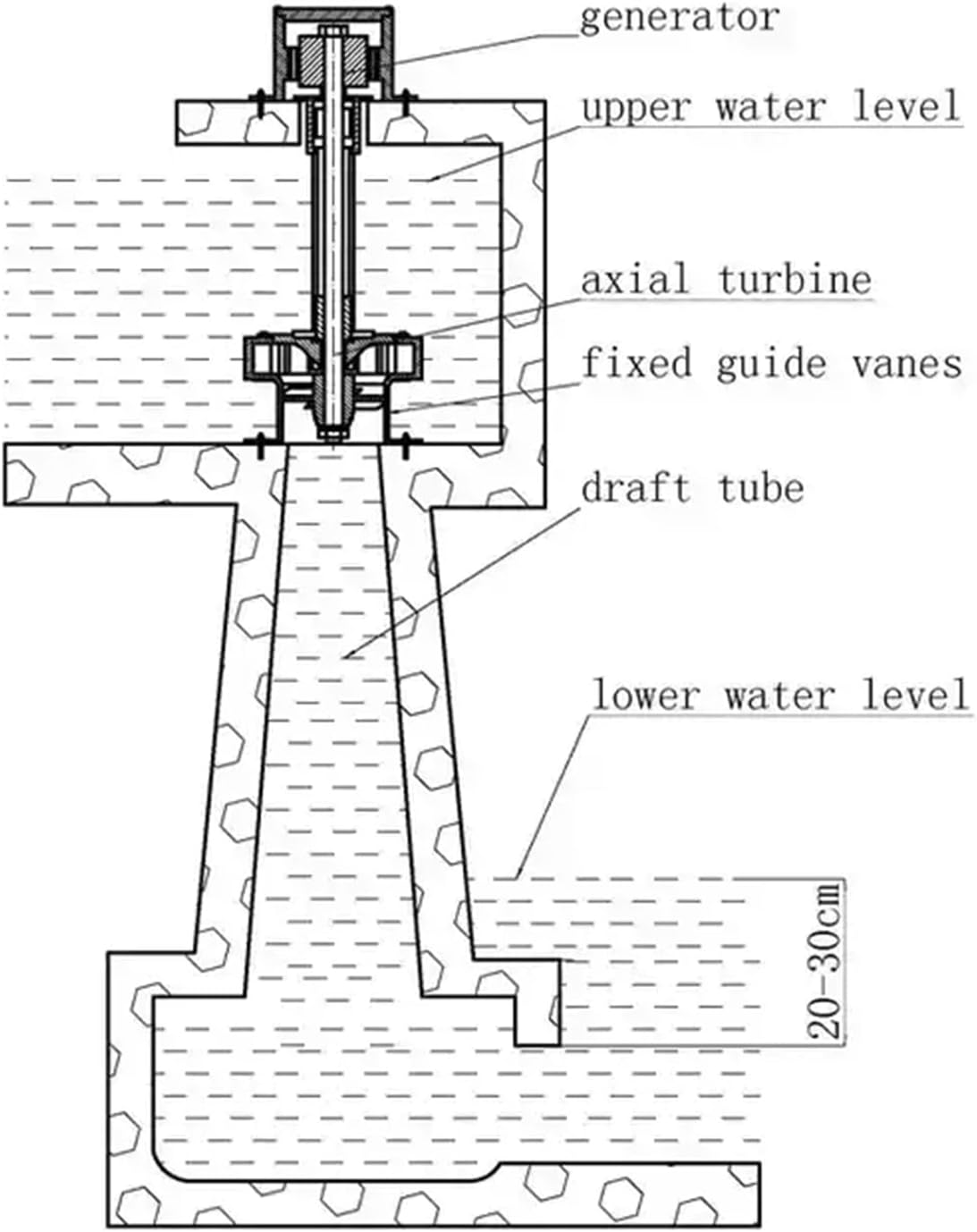

Open channel entrance, vertical structure, easy installation and maintenance.
The turbine and generator are separated for easy maintenance and replacement of wearing parts.
The turbine has 3 separate bearings and the gene
Open channel entrance, vertical structure, easy installation and maintenance.
The turbine and generator are separated for easy maintenance and replacement of wearing parts.
The turbine has 3 separate bearings and the gene
Quantity
-
Detail
Specification:
5KW:
Water head/m: 2-4
Water volume/m3/s: 0.11-0.21
Rated power/KW: 5
Rated voltage/v: 230/400
10KW:
Water head/m: 2.5-6
Water volume m3/s: 0.11-0.23
Rated power/kw: 10kw
Output voltage/v: 230/380
Frequency/hz: 50/60 -
