EPEVER MPPT Solar Charge Controller 40A 12V 24V Auto + WiFi Adapter Remote Control via APP + Temp Sensor Cable Solar Panels Charger for Lead-Acid LiFePO4 Lithium Battery (Tacer4210AN+WiFi+RTS)

Model: Tracer4210A-G3

• Rated charge and discharge current :40Amp
• Nominal system voltage:12V/24V DC auto work
• support Lead-acid battery type: Sealed (default), Gel(AGM), Flooded, User (9～17V@12V; 18～34V@ 24V);
• support Li-ion battery type: LiFePO4 (4s/12V; 8s/24V), Li(NiCoMn)O2 (3s/12V; 6s/24V), User-defined(9～34V).
• Max. PV input power: 520W solar panels for 12V battery system or 1040W solar panels for 24V battery system
• Max. PV open circuit voltage:100V(at minimum operating environment temperature) 92V(at 25℃ environment temperature)
• Grounding : Common negative
• LCD backlight time : 60S (Default)
• Battery voltage range : 8～32V;MPP voltage range:V(BAT+2V)～72V
• Tracking efficiency : ≥99.5% , Max. conversion efficiency :98%
• Working environment temperature : -25℃～+50℃(100% input and output)
• Temperature: -20°C -- +70°C/-4°F -- 158°F
• Controller Terminals:#6 AWG(16mm2) ; Recommended Wire cable:#6 AWG(16mm2)
• Dimension:252*180*63mm ; weight :1.65 KG

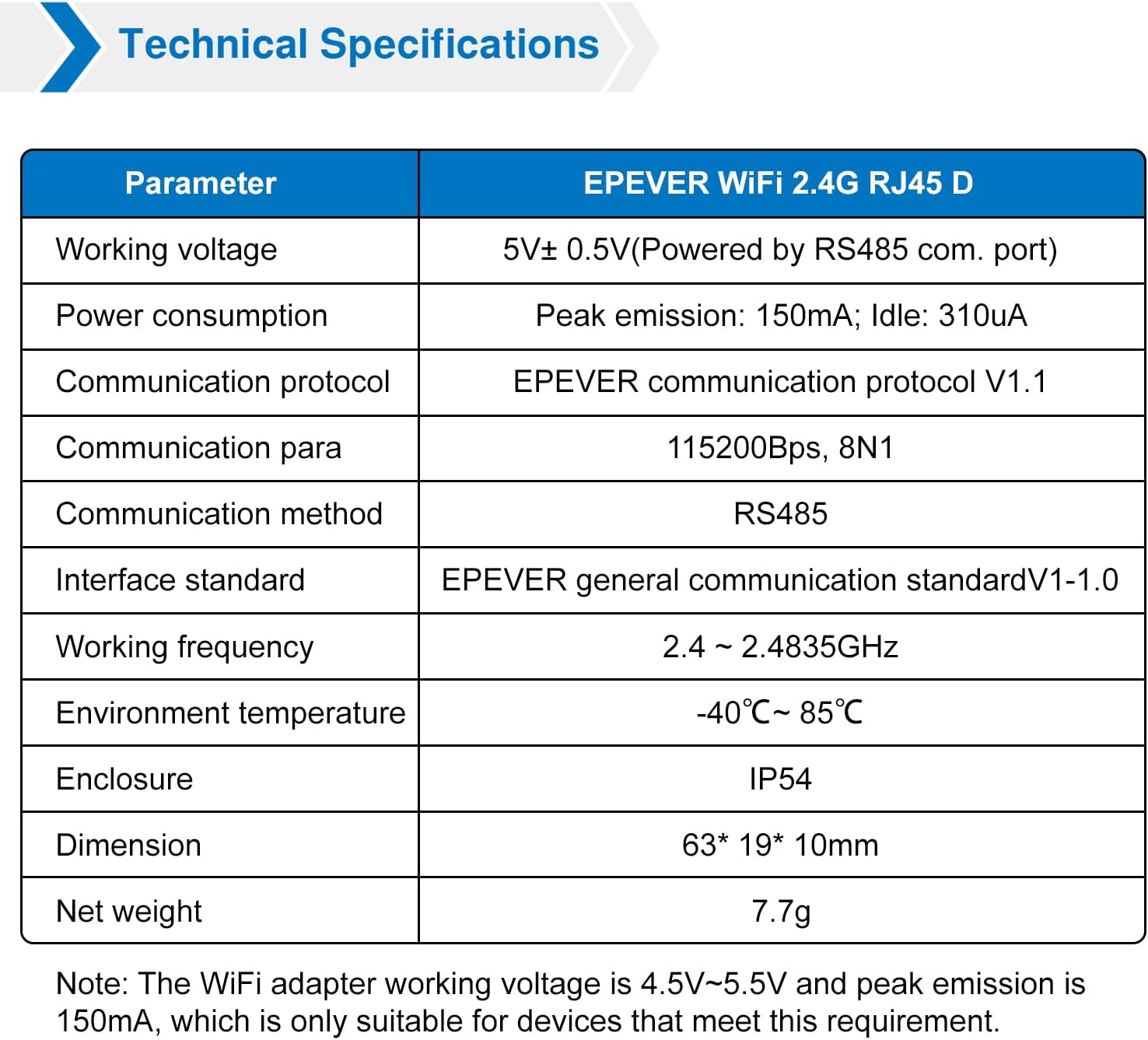

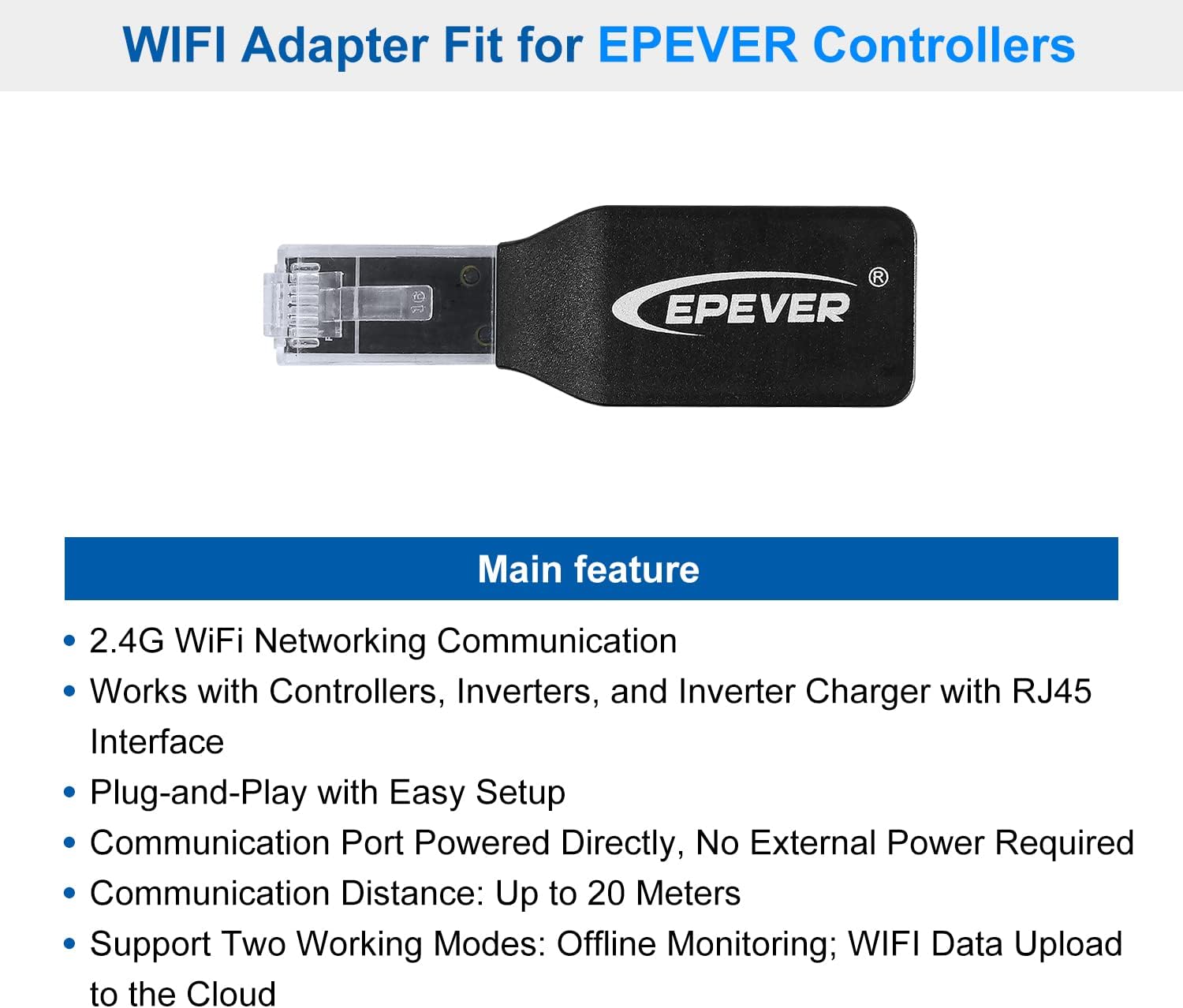

Model:EPEVER-WiFi-2.4G-RJ45-D is an optional WiFi Adapter can transmit alloperational data from EPEVER brand controllers,inverters, orinverter&charger to the EPEVER cloud server in real time, through alocal 2.4G WiFi network,Users can remotely monitor the connecteddevices and program parameters via EPEVER server platform and mobile APP (Solar Guardian).

Model: RTS300R47K3.81A isremote temperature sensor cable to active temperature compensationfunction of solar charge controller. Highly recommend this batteryequalizer for you solar system to extend the batteries life +1 years ormore.

Package List:

• 1 X MPPT 40A Controller (Tracer4210AN-G3 )
• 1 X WiFi Adapter (EPEVER-WiFi-2.4G-RJ45-D)
• 1x Temp sensor cable for battery (RTS300R47K3.81A )
• 1 X Temp sensor unit for controller（RT-MF58R47K3.81A）
• 2 X Manual (English)

• Battery must be connected first ! Never connect soalr panel array to controller Without/Before connect battery.
• DO NOT connect any inverter/wind/Alternator or Charger into the charge controller directly ! You should connect with battery and add fuse .
• If there is a long distance between the PV array and controller or between the controller and battery, larger size wires should be used to reduce the voltage drop and improve performance. (Recommended wire size is only for reference.)

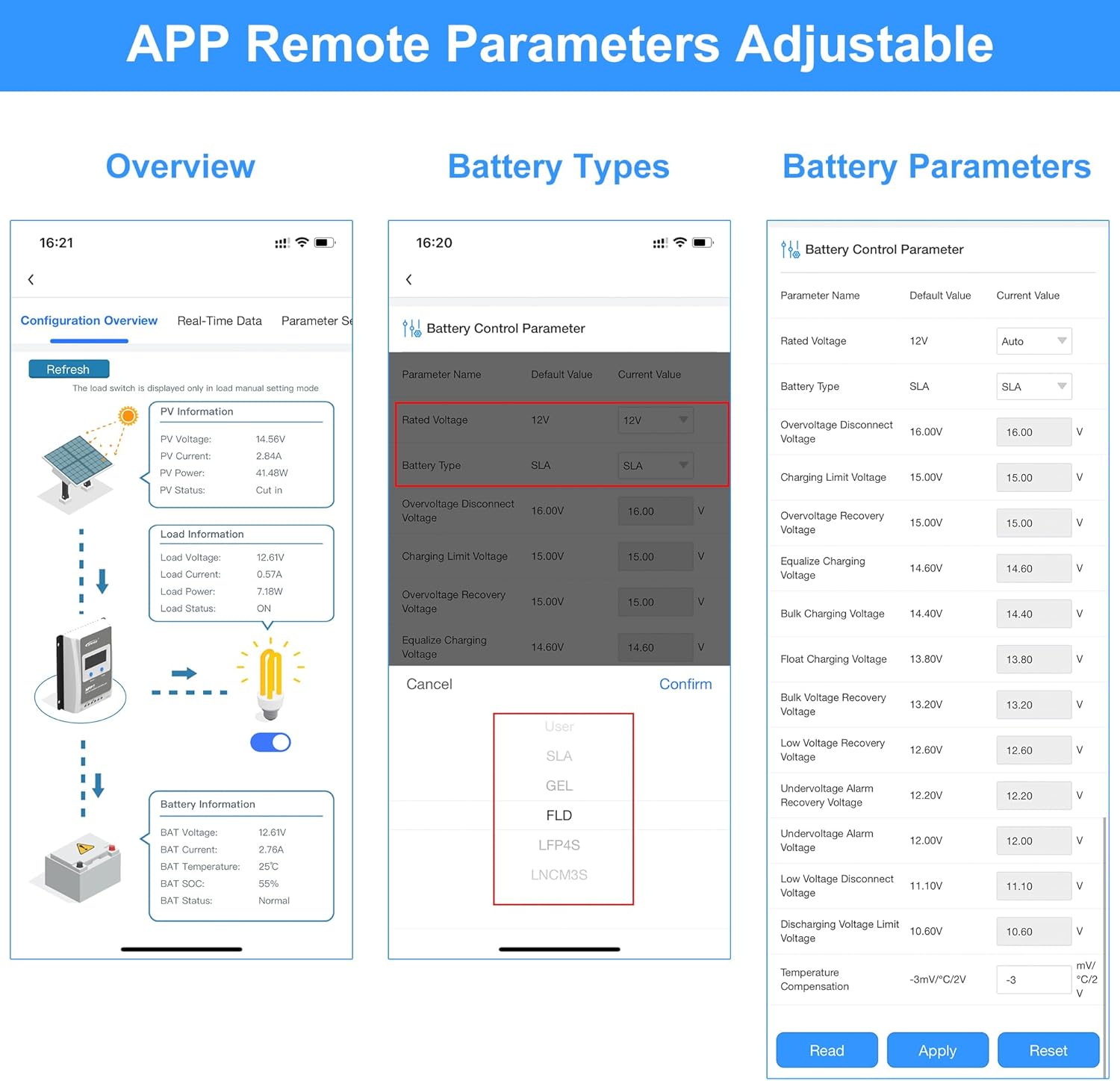

How to program Battery parameters more details？

1. Via Remote Meter (Accessories needed: MT50/MT52 )
2. Via Phone APP [ Android or IOS], (Accessories needed Adapter：EPEVER-BLE-RJ45-D or EPEVER-WiFi-2.4G-RJ45-D )
3. Via PC Software (Accessories needed RS485 cable :CC-USB-RS485-150U ) , Software download : EPEVER official website or read in manual .

GolandCentury is the official authorized sales agent for EPEVER brand and offers the latest versions of controllers and inverters and accessories.

EPEVER MPPT Solar Charge Controller 40A (Tracer4210AN-G3) +WiFi Adapter(EPEVER-WiFi-2.4G-RJ45-D) + Temp Sensor Cable (RTS300R47K3.81A ) kit.

MPPT 40A (Tracer4210AN-G3)

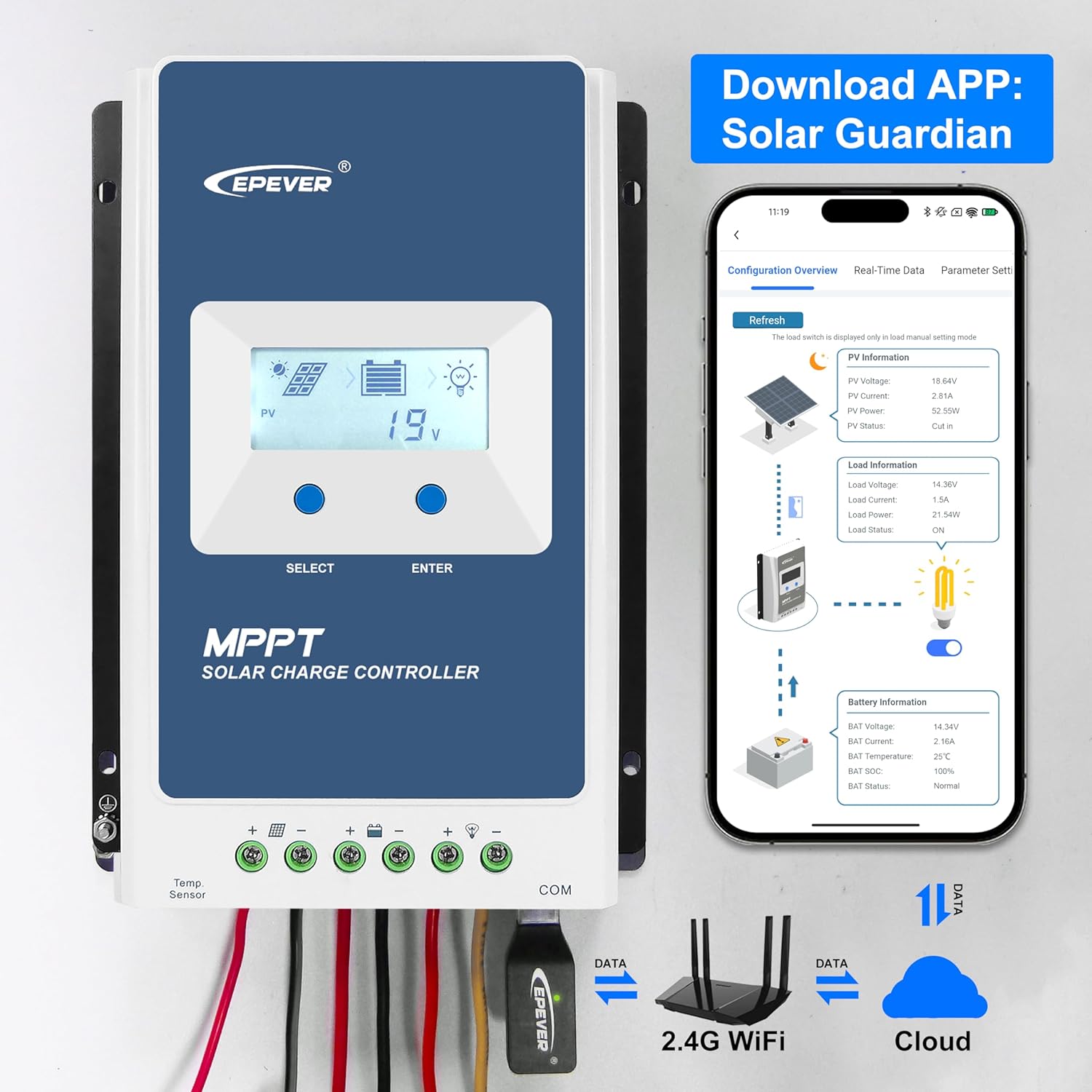

Download APP : Solar Guardian . Connection steps please watch our listing video tutorial

CONNECTION DIAGRAM
