6000W/8000W/10000W/12000W Wind Solar Hybrid MPPT Charge Controller Off Grid MPPT Wind Turbine Solar Charge Controller Hybrid Controller 12V/24V Auto Distinguish,24v-12000w
-
Detail
⚽︎Welcome to the "HONGPINGSHOP" store to find more similar products.

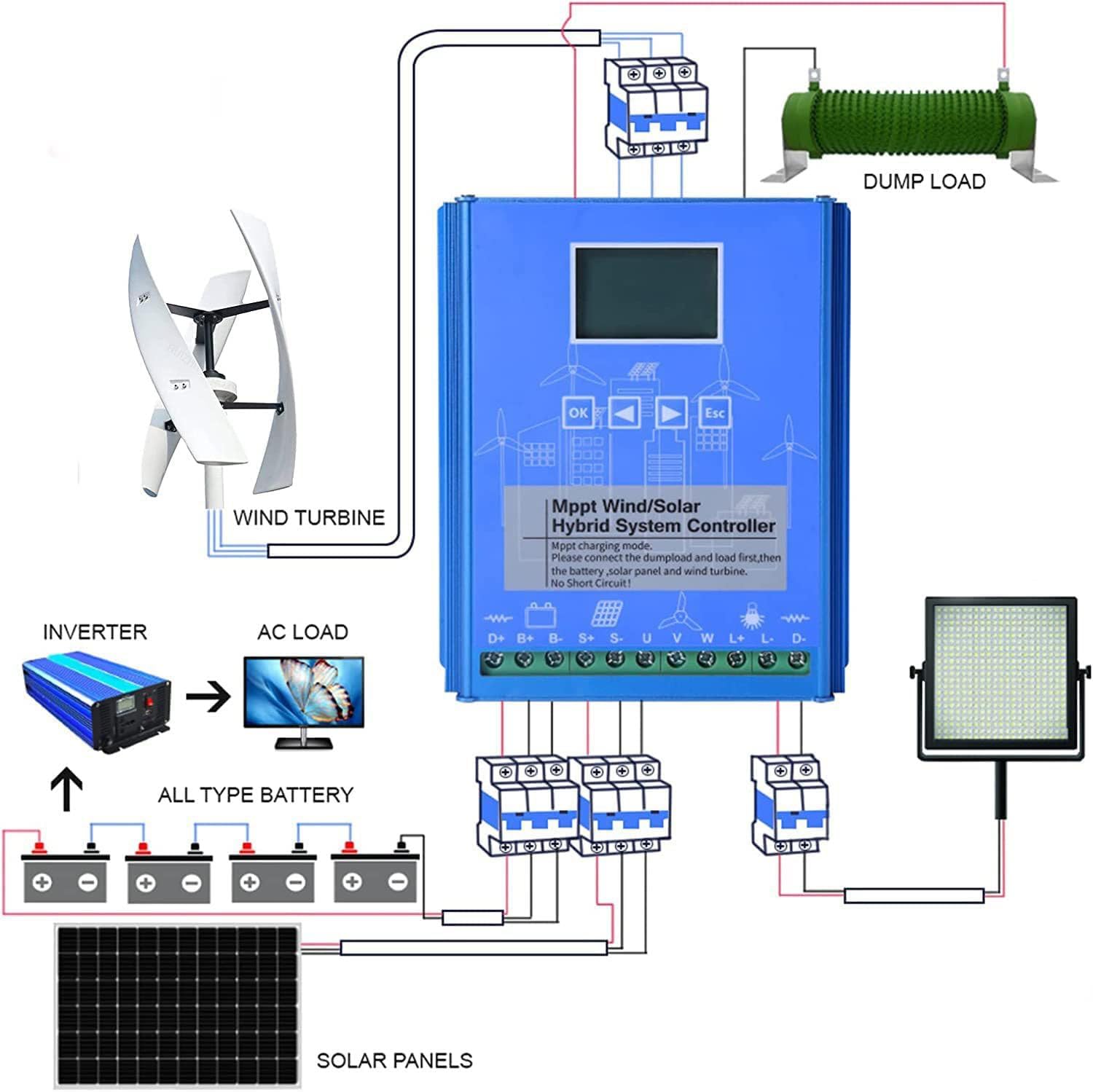

⚽︎The wind-solar hybrid street light controller is designed for small off-grid devices where wind turbines and solar panels charge batteries safely and efficiently. Of course, with some simple settings, the controller can also be used in home systems.
⚽︎Specifications:
-System rated voltage: 12V/24V/48V
-No-load current (DC): ≤0.05A
-Controller power supply mode: battery or photovoltaic panel
-Control method: fan MPPT boost, PWM unloading, PWM overcurrent
-Load: Multiple working mode options: pure light control mode, normally open mode, light control + time control mode (four periods + morning light)
-Display mode: LCD display
-Display parameters: voltage, battery power, current, power, load mode, temperature, etc.
-Heat dissipation method: aluminum profile heat dissipation and self-cooling
-Operating temperature and humidity range: - 20~+55℃/35~85%RH (no condensation)
⚽︎Functions and features:
- Wind turbine MPPT boost charging function.
- Wind energy PWM unloading, external unloading resistor, intelligent solar charging separation.
- Dual power supply function: battery + solar power.

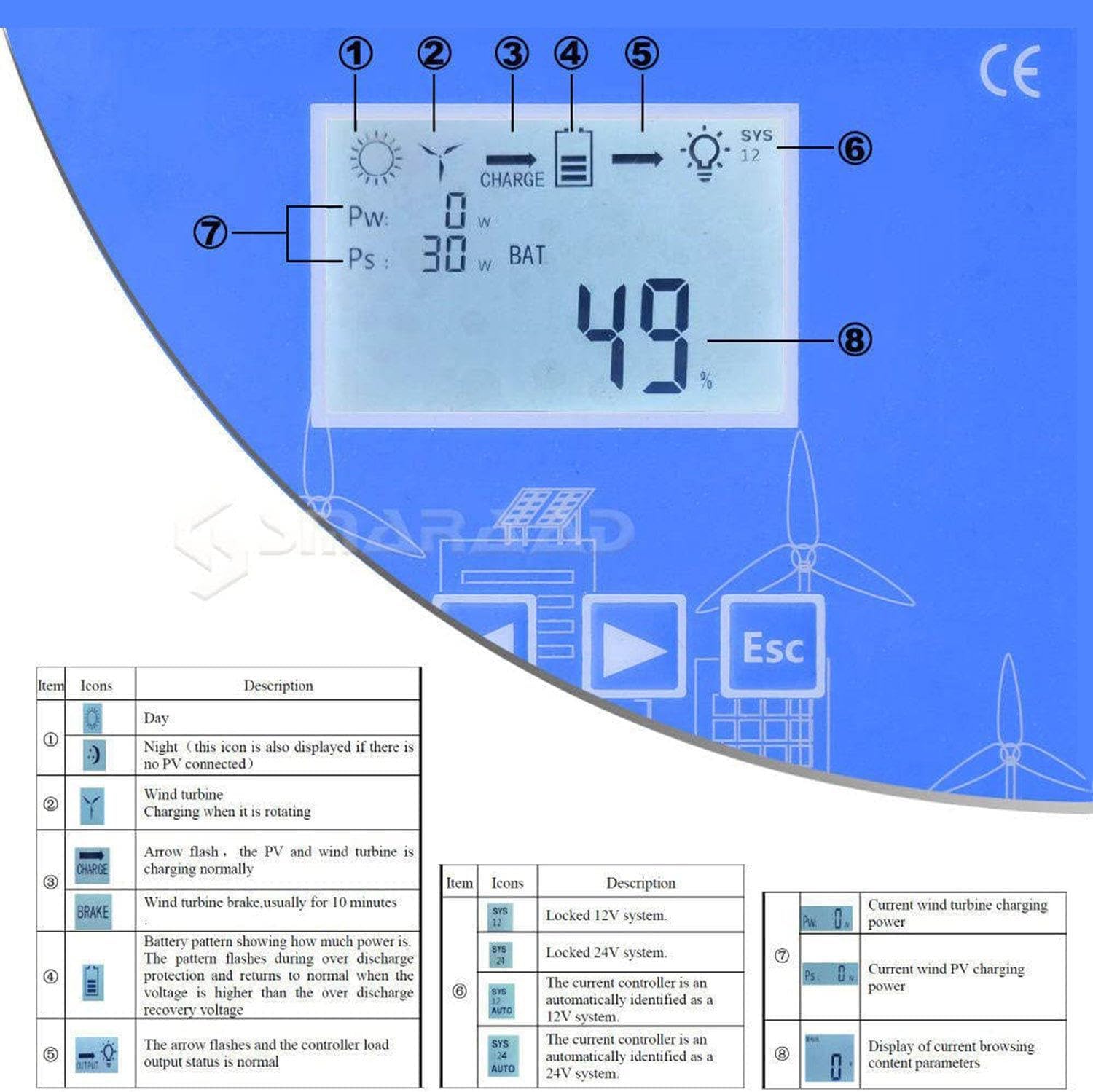

- LCD displays wind, day, load voltage, current and other parameters. Some parameters can be set by the user.
-DC output, three output modes.
- Made of high-quality aviation aluminum, one-time molded tensile material, anodized surface, impact-resistant and fall-resistant.

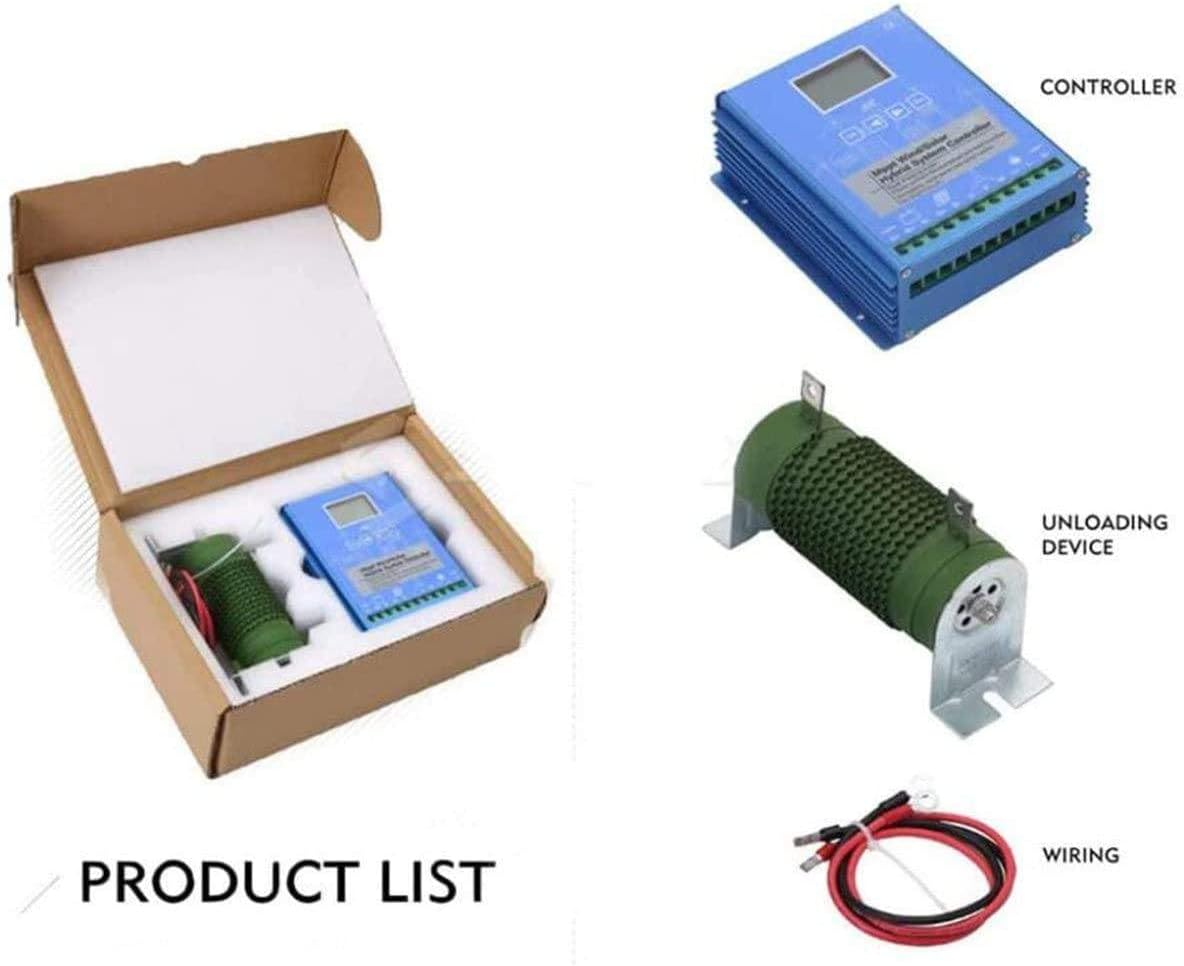

⚽︎Packaging list:
1x Wind Solar Hybrid Charge Controller
⚽︎Notes:

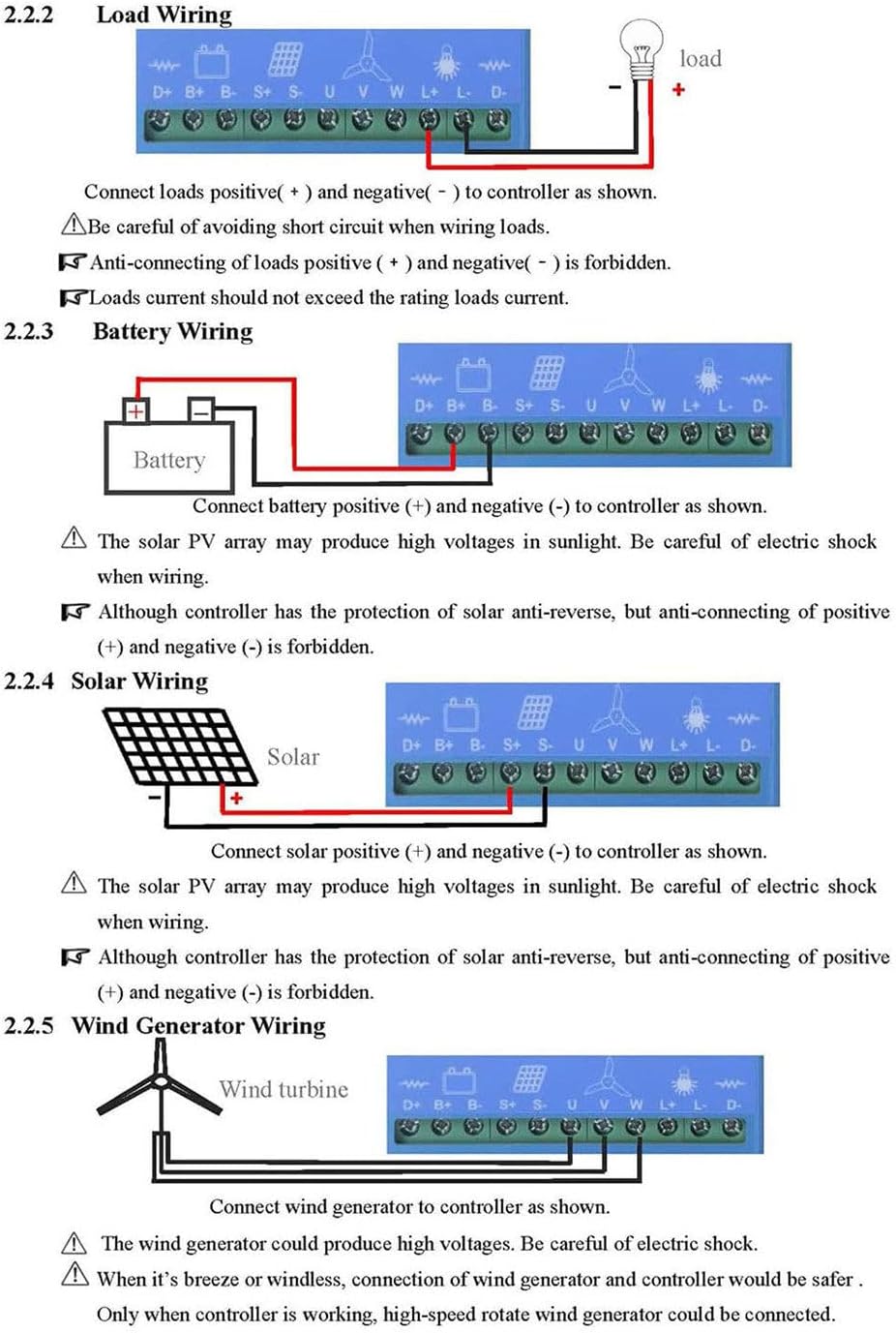

1. Correct connection sequence.
2. Please connect the wires between the battery and the controller -
