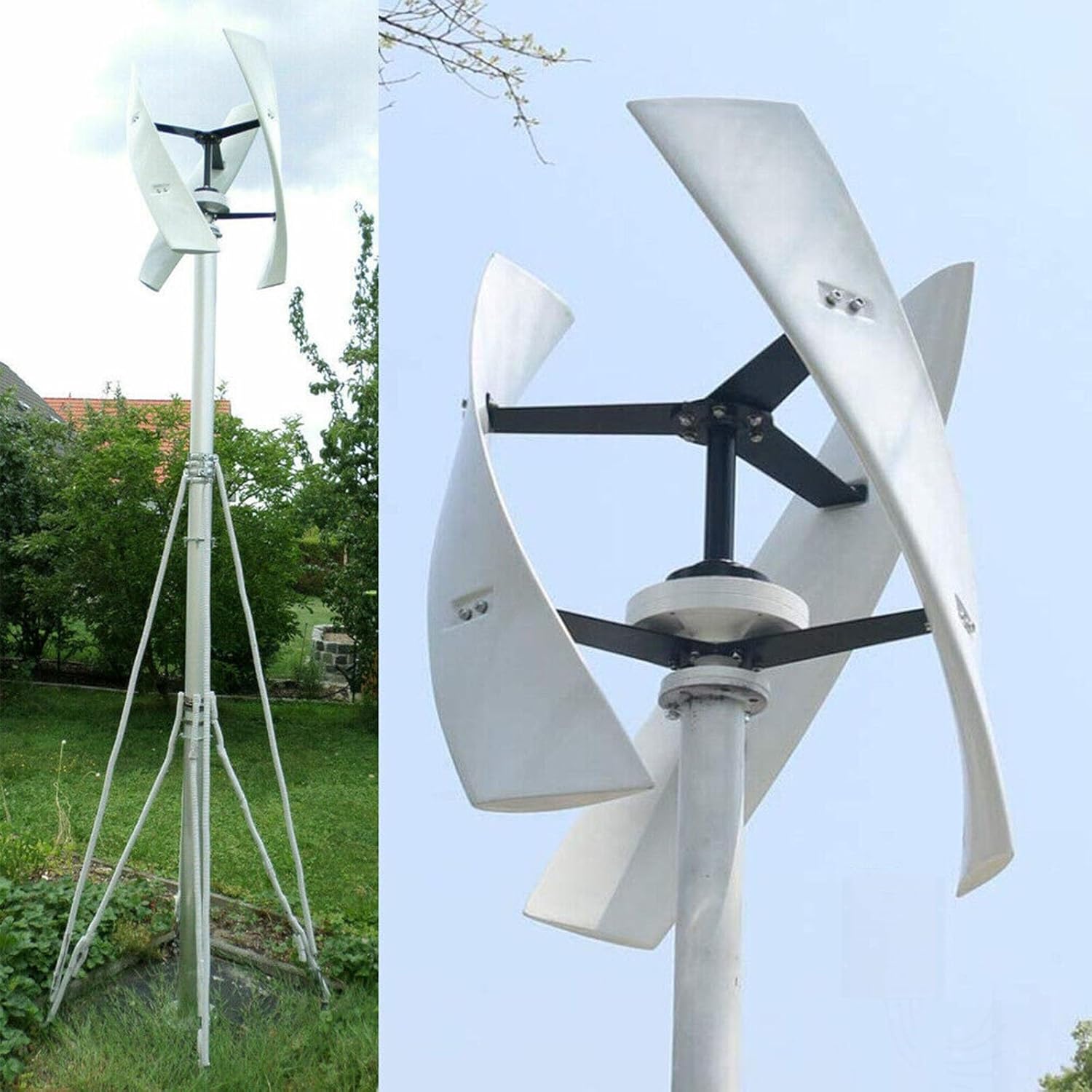

3000W Vertical Axis Wind Turbine Generator 12V 24V 48V Wind Turbine Generator Kit Free Energy Windmill Home Wind Turbine Maglev Breeze Start (Color : White, Size : 12V)

HIGH QUALITY BLADES:Curved blade design,utilizes wind resource effectively and obtains a higher power generation.Coreless generator, Horizontal rotation and aircraft wing design reduce the noise to an unperceivable level in natural environment.
POWERFUL PERFORMANCE:Designed with three-phase AC PM
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Specifications:

    Mode: 3000W
    started wind speed (m/s):1.3m/s
    cut-in wind speed (m/s):2.5m/s
    Rated Wind speed (m/s):10m/s
    Rated voltage(Ac):12V/24V/48V
    Max power(W):3000W
    Diameter of Blades(m):0.6M
    Product assembly weight (kg):22KG
    Blades height(m):1m
    Safe wind speed (m/s):40m/s
    Blades quantity:3
    Blade material:Glass
    Generatorcontrol system:Three phase permanent magnet suspension motor
    Mount Height(m):2~12m
    Generator protection grade:iP54
    Work environment temperature:-25~+45℃
    Work environment humidity:≤90%
    Altitude:≤4500m
    Overspeed protection:Electromagnetic brake
    overload protection:Electromagnetic brake and the unloading unit

    PACKING LIST:

    3pcs blades

    1 set generator and 1 set bolts & nuts.

    main shaft

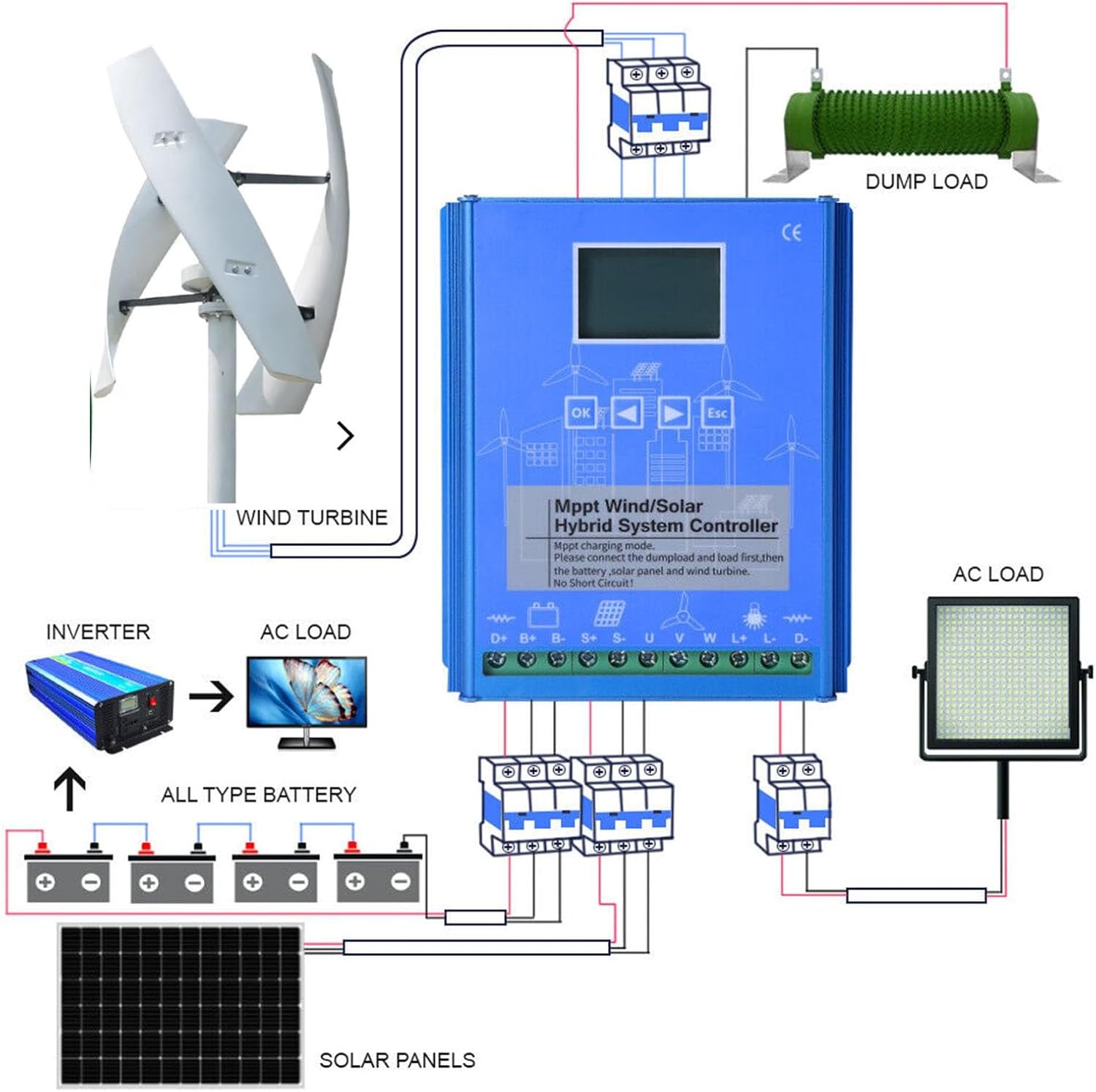

    MPPT controller 1 piece.

    1 x flange
