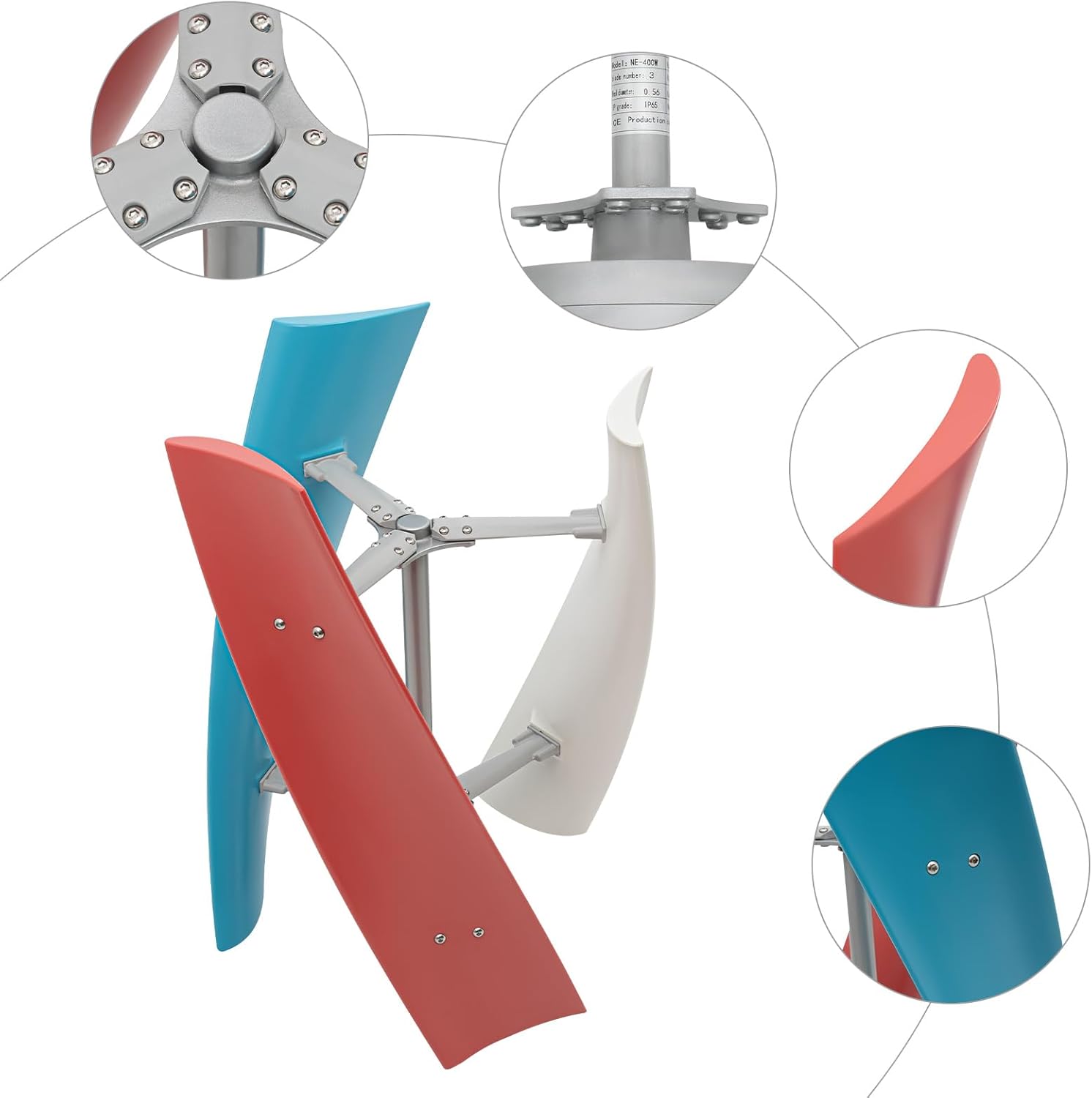

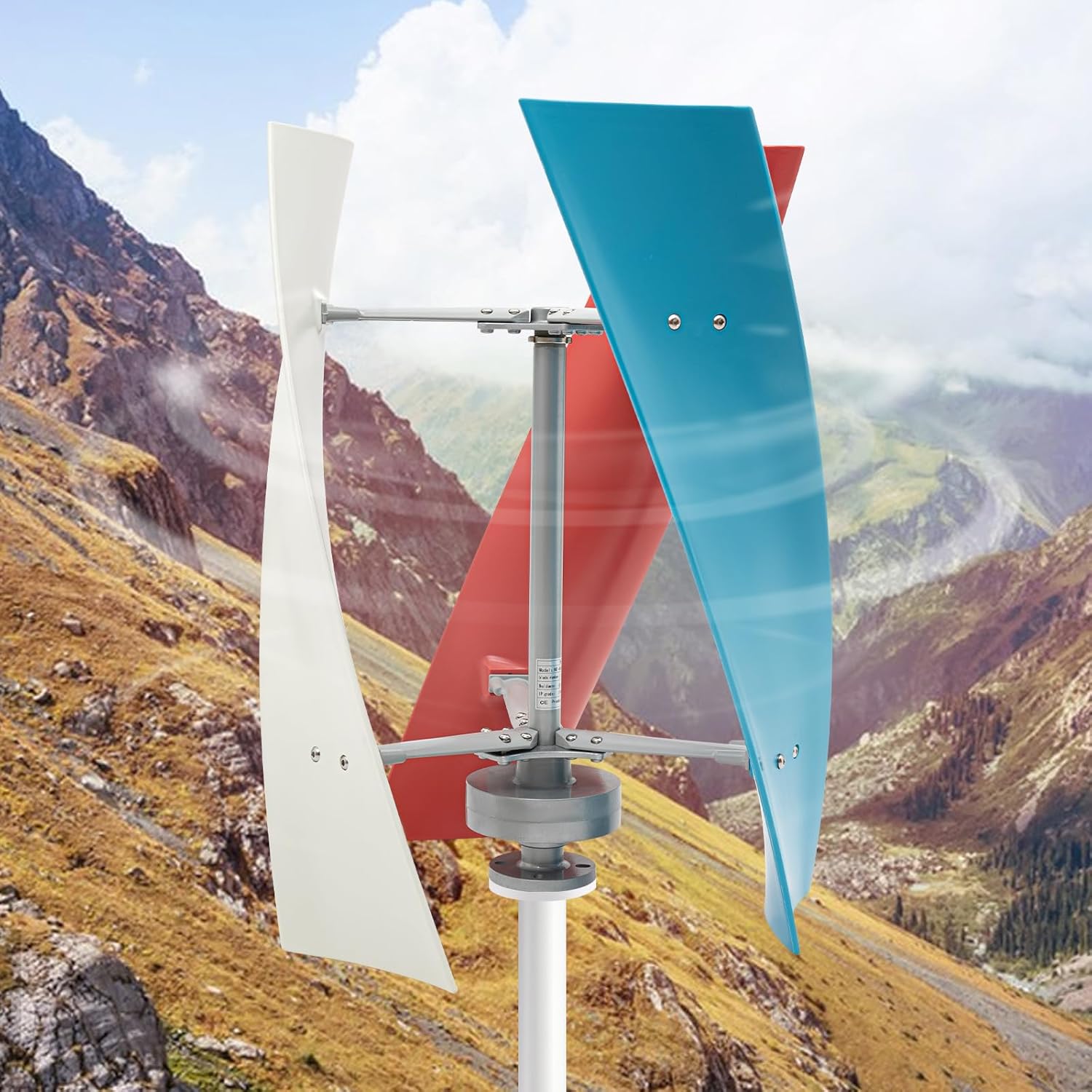

400W 3-Blades Helix Wind Turbine Generator Kit, 12V/24V Vertical Helix Wind Power Turbine Generator Kit with Windmill Controller, Wind Turbine Generator for Marine RV Home

Description：

The wind turbine with the coreless permanent magnet generator and three high-strength fiberglass blades is more durable and has a long service life. The spiral blades are aerodynamically designed to make the rotor run smoothly and reliably, which leads to stable electricity generation. Besides, it has maximum speed protection. It is well suited for boats, gazebos, cabins or mobile houses, and other energy supplies for homes, businesses and industry.

Three-phase AC Permanent Magnet Generator: The wind turbine with a low-torque and high-power intelligent tracking microprocessor can regulate current and voltage efficiently.

Specification：

Condition: New

Controller System: Electromagnetism

Starting Wind Speed: 1.3m(12inch)/s

Cut-in Wind Speed: 2.5m(98inch)/s

Rated Wind Speed: 11m(433inch)/s

Max Instantaneous Wind Speed: ≤40m(1575inch)/s

The Instantaneous Maximum Wind Speed: ≤45m(1772inch)/s

Blades Quantity: 3 (with Different Colors)

Diameter of Blades: 0.6m/24inch

Blades Height: 0.8m/31inch

Speed Regulation: Automatic

Rated Voltage: 12V/24V

Rated Power: 400W

Max Power: 450W

Generator Protection Grade: IP67

Work Environment Temperature: 25 to 45℃+

Product Assembly Weight: <10kg/22lbs

Over-speed Protection: Electromagnetic Brake

Blade Material: Glass Fiber

Generator: Maglev Generator

Service Life: 10-15 Years

Installation Instructions: Not Included

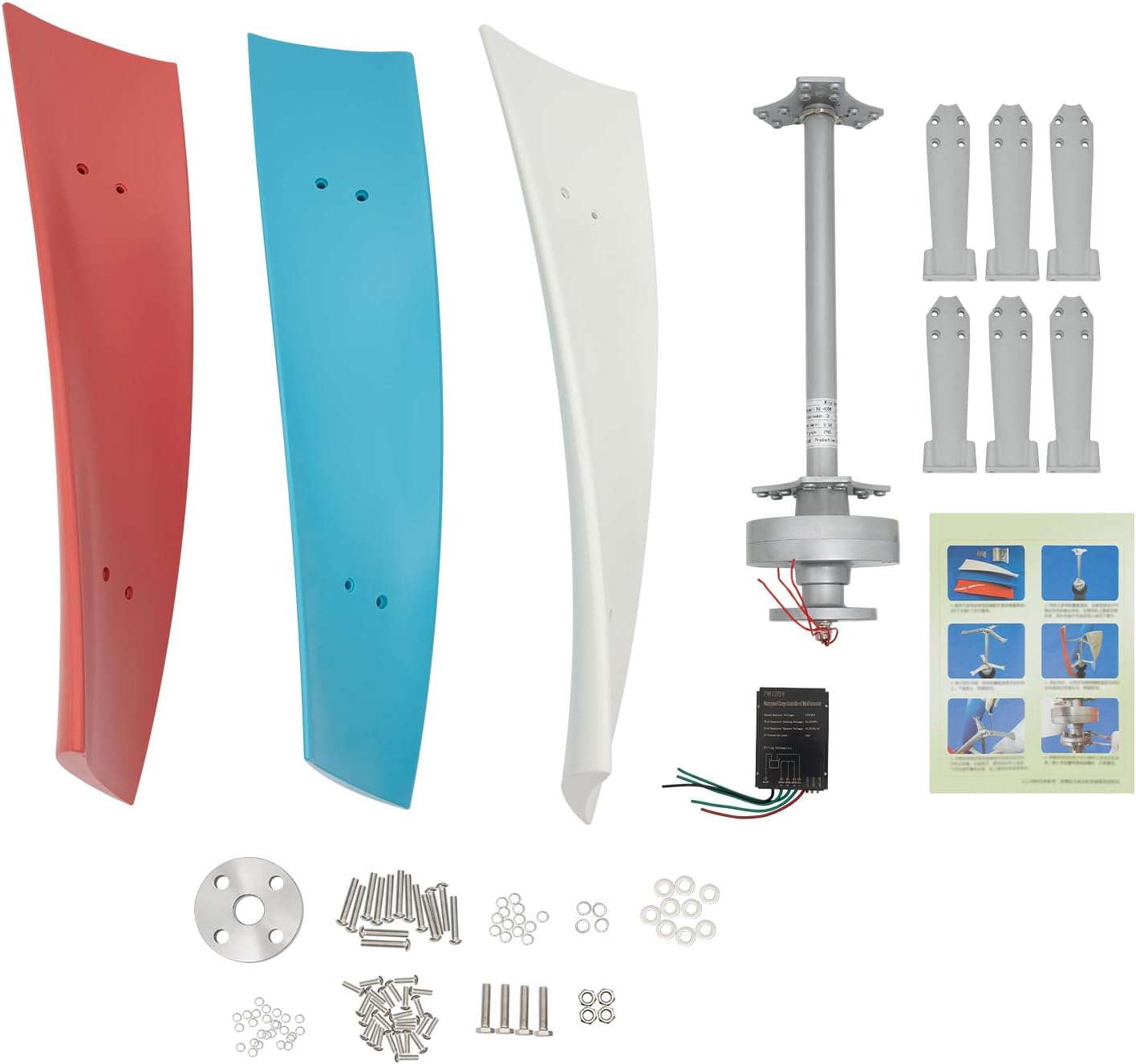

Package Included：

1 x Wind Turbine

1 x Controller

3 x Blades (White, Red, Blue)

1 x Bag of Screws to Connect the Main Body

1 x Bag of Screws for Connecting the Bracket Blades

Other Accessory for Assembly

Notes：Check all the parts of the wind turbine, which includes 6 brackets and 3 blades in total.
