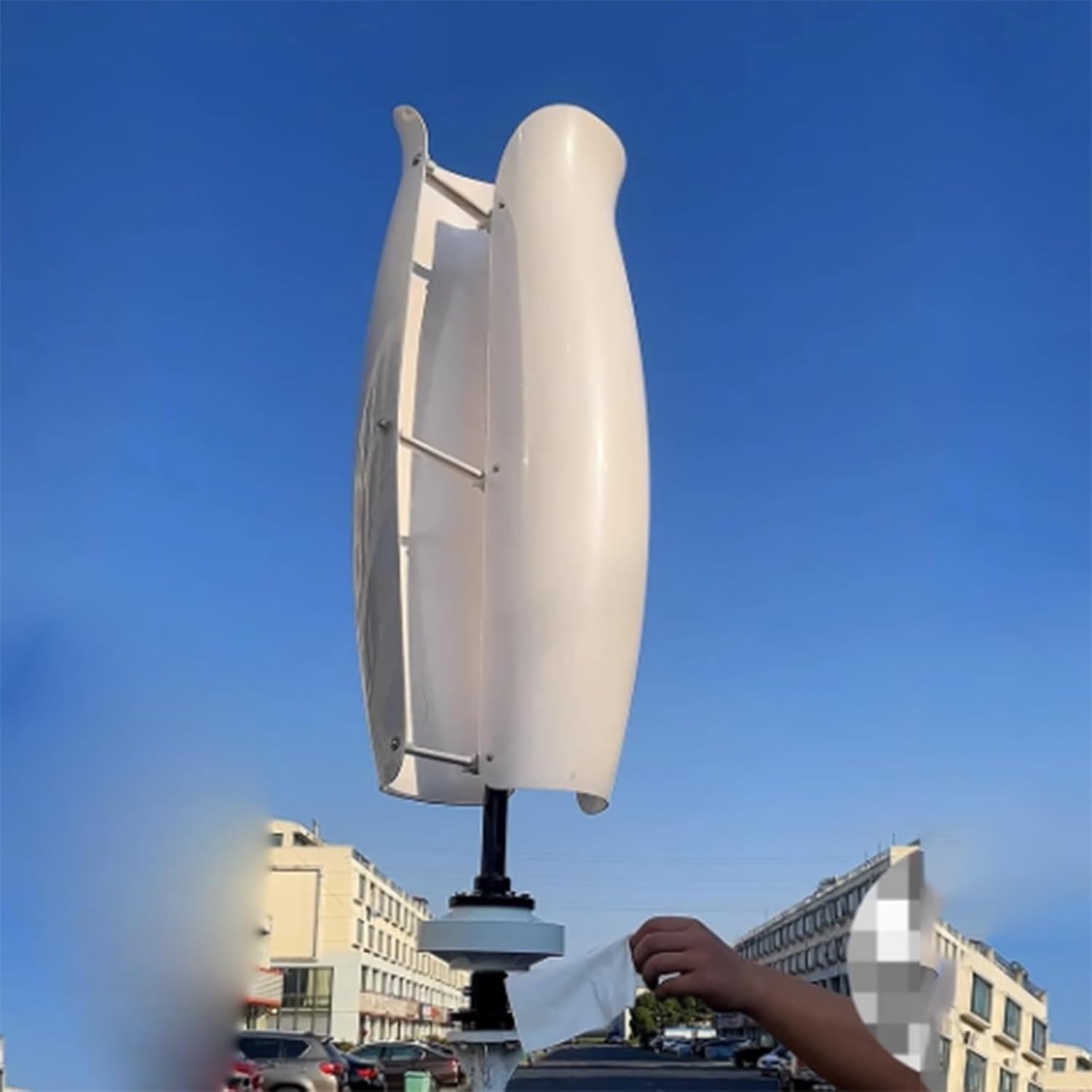

1KW Tulip Type Wind Turbine Kit 12V 24V 48V 800W Vertical Axis Wind Turbine + 2 *100W Photovoltaic Panels + Intelligent Controller Breeze Start Wind And Solar Hybrid Power Generation System ( Color :
Braking device: The blade itself has speed protection, and can be equipped with mechanical manual and electronic automatic brakes. In areas without typhoons and sup
-
Detail
Specification:
Model: 5000W
max power: 800W
Rated voltage: DC12V/24V/48V
Starting wind speed: 2.0m/s
Rated wind speed: 14m/s
Safe wind speed: 50m/s
Number of Blades: 4

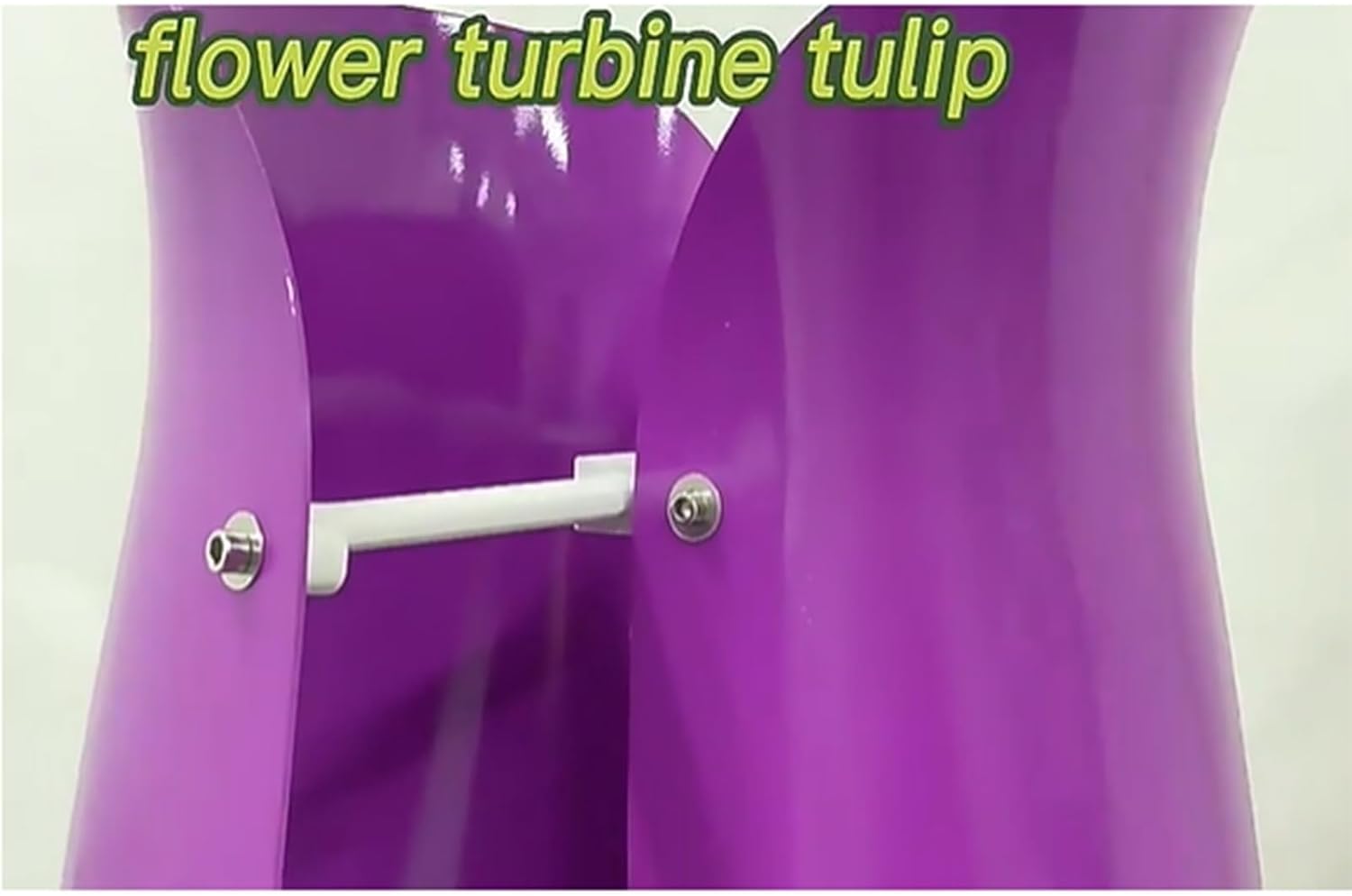

Blade material: nylon fiber
Generator type: three-phase AC permanent magnet generator
Working temperature: -40℃~80℃
Blade height: 1.1m (approximately 43.3in)
Overall height: 1.25m (approximately 49.2in)
Rotation diameter: 0.52m (approximately 20.5in)
Net weight: 20kg (about 44Ib)
Total weight: 23.5kg (approximately 52Ib)
Feature:
POWERFUL PERFORMANCE:three-phase AC PMG.Increases wind energy utilization and annual power generation.
EASY INSTALLATION: Humanized and convenient flange design

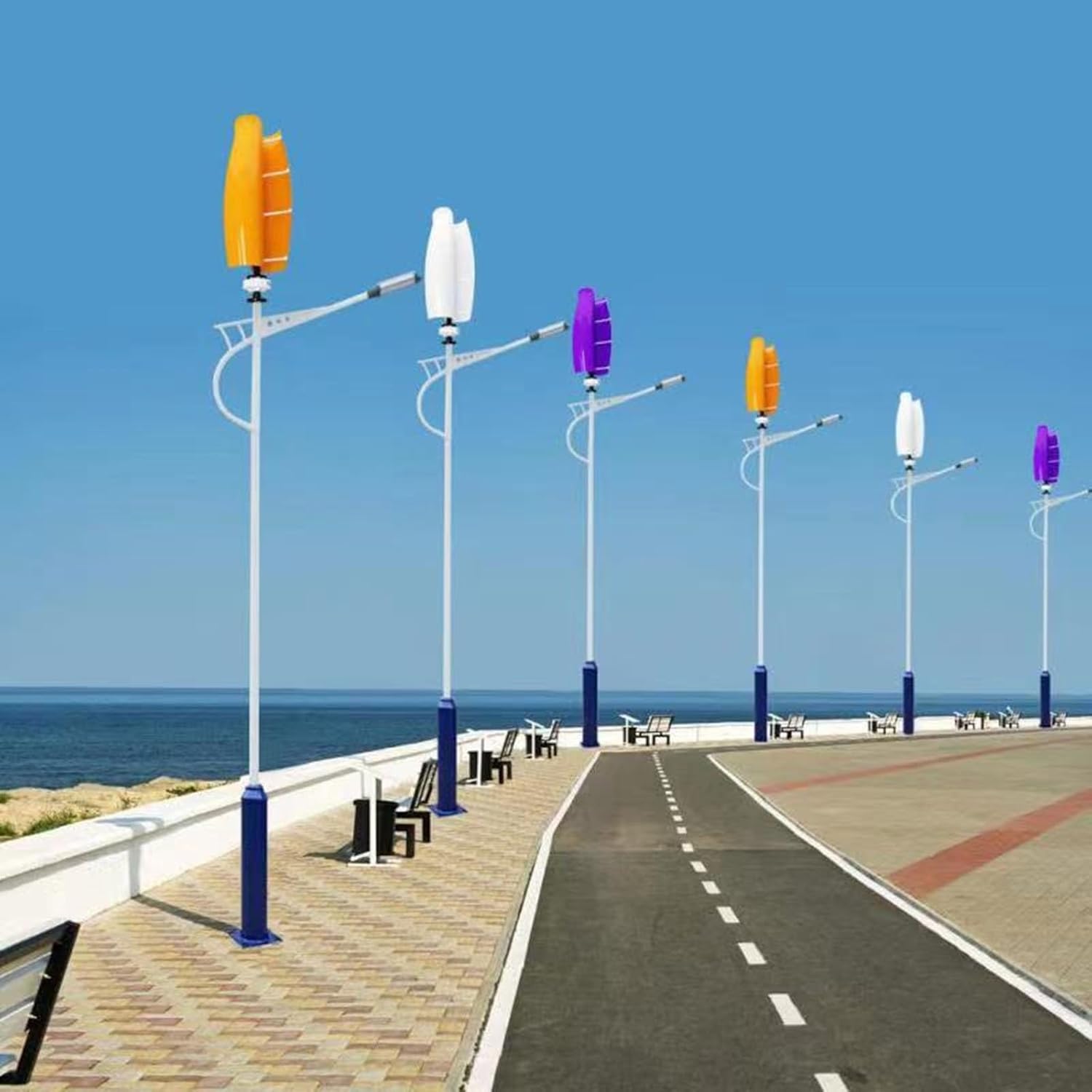

MULTIFUNCTIONAL USE:boats, gazebos, cabins or mobile homes, green windmills, landscape lighting,etc.
packing list:
1*wind turbine

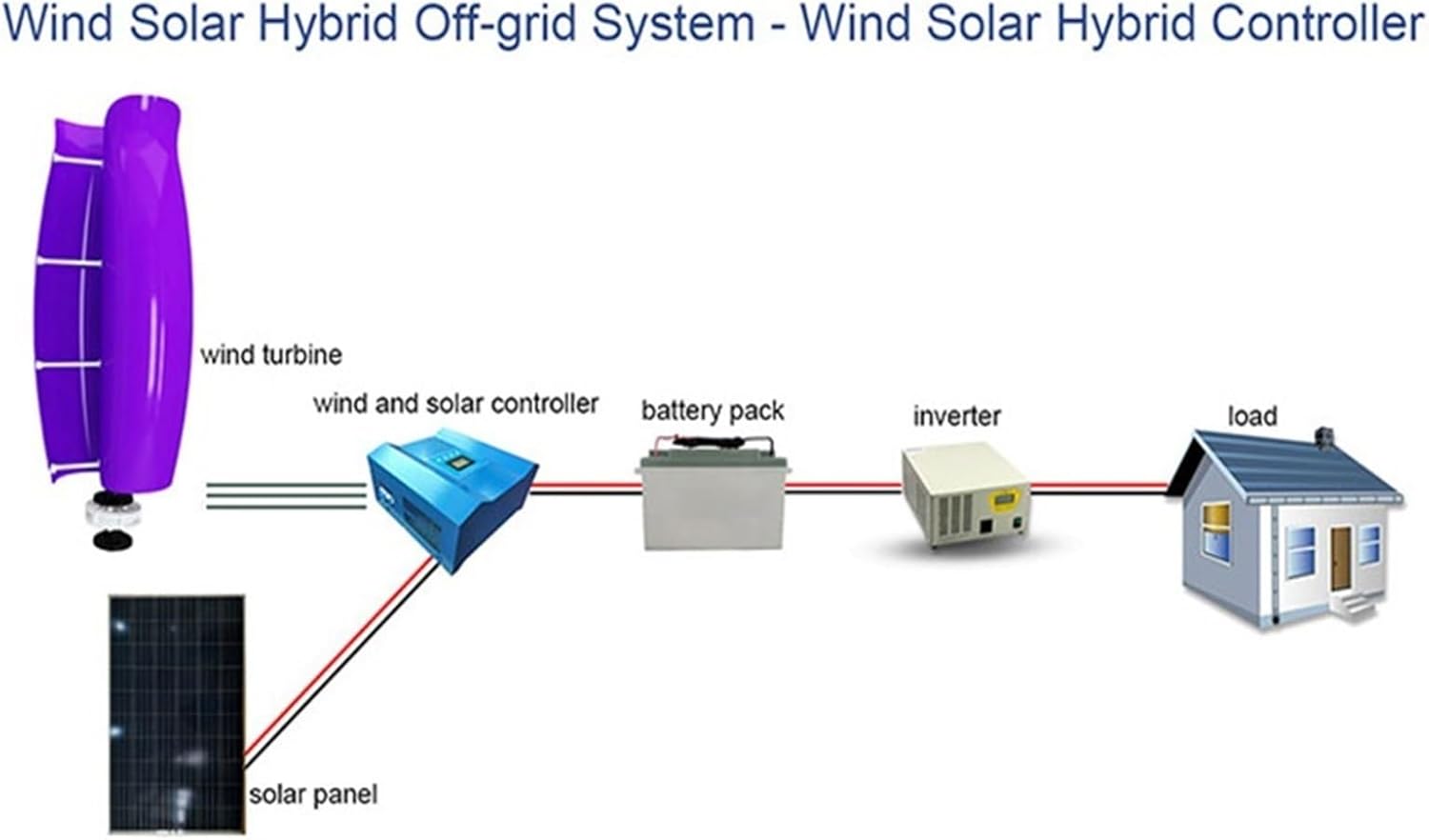

1*Wind and solar complementary controller (shown in the picture)

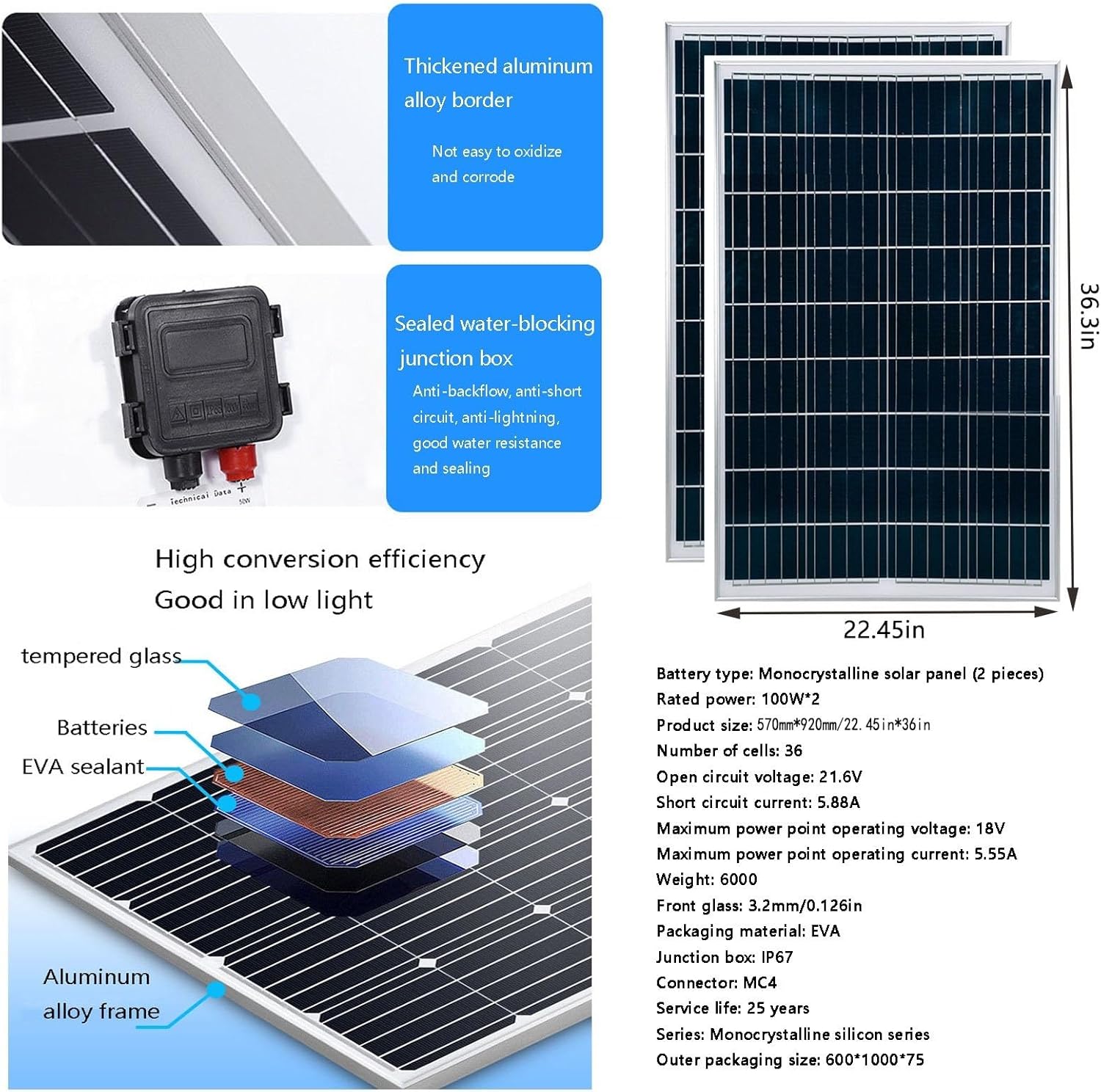

2*100W solar panels
All installation accessories -
