Home / 100PCS Solar Panel Connectors +10PCS Solar Branch Connectors

100PCS Solar Panel Connectors +10PCS Solar Branch Connectors

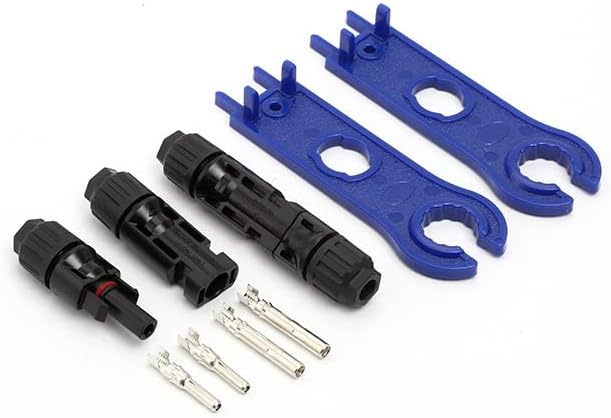

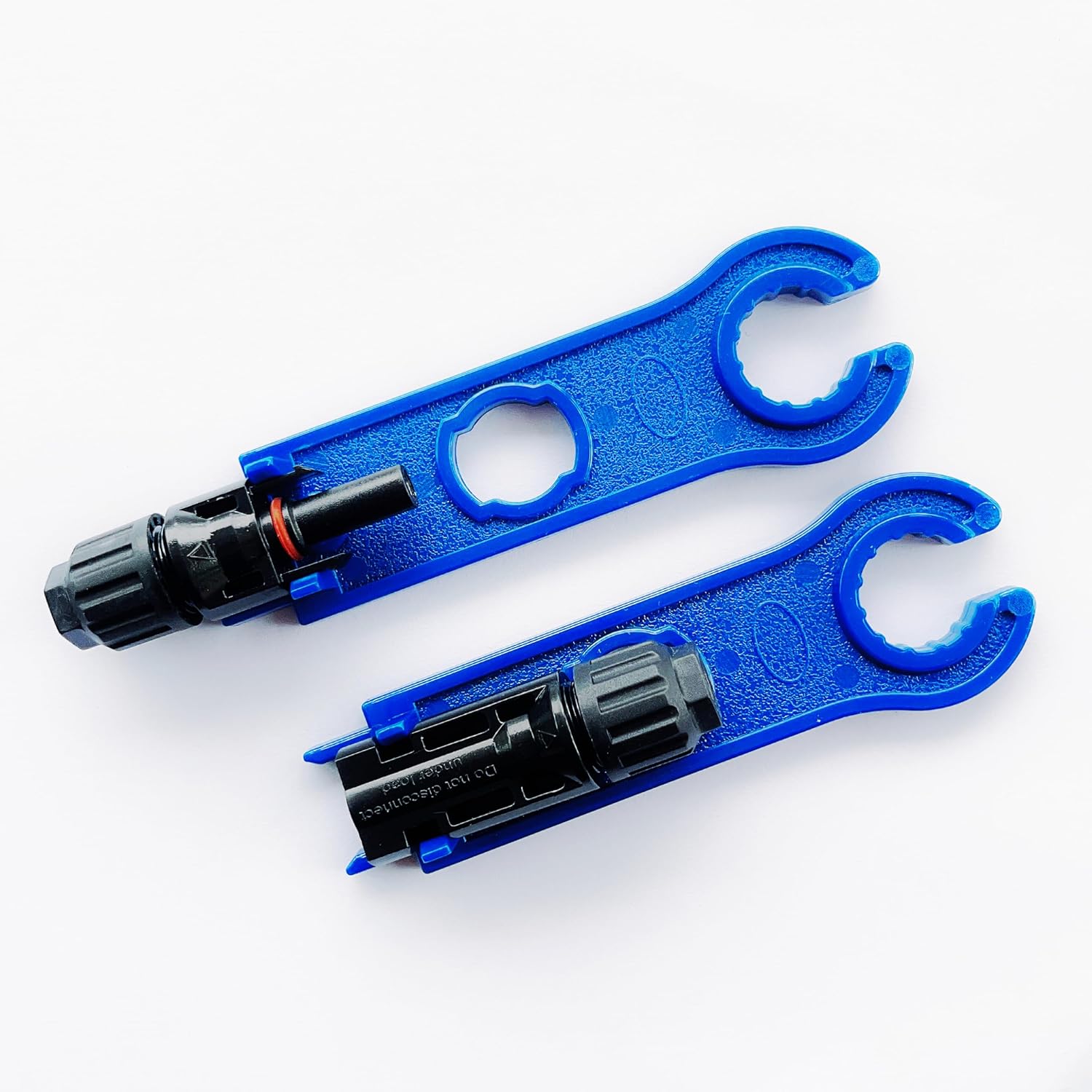

Package Included : 50 pairs solar panel connectors Male & Female + 50pairs solar connector pins + 2 pieces spanners+10pcs solar branch connector

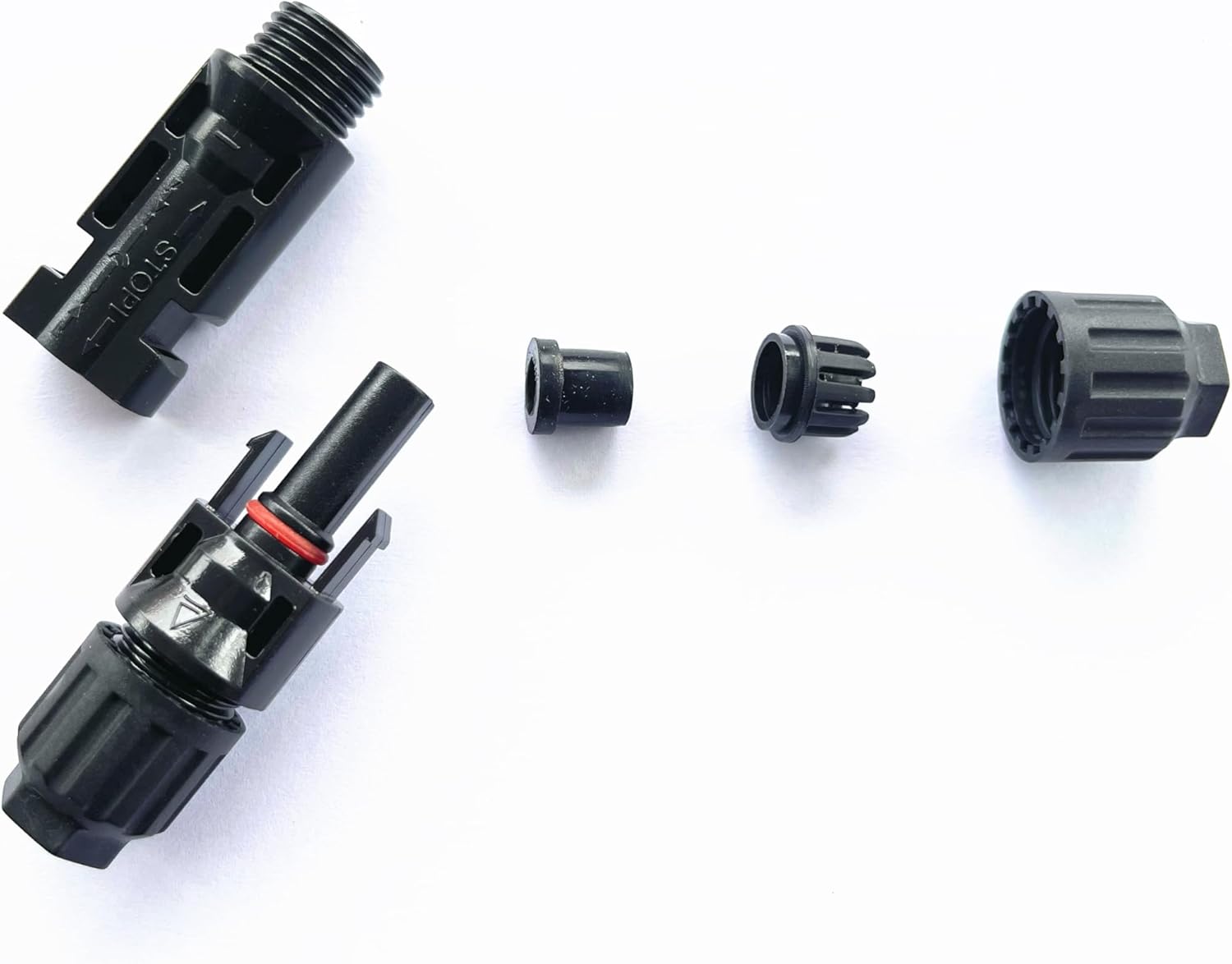

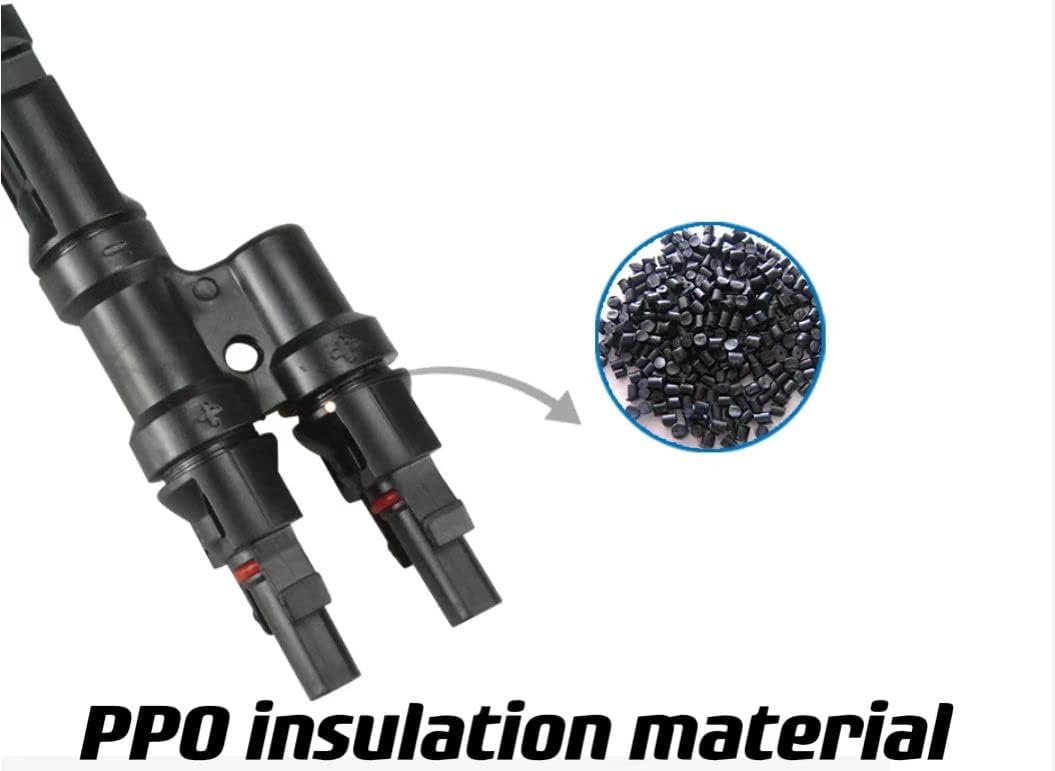

The connector is made with PPO material, the contact is made with Copper, silver plated. Good material makes sure that it can keep working stably in the
Quantity
ADD TO CART
BUY IT NOW
  • Detail

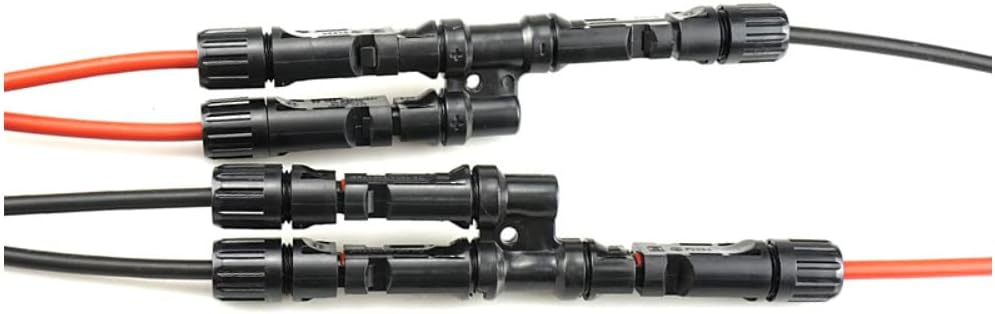

    Nixesky solar Connectors Male/Female, IP67 1000V Waterproof Solar Panel Cable Connectors (50 Pairs Solar connectors with 2 Pack Spanner) Material: PPO + Copper Rated current: 30A (2.5/4/6mm²) Adapter Wire: OD 5mm-7mm Rated voltage: 1000V DC Connector contact resistance:≤0.5mΩ Degree of waterproof: IP67 Flammability rating: UL94-V0 Insertion force: less or equal to 50N Withdrawal force: over or equal to 50N Operating temperature range: -40℉~ +221℉ Package Included: 50 Pairs x Solar Connectors (Male & Female) 50 pairs x Solar Connector Pins 2 Pieces x Spanner Nixesky Solar Branch Connectors are used for parallel connection between solar panels(PV modules). And it will maintain the voltage of your panel configuration to match your battery size. Sold as a pair. The connectors are only compatible with solar connectors and it comes with one male (MMF) and one female (FFM) connection.
