Wind Solar Hybrid Charge Controller 5000W-12000W 12V/24V/48V Auto Switch Regulator MPPT Wind Solar Hybrid Boost Controller for Wind Turbine Generator Charger Battery,12000W-48V

This wind-solar hybrid street light controller is specially designed for small off-grid use, use it to charge wind turbines and solar panel batteries safely and efficiently

feature:
✔ Wind turbine mppt boost charging function
✔ PWM wind load shedding, external shedding resistor, smart solar decoupling
✔LCD displays wind energy, solar energy, load voltage, current and other parameters. Some parameters can be set by the user.
✔ The internal circuit board of the controller is sprayed with conformal anti-paint to prevent dust, moisture and static electricity.
✔ Intelligent design, precise structure, powerful functions, stable performance, safe and reliable products.
✔ Choose MPPT wind turbine charging method, the charging efficiency is much better than ordinary PWM.
✔ Boost charging function solves the problem of low wind speed charging efficiency (optional).
✔ Professional digital intelligent control.

Specification:
Project type: Wind and solar hybrid charging controller
Rated system voltage: 12V, 24V, 48V
The above three parameters:
(Wind power rated power + photovoltaic rated power)/system voltage ≤ 40a
Wind rated power/system rated voltage≤25a
Photovoltaic rated power/system rated power≤25a
No-load current (DC): ≤0.05A
Controller power supply mode: battery or photovoltaic panel
Display parameters: voltage, battery level, current, power, charging mode, temperature, etc.

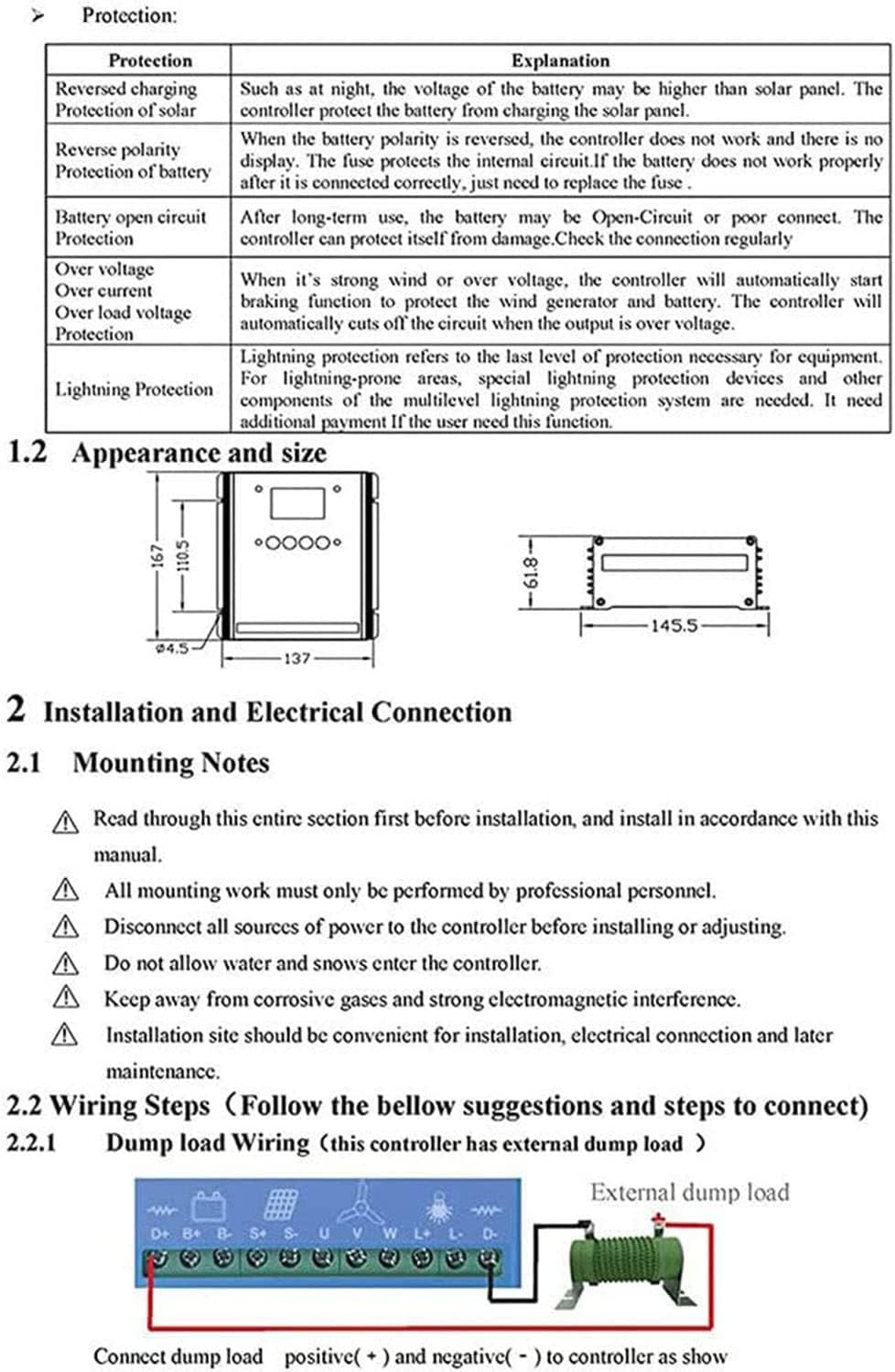

Protection types: solar battery reverse connection protection, battery open circuit protection, battery reverse connection protection, overcurrent and overvoltage soft automatic braking protection, overload protection, etc.
Heat dissipation method: aluminum profile heat dissipation and self-cooling
Working temperature and humidity range: - 20~+55℃/35~85%Rh (no condensation)

packing list:
1 x Wind and Solar Hybrid Controller
