3000W 12V 24V 48V 0~1500W Wind 0~1500W Solar MPPT Wind Solar Hybrid Controller Pioneer Version Charge Lithium & Lead Acid Gel Battery

1. Independent design, wind energy using boost MPPT to generate power at low wind speed, solar PWM charging to reduce self-consumption, more stable system;
2. suitable for sealed batteries (GEL, lead-acid batteries) and lithium batteries. Various parameters can be set, such as: system voltage, ba
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Specification:
    Maximum input voltage: wind turbine≤80Vsolar panel≤95V
    No-load current (DC): ≤0.05A
    Controller power supply mode: battery or solar
    Control mode: wind turbine MPPT boost charge, PWM discharge charge, PWM over current limitation function
    Output operating modes (modes): mode 1: light control on. Light control off (3 adjustable modes)

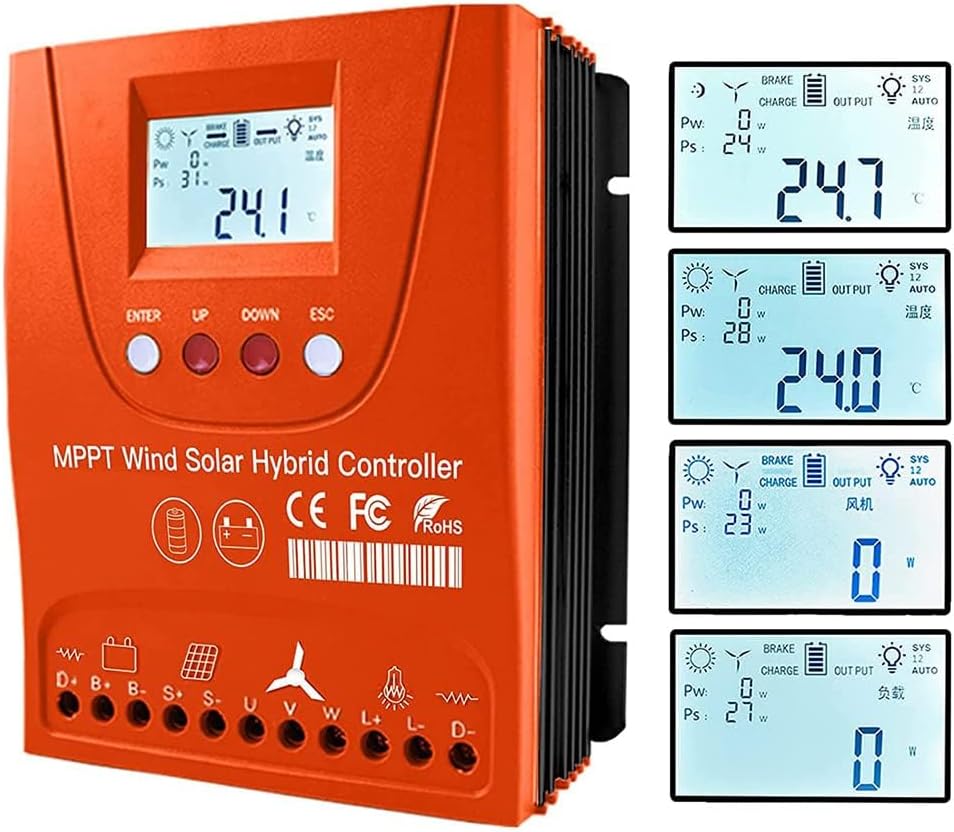

    Display content: LCD display, voltage, battery power percentage, current, load work mode, etc.
    Protection type: solar reverse charge protection, battery open circuit protection, battery reverse connection protection, automatic brake protection from overcurrent and overvoltage, overload protection, etc.
    Cooling mode: aluminium profiles Heat dissipation and self-cooling
    Working temperature / relative humidity: -25 °C ~ 80 °C / 0 ~ 90%, non-condensing
    Net weight: 2.35kg

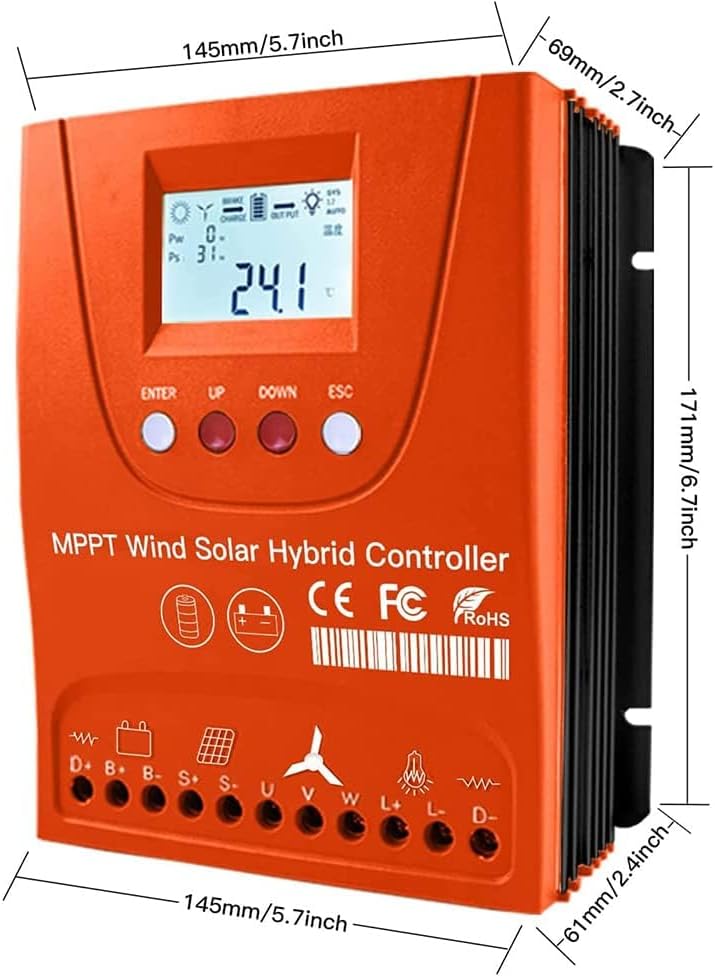

    Controller dimensions: 167mm * 145.5 mm * 61.8 mm

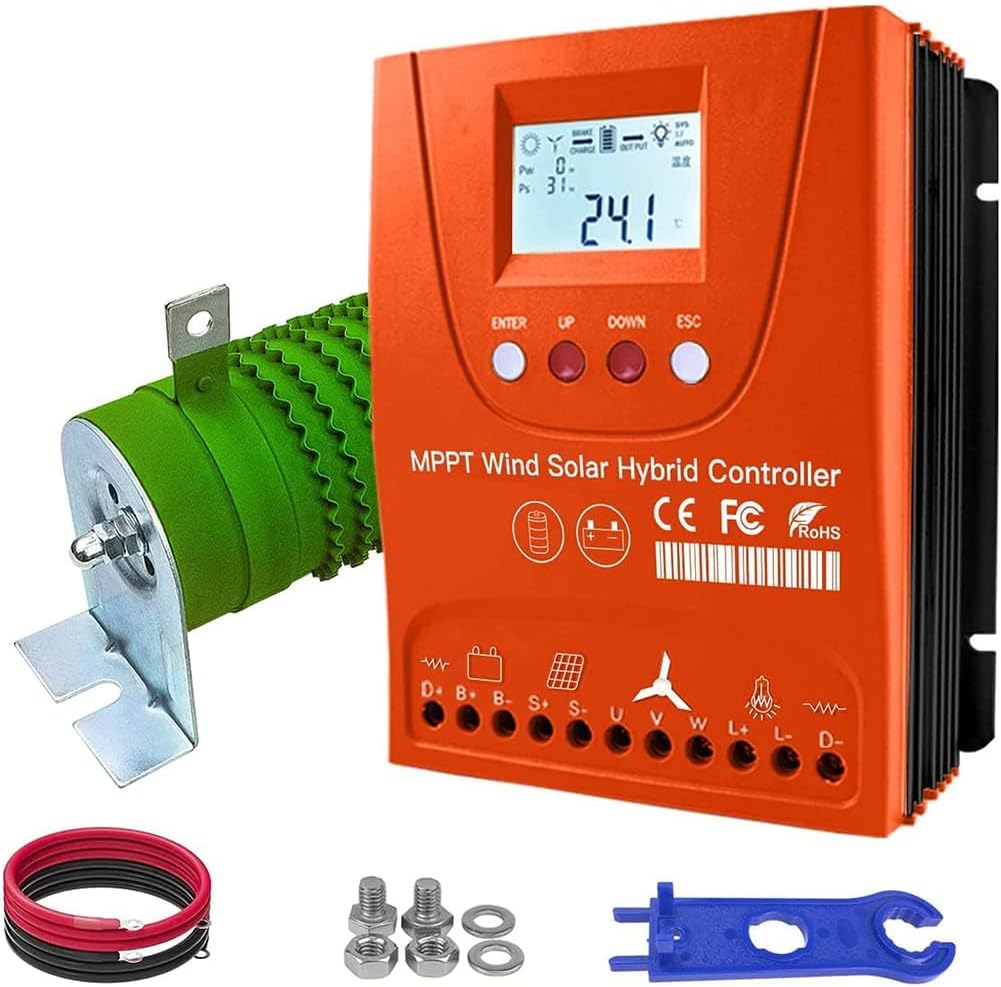

    packed: 1x solar wind hybrid charge controller

    Note:

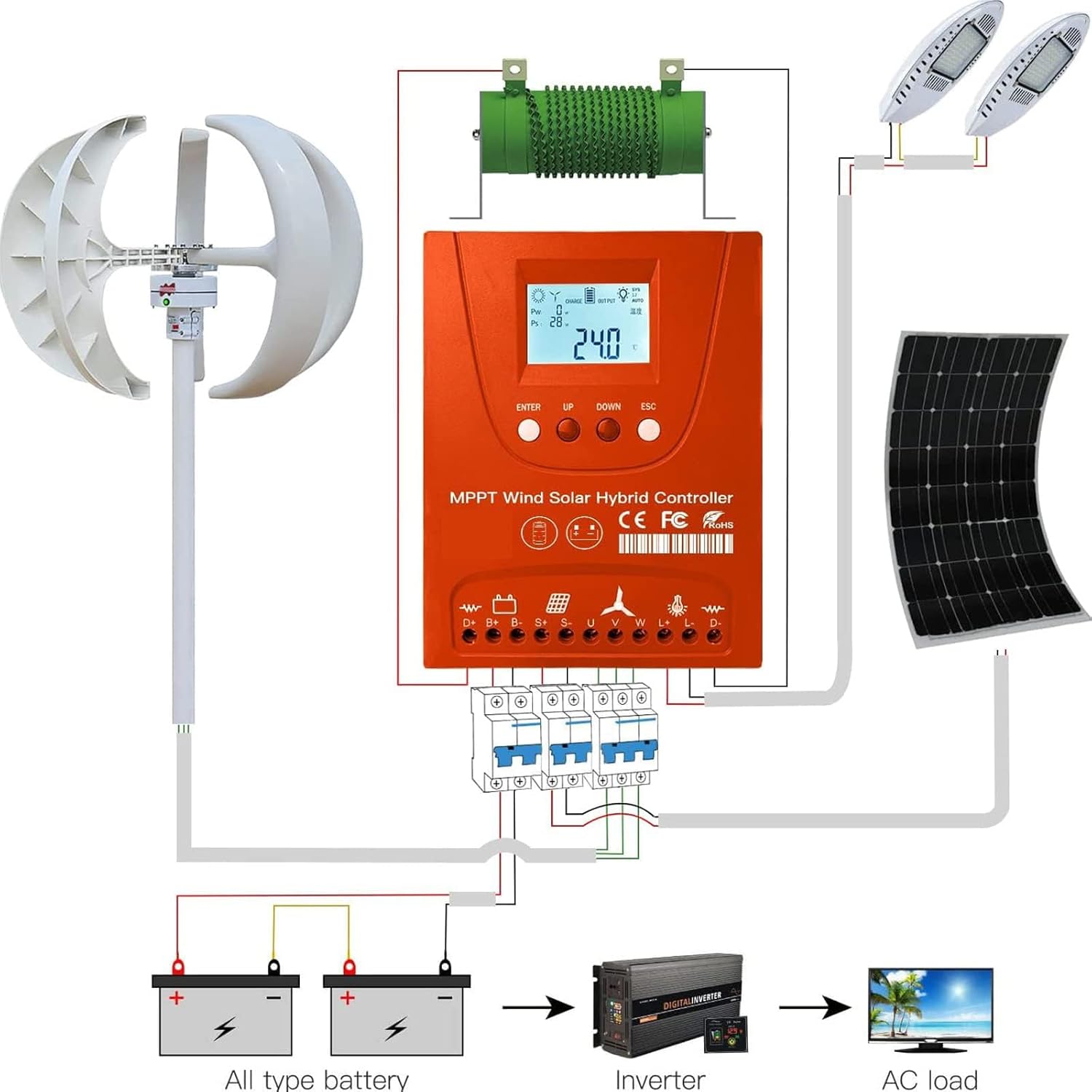

    1. Correct connection sequence:
    1) pls connect the wires between battery and contr
