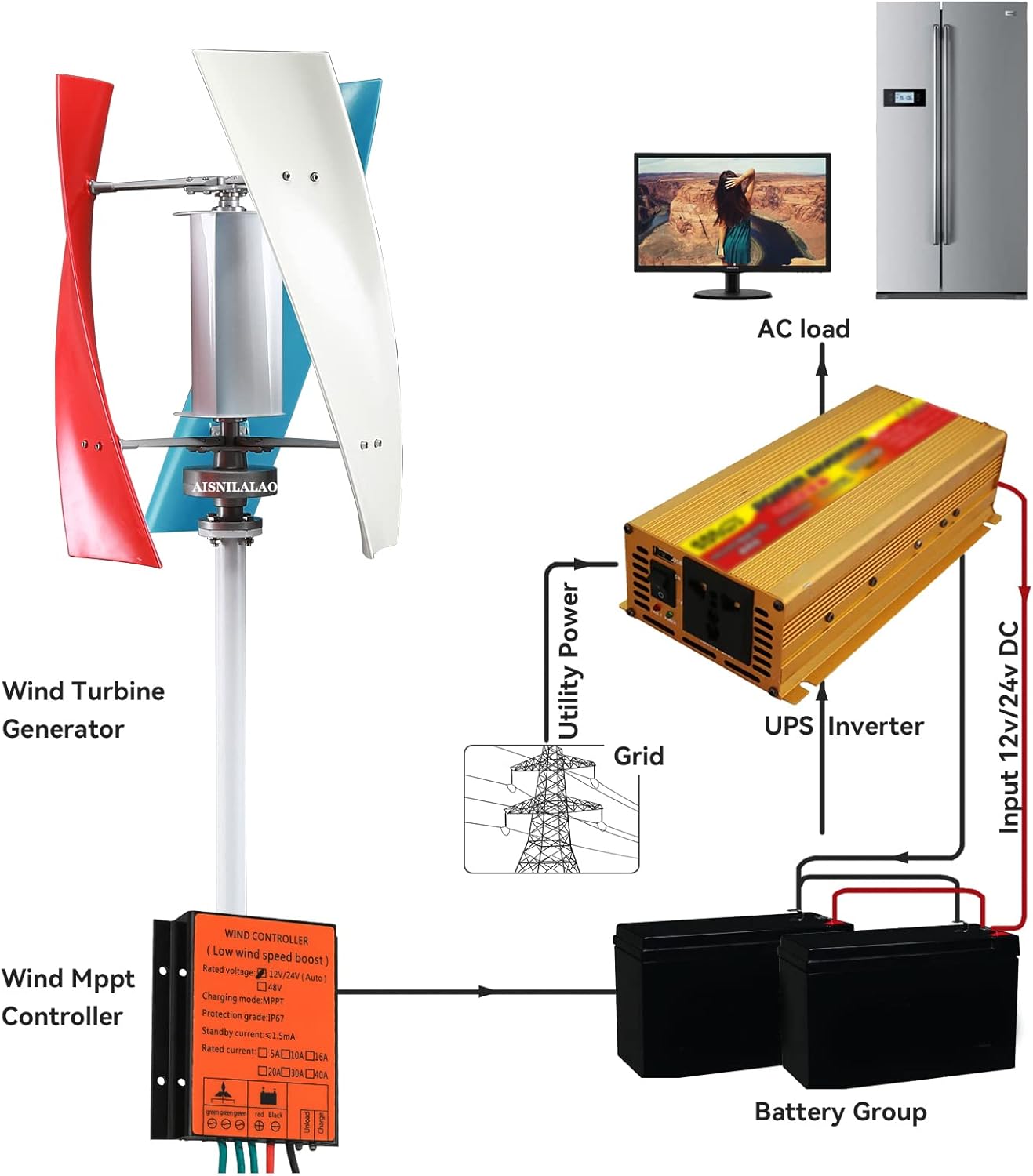

1000W-6000W Maglev Vertical Axis Wind Turbine, 12V 24V 48V with Charge Controller for Home Use for Terraces, Cabins Or Home (White)
1000W-6000W Maglev Vertical Axis Wind Turbine, 12V 24V 48V with Charge Controller for Home Use for Terraces, Cabins Or Home (White)
▶Low speed direct drive, no torque ripple.
▶Compact structure, high volume to power ratio.
▶Due to no iron loss, low heat generation and low temperature rise.
▶The generator has a simple structure and is easy to install.
▶Adopting a brushless structure, maintenance free.
▶Compact structure, high volume to power ratio.
▶Due to no iron loss, low heat generation and low temperature rise.
▶The generator has a simple structure and is easy to install.
▶Adopting a brushless structure, maintenance free.
Quantity
-
Detail
Specification:
color: White
Started wind speed: 1.3 m/s
Cut-in wind speed: 2.5 m/s
Rated Wind Speed: 11 m/s
Max Wind Speed: ≤40 m/s
The instantaneous maximum wind speed≤45m/s
Blades quantity:3
Rotor Diameter of Blades: 0.52m
Blades height(m): 0.75m
Speed regulation: The wind engle automatically
Rated Voltage: 12V/24V/48V
Rated Power:1000W-6000W
Enerator protection grade: IP67
Work environment temperature: 25~+45℃
Product assembly weight (Kg) <12Kg
Over speed protection: Electromagnetic brake
Feature: Low vibration,Low start wind speed
Blade material: Glass fiber
Generator: Maglev generator
Design service life: 10~15 years
Package includes:
1 x Wind Power Turbine Generator
1 x Controller
3 x Blade (White) -
