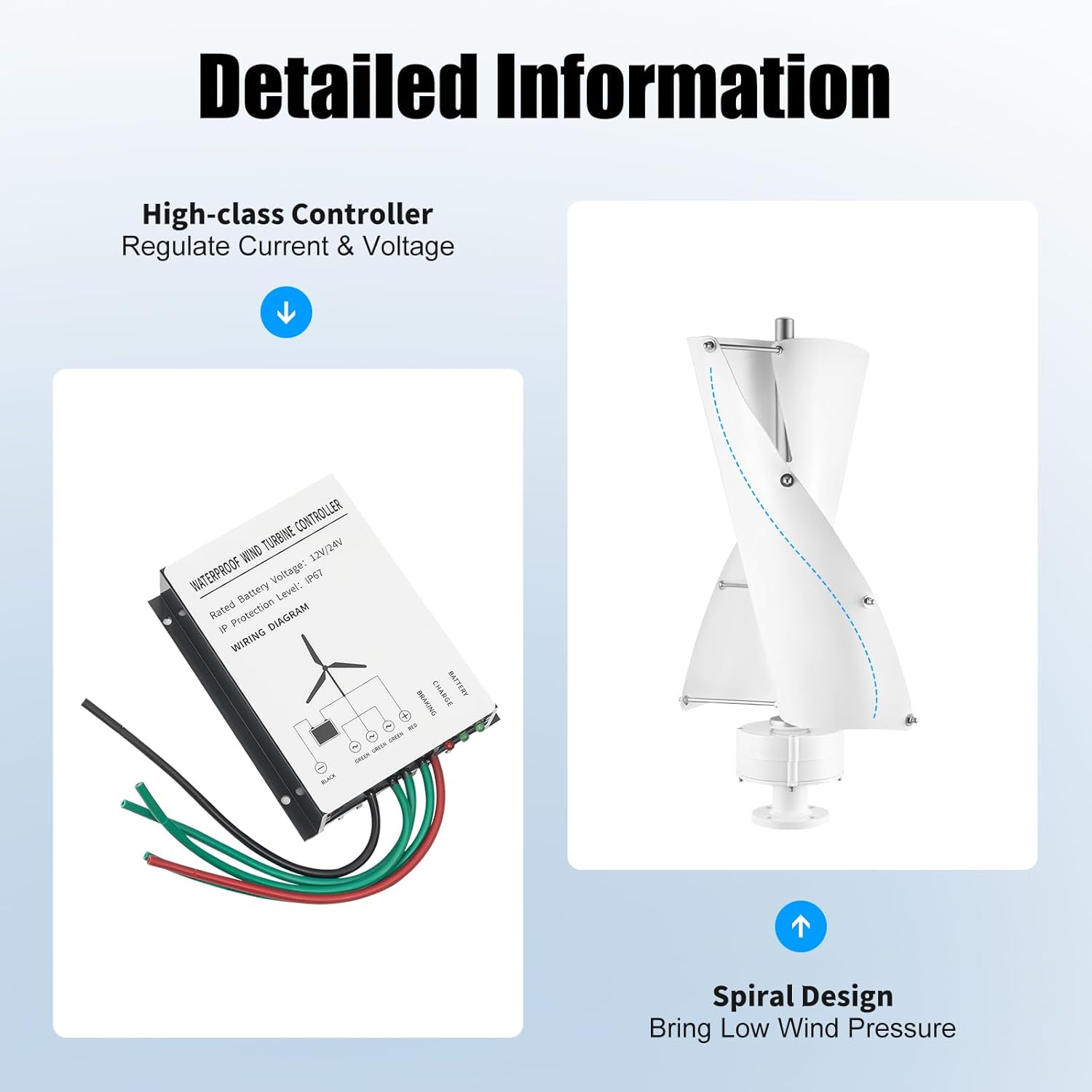

Wind Turbine Generator, 100W DC 12V Vertical Axis Wind Turbine Generator with Controller, Permanent Magnet Rotor Alternator for Boat, Gazebo, Cabin, Mobile Home
【Sturdy and Durable】- The wind turbine generator adopts iron co
-
Detail
Specification
Material: Iron, Aluminum Alloy, All Copper
Color: White
Process: Spray-plastic Treatment
Model: NE-500W
Blade Numbers: 2
Flange: DN25
Rated Battery Voltage: 12V/24V
IP Protection Level: IP67
Wheel Diameter: 0.4m/1.31ft
Rated Power: 500W
Rated Voltage: 12V
Rated Wind Speed: 13m/42.65ft/ s
Control System: Electromagnetism
Assembly Required: Yes
Noise: Less Than 62dB
Product Size(L*H): 40*71cm/15.75*27.95in
Flange Connection Size: φ14/0.55in, φ85/3.35in, φ115/4.53in
Number of Connection(Smallest) Holes: 4
Flange Thickness: Min14mm/0.55in
Pylon to Flange Distance: Min20mm/0.79in
Adaptable Pole Size Range: φ56-φ62 mm/φ2.22-φ2.44in
Package Size: 80.8*33*21cm/31.81*12.99*8.27in
Net Weight: 9kg/19.84lbs
Gross Weight: 10kg/22.05lbs
Notes
Please be sure to use gel batteries or lead-acid batteries, not lithium batteries.
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
-
