Vertical Wind Turbine Vertical Axis Wind Turbine Generator Kit with Controller 500W 12V 2 Blades Vertical Axis Windmill for Home Street Lighting, White

Safe and Reliable--Vertical wind turbine adopts a permanent magnet rotor alternator with a special stator design, which effectively reduces the torque resistance of the generator, and at the same time makes the wind turbine and the generator have more favorable matching characteristics and the relia
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Description

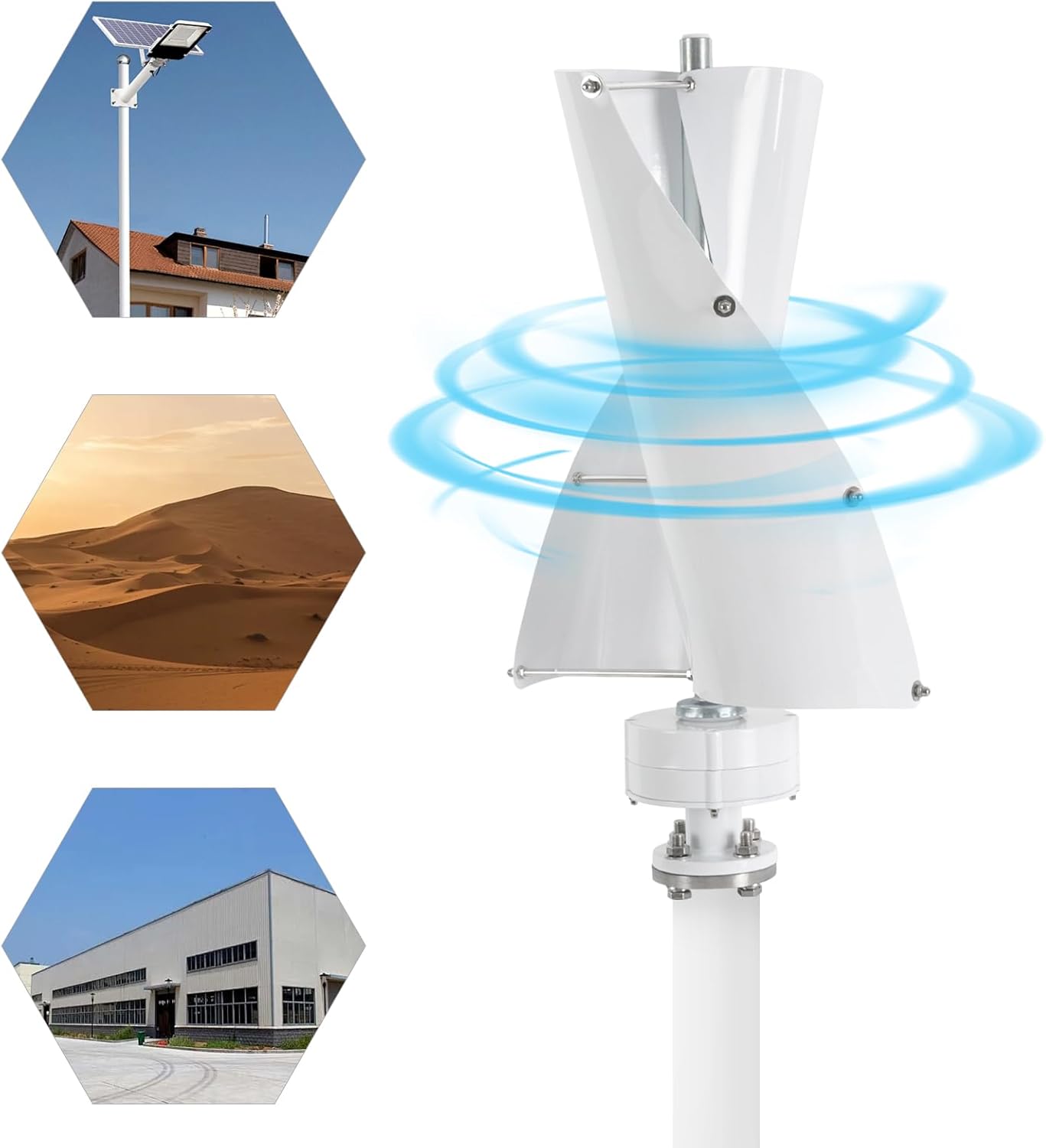

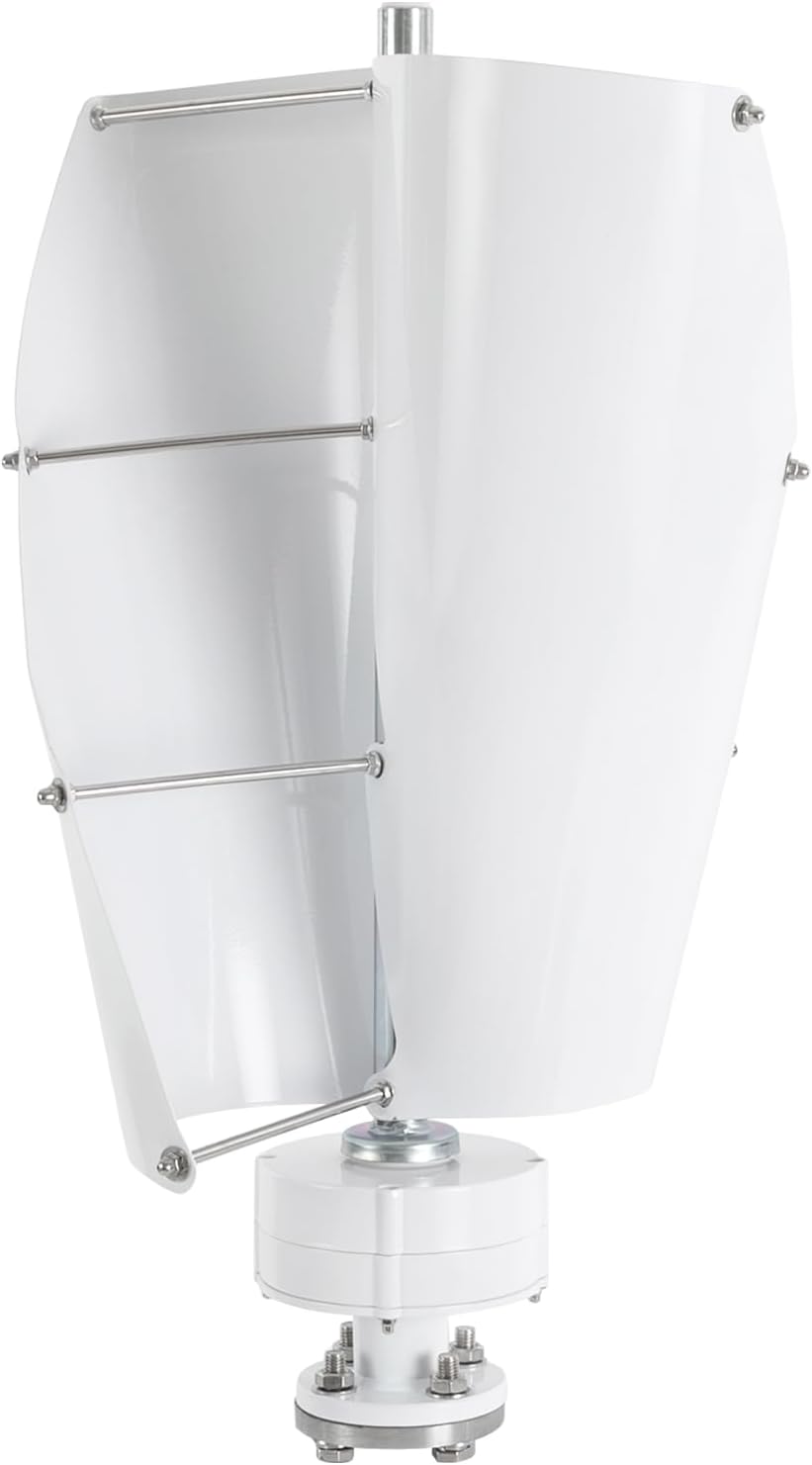

    This 500W wind turbine has been carefully designed for you who seek green energy combined with modern aesthetics. Unlike traditional horizontal axis wind turbines, this product utilizes an advanced helical design principle that allows it to operate efficiently in low wind speed environments, and with easy installation and maintenance and low noise, it can be efficiently integrated into a variety of environments.

    Efficient Work--It has a power of up to 500W and a wind speed of up to 42.65ft/s, and the starting wind speed is lower than that of other wind turbines, and the power generation increases gently, so it can generate more power than other wind turbines within a certain range.

    Specification

    Material: Iron, Aluminum Alloy, All Copper

    Color: White

    Process: Spray-plastic Treatment

    Model: NE-500W

    Blade Numbers: 2

    Flange: DN25

    Rated Battery Voltage: 12V/24V

    IP Protection Level: IP67

    Wheel Diameter: 0.4m/1.31ft

    Rated Power: 500W

    Rated Voltage: 12V

    Rated Wind Speed: 13m/42.65ft/ s

    Control System: Electromagnetism

    Assembly Required: Yes

    Noise: Less Than 62dB

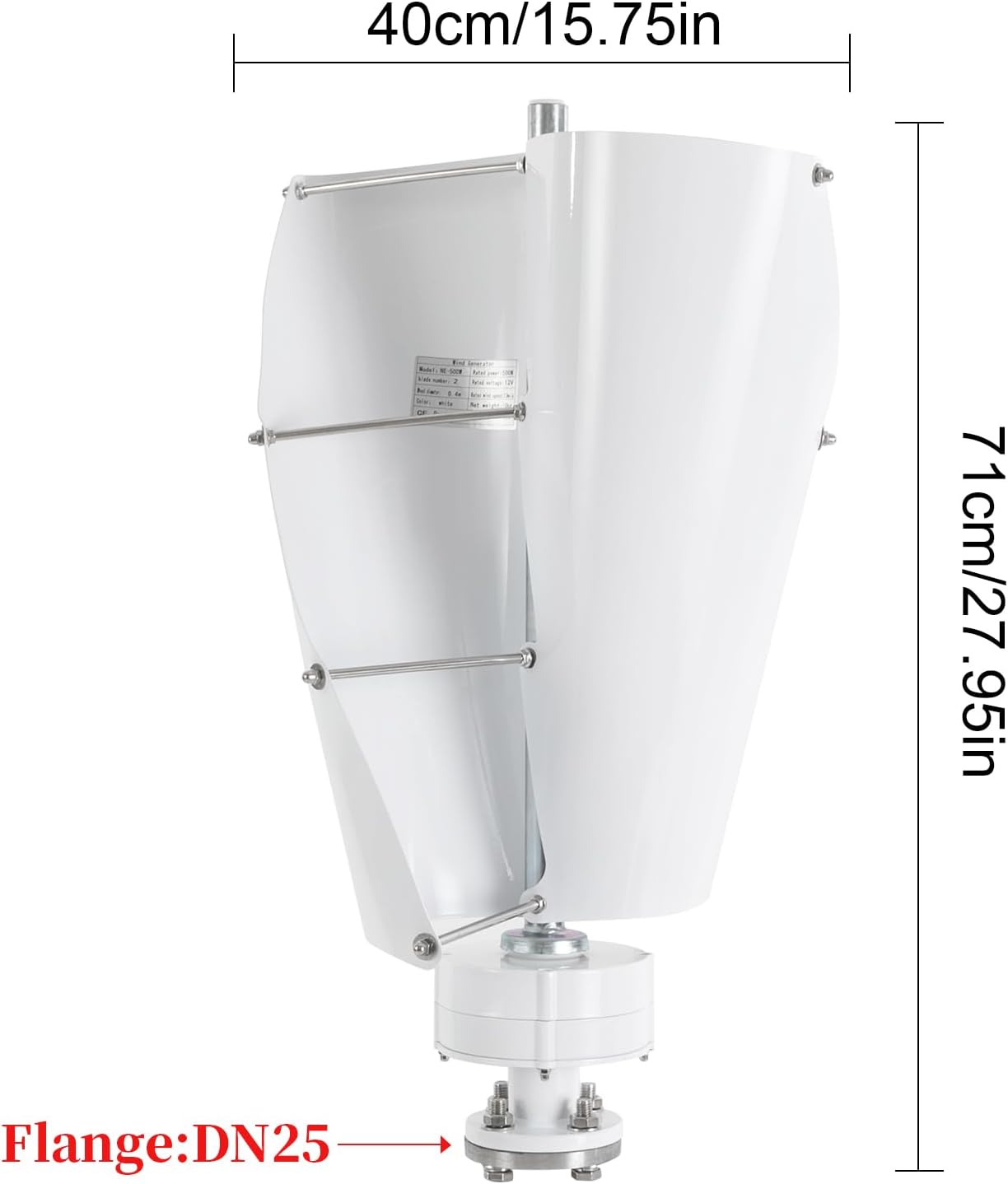

    Product Size(L*H): 40*71cm/15.75*27.95in

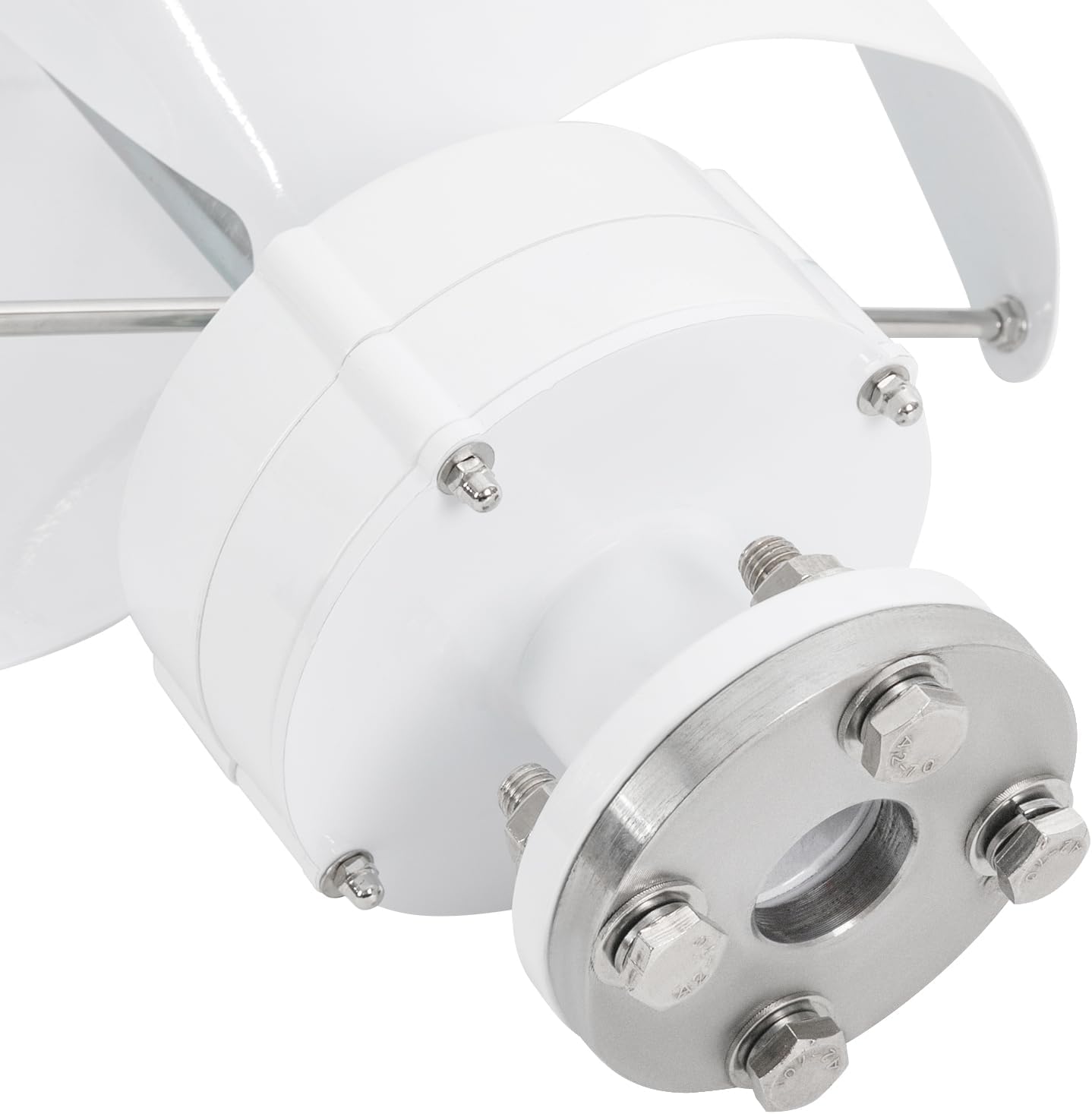

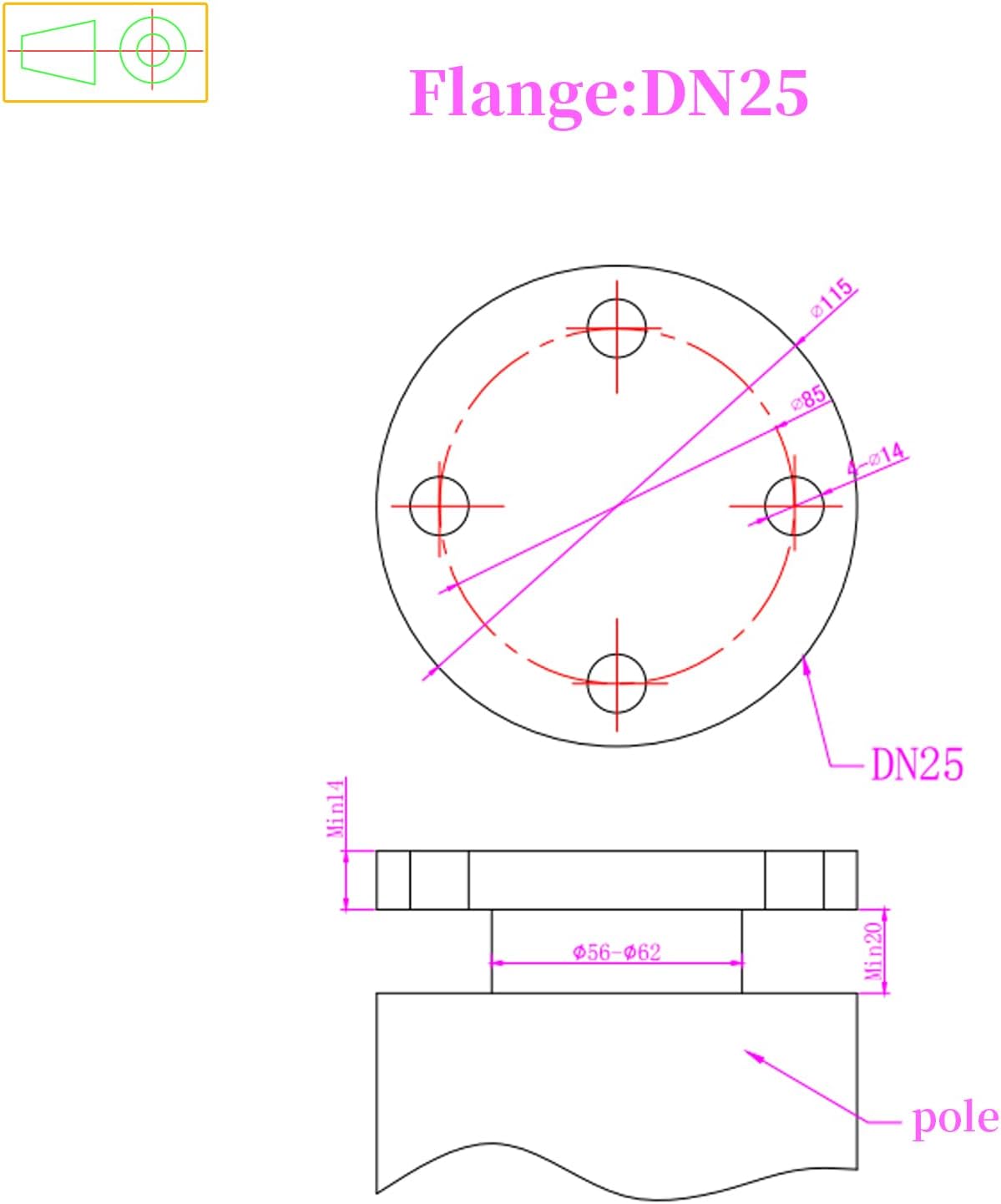

    Flange Connection Size: φ14/0.55in, φ85/3.35in, φ115/4.53in

    Number of Connection(Smallest) Holes: 4

    Flange Thickness: Min14mm/0.55in

    Pylon to Flange Distance: Min20mm/0.79in

    Adaptable Pole Size Range: φ56-φ62 mm/φ2.22-φ2.44in

    Package Size: 80.8*33*21cm/31.81*12.99*8.27in

    Net Weight: 9kg/19.84lbs

    Gross Weight: 10kg/22.05lbs

    Package Included

    1* Wind Turbine

    1* Controller

    1* English Manual

    Notes

    1. Please check the style and size before purchasing.

    2. Please read the instruction manual completely before installation and use, and pay particular attention to the safety instructions included.

    3. Please connect the three green wires of the controller to the three wires of the fan (without distinguishing the poles), and the red and black wires to the positive and negative poles of the battery respectively.

    4. Please be sure to use gel batteries or le-ad-ac-id batteries, not lith-ium batteries.
