Vertical Wind Turbine Generator Kit, 500W 12V Helix Maglev Axis Wind Turbine Generator with 2-Blades Wind Power Generator Kit W/PWM Controller Windmill Generator System

Details

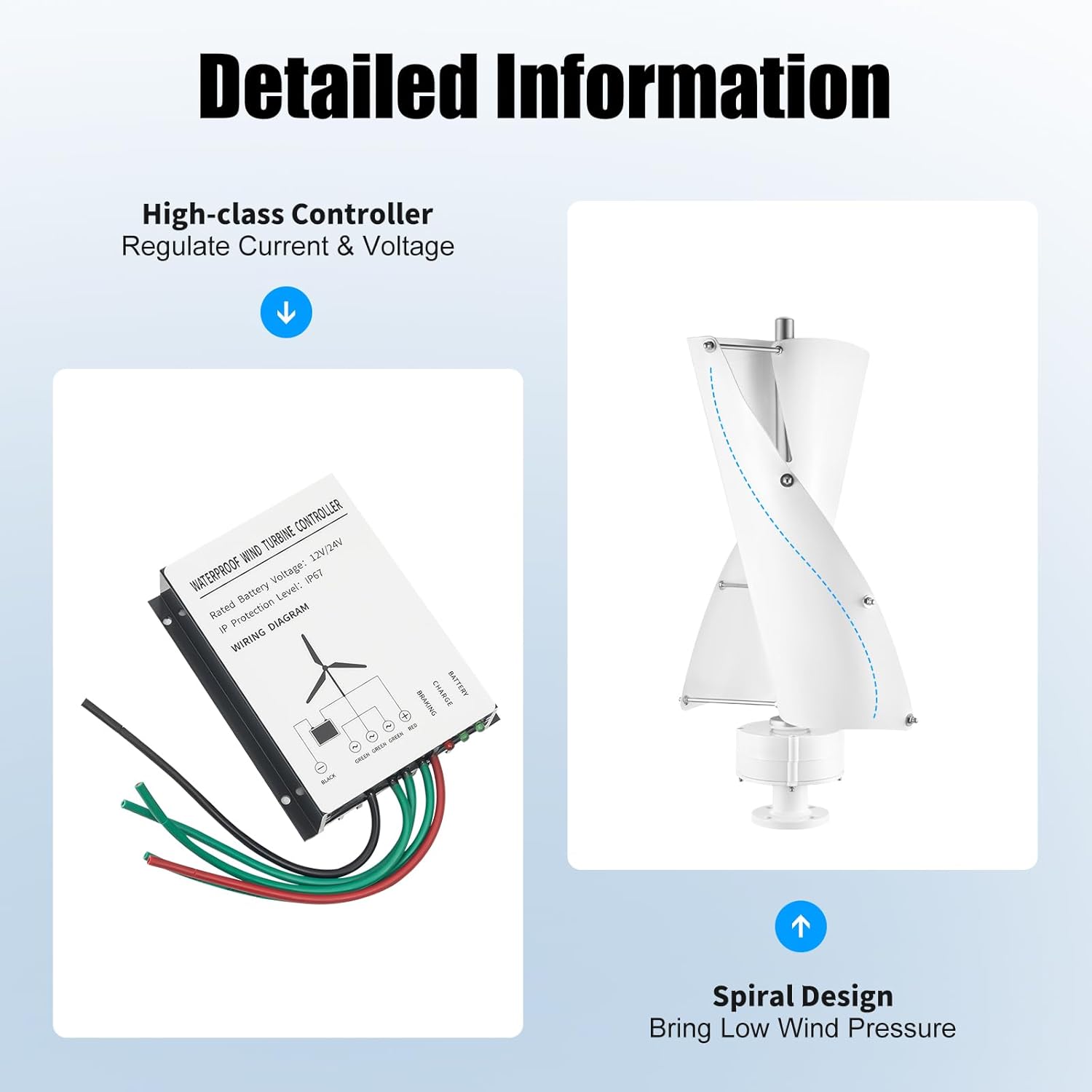

High-quality Controller: It adopts a high-power tracking intelligent microprocessor controller to effectively regulate the current and voltage.

Spiral Design: It adopts the spiral design principle, rotating in the horizontal plane brings low wind pressure, which can withstand super strong typhoons.

Application

It is suitable for home, business, and industrial energy supply in boats, gazebos, cabins, or mobile homes, and on top of streetlights.

Specification

Material: Iron, Aluminum Alloy, All Copper

Color: White

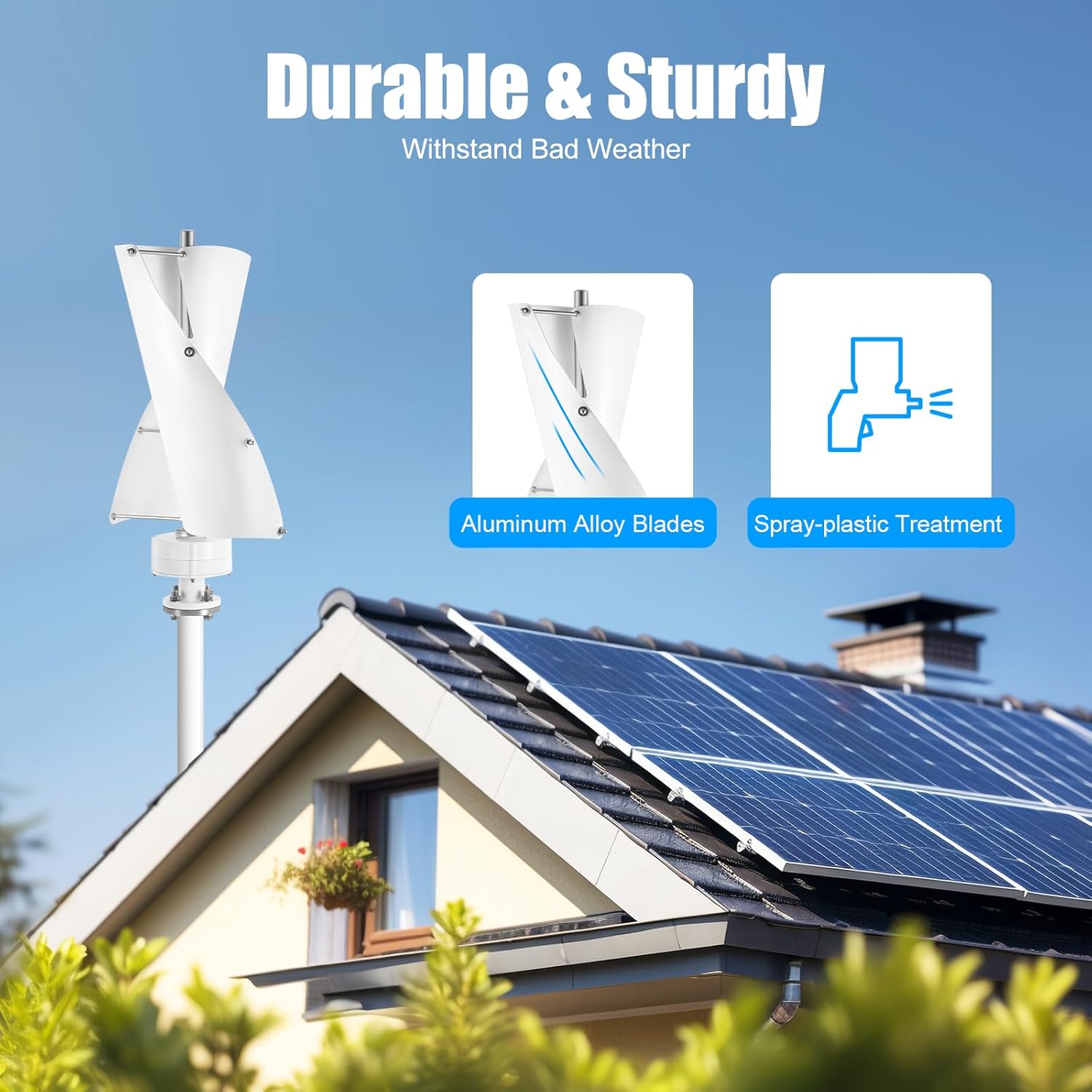

Process: Spray-plastic Treatment

Model: NE-500W

Blade Numbers: 2

Flange: DN25

Rated Battery Voltage: 12V/24V

IP Protection Level: IP67

Wheel Diameter: 0.4m/1.31ft

Rated Power: 500W

Rated Voltage: 12V

Rated Wind Speed: 13m/42.65ft/ s

Control System: Electromagnetism

Assembly Required: Yes

Noise: Less Than 62dB

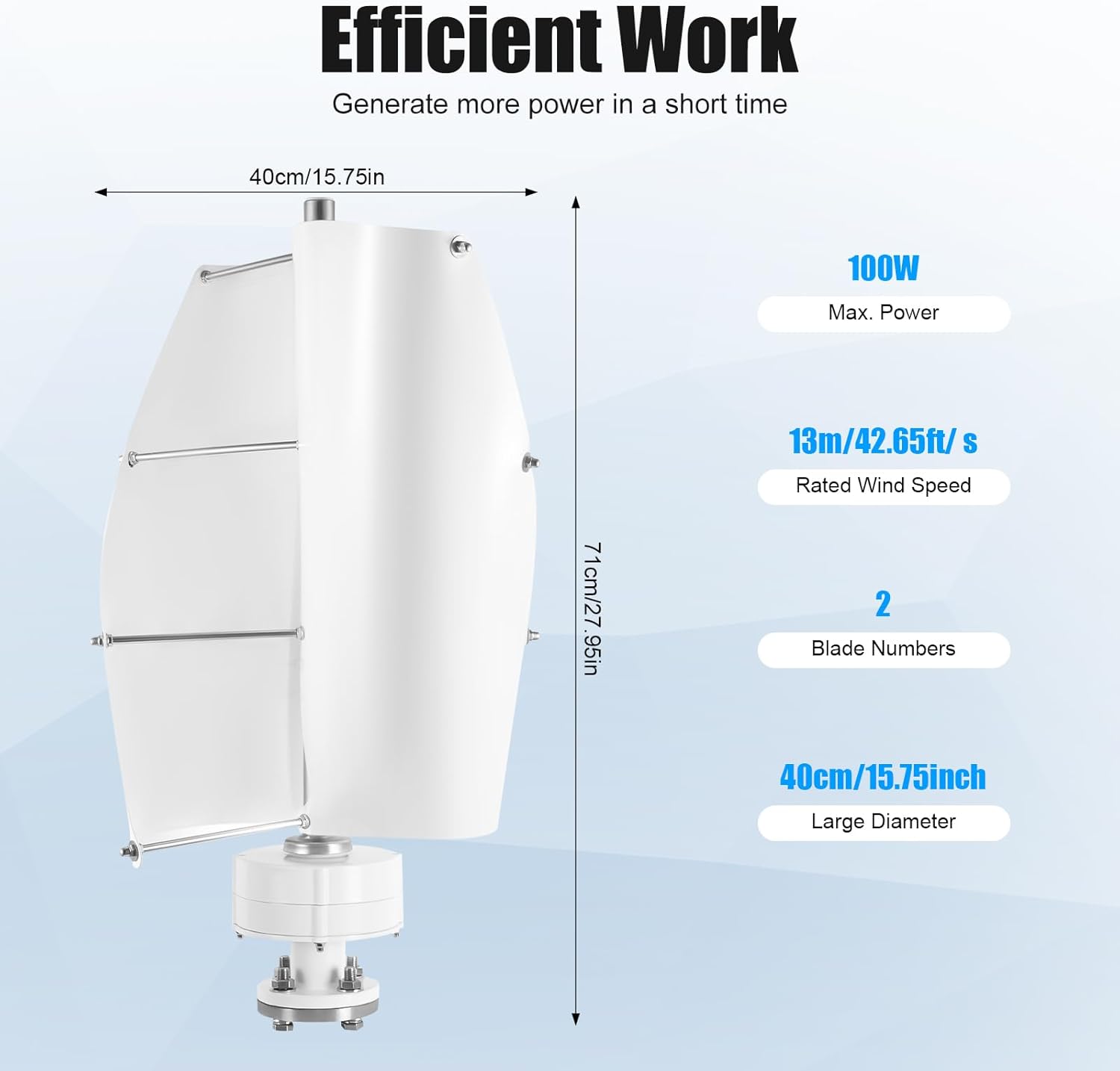

Product Size(L*H): 40*71cm/15.75*27.95in

Flange Connection Size: φ14/0.55in, φ85/3.35in, φ115/4.53in

Number of Connection(Smallest) Holes: 4

Flange Thickness: Min14mm/0.55in

Pylon to Flange Distance: Min20mm/0.79in

Adaptable Pole Size Range: φ56-φ62 mm/φ2.22-φ2.44in

Package Size: 80.8*33*21cm/31.81*12.99*8.27in

Net Weight: 9kg/19.84lbs

Gross Weight: 10kg/22.05lbs

Package Included

1* Wind Turbine

1* Controller

1* English Manual

Notes

--Please check the style and size before purchasing.

--Please read the instruction manual completely before installation and use, and pay particular attention to the safety instructions included.

--Please connect the three green wires of the controller to the three wires of the fan (without distinguishing the poles), and the red and black wires to the positive and negative poles of the battery respectively.

--Please be sure to use gel batteries or lead-ac-id batteries, not lith-ium batteries.
