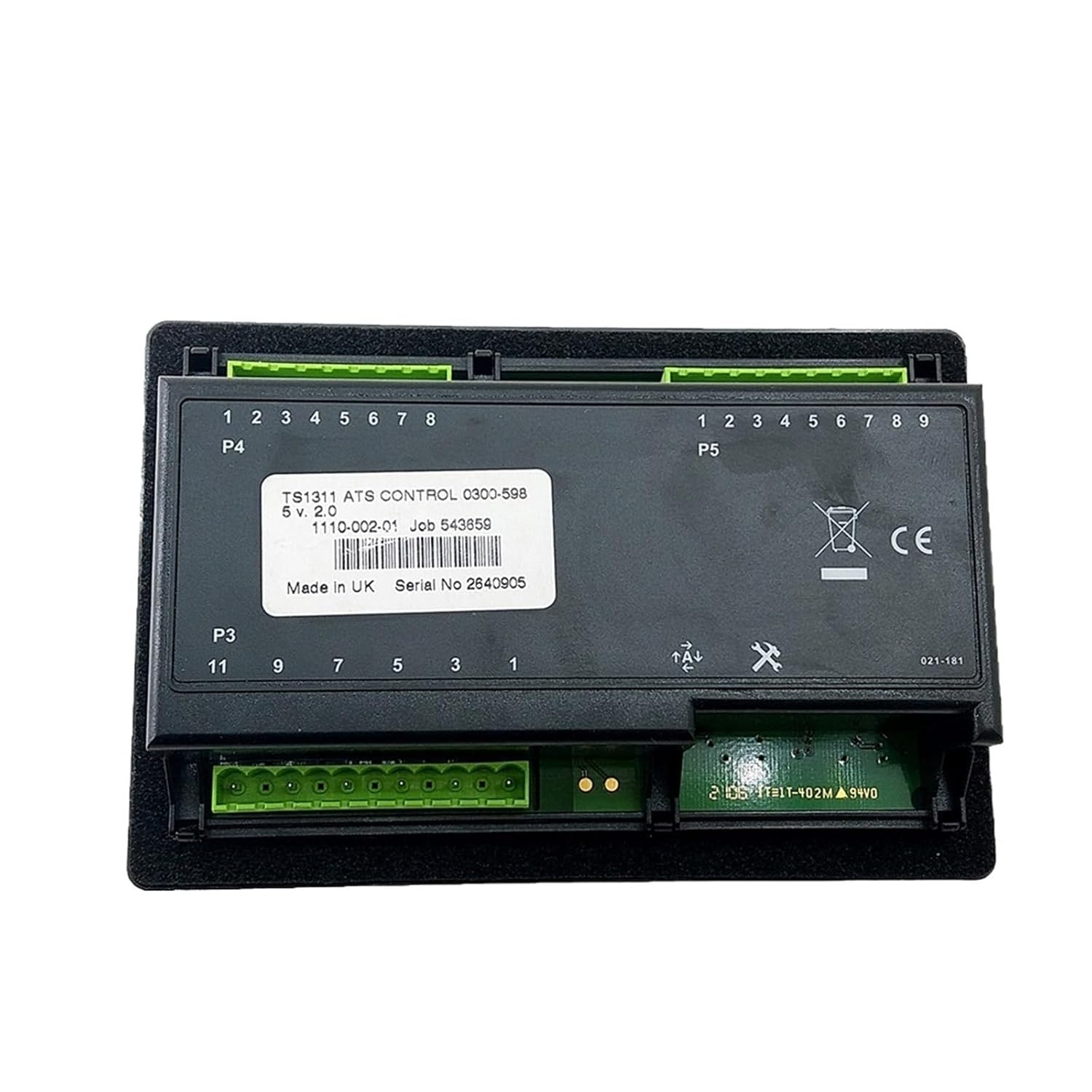

TS1311 MK11 ATS Control Assembly Part No-0300-5986 Transfer Switch Generator

Electronic Engine Control
Description
The TS1311 control is a microprocessor-based power
transfer control system. The control provides normal and
generator monitoring, generator set starting and
power switch control functions. It is suitable for use in
emergency, standby and optional standby applications.
The integration of all functions into a single control
system provides enhanced reliability and performance
compared to conventional transfer switch control
systems.

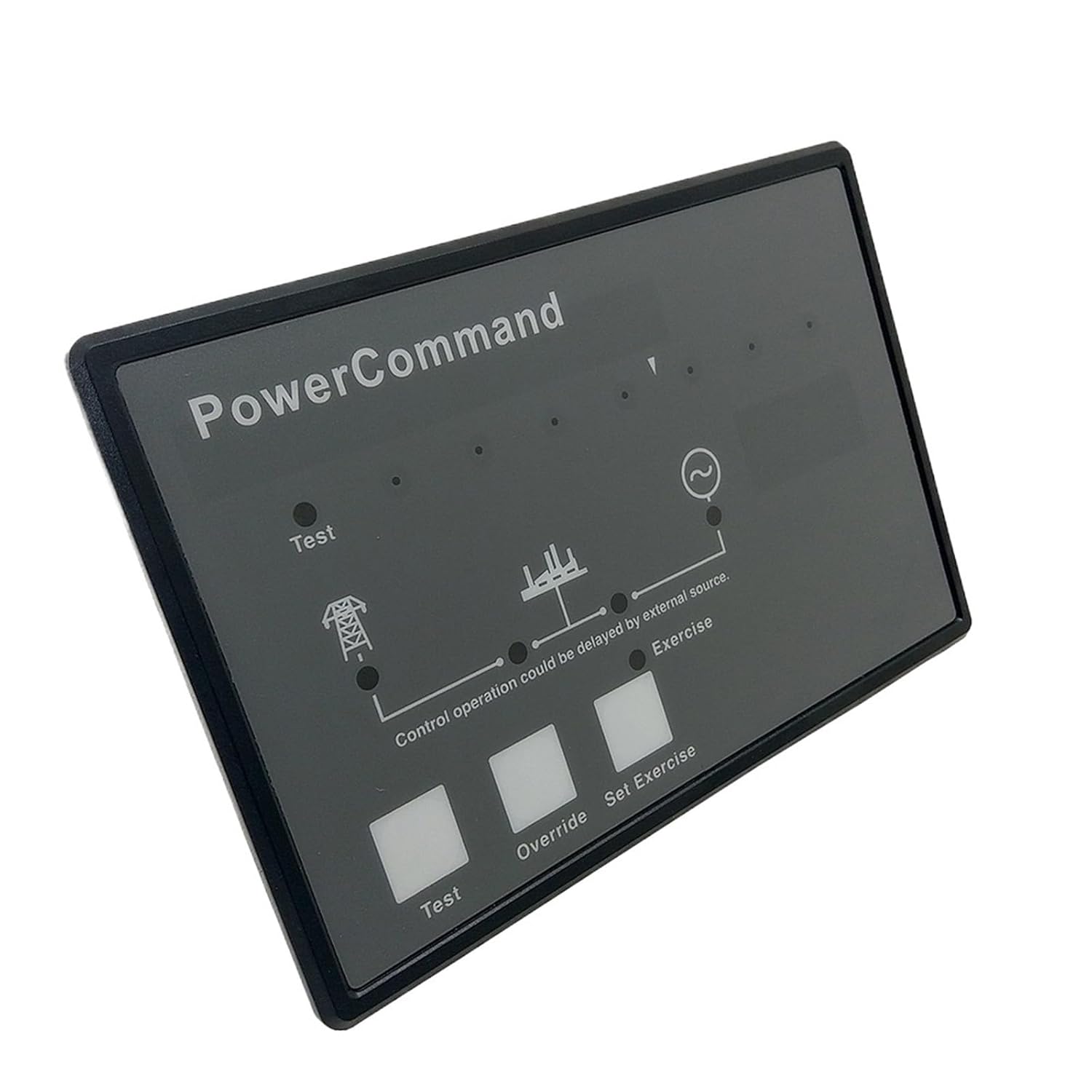

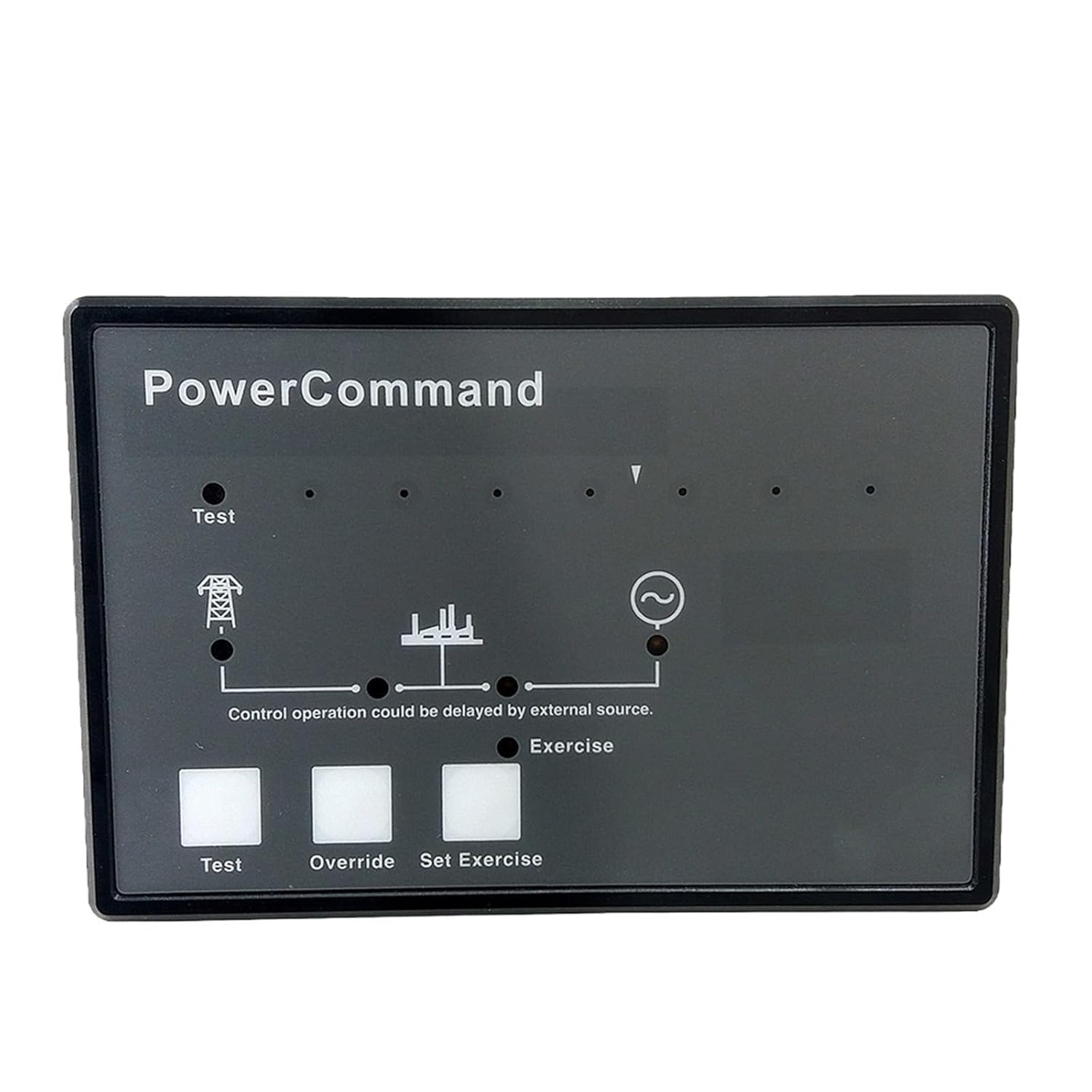

The operator panel of the TS1311 control is easy to use
and understand, utilizing LED lamps for status indications
and push-button controls for operator control functions.
The TS1311 control is field programmable without the use
of a service tool.
The control monitoring provisions include single or
three phase monitoring for the normal and single
phase monitoring for the generator .
The control is configurable to provide commonly required
features such as programmed transition, sync check, pretransfer signals, generator exerciser and other functions.
Features
Voltage sensing - Control directly senses utility and
generator set voltages from 75-600 VAC line-to-neutral.
The control senses all phases on the normal , and
single phase on the generator set .
Frequency sensing - Selectable 50 Hz or 60 Hz
(generator set ).
Easy to use operator panel - Reliable color-coded
LED indicating lamps and graphical labeling make it
easy for an operator to understand condition and
switch position.
Environmental protections - The control enclosure
is protected from dust, moisture and physical intrusion.
The operator panel is provided with UV protection for
long life in direct sunlight.
Environment - The control is designed for proper
operation without recalibration in ambient temperatures
from -30 °C to +70 °C (-22 °F to +158 °F) and for
