500W Vertical Axis Wind Turbine Kit - Home Wind Power System, Permanent Magnet Generator for Boats, Gazebos (12V Blue)

【Easy to Assemble】Clear installation instructions are provided to help you get started and complete the installation quickly. In addition, the humanized flange mounting design makes the installation, maintenance, and overhaul of the equipment more convenient.
【Efficient Work】It has a power of up
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Description

    This 500W wind turbine has been carefully designed for you who seek green energy combined with modern aesthetics. Unlike traditional horizontal axis wind turbines, this product utilizes an advanced helical design principle that allows it to operate efficiently in low wind speed environments, and with easy installation and maintenance and low noise, it can be efficiently integrated into a variety of environments.

    Details

  • High-quality Controller: It adopts a high-power tracking intelligent microprocessor controller to effectively regulate the current and voltage.
  • Spiral Design: It adopts the spiral design principle, rotating in the horizontal plane brings low wind pressure, which can withstand super strong typhoons.

    • Application

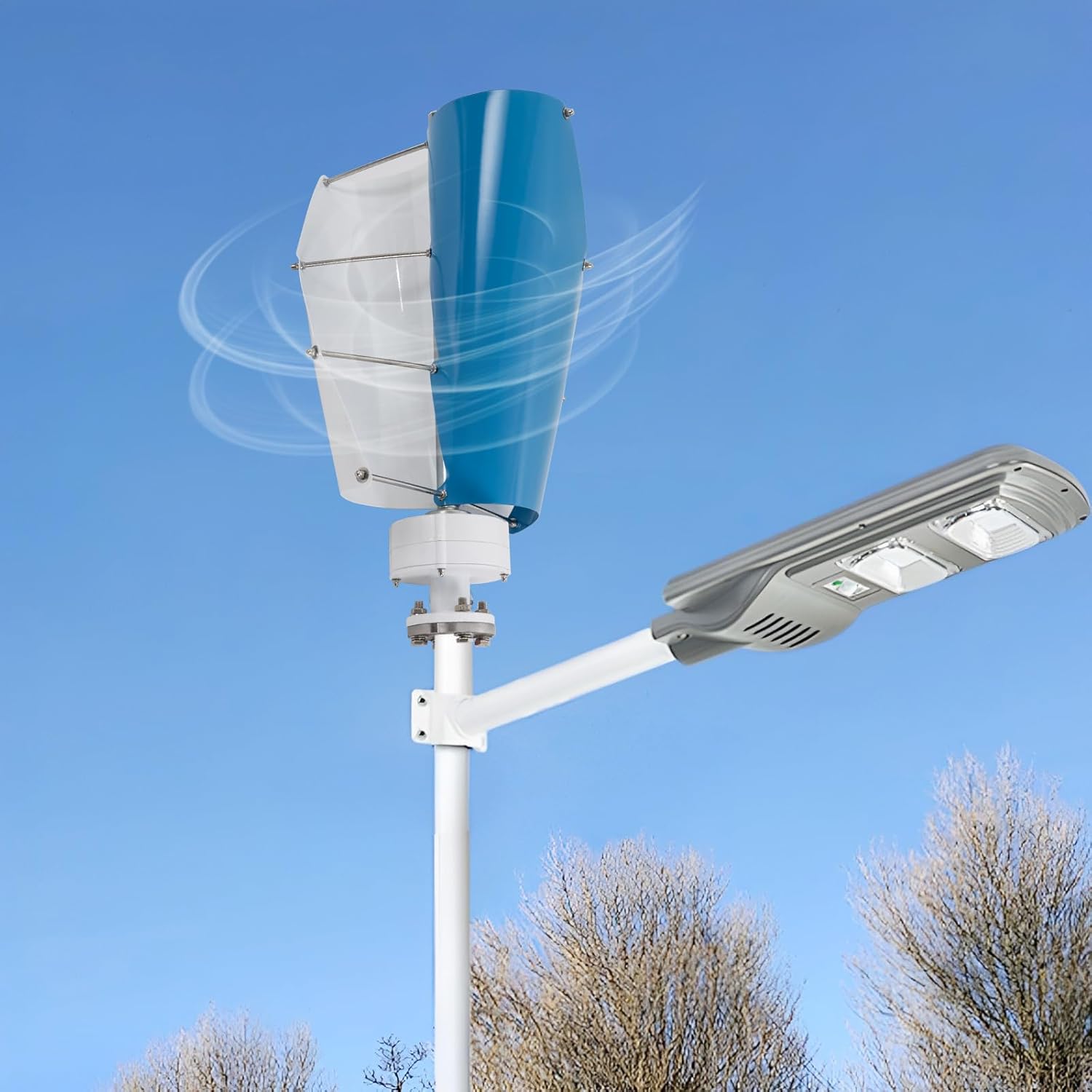

    It is suitable for home, business, and industrial energy supply in boats, gazebos, cabins, or mobile homes, and on top of streetlights.

    Specification

  • Material: Iron, Aluminum Alloy, All Copper
  • Process: Spray-plastic Treatment
  • Model: NE-500W
  • Blade Numbers: 2
  • Flange: DN25
  • Rated Battery Voltage: 12V
  • IP Protection Level: IP67
  • Wheel Diameter: 0.4m/1.31ft
  • Rated Power: 500W
  • Rated Voltage: 12V
  • Rated Wind Speed: 13m/42.65ft/ s
  • Control System: Electromagnetism
  • Assembly Required: Yes
  • Noise: Less Than 62dB
  • Product Size(L*H): 40*71cm/15.75*27.95in
  • Flange Connection Size: φ14/0.55in, φ85/3.35in, φ115/4.53in
  • Number of Connection(Smallest) Holes: 4
  • Flange Thickness: Min14mm/0.55in
  • Pylon to Flange Distance: Min20mm/0.79in
  • Adaptable Pole Size Range: φ56-φ62 mm/φ2.22-φ2.44in
  • Package Size: 80.8*33*21cm/31.81*12.99*8.27in
  • Net Weight: 9kg/19.84lbs
  • Gross Weight: 10kg/22.05lbs

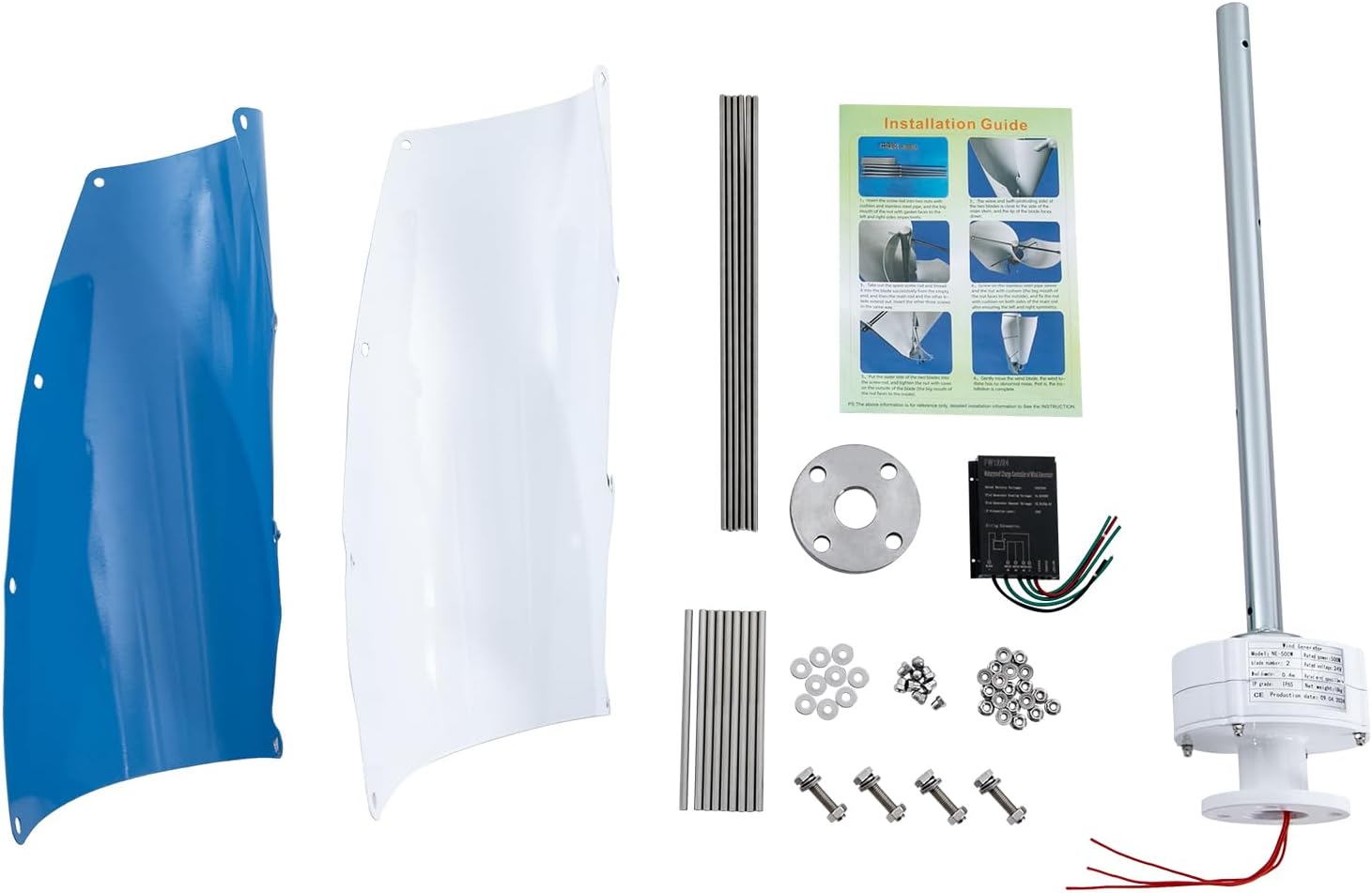

    • Package Included

  • 1* Wind Turbine
  • 1* Controller
  • 1* English Manual

    • Notes

    1.Please check the style and size before purchasing.

    2.Please read the instruction manual completely before installation and use, and pay particular attention to the safety instructions included.

    3.Please connect the three green wires of the controller to the three wires of the fan (without distinguishing the poles), and the red and black wires to the positive and negative poles of the battery respectively.

    4.Please be sure to use gel batteries or lead-acid batteries, not lithium batteries.

    5.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
