1000W-1500W Vertical Axis Wind Turbine Generator, 5 Blades Efficient Small Vertical Wind Turbine for Outdoor Factory Power Generation 12V 24V 48V 220V
▶ Ma
-
Detail

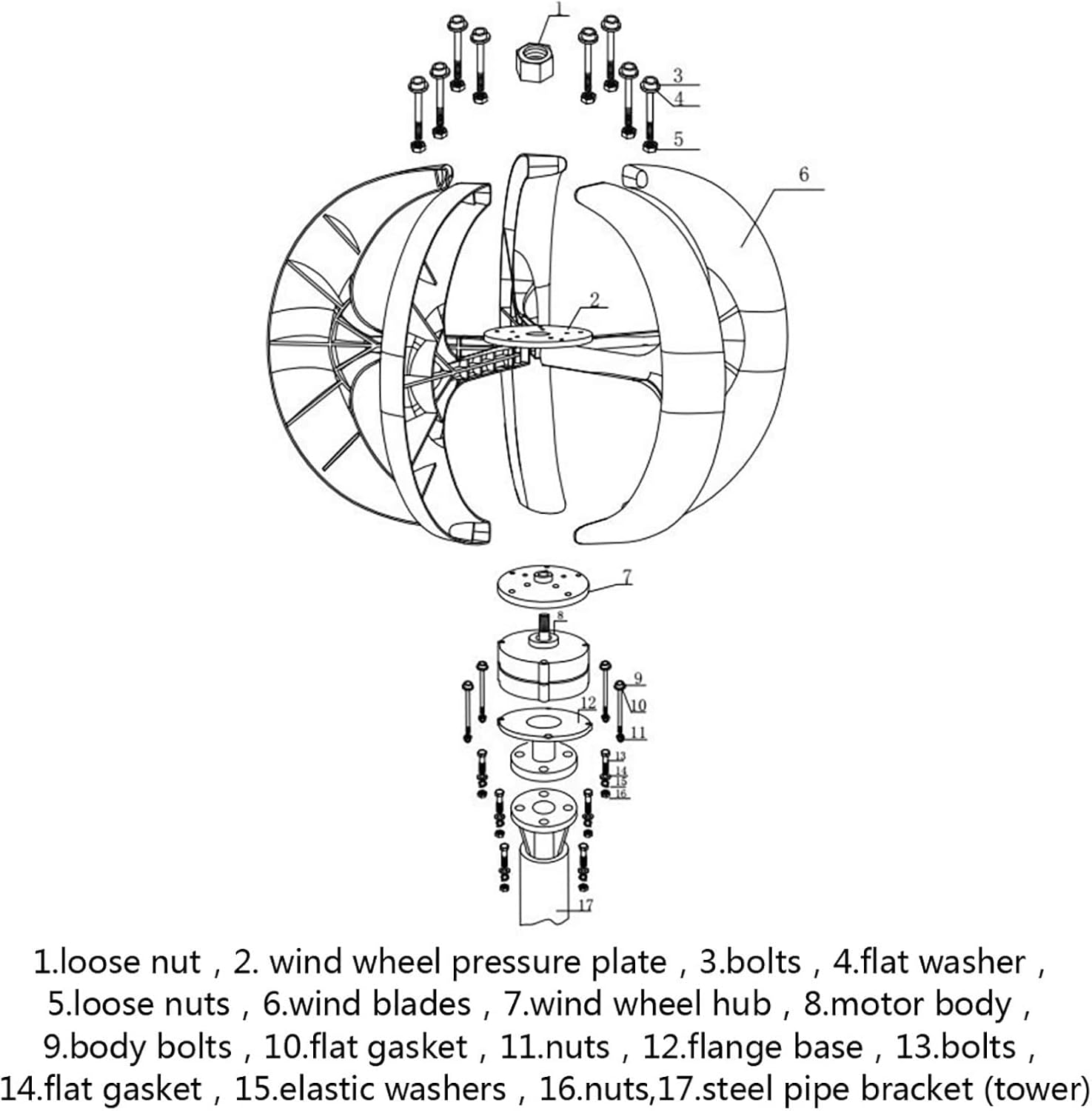

packing list:
5 × pcs blade
1 × generator
1 × bolt and nut
1 × Spindle and arm
1 × Wind Controller
1 × English installation manual
Specification:
color: White
Blade height: 900mm
Wind wheel diameter: 600mm
Number of leaves: 5 leaves
Rated voltage (AC): 12V 24V 48V 220V
Rated power (W): 1000W-1500W
Wind installation pole size: 60mm
Package weight: 14kg
Initial wind speed (m/s): 2 m/s
Cut-in wind speed (m/s): 3 m/s
Rated wind speed (m/s): 10 m/s
Safe wind speed (m/s): ≤40m/s
Blade material: galvanized aluminum alloy
Generator: Three-phase permanent magnet levitation motor
Control system: electromagnet
Wind turbine installation height (m): 2-12m
Generator protection class: IP54
Working environment temperature: -25~+459C
Working environment humidity: ≤90% -
