Vertical Axis Wind Turbine 500W 12V Permanent Magnet Generator 2-Blades For Home, Corporate And Industrial W/Controller, Blue&White

This 500W wind turbine has been carefully designed for you who seek green energy combined with modern aesthetics. Unlike traditional horizontal axis wind turbines, this product utilizes an advanced helical design principle that allows it to operate efficiently in low wind speed environments, and with easy installation and maintenance and low noise, it can be efficiently integrated into a variety of environments.

Specification

Material: Iron, Aluminum Alloy, All Copper

Color: White and Blue

Process: Spray-plastic Treatment

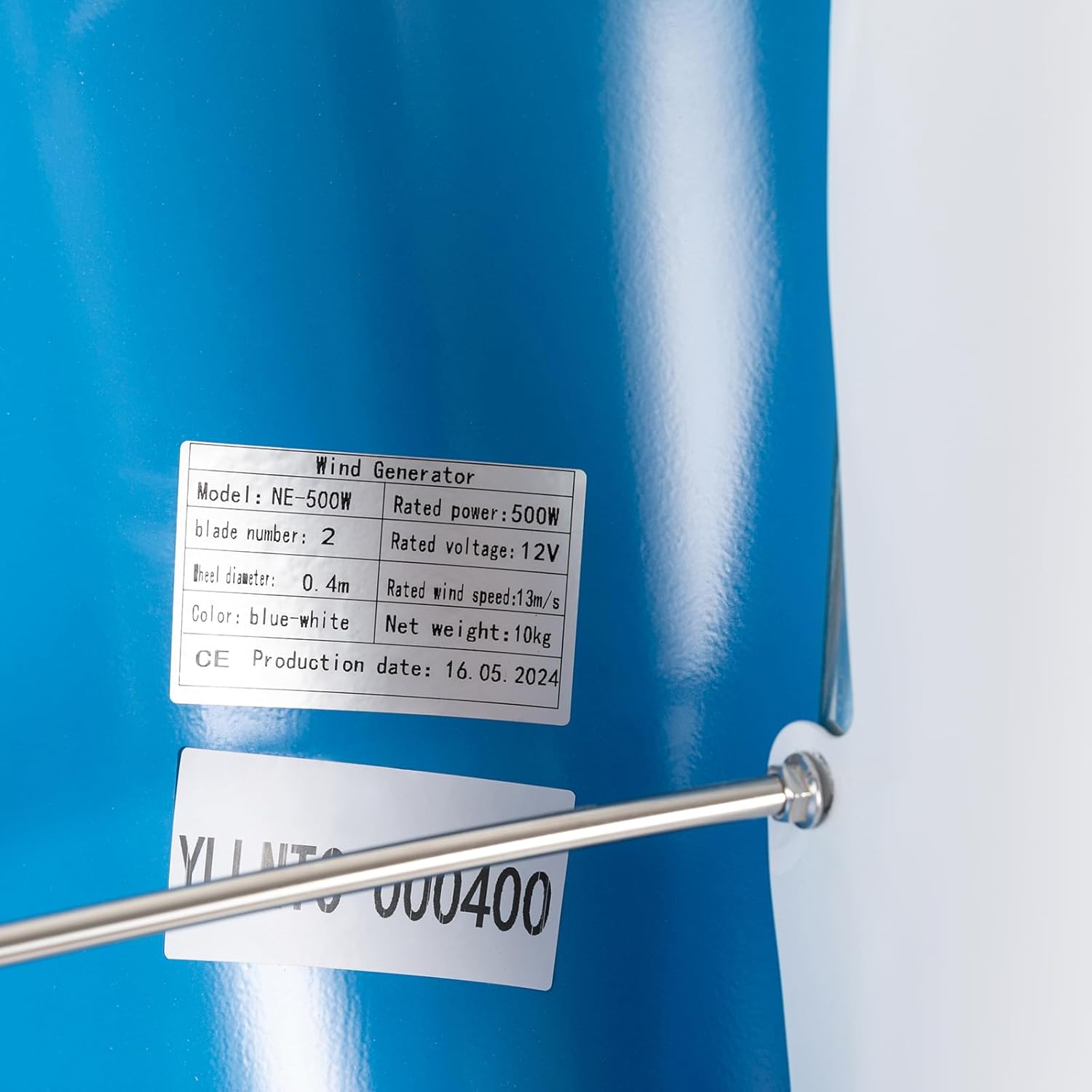

Model: NE-500W

Blade Numbers: 2

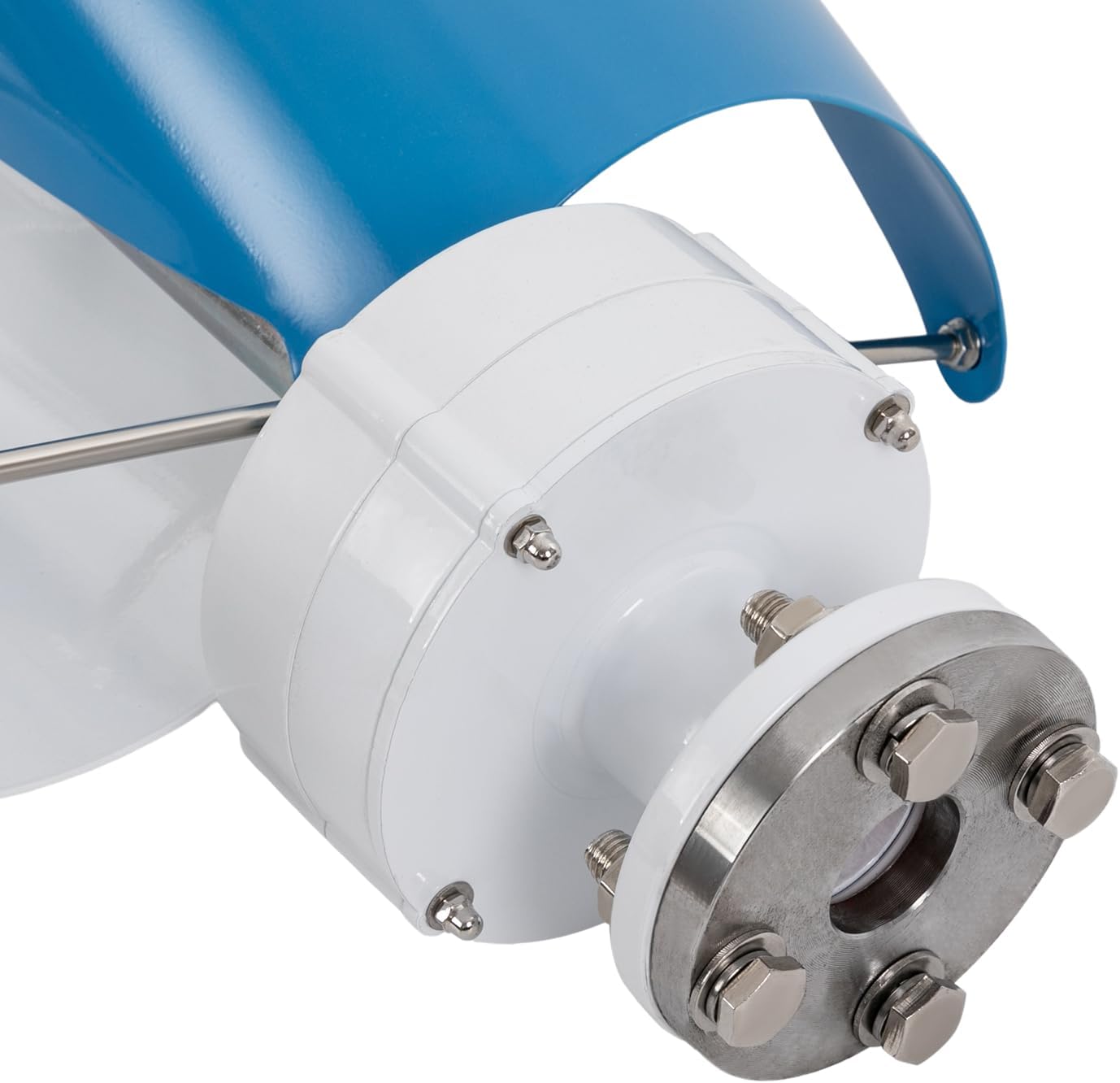

Flange: DN25

Rated Battery Voltage: 12V/24V

IP Protection Level: IP67

Wheel Diameter: 0.4m/1.31ft

Rated Power: 500W

Rated Voltage: 12V

Rated Wind Speed: 13m/42.65ft/ s

Control System: Electromagnetism

Assembly Required: Yes

Noise: Less Than 62dB

Product Size(L*H): 40*71cm/15.75*27.95in

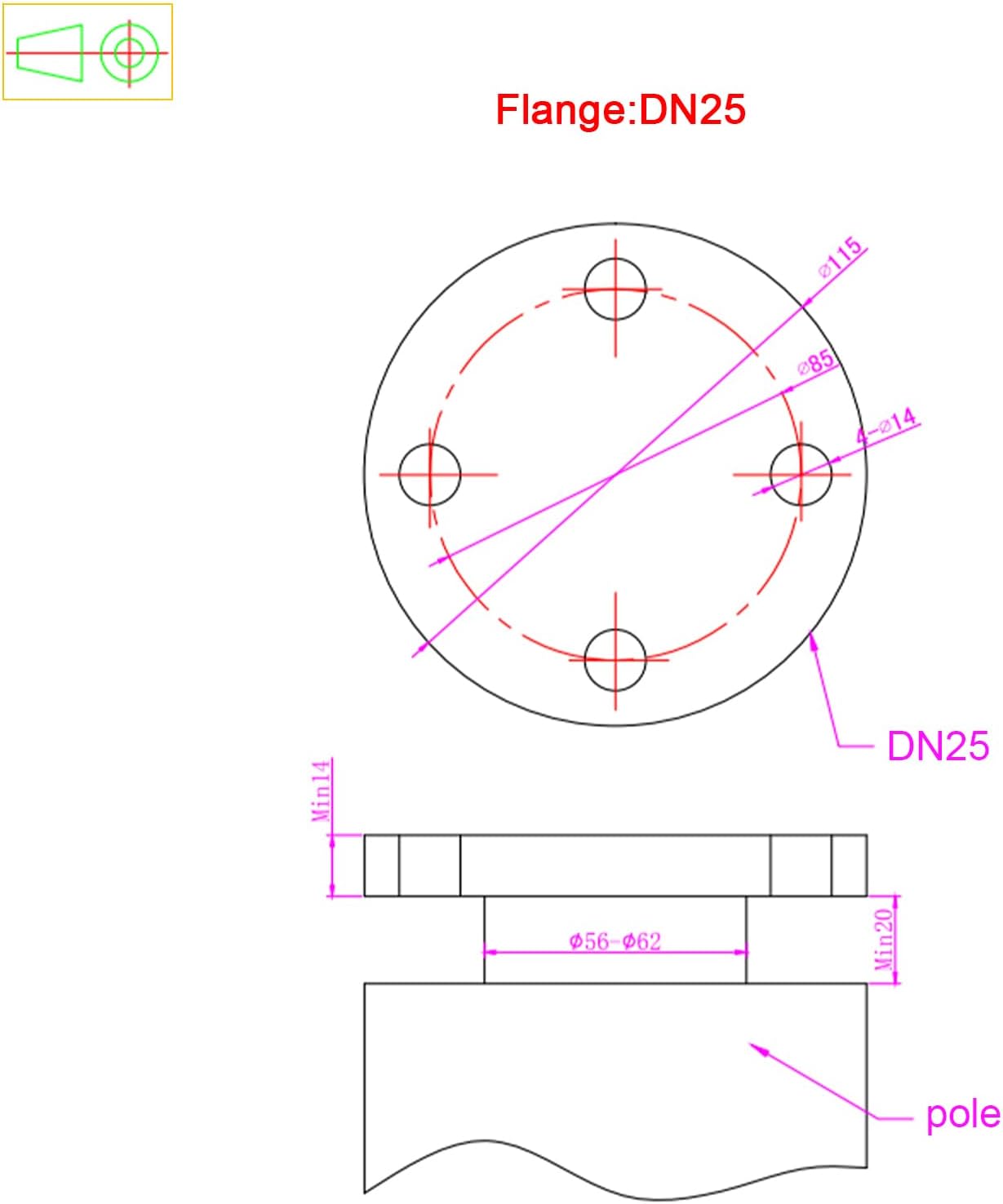

Flange Connection Size: φ14/0.55in, φ85/3.35in, φ115/4.53in

Number of Connection(Smallest) Holes: 4

Flange Thickness: Min14mm/0.55in

Pylon to Flange Distance: Min20mm/0.79in

Adaptable Pole Size Range: φ56-φ62 mm/φ2.22-φ2.44in

Package Size: 80.8*33*21cm/31.81*12.99*8.27in

Net Weight: 9kg/19.84lbs

Gross Weight: 10kg/22.05lbs

Package Included

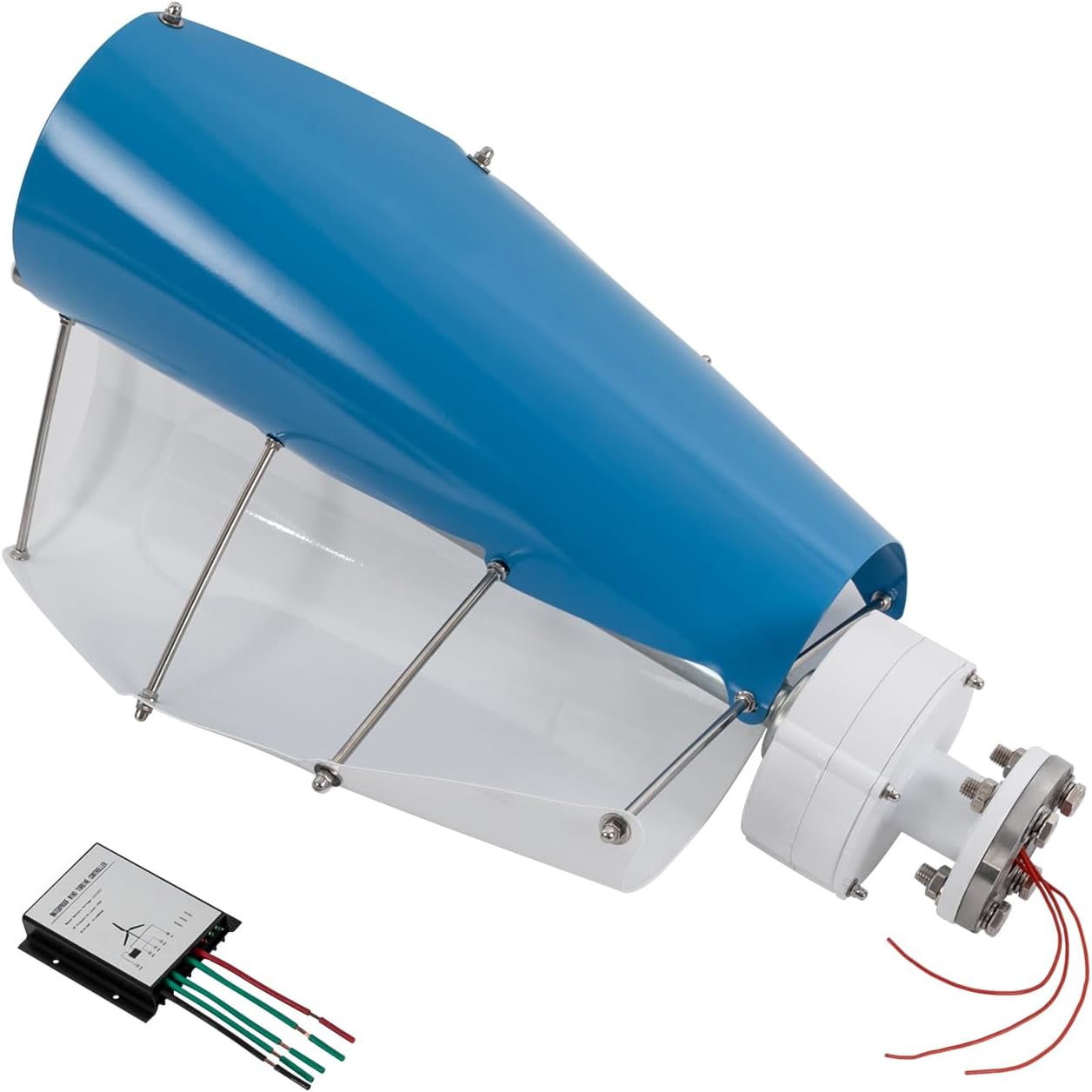

1* Wind Turbine

1* Controller

1* English Manual

Notes

1. Please check the style and size before purchasing.

2. Please read the instruction manual completely before installation and use, and pay particular attention to the safety instructions included.

3. Please connect the three green wires of the controller to the three wires of the fan (without distinguishing the poles), and the red and black wires to the positive and negative poles of the battery respectively.

4. Please be sure to use gel batteries or lead-acid batteries, not lithium batteries,because the controllers that come with our products are gel batteries.
